Part Number
Manufacturer
Description
Unit Price
In Stock

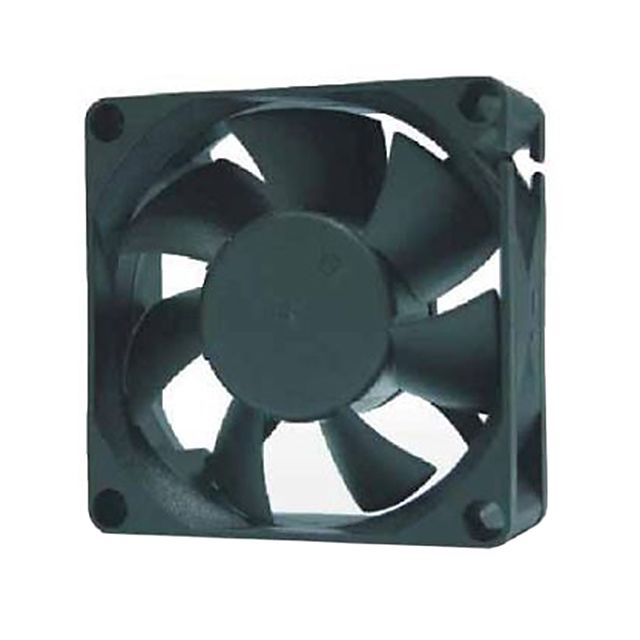

OD7025-12HBXC01A
Orion Fans
Manufacturer : Orion Fans
Series : OD7025
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 70mm L x 70mm H
Width : 25.00mm
Air Flow : 60.0 CFM (1.68m鲁/min)
Static Pressure : -
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Speed Sensor (Tach)
Noise : 49.5 dB
Power (Watts) : 9.60W
RPM : 6000 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE
Weight : 0.198 lb (89.81g)
Series : OD7025
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 70mm L x 70mm H
Width : 25.00mm
Air Flow : 60.0 CFM (1.68m鲁/min)
Static Pressure : -
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Speed Sensor (Tach)
Noise : 49.5 dB
Power (Watts) : 9.60W
RPM : 6000 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE
Weight : 0.198 lb (89.81g)
0
241 in stock

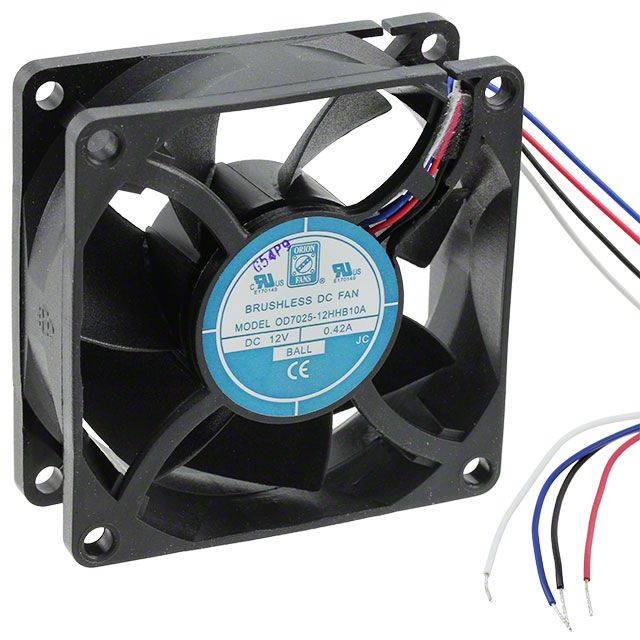

OD7025-12HHB10A
Orion Fans
Manufacturer : Orion Fans
Series : OD7025
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 70mm L x 70mm H
Width : 25.00mm
Air Flow : 51.0 CFM (1.43m鲁/min)
Static Pressure : -
Bearing Type : Ball
Fan Type : Tubeaxial
Features : PWM Control, Speed Sensor (Tach)
Noise : 46.0 dB
Power (Watts) : 5.04W
RPM : 5000 RPM
Termination : 4 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE
Weight : 0.198 lb (89.81g)
Series : OD7025
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 70mm L x 70mm H
Width : 25.00mm
Air Flow : 51.0 CFM (1.43m鲁/min)
Static Pressure : -
Bearing Type : Ball
Fan Type : Tubeaxial
Features : PWM Control, Speed Sensor (Tach)
Noise : 46.0 dB
Power (Watts) : 5.04W
RPM : 5000 RPM
Termination : 4 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE
Weight : 0.198 lb (89.81g)
0
789 in stock

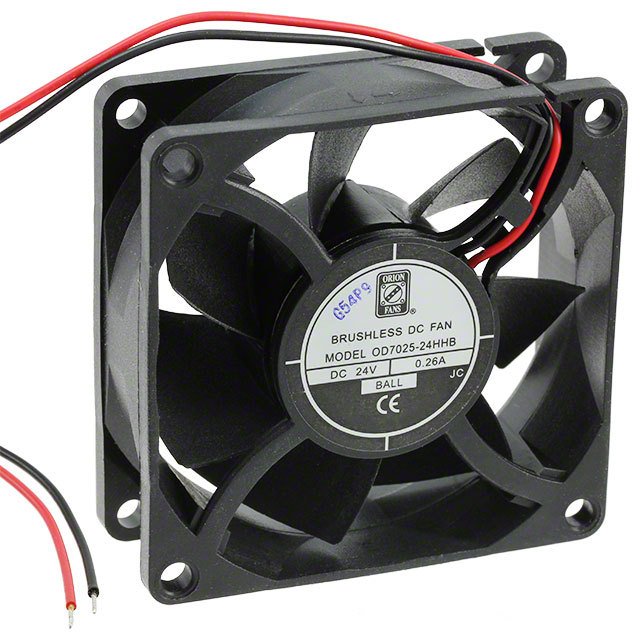

OD7025-24HHB
Orion Fans
Manufacturer : Orion Fans
Series : OD7025
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 70mm L x 70mm H
Width : 25.00mm
Air Flow : 51.0 CFM (1.43m鲁/min)
Static Pressure : -
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 46.0 dB
Power (Watts) : 6.24W
RPM : 5000 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE
Weight : 0.198 lb (89.81g)
Series : OD7025
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 70mm L x 70mm H
Width : 25.00mm
Air Flow : 51.0 CFM (1.43m鲁/min)
Static Pressure : -
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 46.0 dB
Power (Watts) : 6.24W
RPM : 5000 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE
Weight : 0.198 lb (89.81g)
0
199 in stock

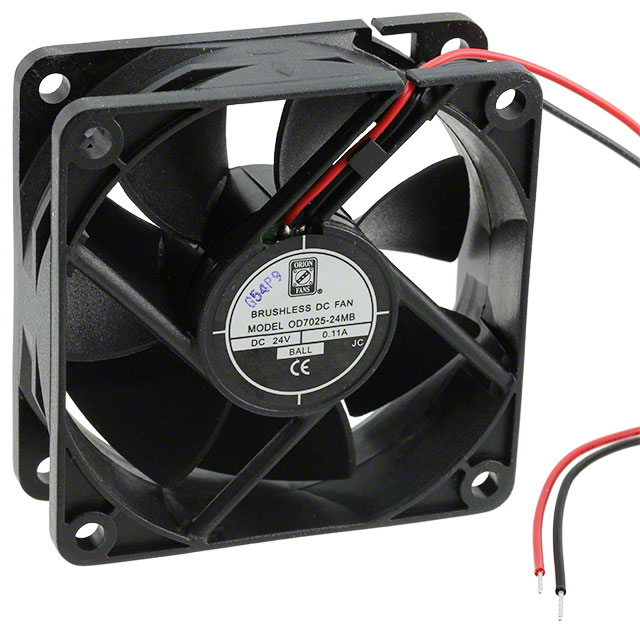

OD7025-24MB
Orion Fans
Manufacturer : Orion Fans
Series : OD7025
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 70mm L x 70mm H
Width : 25.00mm
Air Flow : 33.0 CFM (0.924m鲁/min)
Static Pressure : -
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 36.0 dB
Power (Watts) : 2.64W
RPM : 3800 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE
Weight : 0.198 lb (89.81g)
Series : OD7025
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 70mm L x 70mm H
Width : 25.00mm
Air Flow : 33.0 CFM (0.924m鲁/min)
Static Pressure : -
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 36.0 dB
Power (Watts) : 2.64W
RPM : 3800 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE
Weight : 0.198 lb (89.81g)
0
581 in stock

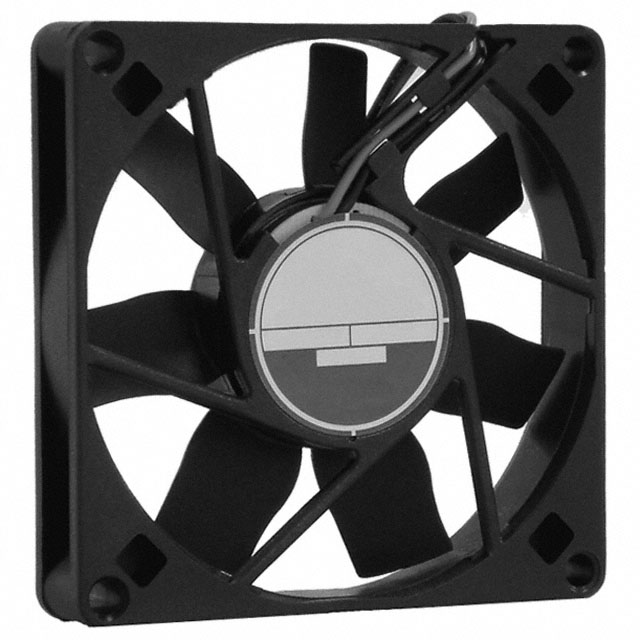

OD8015-12HB
Orion Fans
Manufacturer : Orion Fans
Series : OD8015
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 80mm L x 80mm H
Width : 15.00mm
Air Flow : 30.0 CFM (0.840m鲁/min)
Static Pressure : 0.110 in H2O (27.4 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 33.0 dB
Power (Watts) : -
RPM : 3200 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 176°F (-20 ~ 80°C)
Approvals : cURus, TUV
Weight : -
Series : OD8015
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 80mm L x 80mm H
Width : 15.00mm
Air Flow : 30.0 CFM (0.840m鲁/min)
Static Pressure : 0.110 in H2O (27.4 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 33.0 dB
Power (Watts) : -
RPM : 3200 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 176°F (-20 ~ 80°C)
Approvals : cURus, TUV
Weight : -
0
412 in stock
OD8015-12HB02A
Orion Fans
Manufacturer : Orion Fans
Series : OD8015
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 80mm L x 80mm H
Width : 15.00mm
Air Flow : -
Static Pressure : -
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Locked Rotor Sensor
Noise : -
Power (Watts) : -
RPM : -
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : cURus, TUV
Weight : -
Series : OD8015
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 80mm L x 80mm H
Width : 15.00mm
Air Flow : -
Static Pressure : -
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Locked Rotor Sensor
Noise : -
Power (Watts) : -
RPM : -
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : cURus, TUV
Weight : -
0
355 in stock

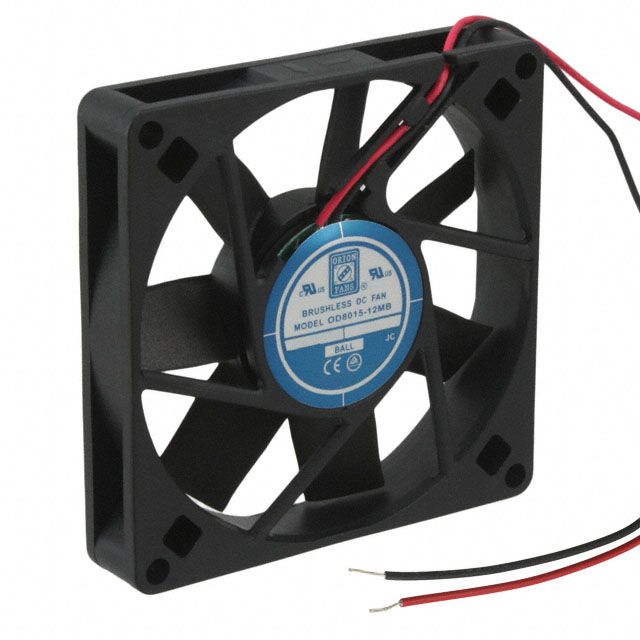

OD8015-12MB
Orion Fans
Manufacturer : Orion Fans
Series : OD8015
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 80mm L x 80mm H
Width : 15.00mm
Air Flow : 23.0 CFM (0.644m鲁/min)
Static Pressure : 0.070 in H2O (17.4 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 26.0 dB
Power (Watts) : -
RPM : 2500 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 176°F (-20 ~ 80°C)
Approvals : cURus, TUV
Weight : -
Series : OD8015
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 80mm L x 80mm H
Width : 15.00mm
Air Flow : 23.0 CFM (0.644m鲁/min)
Static Pressure : 0.070 in H2O (17.4 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 26.0 dB
Power (Watts) : -
RPM : 2500 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 176°F (-20 ~ 80°C)
Approvals : cURus, TUV
Weight : -
0
79 in stock

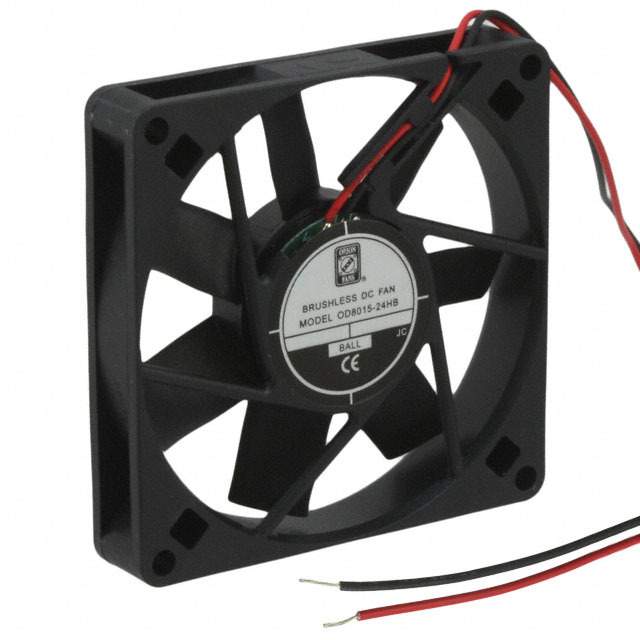

OD8015-24HB
Orion Fans
Manufacturer : Orion Fans
Series : OD8015
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 80mm L x 80mm H
Width : 15.00mm
Air Flow : 30.0 CFM (0.840m鲁/min)
Static Pressure : 0.110 in H2O (27.4 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 33.0 dB
Power (Watts) : -
RPM : 3200 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 176°F (-20 ~ 80°C)
Approvals : cURus, TUV
Weight : -
Series : OD8015
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 80mm L x 80mm H
Width : 15.00mm
Air Flow : 30.0 CFM (0.840m鲁/min)
Static Pressure : 0.110 in H2O (27.4 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 33.0 dB
Power (Watts) : -
RPM : 3200 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 176°F (-20 ~ 80°C)
Approvals : cURus, TUV
Weight : -
0
1127 in stock

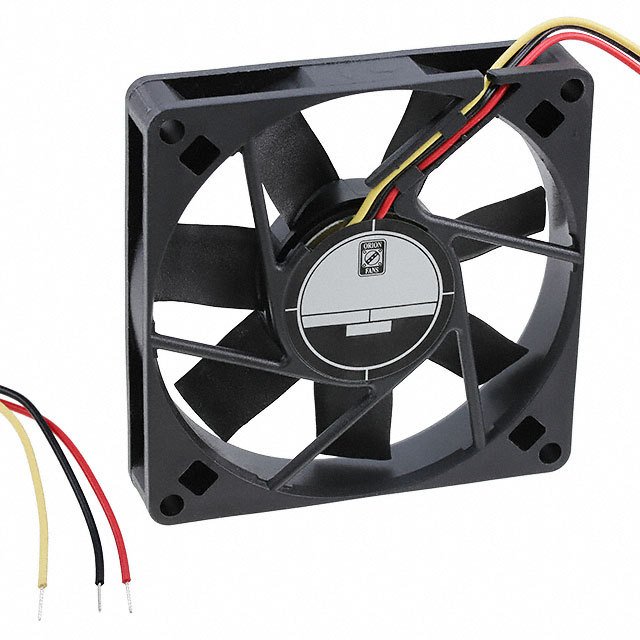

OD8015-24HB02A
Orion Fans
Manufacturer : Orion Fans
Series : OD8015
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 80mm L x 80mm H
Width : 15.50mm
Air Flow : 30.0 CFM (0.840m鲁/min)
Static Pressure : 0.120 in H2O (29.9 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Locked Rotor Sensor
Noise : 33.0 dB
Power (Watts) : 2.28W
RPM : 3200 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : cURus, TUV
Weight : 0.137 lb (62.14g)
Series : OD8015
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 80mm L x 80mm H
Width : 15.50mm
Air Flow : 30.0 CFM (0.840m鲁/min)
Static Pressure : 0.120 in H2O (29.9 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Locked Rotor Sensor
Noise : 33.0 dB
Power (Watts) : 2.28W
RPM : 3200 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : cURus, TUV
Weight : 0.137 lb (62.14g)
0
314 in stock

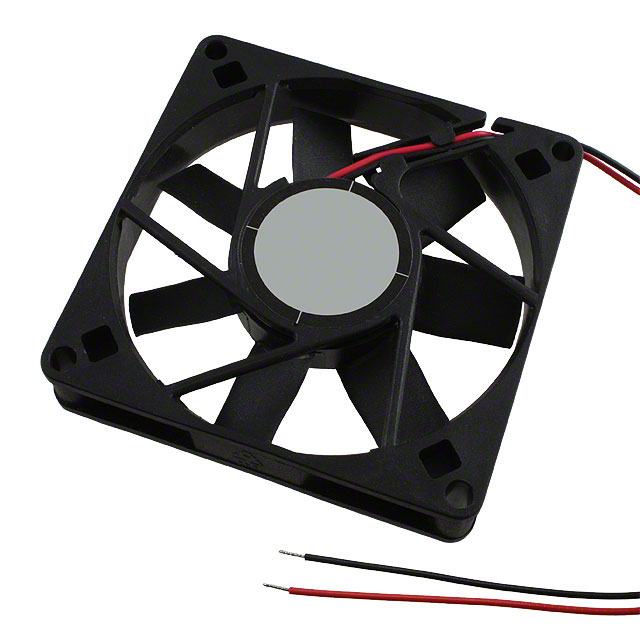

OD8015-24MB
Orion Fans
Manufacturer : Orion Fans
Series : OD8015
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 80mm L x 80mm H
Width : 15.00mm
Air Flow : 23.0 CFM (0.644m鲁/min)
Static Pressure : 0.070 in H2O (17.4 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 26.0 dB
Power (Watts) : -
RPM : 2500 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 176°F (-20 ~ 80°C)
Approvals : cURus, TUV
Weight : -
Series : OD8015
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 80mm L x 80mm H
Width : 15.00mm
Air Flow : 23.0 CFM (0.644m鲁/min)
Static Pressure : 0.070 in H2O (17.4 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 26.0 dB
Power (Watts) : -
RPM : 2500 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 176°F (-20 ~ 80°C)
Approvals : cURus, TUV
Weight : -
0
1043 in stock

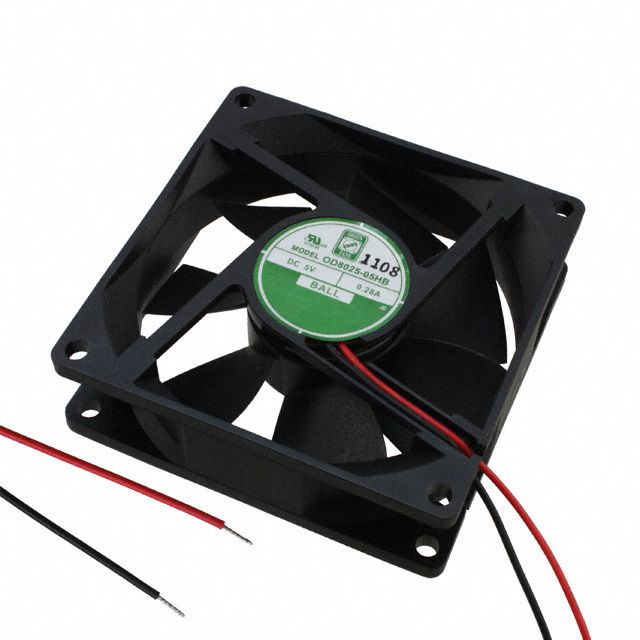

OD8025-05HB
Orion Fans
Manufacturer : Orion Fans
Series : OD8025
Part Status : Active
Voltage - Rated : 5VDC
Size / Dimension : Square - 80mm L x 80mm H
Width : 25.00mm
Air Flow : 35.0 CFM (0.980m鲁/min)
Static Pressure : 0.220 in H2O (54.8 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Auto Restart
Noise : 32.0 dB
Power (Watts) : -
RPM : 2800 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 176°F (-20 ~ 80°C)
Approvals : cURus
Weight : -
Series : OD8025
Part Status : Active
Voltage - Rated : 5VDC
Size / Dimension : Square - 80mm L x 80mm H
Width : 25.00mm
Air Flow : 35.0 CFM (0.980m鲁/min)
Static Pressure : 0.220 in H2O (54.8 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Auto Restart
Noise : 32.0 dB
Power (Watts) : -
RPM : 2800 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 176°F (-20 ~ 80°C)
Approvals : cURus
Weight : -
0
1319 in stock

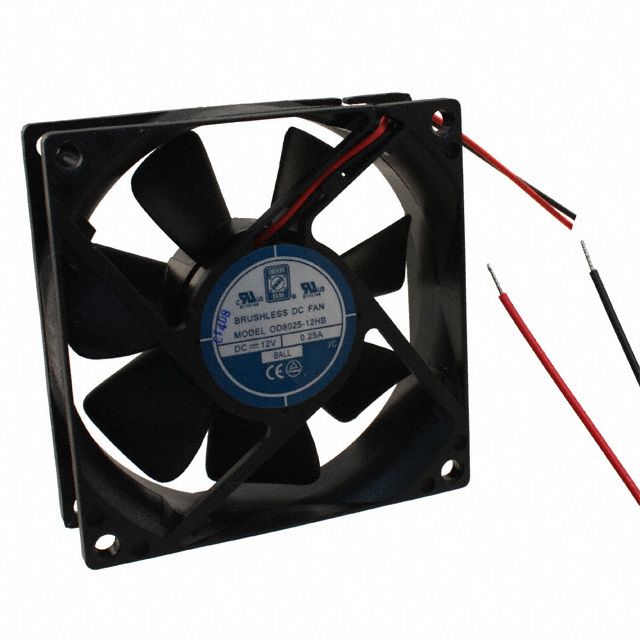

OD8025-12HB
Orion Fans
Manufacturer : Orion Fans
Series : OD8025
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 80mm L x 80mm H
Width : 25.00mm
Air Flow : 40.0 CFM (1.12m鲁/min)
Static Pressure : 0.150 in H2O (37.3 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 35.0 dB
Power (Watts) : 1.80W
RPM : 3100 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 167°F (-20 ~ 75°C)
Approvals : cURus, TUV
Weight : 0.19 lb (86.18g)
Series : OD8025
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 80mm L x 80mm H
Width : 25.00mm
Air Flow : 40.0 CFM (1.12m鲁/min)
Static Pressure : 0.150 in H2O (37.3 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 35.0 dB
Power (Watts) : 1.80W
RPM : 3100 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 167°F (-20 ~ 75°C)
Approvals : cURus, TUV
Weight : 0.19 lb (86.18g)
0
8587 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Eruic
- krics@eruic.com
- krics@eruic.com
- Room 25i, Block A, Duhui 100 Building, Zhonghang Road, Huaqiang North Street, Futian District, Shenzhen, Guangdong
Customer service
Copyright © 2025 Eruic. All rights reserved.
web.ui.design.webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
