Part Number
Manufacturer
Description
Unit Price
In Stock

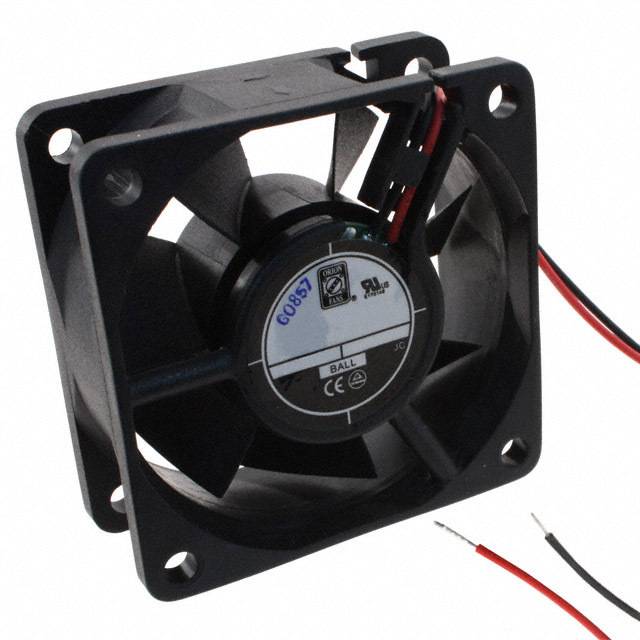

OD6025-24MB
Orion Fans
Manufacturer : Orion Fans
Series : OD6025
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 60mm L x 60mm H
Width : 25.00mm
Air Flow : 18.0 CFM (0.504m鲁/min)
Static Pressure : 0.110 in H2O (27.4 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 27.0 dB
Power (Watts) : 1.90W
RPM : 3500 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 167°F (-20 ~ 75°C)
Approvals : cURus, TUV
Weight : -
Series : OD6025
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 60mm L x 60mm H
Width : 25.00mm
Air Flow : 18.0 CFM (0.504m鲁/min)
Static Pressure : 0.110 in H2O (27.4 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 27.0 dB
Power (Watts) : 1.90W
RPM : 3500 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 167°F (-20 ~ 75°C)
Approvals : cURus, TUV
Weight : -
0
546 in stock
OD6025-48HB
Orion Fans
Manufacturer : Orion Fans
Series : OD6025
Part Status : Active
Voltage - Rated : 48VDC
Size / Dimension : Square - 60mm L x 60mm H
Width : 25.00mm
Air Flow : 28.0 CFM (0.784m鲁/min)
Static Pressure : 0.240 in H2O (59.8 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 30.0 dB
Power (Watts) : 3.40W
RPM : 4200 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 167°F (-20 ~ 75°C)
Approvals : cURus, TUV
Weight : -
Series : OD6025
Part Status : Active
Voltage - Rated : 48VDC
Size / Dimension : Square - 60mm L x 60mm H
Width : 25.00mm
Air Flow : 28.0 CFM (0.784m鲁/min)
Static Pressure : 0.240 in H2O (59.8 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 30.0 dB
Power (Watts) : 3.40W
RPM : 4200 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 167°F (-20 ~ 75°C)
Approvals : cURus, TUV
Weight : -
0
1466 in stock
OD6025-60LB
Orion Fans
Manufacturer : Orion Fans
Series : OD6025
Part Status : Active
Voltage - Rated : 60VDC
Size / Dimension : Square - 60mm L x 60mm H
Width : 25.00mm
Air Flow : 26.0 CFM (0.728m鲁/min)
Static Pressure : 0.280 in H2O (69.7 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 37.0 dB
Power (Watts) : -
RPM : 5000 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 167°F (-20 ~ 75°C)
Approvals : cURus, TUV
Weight : -
Series : OD6025
Part Status : Active
Voltage - Rated : 60VDC
Size / Dimension : Square - 60mm L x 60mm H
Width : 25.00mm
Air Flow : 26.0 CFM (0.728m鲁/min)
Static Pressure : 0.280 in H2O (69.7 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 37.0 dB
Power (Watts) : -
RPM : 5000 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 167°F (-20 ~ 75°C)
Approvals : cURus, TUV
Weight : -
0
110 in stock

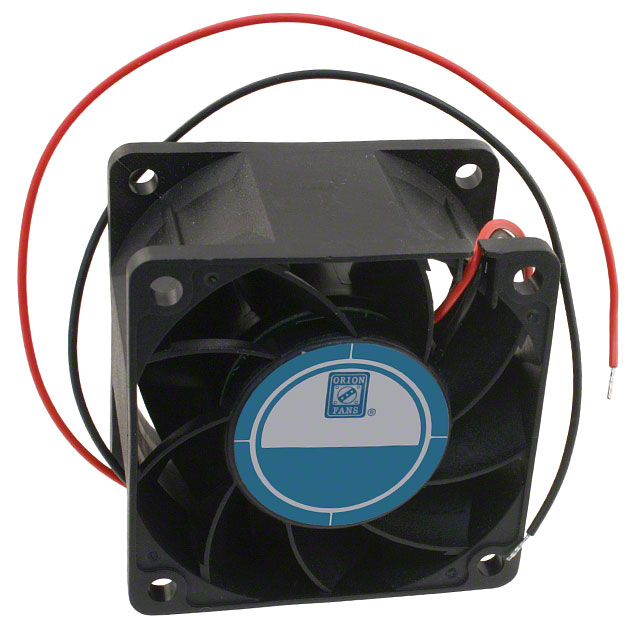

OD6038-12HBVXC
Orion Fans
Manufacturer : Orion Fans
Series : OD6038
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 60mm L x 60mm H
Width : 38.00mm
Air Flow : 61.0 CFM (1.71m鲁/min)
Static Pressure : 1.590 in H2O (396.1 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 64.0 dB
Power (Watts) : 17.00W
RPM : 10000 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : cURus, TUV
Weight : -
Series : OD6038
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 60mm L x 60mm H
Width : 38.00mm
Air Flow : 61.0 CFM (1.71m鲁/min)
Static Pressure : 1.590 in H2O (396.1 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 64.0 dB
Power (Watts) : 17.00W
RPM : 10000 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : cURus, TUV
Weight : -
0
524 in stock
OD6038-12HHBXC01A
Orion Fans
Manufacturer : Orion Fans
Series : OD6038
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 60mm L x 60mm H
Width : 38.00mm
Air Flow : 86.0 CFM (2.41m鲁/min)
Static Pressure : 2.950 in H2O (734.8 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Speed Sensor (Tach)
Noise : 66.0 dB
Power (Watts) : 36.00W
RPM : 16000 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : cURus, TUV
Weight : 0.276 lb (125.19g)
Series : OD6038
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 60mm L x 60mm H
Width : 38.00mm
Air Flow : 86.0 CFM (2.41m鲁/min)
Static Pressure : 2.950 in H2O (734.8 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Speed Sensor (Tach)
Noise : 66.0 dB
Power (Watts) : 36.00W
RPM : 16000 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : cURus, TUV
Weight : 0.276 lb (125.19g)
0
119 in stock

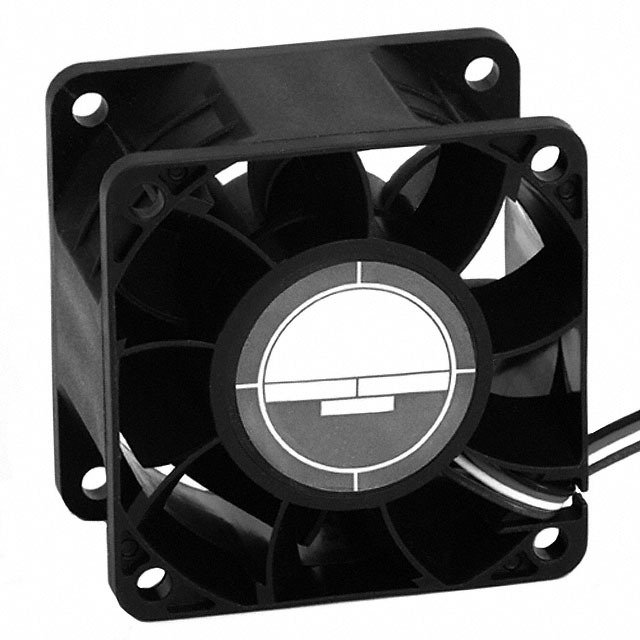

OD6038-12HHBXC10A
Orion Fans
Manufacturer : Orion Fans
Series : OD6038
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 60mm L x 60mm H
Width : 38.00mm
Air Flow : 86.0 CFM (2.41m鲁/min)
Static Pressure : 2.950 in H2O (734.8 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : PWM Control, Speed Sensor (Tach)
Noise : 66.0 dB
Power (Watts) : 36.00W
RPM : 16000 RPM
Termination : 4 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : cURus, TUV
Weight : 0.276 lb (125.19g)
Series : OD6038
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 60mm L x 60mm H
Width : 38.00mm
Air Flow : 86.0 CFM (2.41m鲁/min)
Static Pressure : 2.950 in H2O (734.8 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : PWM Control, Speed Sensor (Tach)
Noise : 66.0 dB
Power (Watts) : 36.00W
RPM : 16000 RPM
Termination : 4 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : cURus, TUV
Weight : 0.276 lb (125.19g)
0
265 in stock

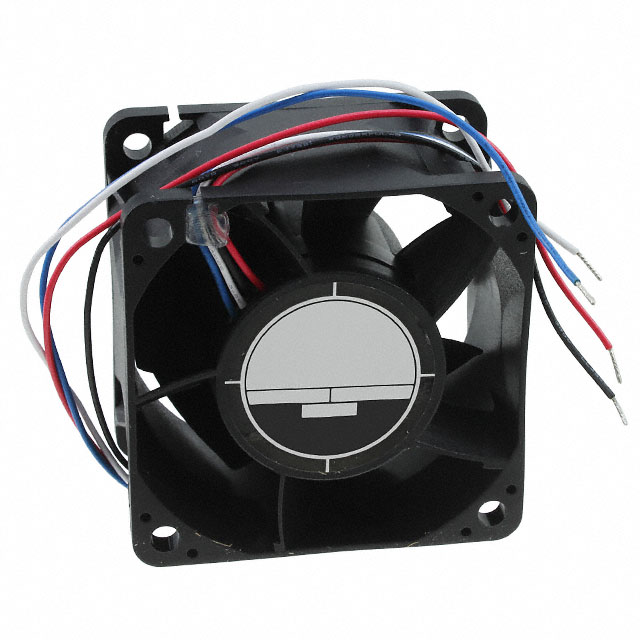

OD6038-24HHBXC10A
Orion Fans
Manufacturer : Orion Fans
Series : OD6038
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 60mm L x 60mm H
Width : 38.00mm
Air Flow : 86.0 CFM (2.41m鲁/min)
Static Pressure : 2.950 in H2O (734.8 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : PWM Control, Speed Sensor (Tach)
Noise : 66.0 dB(A)
Power (Watts) : 30.00W
RPM : 16000 RPM
Termination : 4 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 158°F (-20 ~ 70°C)
Approvals : cURus, TUV
Weight : 0.276 lb (125.19g)
Series : OD6038
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 60mm L x 60mm H
Width : 38.00mm
Air Flow : 86.0 CFM (2.41m鲁/min)
Static Pressure : 2.950 in H2O (734.8 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : PWM Control, Speed Sensor (Tach)
Noise : 66.0 dB(A)
Power (Watts) : 30.00W
RPM : 16000 RPM
Termination : 4 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 158°F (-20 ~ 70°C)
Approvals : cURus, TUV
Weight : 0.276 lb (125.19g)
0
875 in stock

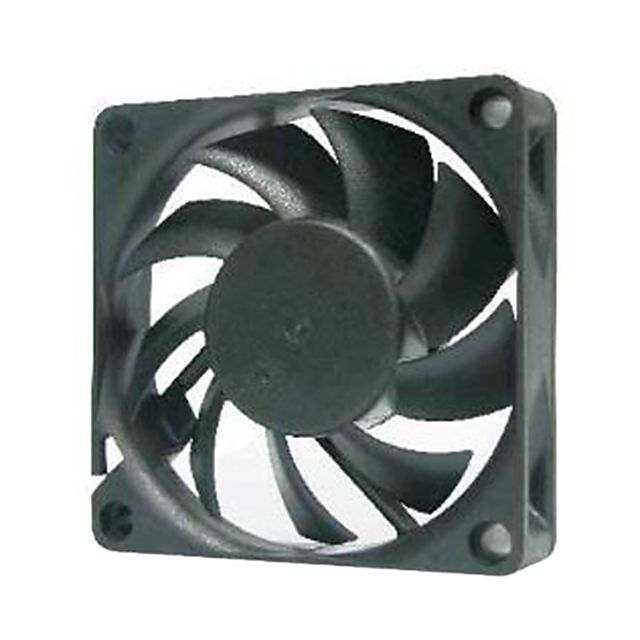

OD7015-12HHB01A
Orion Fans
Manufacturer : Orion Fans
Series : OD7015
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 70mm L x 70mm H
Width : 15.50mm
Air Flow : 41.0 CFM (1.15m鲁/min)
Static Pressure : 0.260 in H2O (64.8 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Speed Sensor (Tach)
Noise : 44.5 dB
Power (Watts) : 4.32W
RPM : 5500 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : cURus, TUV
Weight : 0.111 lb (50.35g)
Series : OD7015
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 70mm L x 70mm H
Width : 15.50mm
Air Flow : 41.0 CFM (1.15m鲁/min)
Static Pressure : 0.260 in H2O (64.8 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Speed Sensor (Tach)
Noise : 44.5 dB
Power (Watts) : 4.32W
RPM : 5500 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : cURus, TUV
Weight : 0.111 lb (50.35g)
0
255 in stock

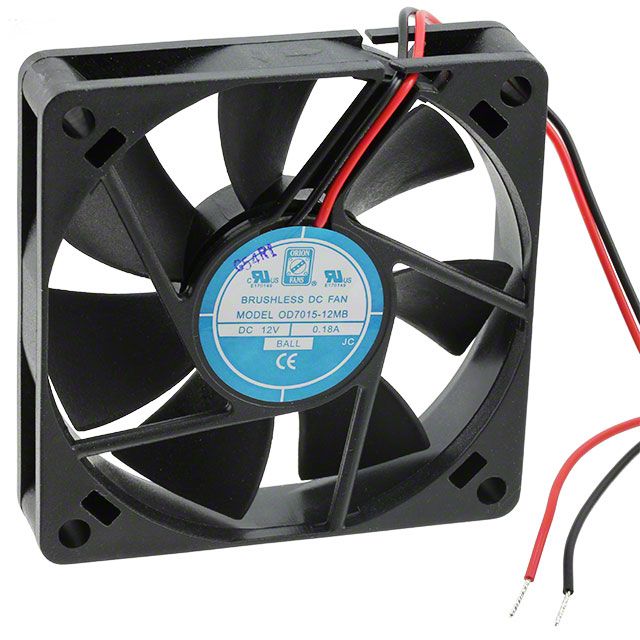

OD7015-12MB
Orion Fans
Manufacturer : Orion Fans
Series : OD7015
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 70mm L x 70mm H
Width : 15.50mm
Air Flow : 28.5 CFM (0.798m鲁/min)
Static Pressure : -
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 37.0 dB
Power (Watts) : 2.16W
RPM : 3500 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : cURus, TUV
Weight : 0.134 lb (60.78g)
Series : OD7015
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 70mm L x 70mm H
Width : 15.50mm
Air Flow : 28.5 CFM (0.798m鲁/min)
Static Pressure : -
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 37.0 dB
Power (Watts) : 2.16W
RPM : 3500 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : cURus, TUV
Weight : 0.134 lb (60.78g)
0
228 in stock

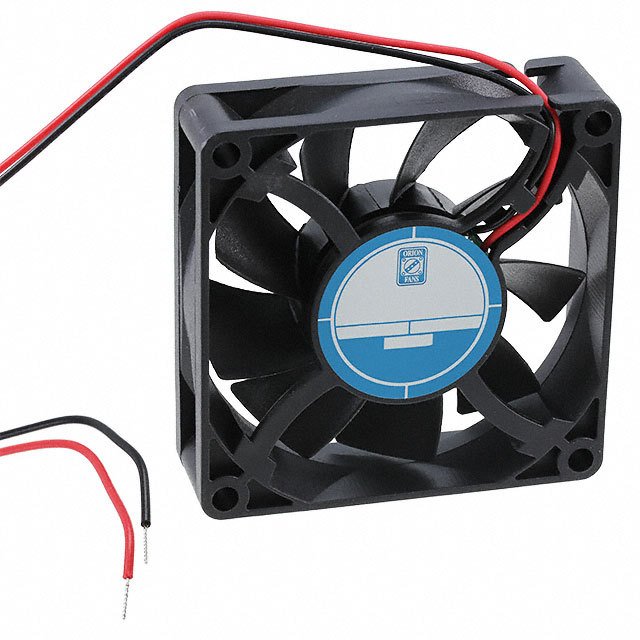

OD7020-12HB
Orion Fans
Manufacturer : Orion Fans
Series : OD7020
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 70mm L x 70mm H
Width : 20.00mm
Air Flow : 41.0 CFM (1.15m鲁/min)
Static Pressure : -
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 41.5 dB
Power (Watts) : 5.16W
RPM : 4500 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : cURus, TUV
Weight : 0.137 lb (62.14g)
Series : OD7020
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 70mm L x 70mm H
Width : 20.00mm
Air Flow : 41.0 CFM (1.15m鲁/min)
Static Pressure : -
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 41.5 dB
Power (Watts) : 5.16W
RPM : 4500 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : cURus, TUV
Weight : 0.137 lb (62.14g)
0
183 in stock

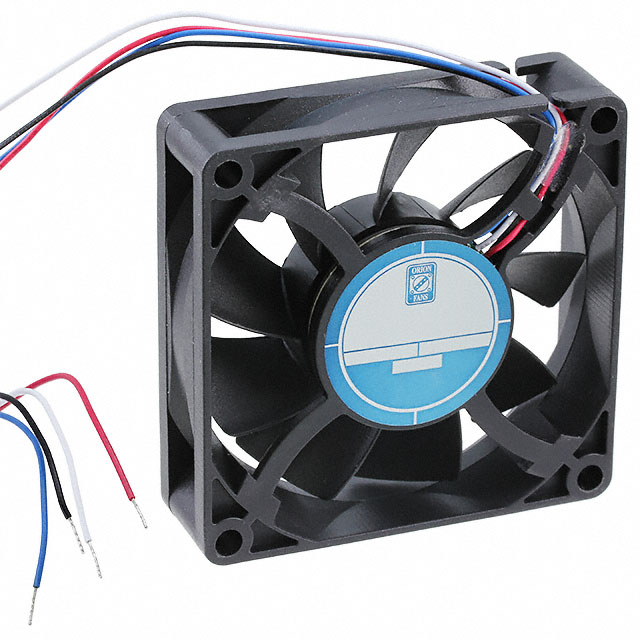

OD7020-12HHB10A
Orion Fans
Manufacturer : Orion Fans
Series : OD7020
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 70mm L x 70mm H
Width : 20.00mm
Air Flow : 45.0 CFM (1.26m鲁/min)
Static Pressure : -
Bearing Type : Ball
Fan Type : Tubeaxial
Features : PWM Control, Speed Sensor (Tach)
Noise : 43.0 dB
Power (Watts) : 5.04W
RPM : 5000 RPM
Termination : 4 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : cURus, TUV
Weight : 0.137 lb (62.14g)
Series : OD7020
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 70mm L x 70mm H
Width : 20.00mm
Air Flow : 45.0 CFM (1.26m鲁/min)
Static Pressure : -
Bearing Type : Ball
Fan Type : Tubeaxial
Features : PWM Control, Speed Sensor (Tach)
Noise : 43.0 dB
Power (Watts) : 5.04W
RPM : 5000 RPM
Termination : 4 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : cURus, TUV
Weight : 0.137 lb (62.14g)
0
617 in stock

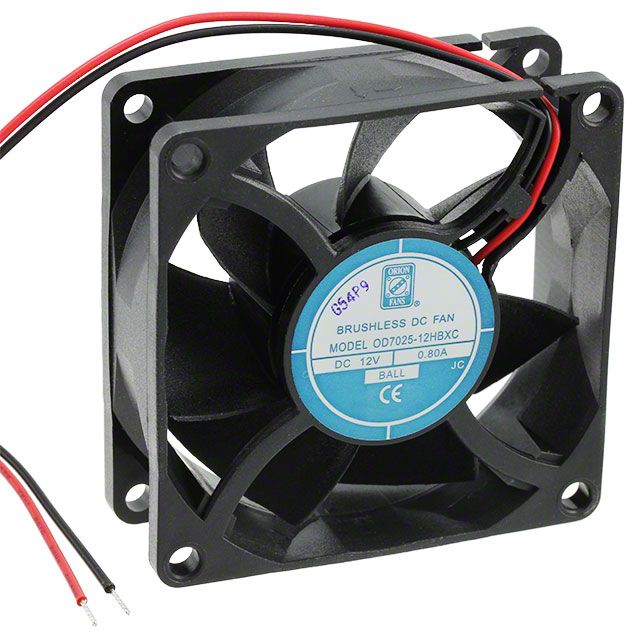

OD7025-12HBXC
Orion Fans
Manufacturer : Orion Fans
Series : OD7025
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 70mm L x 70mm H
Width : 25.00mm
Air Flow : 60.0 CFM (1.68m鲁/min)
Static Pressure : -
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 49.5 dB
Power (Watts) : 9.60W
RPM : 6000 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE
Weight : 0.198 lb (89.81g)
Series : OD7025
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 70mm L x 70mm H
Width : 25.00mm
Air Flow : 60.0 CFM (1.68m鲁/min)
Static Pressure : -
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 49.5 dB
Power (Watts) : 9.60W
RPM : 6000 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE
Weight : 0.198 lb (89.81g)
0
220 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Eruic
- krics@eruic.com
- krics@eruic.com
- Room 25i, Block A, Duhui 100 Building, Zhonghang Road, Huaqiang North Street, Futian District, Shenzhen, Guangdong
Customer service
Copyright © 2025 Eruic. All rights reserved.
web.ui.design.webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
