Part Number
Manufacturer
Description
Unit Price
In Stock

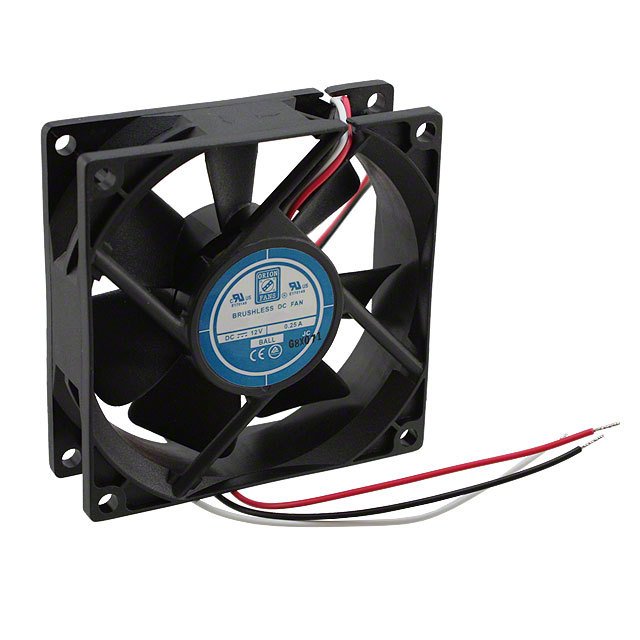

OD8025-12HB01A
Orion Fans
Manufacturer : Orion Fans
Series : OD8025
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 80mm L x 80mm H
Width : 25.00mm
Air Flow : 40.0 CFM (1.12m鲁/min)
Static Pressure : 0.150 in H2O (37.3 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Auto Restart, Speed Sensor (Tach)
Noise : 35.0 dB
Power (Watts) : 1.80W
RPM : 3100 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 167°F (-20 ~ 75°C)
Approvals : cURus, TUV
Weight : 0.19 lb (86.18g)
Series : OD8025
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 80mm L x 80mm H
Width : 25.00mm
Air Flow : 40.0 CFM (1.12m鲁/min)
Static Pressure : 0.150 in H2O (37.3 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Auto Restart, Speed Sensor (Tach)
Noise : 35.0 dB
Power (Watts) : 1.80W
RPM : 3100 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 167°F (-20 ~ 75°C)
Approvals : cURus, TUV
Weight : 0.19 lb (86.18g)
0
252 in stock
OD8025-12HB02A
Orion Fans
Manufacturer : Orion Fans
Series : OD8025
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 80mm L x 80mm H
Width : 25.00mm
Air Flow : 40.0 CFM (1.12m鲁/min)
Static Pressure : 0.150 in H2O (37.3 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Auto Restart, Locked Rotor Sensor
Noise : 35.0 dB
Power (Watts) : 1.80W
RPM : 3100 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 167°F (-20 ~ 75°C)
Approvals : cURus, TUV
Weight : 0.19 lb (86.18g)
Series : OD8025
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 80mm L x 80mm H
Width : 25.00mm
Air Flow : 40.0 CFM (1.12m鲁/min)
Static Pressure : 0.150 in H2O (37.3 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Auto Restart, Locked Rotor Sensor
Noise : 35.0 dB
Power (Watts) : 1.80W
RPM : 3100 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 167°F (-20 ~ 75°C)
Approvals : cURus, TUV
Weight : 0.19 lb (86.18g)
0
165 in stock

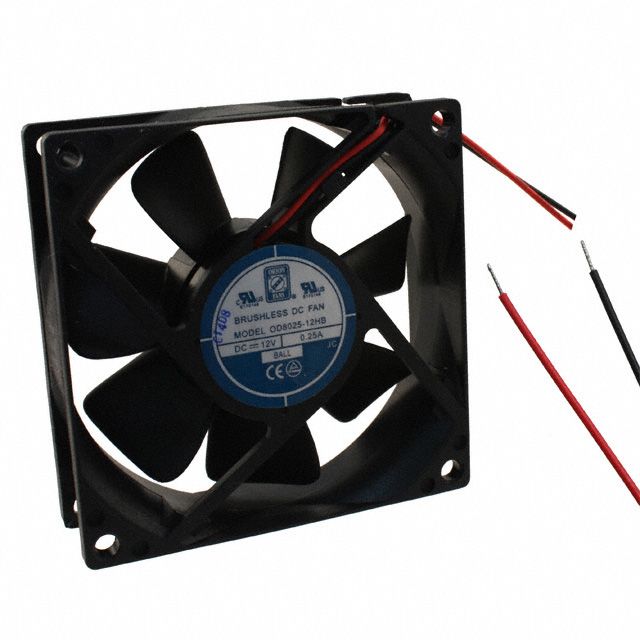

OD8025-12HBIP55
Orion Fans
Manufacturer : Orion Fans
Series : OD8025
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 80mm L x 80mm H
Width : 25.00mm
Air Flow : 40.0 CFM (1.12m鲁/min)
Static Pressure : 0.150 in H2O (37.3 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Auto Restart
Noise : 35.0 dB
Power (Watts) : 1.80W
RPM : 3100 RPM
Termination : 2 Wire Leads
Ingress Protection : IP55 - Dust Protected, Water Resistant
Operating Temperature : -4 ~ 167°F (-20 ~ 75°C)
Approvals : cURus, TUV
Weight : 0.19 lb (86.18g)
Series : OD8025
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 80mm L x 80mm H
Width : 25.00mm
Air Flow : 40.0 CFM (1.12m鲁/min)
Static Pressure : 0.150 in H2O (37.3 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Auto Restart
Noise : 35.0 dB
Power (Watts) : 1.80W
RPM : 3100 RPM
Termination : 2 Wire Leads
Ingress Protection : IP55 - Dust Protected, Water Resistant
Operating Temperature : -4 ~ 167°F (-20 ~ 75°C)
Approvals : cURus, TUV
Weight : 0.19 lb (86.18g)
0
66 in stock
OD8025-12HSS
Orion Fans
Manufacturer : Orion Fans
Series : OD8025
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 80mm L x 80mm H
Width : 25.00mm
Air Flow : 40.0 CFM (1.12m鲁/min)
Static Pressure : 0.160 in H2O (39.8 Pa)
Bearing Type : Sealed Sleeve
Fan Type : Tubeaxial
Features : Auto Restart
Noise : 34.0 dB
Power (Watts) : 2.90W
RPM : 3100 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : cURus, TUV
Weight : -
Series : OD8025
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 80mm L x 80mm H
Width : 25.00mm
Air Flow : 40.0 CFM (1.12m鲁/min)
Static Pressure : 0.160 in H2O (39.8 Pa)
Bearing Type : Sealed Sleeve
Fan Type : Tubeaxial
Features : Auto Restart
Noise : 34.0 dB
Power (Watts) : 2.90W
RPM : 3100 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : cURus, TUV
Weight : -
0
806 in stock
OD8025-12LB
Orion Fans
Manufacturer : Orion Fans
Series : OD8025
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 80mm L x 80mm H
Width : 25.00mm
Air Flow : 26.0 CFM (0.728m鲁/min)
Static Pressure : 0.070 in H2O (17.4 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Auto Restart
Noise : 23.0 dB
Power (Watts) : 600mW
RPM : 2100 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 167°F (-20 ~ 75°C)
Approvals : cURus, TUV
Weight : 0.19 lb (86.18g)
Series : OD8025
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 80mm L x 80mm H
Width : 25.00mm
Air Flow : 26.0 CFM (0.728m鲁/min)
Static Pressure : 0.070 in H2O (17.4 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Auto Restart
Noise : 23.0 dB
Power (Watts) : 600mW
RPM : 2100 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 167°F (-20 ~ 75°C)
Approvals : cURus, TUV
Weight : 0.19 lb (86.18g)
0
98 in stock

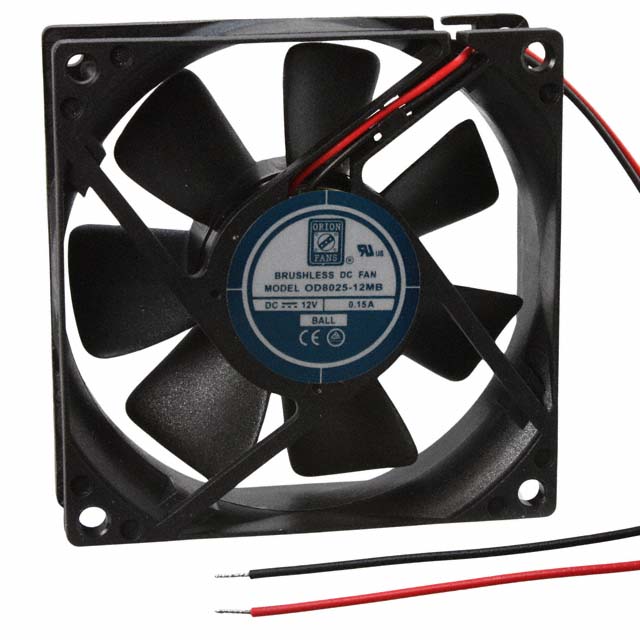

OD8025-12MB
Orion Fans
Manufacturer : Orion Fans
Series : OD8025
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 80mm L x 80mm H
Width : 25.00mm
Air Flow : 31.0 CFM (0.868m鲁/min)
Static Pressure : 0.100 in H2O (24.9 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Auto Restart
Noise : 28.0 dB
Power (Watts) : 0.96W
RPM : 2500 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 167°F (-20 ~ 75°C)
Approvals : cURus, TUV
Weight : 0.19 lb (86.18g)
Series : OD8025
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 80mm L x 80mm H
Width : 25.00mm
Air Flow : 31.0 CFM (0.868m鲁/min)
Static Pressure : 0.100 in H2O (24.9 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Auto Restart
Noise : 28.0 dB
Power (Watts) : 0.96W
RPM : 2500 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 167°F (-20 ~ 75°C)
Approvals : cURus, TUV
Weight : 0.19 lb (86.18g)
0
1683 in stock

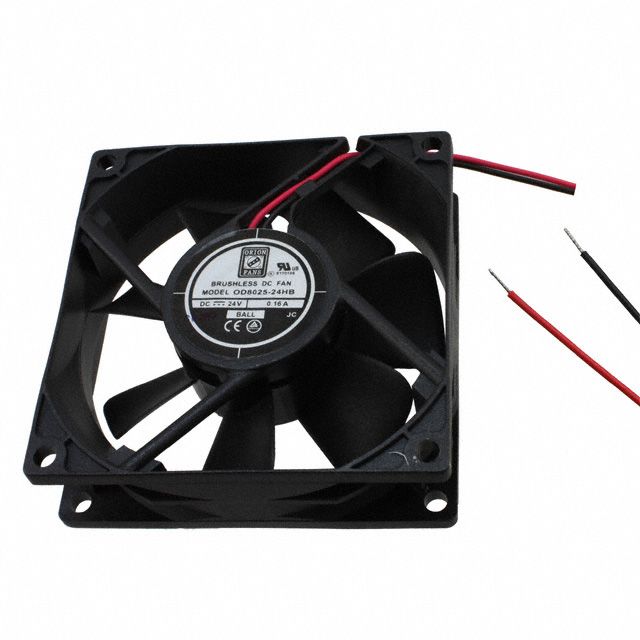

OD8025-24HB
Orion Fans
Manufacturer : Orion Fans
Series : OD8025
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 80mm L x 80mm H
Width : 25.00mm
Air Flow : 40.0 CFM (1.12m鲁/min)
Static Pressure : 0.160 in H2O (39.8 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Auto Restart
Noise : 35.0 dB
Power (Watts) : 1.44W
RPM : 3100 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 167°F (-20 ~ 75°C)
Approvals : cURus, TUV
Weight : 0.19 lb (86.18g)
Series : OD8025
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 80mm L x 80mm H
Width : 25.00mm
Air Flow : 40.0 CFM (1.12m鲁/min)
Static Pressure : 0.160 in H2O (39.8 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Auto Restart
Noise : 35.0 dB
Power (Watts) : 1.44W
RPM : 3100 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 167°F (-20 ~ 75°C)
Approvals : cURus, TUV
Weight : 0.19 lb (86.18g)
0
1012 in stock

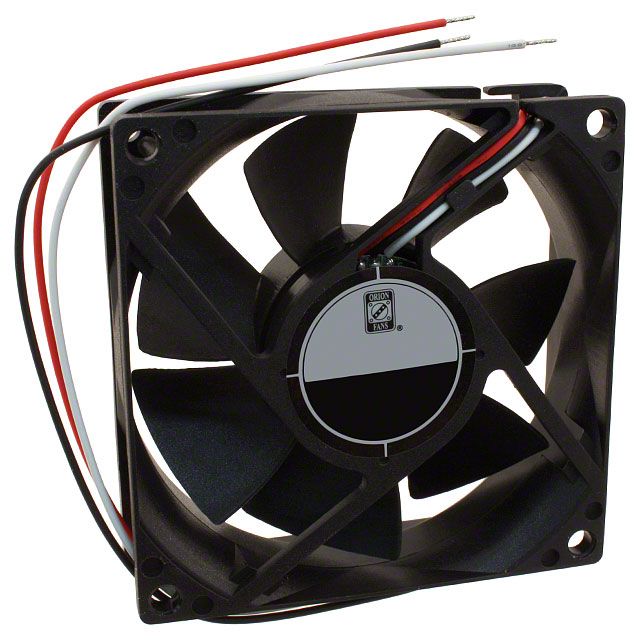

OD8025-24HB01A
Orion Fans
Manufacturer : Orion Fans
Series : OD8025
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 80mm L x 80mm H
Width : 25.00mm
Air Flow : 40.0 CFM (1.12m鲁/min)
Static Pressure : 0.160 in H2O (39.8 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Auto Restart, Speed Sensor (Tach)
Noise : 35.0 dB
Power (Watts) : 1.44W
RPM : 3100 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 167°F (-20 ~ 75°C)
Approvals : cURus, TUV
Weight : 0.19 lb (86.18g)
Series : OD8025
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 80mm L x 80mm H
Width : 25.00mm
Air Flow : 40.0 CFM (1.12m鲁/min)
Static Pressure : 0.160 in H2O (39.8 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Auto Restart, Speed Sensor (Tach)
Noise : 35.0 dB
Power (Watts) : 1.44W
RPM : 3100 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 167°F (-20 ~ 75°C)
Approvals : cURus, TUV
Weight : 0.19 lb (86.18g)
0
241 in stock

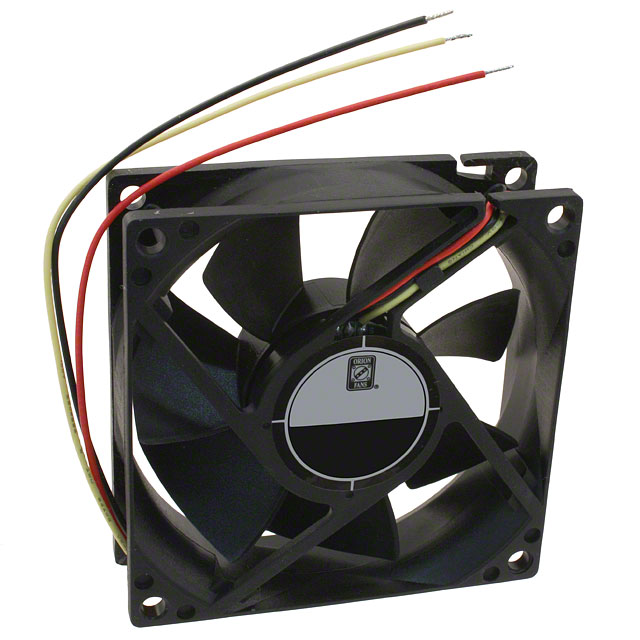

OD8025-24HB02A
Orion Fans
Manufacturer : Orion Fans
Series : OD8025
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 80mm L x 80mm H
Width : 25.00mm
Air Flow : 40.0 CFM (1.12m鲁/min)
Static Pressure : 0.150 in H2O (37.3 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Auto Restart, Locked Rotor Sensor
Noise : 35.0 dB
Power (Watts) : 1.44W
RPM : 3100 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 167°F (-20 ~ 75°C)
Approvals : cURus, TUV
Weight : 0.19 lb (86.18g)
Series : OD8025
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 80mm L x 80mm H
Width : 25.00mm
Air Flow : 40.0 CFM (1.12m鲁/min)
Static Pressure : 0.150 in H2O (37.3 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Auto Restart, Locked Rotor Sensor
Noise : 35.0 dB
Power (Watts) : 1.44W
RPM : 3100 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 167°F (-20 ~ 75°C)
Approvals : cURus, TUV
Weight : 0.19 lb (86.18g)
0
1549 in stock
OD8025-24HSS
Orion Fans
Manufacturer : Orion Fans
Series : OD8025
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 80mm L x 80mm H
Width : 25.00mm
Air Flow : 40.0 CFM (1.12m鲁/min)
Static Pressure : 0.160 in H2O (39.8 Pa)
Bearing Type : Sealed Sleeve
Fan Type : Tubeaxial
Features : Auto Restart
Noise : 34.0 dB
Power (Watts) : 2.40W
RPM : 3100 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : cURus, TUV
Weight : -
Series : OD8025
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 80mm L x 80mm H
Width : 25.00mm
Air Flow : 40.0 CFM (1.12m鲁/min)
Static Pressure : 0.160 in H2O (39.8 Pa)
Bearing Type : Sealed Sleeve
Fan Type : Tubeaxial
Features : Auto Restart
Noise : 34.0 dB
Power (Watts) : 2.40W
RPM : 3100 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : cURus, TUV
Weight : -
0
820 in stock

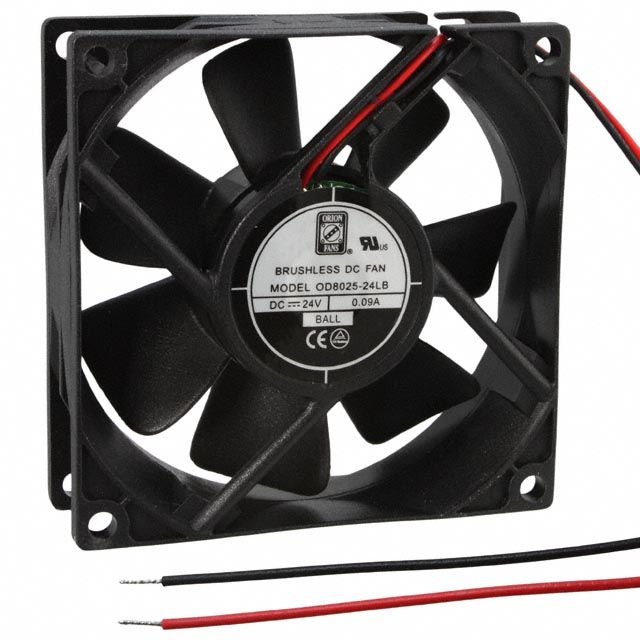

OD8025-24LB
Orion Fans
Manufacturer : Orion Fans
Series : OD8025
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 80mm L x 80mm H
Width : 25.00mm
Air Flow : 26.0 CFM (0.728m鲁/min)
Static Pressure : 0.070 in H2O (17.4 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Auto Restart
Noise : 23.0 dB
Power (Watts) : 960mW
RPM : 2100 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 167°F (-20 ~ 75°C)
Approvals : cURus, TUV
Weight : 0.19 lb (86.18g)
Series : OD8025
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 80mm L x 80mm H
Width : 25.00mm
Air Flow : 26.0 CFM (0.728m鲁/min)
Static Pressure : 0.070 in H2O (17.4 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Auto Restart
Noise : 23.0 dB
Power (Watts) : 960mW
RPM : 2100 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 167°F (-20 ~ 75°C)
Approvals : cURus, TUV
Weight : 0.19 lb (86.18g)
0
1111 in stock

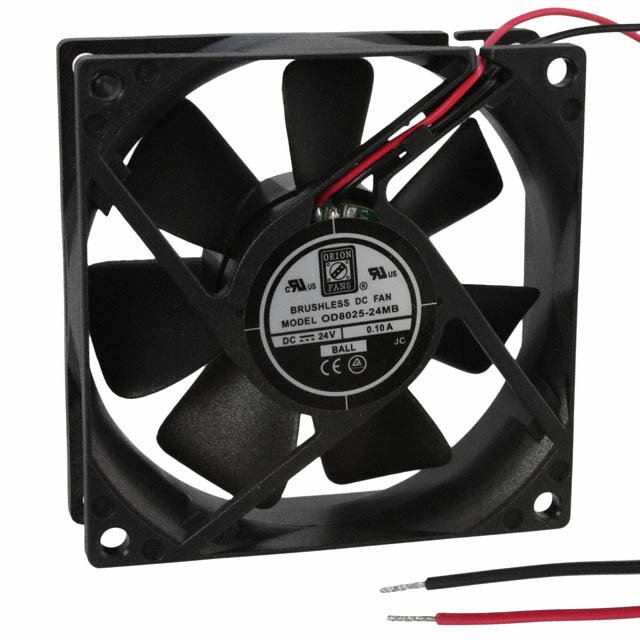

OD8025-24MB
Orion Fans
Manufacturer : Orion Fans
Series : OD8025
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 80mm L x 80mm H
Width : 25.00mm
Air Flow : 31.0 CFM (0.868m鲁/min)
Static Pressure : 0.100 in H2O (24.9 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Auto Restart
Noise : 28.0 dB
Power (Watts) : 0.960W
RPM : 2500 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 167°F (-20 ~ 75°C)
Approvals : cURus, TUV
Weight : 0.19 lb (86.18g)
Series : OD8025
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 80mm L x 80mm H
Width : 25.00mm
Air Flow : 31.0 CFM (0.868m鲁/min)
Static Pressure : 0.100 in H2O (24.9 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Auto Restart
Noise : 28.0 dB
Power (Watts) : 0.960W
RPM : 2500 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 167°F (-20 ~ 75°C)
Approvals : cURus, TUV
Weight : 0.19 lb (86.18g)
0
1074 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Eruic
- krics@eruic.com
- krics@eruic.com
- Room 25i, Block A, Duhui 100 Building, Zhonghang Road, Huaqiang North Street, Futian District, Shenzhen, Guangdong
Customer service
Copyright © 2025 Eruic. All rights reserved.
web.ui.design.webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
