Part Number
Manufacturer
Description
Unit Price
In Stock

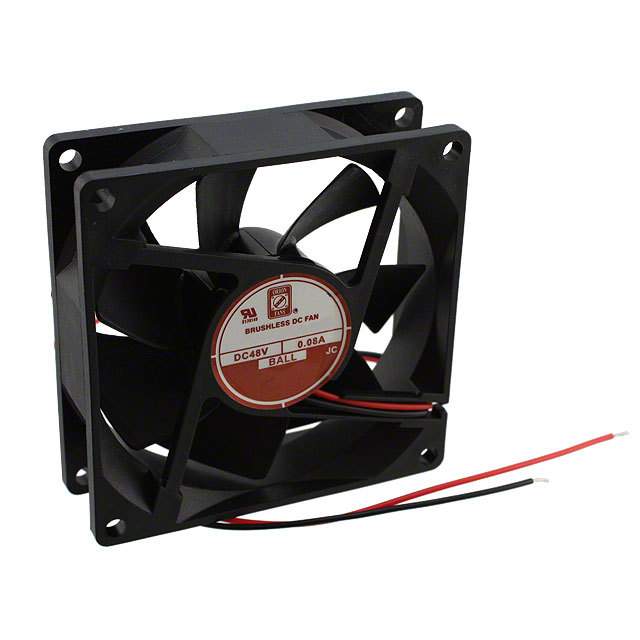

OD8025-48HB
Orion Fans
Manufacturer : Orion Fans
Series : OD8025
Part Status : Active
Voltage - Rated : 48VDC
Size / Dimension : Square - 80mm L x 80mm H
Width : 25.00mm
Air Flow : 40.0 CFM (1.12m鲁/min)
Static Pressure : 0.230 in H2O (57.3 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 33.0 dB
Power (Watts) : 3.80W
RPM : 3300 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 167°F (-20 ~ 75°C)
Approvals : cURus
Weight : -
Series : OD8025
Part Status : Active
Voltage - Rated : 48VDC
Size / Dimension : Square - 80mm L x 80mm H
Width : 25.00mm
Air Flow : 40.0 CFM (1.12m鲁/min)
Static Pressure : 0.230 in H2O (57.3 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 33.0 dB
Power (Watts) : 3.80W
RPM : 3300 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 167°F (-20 ~ 75°C)
Approvals : cURus
Weight : -
0
409 in stock
OD8032-12HB
Orion Fans
Manufacturer : Orion Fans
Series : OD8032
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 80.5mm L x 80.5mm H
Width : 32.00mm
Air Flow : 50.0 CFM (1.40m鲁/min)
Static Pressure : 0.430 in H2O (107.1 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 40.0 dB
Power (Watts) : -
RPM : 3800 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 176°F (-20 ~ 80°C)
Approvals : cURus, TUV
Weight : -
Series : OD8032
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 80.5mm L x 80.5mm H
Width : 32.00mm
Air Flow : 50.0 CFM (1.40m鲁/min)
Static Pressure : 0.430 in H2O (107.1 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 40.0 dB
Power (Watts) : -
RPM : 3800 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 176°F (-20 ~ 80°C)
Approvals : cURus, TUV
Weight : -
0
78 in stock
OD8032-12HHB02A
Orion Fans
Manufacturer : Orion Fans
Series : OD8032
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 80mm L x 80mm H
Width : 32.00mm
Air Flow : 55.4 CFM (1.55m鲁/min)
Static Pressure : 0.320 in H2O (79.7 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Locked Rotor Sensor
Noise : 44.0 dB
Power (Watts) : 4.56W
RPM : 4200 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, cURus
Weight : 0.238 lb (107.95g)
Series : OD8032
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 80mm L x 80mm H
Width : 32.00mm
Air Flow : 55.4 CFM (1.55m鲁/min)
Static Pressure : 0.320 in H2O (79.7 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Locked Rotor Sensor
Noise : 44.0 dB
Power (Watts) : 4.56W
RPM : 4200 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, cURus
Weight : 0.238 lb (107.95g)
0
273 in stock
OD8032-24HB
Orion Fans
Manufacturer : Orion Fans
Series : OD8032
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 80.5mm L x 80.5mm H
Width : 32.00mm
Air Flow : 50.0 CFM (1.40m鲁/min)
Static Pressure : 0.290 in H2O (72.2 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 42.0 dB
Power (Watts) : -
RPM : 3800 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 158°F (-20 ~ 70°C)
Approvals : cURus, TUV
Weight : -
Series : OD8032
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 80.5mm L x 80.5mm H
Width : 32.00mm
Air Flow : 50.0 CFM (1.40m鲁/min)
Static Pressure : 0.290 in H2O (72.2 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 42.0 dB
Power (Watts) : -
RPM : 3800 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 158°F (-20 ~ 70°C)
Approvals : cURus, TUV
Weight : -
0
432 in stock
OD8032-24HHB
Orion Fans
Manufacturer : Orion Fans
Series : OD8032
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 80.5mm L x 80.5mm H
Width : 32.00mm
Air Flow : 55.4 CFM (1.55m鲁/min)
Static Pressure : 0.320 in H2O (79.7 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 44.0 dB
Power (Watts) : 4.32W
RPM : 4200 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, cURus
Weight : 0.238 lb (107.95g)
Series : OD8032
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 80.5mm L x 80.5mm H
Width : 32.00mm
Air Flow : 55.4 CFM (1.55m鲁/min)
Static Pressure : 0.320 in H2O (79.7 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 44.0 dB
Power (Watts) : 4.32W
RPM : 4200 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, cURus
Weight : 0.238 lb (107.95g)
0
54 in stock

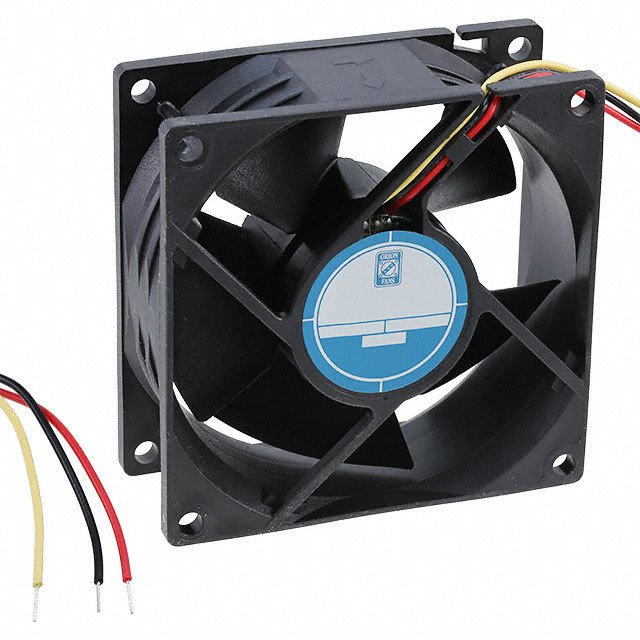

OD8032-24HHB02A
Orion Fans
Manufacturer : Orion Fans
Series : OD8032
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 80mm L x 80mm H
Width : 32.00mm
Air Flow : 55.4 CFM (1.55m鲁/min)
Static Pressure : 0.320 in H2O (79.7 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Locked Rotor Sensor
Noise : 44.0 dB
Power (Watts) : 4.32W
RPM : 4200 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, cURus
Weight : 0.238 lb (107.95g)
Series : OD8032
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 80mm L x 80mm H
Width : 32.00mm
Air Flow : 55.4 CFM (1.55m鲁/min)
Static Pressure : 0.320 in H2O (79.7 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Locked Rotor Sensor
Noise : 44.0 dB
Power (Watts) : 4.32W
RPM : 4200 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, cURus
Weight : 0.238 lb (107.95g)
0
199 in stock

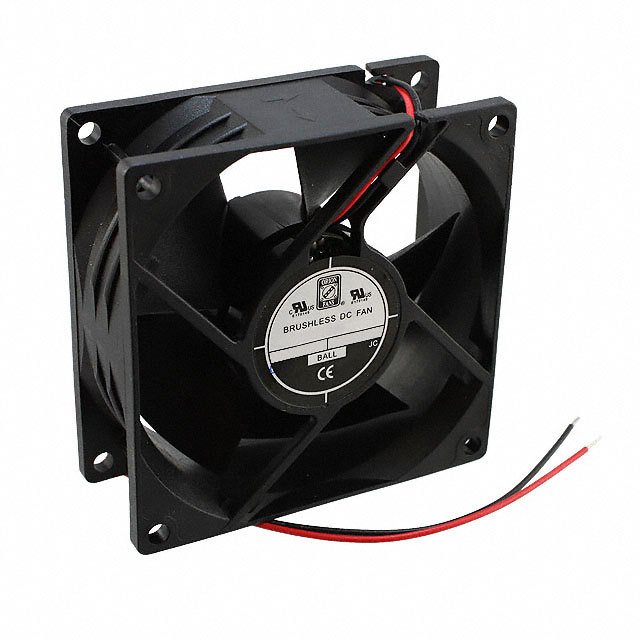

OD8032-24LB
Orion Fans
Manufacturer : Orion Fans
Series : OD8032
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 80.5mm L x 80.5mm H
Width : 32.00mm
Air Flow : 40.0 CFM (1.12m鲁/min)
Static Pressure : 0.200 in H2O (49.8 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 31.0 dB
Power (Watts) : -
RPM : 3000 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 176°F (-20 ~ 80°C)
Approvals : cURus, TUV
Weight : -
Series : OD8032
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 80.5mm L x 80.5mm H
Width : 32.00mm
Air Flow : 40.0 CFM (1.12m鲁/min)
Static Pressure : 0.200 in H2O (49.8 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 31.0 dB
Power (Watts) : -
RPM : 3000 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 176°F (-20 ~ 80°C)
Approvals : cURus, TUV
Weight : -
0
10 in stock
OD8032-24MB
Orion Fans
Manufacturer : Orion Fans
Series : OD8032
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 80.5mm L x 80.5mm H
Width : 32.00mm
Air Flow : 44.0 CFM (1.23m鲁/min)
Static Pressure : 0.280 in H2O (69.7 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 36.0 dB
Power (Watts) : -
RPM : 3400 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 176°F (-20 ~ 80°C)
Approvals : cURus, TUV
Weight : -
Series : OD8032
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 80.5mm L x 80.5mm H
Width : 32.00mm
Air Flow : 44.0 CFM (1.23m鲁/min)
Static Pressure : 0.280 in H2O (69.7 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 36.0 dB
Power (Watts) : -
RPM : 3400 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 176°F (-20 ~ 80°C)
Approvals : cURus, TUV
Weight : -
0
99 in stock

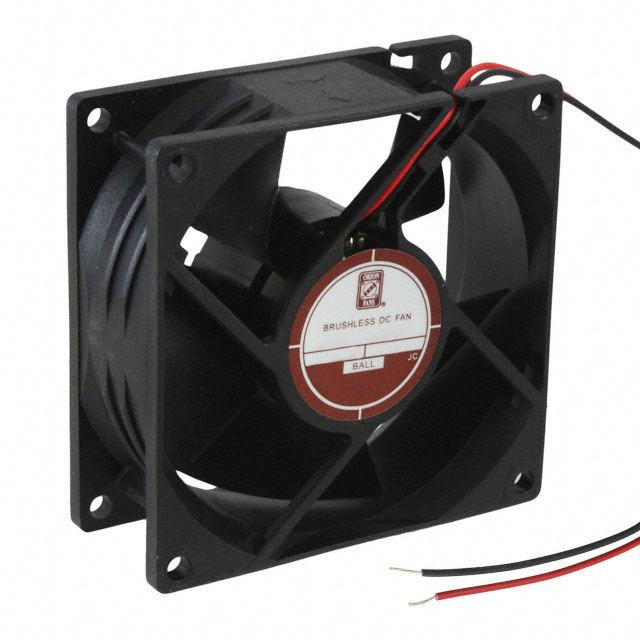

OD8032-48HB
Orion Fans
Manufacturer : Orion Fans
Series : OD8032
Part Status : Active
Voltage - Rated : 48VDC
Size / Dimension : Square - 80.5mm L x 80.5mm H
Width : 32.00mm
Air Flow : 50.0 CFM (1.40m鲁/min)
Static Pressure : 0.430 in H2O (107.1 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 40.0 dB
Power (Watts) : -
RPM : 3800 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 176°F (-20 ~ 80°C)
Approvals : cURus, TUV
Weight : -
Series : OD8032
Part Status : Active
Voltage - Rated : 48VDC
Size / Dimension : Square - 80.5mm L x 80.5mm H
Width : 32.00mm
Air Flow : 50.0 CFM (1.40m鲁/min)
Static Pressure : 0.430 in H2O (107.1 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 40.0 dB
Power (Watts) : -
RPM : 3800 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 176°F (-20 ~ 80°C)
Approvals : cURus, TUV
Weight : -
0
74 in stock

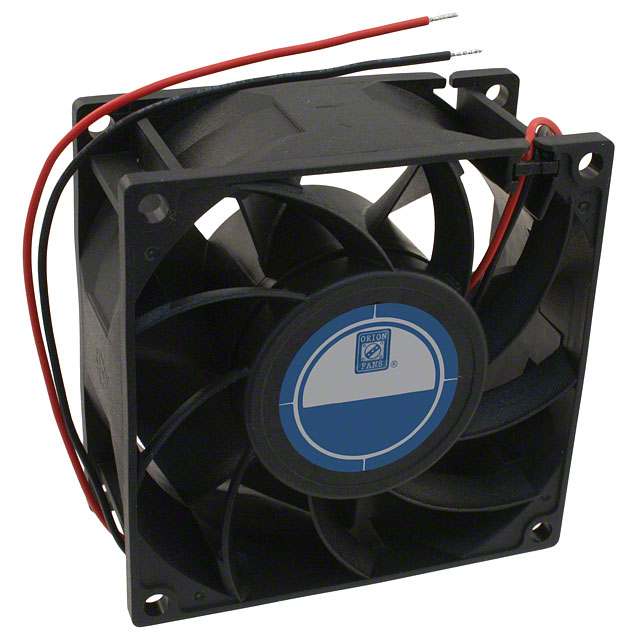

OD8038-12HBVXC
Orion Fans
Manufacturer : Orion Fans
Series : OD8038
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 80mm L x 80mm H
Width : 38.00mm
Air Flow : 99.0 CFM (2.77m鲁/min)
Static Pressure : 0.810 in H2O (201.8 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 57.0 dB
Power (Watts) : 14.00W
RPM : 6300 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : cURus, TUV
Weight : -
Series : OD8038
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 80mm L x 80mm H
Width : 38.00mm
Air Flow : 99.0 CFM (2.77m鲁/min)
Static Pressure : 0.810 in H2O (201.8 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 57.0 dB
Power (Watts) : 14.00W
RPM : 6300 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : cURus, TUV
Weight : -
0
95 in stock

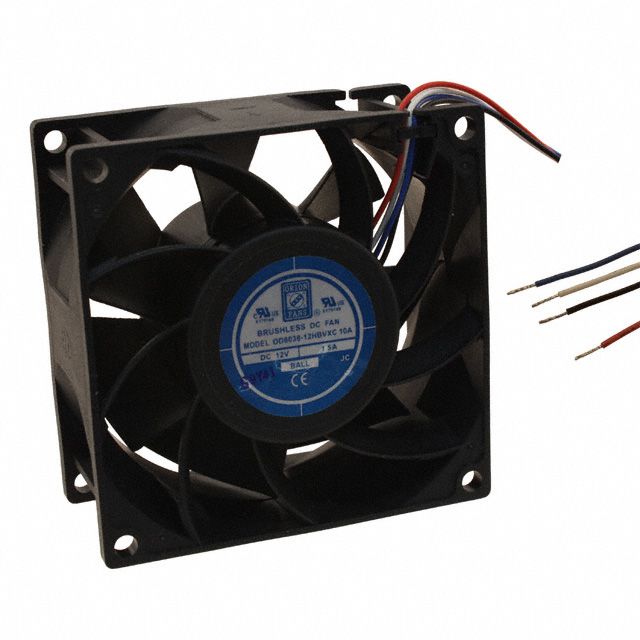

OD8038-12HBVXC10A
Orion Fans
Manufacturer : Orion Fans
Series : OD8038
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 80mm L x 80mm H
Width : 38.00mm
Air Flow : 99.0 CFM (2.77m鲁/min)
Static Pressure : 0.810 in H2O (201.8 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : PWM Control, Speed Sensor (Tach)
Noise : 57.0 dB
Power (Watts) : 14.00W
RPM : 6300 RPM
Termination : 4 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : cURus
Weight : -
Series : OD8038
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 80mm L x 80mm H
Width : 38.00mm
Air Flow : 99.0 CFM (2.77m鲁/min)
Static Pressure : 0.810 in H2O (201.8 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : PWM Control, Speed Sensor (Tach)
Noise : 57.0 dB
Power (Watts) : 14.00W
RPM : 6300 RPM
Termination : 4 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : cURus
Weight : -
0
672 in stock

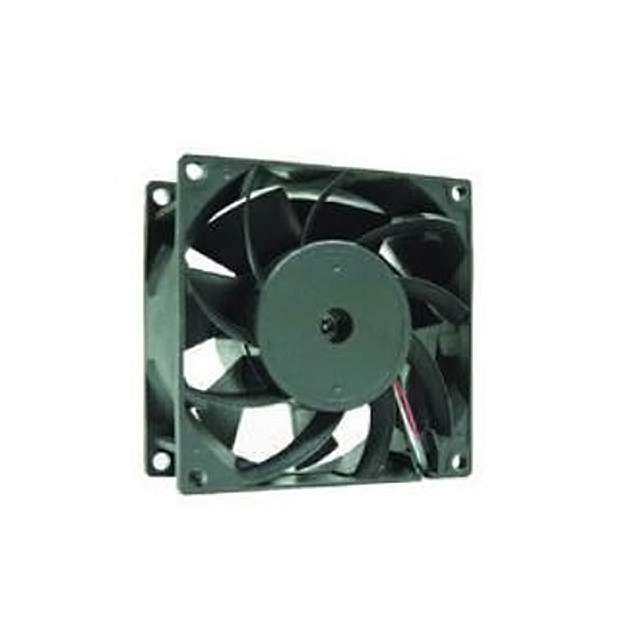

OD8038-12HBXE10A
Orion Fans
Manufacturer : Orion Fans
Series : OD8038
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 80mm L x 80mm H
Width : 38.00mm
Air Flow : 141.2 CFM (3.95m鲁/min)
Static Pressure : 3.900 in H2O (971.5 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : PWM Control, Speed Sensor (Tach)
Noise : 71.0 dB(A)
Power (Watts) : 49.00W
RPM : 13500 RPM
Termination : 4 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : cURus, TUV
Weight : 0.483 lb (219.09g)
Series : OD8038
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 80mm L x 80mm H
Width : 38.00mm
Air Flow : 141.2 CFM (3.95m鲁/min)
Static Pressure : 3.900 in H2O (971.5 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : PWM Control, Speed Sensor (Tach)
Noise : 71.0 dB(A)
Power (Watts) : 49.00W
RPM : 13500 RPM
Termination : 4 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : cURus, TUV
Weight : 0.483 lb (219.09g)
0
444 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Eruic
- krics@eruic.com
- krics@eruic.com
- Room 25i, Block A, Duhui 100 Building, Zhonghang Road, Huaqiang North Street, Futian District, Shenzhen, Guangdong
Customer service
Copyright © 2025 Eruic. All rights reserved.
web.ui.design.webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
