Part Number
Manufacturer
Description
Unit Price
In Stock

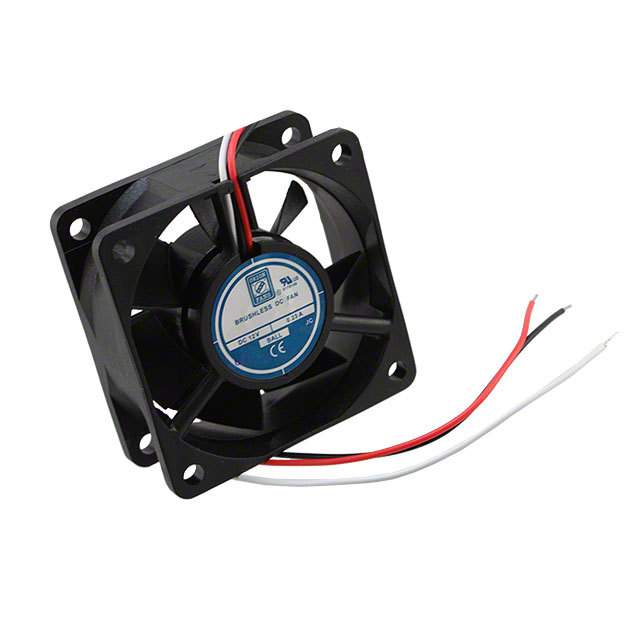

OD6025-12HB01A
Orion Fans
Manufacturer : Orion Fans
Series : OD6025
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 60mm L x 60mm H
Width : 25.00mm
Air Flow : 24.0 CFM (0.672m鲁/min)
Static Pressure : 0.200 in H2O (49.8 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Speed Sensor (Tach)
Noise : 35.0 dB
Power (Watts) : 2.80W
RPM : 4500 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 167°F (-20 ~ 75°C)
Approvals : cURus, TUV
Weight : -
Series : OD6025
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 60mm L x 60mm H
Width : 25.00mm
Air Flow : 24.0 CFM (0.672m鲁/min)
Static Pressure : 0.200 in H2O (49.8 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Speed Sensor (Tach)
Noise : 35.0 dB
Power (Watts) : 2.80W
RPM : 4500 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 167°F (-20 ~ 75°C)
Approvals : cURus, TUV
Weight : -
0
753 in stock

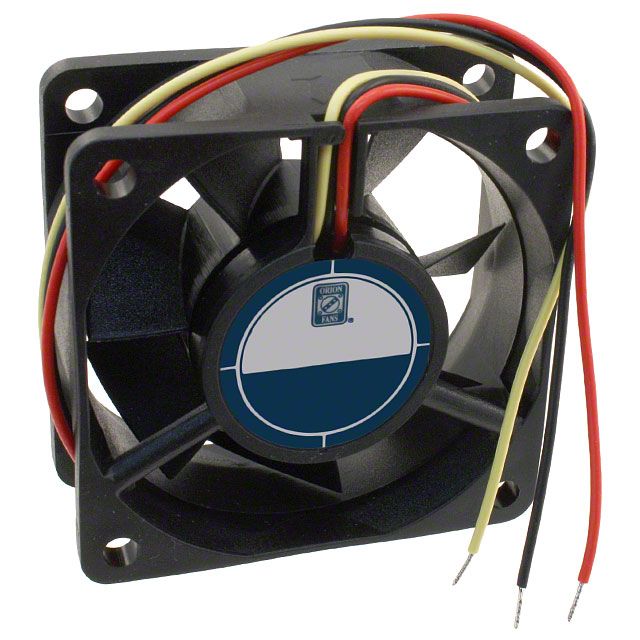

OD6025-12HB02A
Orion Fans
Manufacturer : Orion Fans
Series : OD6025
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 60mm L x 60mm H
Width : 25.00mm
Air Flow : 24.0 CFM (0.672m鲁/min)
Static Pressure : 0.200 in H2O (49.8 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Locked Rotor Sensor
Noise : 35.0 dB
Power (Watts) : 2.80W
RPM : 4500 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 167°F (-20 ~ 75°C)
Approvals : cURus, TUV
Weight : -
Series : OD6025
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 60mm L x 60mm H
Width : 25.00mm
Air Flow : 24.0 CFM (0.672m鲁/min)
Static Pressure : 0.200 in H2O (49.8 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Locked Rotor Sensor
Noise : 35.0 dB
Power (Watts) : 2.80W
RPM : 4500 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 167°F (-20 ~ 75°C)
Approvals : cURus, TUV
Weight : -
0
693 in stock
OD6025-12HBIP55
Orion Fans
Manufacturer : Orion Fans
Series : OD6025
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 60mm L x 60mm H
Width : 25.00mm
Air Flow : 24.0 CFM (0.672m鲁/min)
Static Pressure : -
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : -
Power (Watts) : -
RPM : -
Termination : 2 Wire Leads
Ingress Protection : IP55 - Dust Protected, Water Resistant
Operating Temperature : -4 ~ 167°F (-20 ~ 75°C)
Approvals : cURus, TUV
Weight : -
Series : OD6025
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 60mm L x 60mm H
Width : 25.00mm
Air Flow : 24.0 CFM (0.672m鲁/min)
Static Pressure : -
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : -
Power (Watts) : -
RPM : -
Termination : 2 Wire Leads
Ingress Protection : IP55 - Dust Protected, Water Resistant
Operating Temperature : -4 ~ 167°F (-20 ~ 75°C)
Approvals : cURus, TUV
Weight : -
0
351 in stock

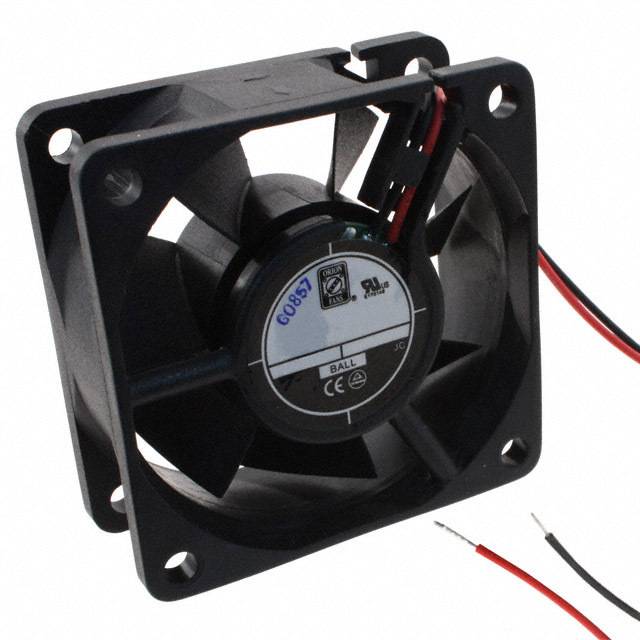

OD6025-12HSS
Orion Fans
Manufacturer : Orion Fans
Series : OD6025
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 60mm L x 60mm H
Width : 25.00mm
Air Flow : 25.0 CFM (0.700m鲁/min)
Static Pressure : 0.200 in H2O (49.8 Pa)
Bearing Type : Sealed Sleeve
Fan Type : Tubeaxial
Features : -
Noise : 35.0 dB
Power (Watts) : 2.80W
RPM : 4600 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : cURus, TUV
Weight : -
Series : OD6025
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 60mm L x 60mm H
Width : 25.00mm
Air Flow : 25.0 CFM (0.700m鲁/min)
Static Pressure : 0.200 in H2O (49.8 Pa)
Bearing Type : Sealed Sleeve
Fan Type : Tubeaxial
Features : -
Noise : 35.0 dB
Power (Watts) : 2.80W
RPM : 4600 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : cURus, TUV
Weight : -
0
544 in stock
OD6025-12LB
Orion Fans
Manufacturer : Orion Fans
Series : OD6025
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 60mm L x 60mm H
Width : 25.00mm
Air Flow : 13.0 CFM (0.364m鲁/min)
Static Pressure : 0.070 in H2O (17.4 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 18.0 dB
Power (Watts) : 1.00W
RPM : 2500 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 167°F (-20 ~ 75°C)
Approvals : cURus, TUV
Weight : -
Series : OD6025
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 60mm L x 60mm H
Width : 25.00mm
Air Flow : 13.0 CFM (0.364m鲁/min)
Static Pressure : 0.070 in H2O (17.4 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 18.0 dB
Power (Watts) : 1.00W
RPM : 2500 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 167°F (-20 ~ 75°C)
Approvals : cURus, TUV
Weight : -
0
1394 in stock
OD6025-12MB
Orion Fans
Manufacturer : Orion Fans
Series : OD6025
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 60mm L x 60mm H
Width : 25.00mm
Air Flow : 18.0 CFM (0.504m鲁/min)
Static Pressure : 0.110 in H2O (27.4 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 27.0 dB
Power (Watts) : 1.70W
RPM : 3500 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 167°F (-20 ~ 75°C)
Approvals : cURus, TUV
Weight : -
Series : OD6025
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 60mm L x 60mm H
Width : 25.00mm
Air Flow : 18.0 CFM (0.504m鲁/min)
Static Pressure : 0.110 in H2O (27.4 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 27.0 dB
Power (Watts) : 1.70W
RPM : 3500 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 167°F (-20 ~ 75°C)
Approvals : cURus, TUV
Weight : -
0
108 in stock
OD6025-24HB
Orion Fans
Manufacturer : Orion Fans
Series : OD6025
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 60mm L x 60mm H
Width : 25.00mm
Air Flow : 24.0 CFM (0.672m鲁/min)
Static Pressure : 0.200 in H2O (49.8 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 35.0 dB
Power (Watts) : 3.50W
RPM : 4500 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 167°F (-20 ~ 75°C)
Approvals : cURus, TUV
Weight : -
Series : OD6025
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 60mm L x 60mm H
Width : 25.00mm
Air Flow : 24.0 CFM (0.672m鲁/min)
Static Pressure : 0.200 in H2O (49.8 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 35.0 dB
Power (Watts) : 3.50W
RPM : 4500 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 167°F (-20 ~ 75°C)
Approvals : cURus, TUV
Weight : -
0
3514 in stock
OD6025-24HB01A
Orion Fans
Manufacturer : Orion Fans
Series : OD6025
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 60mm L x 60mm H
Width : 25.00mm
Air Flow : 24.0 CFM (0.672m鲁/min)
Static Pressure : 0.200 in H2O (49.8 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Speed Sensor (Tach)
Noise : 35.0 dB
Power (Watts) : 3.50W
RPM : 4500 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 167°F (-20 ~ 75°C)
Approvals : cURus, TUV
Weight : -
Series : OD6025
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 60mm L x 60mm H
Width : 25.00mm
Air Flow : 24.0 CFM (0.672m鲁/min)
Static Pressure : 0.200 in H2O (49.8 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Speed Sensor (Tach)
Noise : 35.0 dB
Power (Watts) : 3.50W
RPM : 4500 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 167°F (-20 ~ 75°C)
Approvals : cURus, TUV
Weight : -
0
2507 in stock
OD6025-24HB02A
Orion Fans
Manufacturer : Orion Fans
Series : OD6025
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 60mm L x 60mm H
Width : 25.00mm
Air Flow : 24.0 CFM (0.672m鲁/min)
Static Pressure : 0.200 in H2O (49.8 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Locked Rotor Sensor
Noise : 35.0 dB
Power (Watts) : 3.50W
RPM : 4500 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 167°F (-20 ~ 75°C)
Approvals : cURus, TUV
Weight : -
Series : OD6025
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 60mm L x 60mm H
Width : 25.00mm
Air Flow : 24.0 CFM (0.672m鲁/min)
Static Pressure : 0.200 in H2O (49.8 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Locked Rotor Sensor
Noise : 35.0 dB
Power (Watts) : 3.50W
RPM : 4500 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 167°F (-20 ~ 75°C)
Approvals : cURus, TUV
Weight : -
0
2257 in stock
OD6025-24HHB
Orion Fans
Manufacturer : Orion Fans
Series : OD6025
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 60mm L x 60mm H
Width : 25.00mm
Air Flow : 28.0 CFM (0.784m鲁/min)
Static Pressure : 0.240 in H2O (59.8 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 40.0 dB
Power (Watts) : 3.90W
RPM : 5100 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : cURus, TUV
Weight : -
Series : OD6025
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 60mm L x 60mm H
Width : 25.00mm
Air Flow : 28.0 CFM (0.784m鲁/min)
Static Pressure : 0.240 in H2O (59.8 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 40.0 dB
Power (Watts) : 3.90W
RPM : 5100 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : cURus, TUV
Weight : -
0
390 in stock
OD6025-24HSS
Orion Fans
Manufacturer : Orion Fans
Series : OD6025
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 60mm L x 60mm H
Width : 25.00mm
Air Flow : 25.0 CFM (0.700m鲁/min)
Static Pressure : 0.200 in H2O (49.8 Pa)
Bearing Type : Sealed Sleeve
Fan Type : Tubeaxial
Features : -
Noise : 35.0 dB
Power (Watts) : 3.60W
RPM : 4600 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : cURus, TUV
Weight : -
Series : OD6025
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 60mm L x 60mm H
Width : 25.00mm
Air Flow : 25.0 CFM (0.700m鲁/min)
Static Pressure : 0.200 in H2O (49.8 Pa)
Bearing Type : Sealed Sleeve
Fan Type : Tubeaxial
Features : -
Noise : 35.0 dB
Power (Watts) : 3.60W
RPM : 4600 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : cURus, TUV
Weight : -
0
1744 in stock
OD6025-24LB
Orion Fans
Manufacturer : Orion Fans
Series : OD6025
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 60mm L x 60mm H
Width : 25.00mm
Air Flow : 13.0 CFM (0.364m鲁/min)
Static Pressure : 0.070 in H2O (17.4 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 18.0 dB
Power (Watts) : 1.00W
RPM : 2500 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 167°F (-20 ~ 75°C)
Approvals : cURus, TUV
Weight : -
Series : OD6025
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 60mm L x 60mm H
Width : 25.00mm
Air Flow : 13.0 CFM (0.364m鲁/min)
Static Pressure : 0.070 in H2O (17.4 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 18.0 dB
Power (Watts) : 1.00W
RPM : 2500 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 167°F (-20 ~ 75°C)
Approvals : cURus, TUV
Weight : -
0
768 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Eruic
- krics@eruic.com
- krics@eruic.com
- Room 25i, Block A, Duhui 100 Building, Zhonghang Road, Huaqiang North Street, Futian District, Shenzhen, Guangdong
Customer service
Copyright © 2025 Eruic. All rights reserved.
web.ui.design.webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
