Triad Magnetics
- For over 70 years, consumer, commercial and industrial electronic devices have relied on innovative magnetics technology from Triad Magnetics. We offer solutions for power conversion, filtering, isolation and more. Our products include transformers for audio, gate drive, power, medical/dental, wall-mount and plug-in applications; as well as inductors for current sense, common mode, toroidal, filtering and power applications.
Today, you’ll find a wide range of Triad magnetic components in advanced computers, telecommunication systems, automation controls, audio devices and other equipment. Lewis W. Howard founded Triad during the 1940s in Venice, California. He was a UC Berkley graduate, a Wescon Trade Show cofounder and was recognized as an IEEE life member.
Part Number
Manufacturer
Description
Unit Price
In Stock

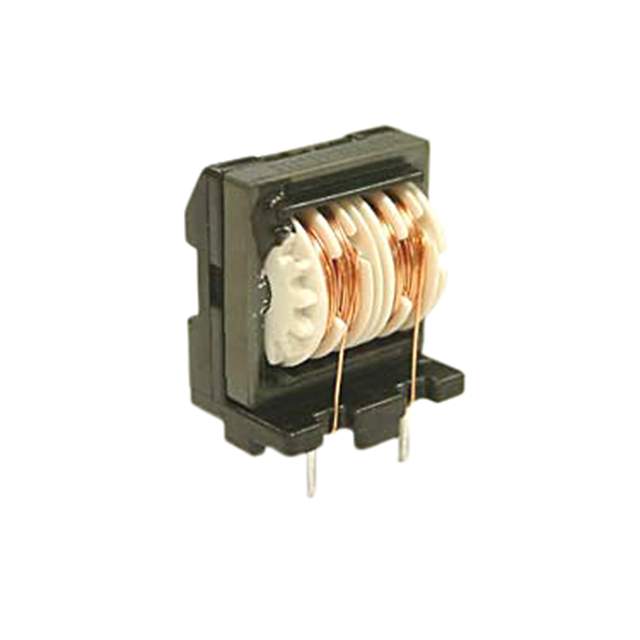

Triad Magnetics
Manufacturer : Triad Magnetics
Packaging : Bulk
Series : ET
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 5mH @ 10kHz
Current Rating (Max) : 3A
DC Resistance (DCR) (Max) : 100 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -20°C ~ 105°C
Ratings : -
Approvals : -
Features : ESD
Mounting Type : Through Hole
Size / Dimension : 1.240" L x 0.925" W (31.50mm x 23.49mm)
Height (Max) : 1.457" (37.00mm)
Package / Case : Vertical, 4 PC Pin
0
3579 in stock
Triad Magnetics
Manufacturer : Triad Magnetics
Packaging : Bulk
Series : ET
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 33mH @ 10kHz
Current Rating (Max) : 1.5A
DC Resistance (DCR) (Max) : 500 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -20°C ~ 105°C
Ratings : -
Approvals : -
Features : ESD
Mounting Type : Through Hole
Size / Dimension : 1.496" L x 1.024" W (38.00mm x 26.00mm)
Height (Max) : 1.772" (45.00mm)
Package / Case : Vertical, 4 PC Pin
0
53 in stock
Triad Magnetics
Manufacturer : Triad Magnetics
Packaging : Bulk
Series : ET
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 22mH @ 10kHz
Current Rating (Max) : 1.8A
DC Resistance (DCR) (Max) : 400 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -20°C ~ 105°C
Ratings : -
Approvals : -
Features : ESD
Mounting Type : Through Hole
Size / Dimension : 1.496" L x 1.024" W (38.00mm x 26.00mm)
Height (Max) : 1.772" (45.00mm)
Package / Case : Vertical, 4 PC Pin
0
174 in stock
Triad Magnetics
Manufacturer : Triad Magnetics
Packaging : Bulk
Series : ET
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 18mH @ 10kHz
Current Rating (Max) : 2A
DC Resistance (DCR) (Max) : 300 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -20°C ~ 105°C
Ratings : -
Approvals : -
Features : ESD
Mounting Type : Through Hole
Size / Dimension : 1.496" L x 1.024" W (38.00mm x 26.00mm)
Height (Max) : 1.772" (45.00mm)
Package / Case : Vertical, 4 PC Pin
0
53 in stock
Triad Magnetics
Manufacturer : Triad Magnetics
Packaging : Bulk
Series : ET
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 12mH @ 10kHz
Current Rating (Max) : 2.5A
DC Resistance (DCR) (Max) : 200 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -20°C ~ 105°C
Ratings : -
Approvals : -
Features : ESD
Mounting Type : Through Hole
Size / Dimension : 1.496" L x 1.024" W (38.00mm x 26.00mm)
Height (Max) : 1.772" (45.00mm)
Package / Case : Vertical, 4 PC Pin
0
32 in stock
Triad Magnetics
Manufacturer : Triad Magnetics
Packaging : Bulk
Series : ET
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 10mH @ 10kHz
Current Rating (Max) : 2.7A
DC Resistance (DCR) (Max) : 150 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -20°C ~ 105°C
Ratings : -
Approvals : -
Features : ESD
Mounting Type : Through Hole
Size / Dimension : 1.496" L x 1.024" W (38.00mm x 26.00mm)
Height (Max) : 1.772" (45.00mm)
Package / Case : Vertical, 4 PC Pin
0
44 in stock
Triad Magnetics
Manufacturer : Triad Magnetics
Packaging : Bulk
Series : ET
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 8.1mH @ 10kHz
Current Rating (Max) : 3A
DC Resistance (DCR) (Max) : 120 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -20°C ~ 105°C
Ratings : -
Approvals : -
Features : ESD
Mounting Type : Through Hole
Size / Dimension : 1.496" L x 1.024" W (38.00mm x 26.00mm)
Height (Max) : 1.772" (45.00mm)
Package / Case : Vertical, 4 PC Pin
0
84 in stock
Triad Magnetics
Manufacturer : Triad Magnetics
Packaging : Bulk
Series : ET
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 6mH @ 10kHz
Current Rating (Max) : 3.5A
DC Resistance (DCR) (Max) : 100 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -20°C ~ 105°C
Ratings : -
Approvals : -
Features : ESD
Mounting Type : Through Hole
Size / Dimension : 1.496" L x 1.024" W (38.00mm x 26.00mm)
Height (Max) : 1.772" (45.00mm)
Package / Case : Vertical, 4 PC Pin
0
100 in stock
Triad Magnetics
Manufacturer : Triad Magnetics
Packaging : Bulk
Series : ET
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 4.7mH @ 10kHz
Current Rating (Max) : 4A
DC Resistance (DCR) (Max) : 80 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -20°C ~ 105°C
Ratings : -
Approvals : -
Features : ESD
Mounting Type : Through Hole
Size / Dimension : 1.496" L x 1.024" W (38.00mm x 26.00mm)
Height (Max) : 1.772" (45.00mm)
Package / Case : Vertical, 4 PC Pin
0
40 in stock
Triad Magnetics
Manufacturer : Triad Magnetics
Series : -
Part Status : Obsolete
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : 24V
Current - Output (Max) : 21A
Primary Winding(s) : Dual
Secondary Winding(s) : Single
Center Tap : Yes
Power - Max : -
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 111.13mm L x 88.90mm W
Height - Seated (Max) : 133.35mm
Voltage - Isolation : 1500Vrms
Weight : 14 lbs (6.4kg)
0
100 in stock

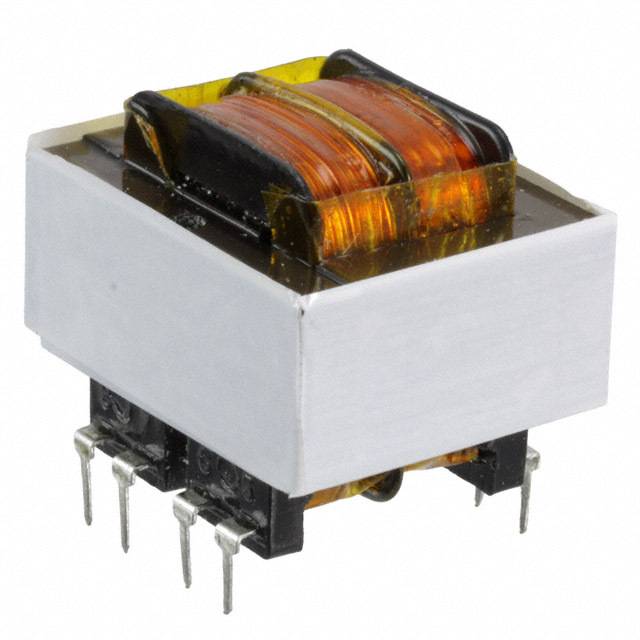

Triad Magnetics
Manufacturer : Triad Magnetics
Series : Split Pack™
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : Parallel 5V, Series 10V
Current - Output (Max) : Parallel 220mA, Series 110mA
Primary Winding(s) : Single
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 1.1 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 34.93mm L x 28.58mm W
Height - Seated (Max) : 23.80mm
Voltage - Isolation : 2500Vrms
Weight : 0.17 lb (77.11g)
0
31 in stock

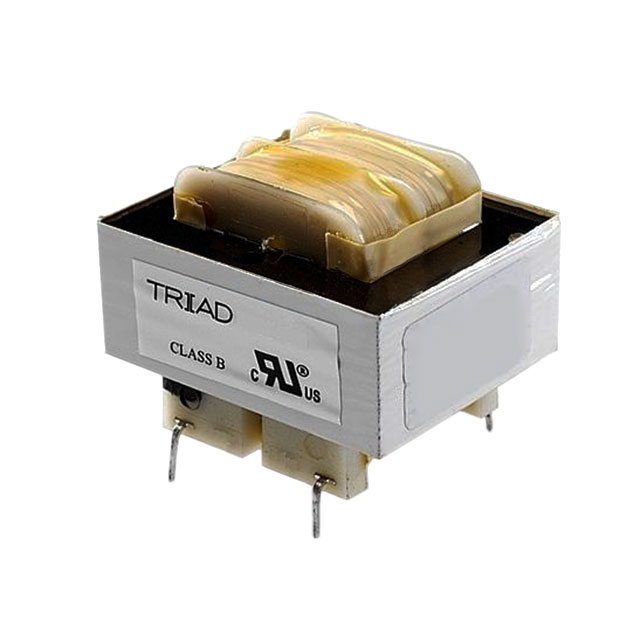

Triad Magnetics
Manufacturer : Triad Magnetics
Series : Split Pack™ Class 2/3, F
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : Parallel 5V, Series 10V
Current - Output (Max) : Parallel 220mA, Series 110mA
Primary Winding(s) : Single
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 1.1 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 34.93mm L x 28.58mm W
Height - Seated (Max) : 23.80mm
Voltage - Isolation : 4200Vrms
Weight : 0.17 lb (77.11g)
0
9345 in stock
