Triad Magnetics
- For over 70 years, consumer, commercial and industrial electronic devices have relied on innovative magnetics technology from Triad Magnetics. We offer solutions for power conversion, filtering, isolation and more. Our products include transformers for audio, gate drive, power, medical/dental, wall-mount and plug-in applications; as well as inductors for current sense, common mode, toroidal, filtering and power applications.
Today, you’ll find a wide range of Triad magnetic components in advanced computers, telecommunication systems, automation controls, audio devices and other equipment. Lewis W. Howard founded Triad during the 1940s in Venice, California. He was a UC Berkley graduate, a Wescon Trade Show cofounder and was recognized as an IEEE life member.
Part Number
Manufacturer
Description
Unit Price
In Stock

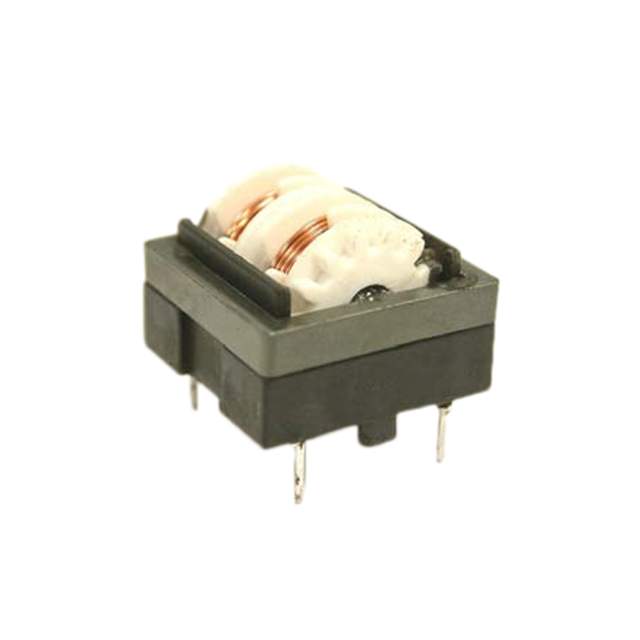

Triad Magnetics
Manufacturer : Triad Magnetics
Packaging : Bulk
Series : ET
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 15.5mH @ 10kHz
Current Rating (Max) : 1.5A
DC Resistance (DCR) (Max) : 320 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -20°C ~ 105°C
Ratings : -
Approvals : -
Features : ESD
Mounting Type : Through Hole
Size / Dimension : 1.181" L x 1.181" W (30.00mm x 30.00mm)
Height (Max) : 0.984" (25.00mm)
Package / Case : Horizontal, 4 PC Pin
0
94 in stock
Triad Magnetics
Manufacturer : Triad Magnetics
Packaging : Bulk
Series : ET
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 10mH @ 10kHz
Current Rating (Max) : 2A
DC Resistance (DCR) (Max) : 250 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -20°C ~ 105°C
Ratings : -
Approvals : -
Features : ESD
Mounting Type : Through Hole
Size / Dimension : 1.181" L x 1.181" W (30.00mm x 30.00mm)
Height (Max) : 0.984" (25.00mm)
Package / Case : Horizontal, 4 PC Pin
0
67 in stock
Triad Magnetics
Manufacturer : Triad Magnetics
Packaging : Bulk
Series : ET
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 8mH @ 10kHz
Current Rating (Max) : 2.5A
DC Resistance (DCR) (Max) : 190 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -20°C ~ 105°C
Ratings : -
Approvals : -
Features : ESD
Mounting Type : Through Hole
Size / Dimension : 1.181" L x 1.181" W (30.00mm x 30.00mm)
Height (Max) : 0.984" (25.00mm)
Package / Case : Horizontal, 4 PC Pin
0
66 in stock
Triad Magnetics
Manufacturer : Triad Magnetics
Packaging : Bulk
Series : ET
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 5mH @ 10kHz
Current Rating (Max) : 3A
DC Resistance (DCR) (Max) : 100 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -20°C ~ 105°C
Ratings : -
Approvals : -
Features : ESD
Mounting Type : Through Hole
Size / Dimension : 1.181" L x 1.181" W (30.00mm x 30.00mm)
Height (Max) : 0.984" (25.00mm)
Package / Case : Horizontal, 4 PC Pin
0
126 in stock

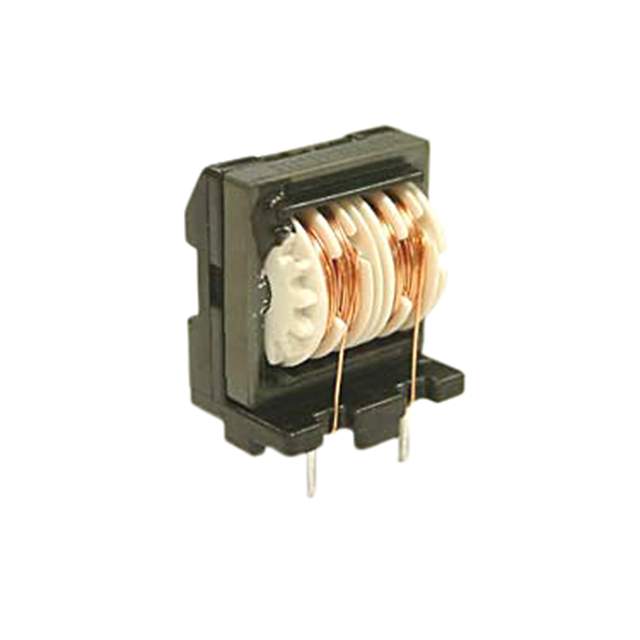

Triad Magnetics
Manufacturer : Triad Magnetics
Packaging : Bulk
Series : ET
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 120mH @ 10kHz
Current Rating (Max) : 500mA
DC Resistance (DCR) (Max) : 2.6 Ohm
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -20°C ~ 105°C
Ratings : -
Approvals : -
Features : ESD
Mounting Type : Through Hole
Size / Dimension : 1.240" L x 0.925" W (31.50mm x 23.49mm)
Height (Max) : 1.457" (37.00mm)
Package / Case : Vertical, 4 PC Pin
0
66 in stock
Triad Magnetics
Manufacturer : Triad Magnetics
Packaging : Bulk
Series : ET
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 92mH @ 10kHz
Current Rating (Max) : 600mA
DC Resistance (DCR) (Max) : 2 Ohm
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -20°C ~ 105°C
Ratings : -
Approvals : -
Features : ESD
Mounting Type : Through Hole
Size / Dimension : 1.240" L x 0.925" W (31.50mm x 23.49mm)
Height (Max) : 1.457" (37.00mm)
Package / Case : Vertical, 4 PC Pin
0
74 in stock
Triad Magnetics
Manufacturer : Triad Magnetics
Packaging : Bulk
Series : ET
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 66mH @ 10kHz
Current Rating (Max) : 700mA
DC Resistance (DCR) (Max) : 1.5 Ohm
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -20°C ~ 105°C
Ratings : -
Approvals : -
Features : ESD
Mounting Type : Through Hole
Size / Dimension : 1.240" L x 0.925" W (31.50mm x 23.49mm)
Height (Max) : 1.457" (37.00mm)
Package / Case : Vertical, 4 PC Pin
0
50 in stock
Triad Magnetics
Manufacturer : Triad Magnetics
Packaging : Bulk
Series : ET
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 36mH @ 10kHz
Current Rating (Max) : 900mA
DC Resistance (DCR) (Max) : 800 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -20°C ~ 105°C
Ratings : -
Approvals : -
Features : ESD
Mounting Type : Through Hole
Size / Dimension : 1.240" L x 0.925" W (31.50mm x 23.49mm)
Height (Max) : 1.457" (37.00mm)
Package / Case : Vertical, 4 PC Pin
0
40 in stock
Triad Magnetics
Manufacturer : Triad Magnetics
Packaging : Bulk
Series : ET
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 25mH @ 10kHz
Current Rating (Max) : 1A
DC Resistance (DCR) (Max) : 600 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -20°C ~ 105°C
Ratings : -
Approvals : -
Features : ESD
Mounting Type : Through Hole
Size / Dimension : 1.240" L x 0.925" W (31.50mm x 23.49mm)
Height (Max) : 1.457" (37.00mm)
Package / Case : Vertical, 4 PC Pin
0
43 in stock
Triad Magnetics
Manufacturer : Triad Magnetics
Packaging : Bulk
Series : ET
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 15.5mH @ 10kHz
Current Rating (Max) : 1.5A
DC Resistance (DCR) (Max) : 320 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -20°C ~ 105°C
Ratings : -
Approvals : -
Features : ESD
Mounting Type : Through Hole
Size / Dimension : 1.240" L x 0.925" W (31.50mm x 23.49mm)
Height (Max) : 1.457" (37.00mm)
Package / Case : Vertical, 4 PC Pin
0
42 in stock
Triad Magnetics
Manufacturer : Triad Magnetics
Packaging : Bulk
Series : ET
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 10mH @ 10kHz
Current Rating (Max) : 2A
DC Resistance (DCR) (Max) : 250 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -20°C ~ 105°C
Ratings : -
Approvals : -
Features : ESD
Mounting Type : Through Hole
Size / Dimension : 1.240" L x 0.925" W (31.50mm x 23.49mm)
Height (Max) : 1.457" (37.00mm)
Package / Case : Vertical, 4 PC Pin
0
47 in stock
Triad Magnetics
Manufacturer : Triad Magnetics
Packaging : Bulk
Series : ET
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 8mH @ 10kHz
Current Rating (Max) : 2.5A
DC Resistance (DCR) (Max) : 190 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -20°C ~ 105°C
Ratings : -
Approvals : -
Features : ESD
Mounting Type : Through Hole
Size / Dimension : 1.240" L x 0.925" W (31.50mm x 23.49mm)
Height (Max) : 1.457" (37.00mm)
Package / Case : Vertical, 4 PC Pin
0
40 in stock
