Welcome to Eruic

Triad Magnetics

- For over 70 years, consumer, commercial and industrial electronic devices have relied on innovative magnetics technology from Triad Magnetics. We offer solutions for power conversion, filtering, isolation and more. Our products include transformers for audio, gate drive, power, medical/dental, wall-mount and plug-in applications; as well as inductors for current sense, common mode, toroidal, filtering and power applications.

Today, you’ll find a wide range of Triad magnetic components in advanced computers, telecommunication systems, automation controls, audio devices and other equipment. Lewis W. Howard founded Triad during the 1940s in Venice, California. He was a UC Berkley graduate, a Wescon Trade Show cofounder and was recognized as an IEEE life member.

Part Number
Manufacturer
Description
Unit Price
In Stock

ET2424-017 ET2424-017

Triad Magnetics
Manufacturer : Triad Magnetics
Packaging : Bulk
Series : ET
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 3.2mH @ 10kHz
Current Rating (Max) : 2A
DC Resistance (DCR) (Max) : 200 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -20°C ~ 105°C
Ratings : -
Approvals : -
Features : ESD
Mounting Type : Through Hole
Size / Dimension : 1.043" L x 1.043" W (26.50mm x 26.50mm)
Height (Max) : 0.906" (23.00mm)
Package / Case : Horizontal, 4 PC Pin
0
94 in stock

ET2432-019 ET2432-019

Triad Magnetics
Manufacturer : Triad Magnetics
Packaging : Bulk
Series : ET
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 24mH @ 10kHz
Current Rating (Max) : 600mA
DC Resistance (DCR) (Max) : 1.6 Ohm
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -20°C ~ 105°C
Ratings : -
Approvals : -
Features : ESD
Mounting Type : Through Hole
Size / Dimension : 0.767" L x 1.040" W (19.48mm x 26.42mm)
Height (Max) : 1.220" (31.00mm)
Package / Case : Vertical, 4 PC Pin
0
63 in stock

ET2432-020 ET2432-020

Triad Magnetics
Manufacturer : Triad Magnetics
Packaging : Bulk
Series : ET
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 9.2mH @ 10kHz
Current Rating (Max) : 700mA
DC Resistance (DCR) (Max) : 750 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -20°C ~ 105°C
Ratings : -
Approvals : -
Features : ESD
Mounting Type : Through Hole
Size / Dimension : 0.767" L x 1.040" W (19.48mm x 26.42mm)
Height (Max) : 1.220" (31.00mm)
Package / Case : Vertical, 4 PC Pin
0
89 in stock

ET2432-021 ET2432-021

Triad Magnetics
Manufacturer : Triad Magnetics
Packaging : Bulk
Series : ET
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 7.8mH @ 10kHz
Current Rating (Max) : 900mA
DC Resistance (DCR) (Max) : 500 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -20°C ~ 105°C
Ratings : -
Approvals : -
Features : ESD
Mounting Type : Through Hole
Size / Dimension : 0.767" L x 1.040" W (19.48mm x 26.42mm)
Height (Max) : 1.220" (31.00mm)
Package / Case : Vertical, 4 PC Pin
0
94 in stock

ET2432-022 ET2432-022

Triad Magnetics
Manufacturer : Triad Magnetics
Packaging : Bulk
Series : ET
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 5.2mH @ 10kHz
Current Rating (Max) : 1A
DC Resistance (DCR) (Max) : 340 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -20°C ~ 105°C
Ratings : -
Approvals : -
Features : ESD
Mounting Type : Through Hole
Size / Dimension : 0.767" L x 1.040" W (19.48mm x 26.42mm)
Height (Max) : 1.220" (31.00mm)
Package / Case : Vertical, 4 PC Pin
0
42 in stock

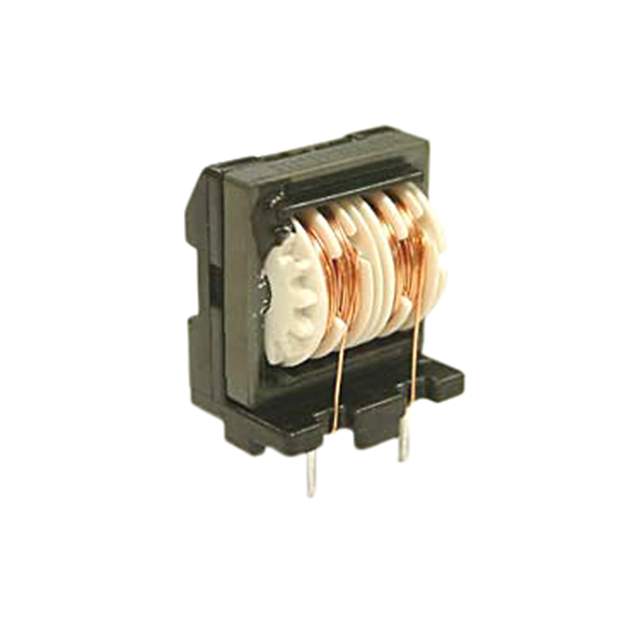

ET2432-023 ET2432-023

Triad Magnetics
Manufacturer : Triad Magnetics
Packaging : Bulk
Series : ET
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 3.6mH @ 10kHz
Current Rating (Max) : 1.5A
DC Resistance (DCR) (Max) : 250 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -20°C ~ 105°C
Ratings : -
Approvals : -
Features : ESD
Mounting Type : Through Hole
Size / Dimension : 0.767" L x 1.040" W (19.48mm x 26.42mm)
Height (Max) : 1.220" (31.00mm)
Package / Case : Vertical, 4 PC Pin
0
42 in stock

ET2432-024 ET2432-024

Triad Magnetics
Manufacturer : Triad Magnetics
Packaging : Bulk
Series : ET
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 3.2mH @ 1kHz
Current Rating (Max) : 2A
DC Resistance (DCR) (Max) : 200 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -20°C ~ 105°C
Ratings : -
Approvals : -
Features : ESD
Mounting Type : Through Hole
Size / Dimension : 0.767" L x 1.040" W (19.48mm x 26.42mm)
Height (Max) : 1.220" (31.00mm)
Package / Case : Vertical, 4 PC Pin
0
69 in stock

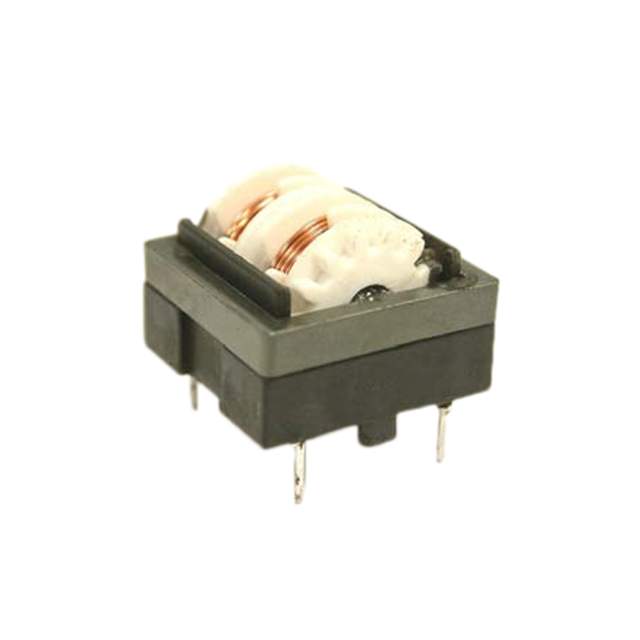

ET2825-025 ET2825-025

Triad Magnetics
Manufacturer : Triad Magnetics
Packaging : Bulk
Series : ET
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 120mH @ 10kHz
Current Rating (Max) : 500mA
DC Resistance (DCR) (Max) : 2.6 Ohm
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -20°C ~ 105°C
Ratings : -
Approvals : -
Features : ESD
Mounting Type : Through Hole
Size / Dimension : 1.181" L x 1.181" W (30.00mm x 30.00mm)
Height (Max) : 0.984" (25.00mm)
Package / Case : Horizontal, 4 PC Pin
0
56 in stock

ET2825-026 ET2825-026

Triad Magnetics
Manufacturer : Triad Magnetics
Packaging : Bulk
Series : ET
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 92mH @ 10kHz
Current Rating (Max) : 600mA
DC Resistance (DCR) (Max) : 2 Ohm
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -20°C ~ 105°C
Ratings : -
Approvals : -
Features : ESD
Mounting Type : Through Hole
Size / Dimension : 1.181" L x 1.181" W (30.00mm x 30.00mm)
Height (Max) : 0.984" (25.00mm)
Package / Case : Horizontal, 4 PC Pin
0
96 in stock

ET2825-027 ET2825-027

Triad Magnetics
Manufacturer : Triad Magnetics
Packaging : Bulk
Series : ET
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 66mH @ 10kHz
Current Rating (Max) : 700mA
DC Resistance (DCR) (Max) : 1.5 Ohm
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -20°C ~ 105°C
Ratings : -
Approvals : -
Features : ESD
Mounting Type : Through Hole
Size / Dimension : 1.181" L x 1.181" W (30.00mm x 30.00mm)
Height (Max) : 0.984" (25.00mm)
Package / Case : Horizontal, 4 PC Pin
0
67 in stock

ET2825-028 ET2825-028

Triad Magnetics
Manufacturer : Triad Magnetics
Packaging : -
Series : ET
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : -
Current Rating (Max) : 900mA
DC Resistance (DCR) (Max) : 800 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -20°C ~ 105°C
Ratings : -
Approvals : CSA, IEC, UL
Features : -
Mounting Type : Through Hole
Size / Dimension : 1.181" L x 1.181" W (30.00mm x 30.00mm)
Height (Max) : 0.984" (25.00mm)
Package / Case : Horizontal, 4 PC Pin
0
100 in stock

ET2825-029 ET2825-029

Triad Magnetics
Manufacturer : Triad Magnetics
Packaging : Bulk
Series : ET
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 25mH @ 10kHz
Current Rating (Max) : 1A
DC Resistance (DCR) (Max) : 600 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -20°C ~ 105°C
Ratings : -
Approvals : -
Features : ESD
Mounting Type : Through Hole
Size / Dimension : 1.181" L x 1.181" W (30.00mm x 30.00mm)
Height (Max) : 0.984" (25.00mm)
Package / Case : Horizontal, 4 PC Pin
0
55 in stock
