Triad Magnetics
- For over 70 years, consumer, commercial and industrial electronic devices have relied on innovative magnetics technology from Triad Magnetics. We offer solutions for power conversion, filtering, isolation and more. Our products include transformers for audio, gate drive, power, medical/dental, wall-mount and plug-in applications; as well as inductors for current sense, common mode, toroidal, filtering and power applications.
Today, you’ll find a wide range of Triad magnetic components in advanced computers, telecommunication systems, automation controls, audio devices and other equipment. Lewis W. Howard founded Triad during the 1940s in Venice, California. He was a UC Berkley graduate, a Wescon Trade Show cofounder and was recognized as an IEEE life member.
Part Number
Manufacturer
Description
Unit Price
In Stock

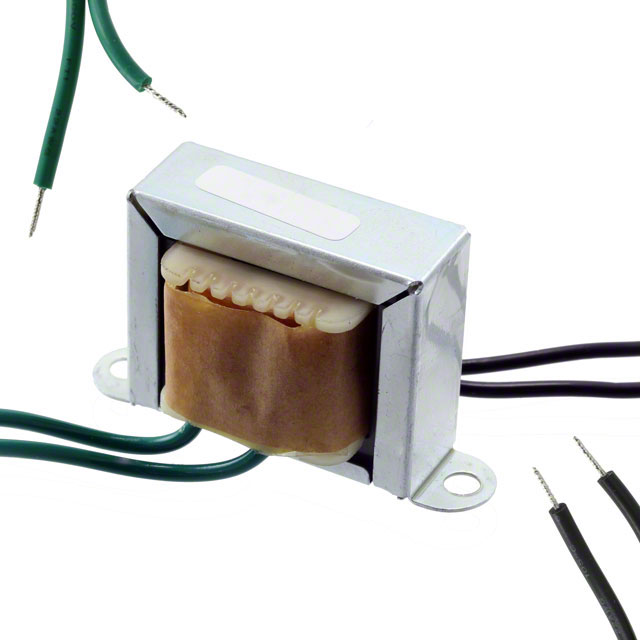

Triad Magnetics
Manufacturer : Triad Magnetics
Series : Single Secondary
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : 12V
Current - Output (Max) : 150mA
Primary Winding(s) : Single
Secondary Winding(s) : Single
Center Tap : No
Power - Max : 1.8 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 60.32mm L x 34.93mm W
Height - Seated (Max) : 34.93mm
Voltage - Isolation : 1500Vrms
Weight : 0.4 lb (181.44g)
0
38 in stock
Triad Magnetics
Manufacturer : Triad Magnetics
Series : Single Secondary
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : 12V
Current - Output (Max) : 700mA
Primary Winding(s) : Single
Secondary Winding(s) : Single
Center Tap : No
Power - Max : 8.4 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 71.42mm L x 41.28mm W
Height - Seated (Max) : 41.28mm
Voltage - Isolation : 1500Vrms
Weight : 0.8 lb (362.87g)
0
94 in stock

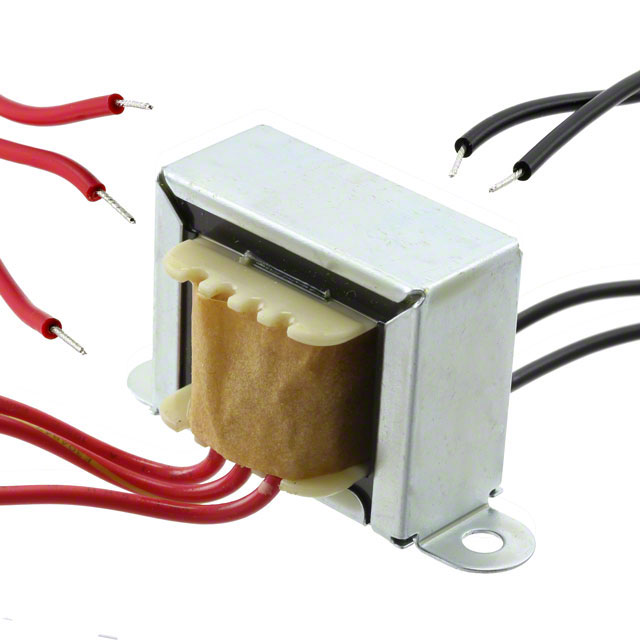

Triad Magnetics
Manufacturer : Triad Magnetics
Series : Single Secondary
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : 24V
Current - Output (Max) : 85mA
Primary Winding(s) : Single
Secondary Winding(s) : Single
Center Tap : Yes
Power - Max : 2.04 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 52.37mm L x 34.93mm W
Height - Seated (Max) : 30.15mm
Voltage - Isolation : 1500Vrms
Weight : 0.3 lb (136.08g)
0
11 in stock

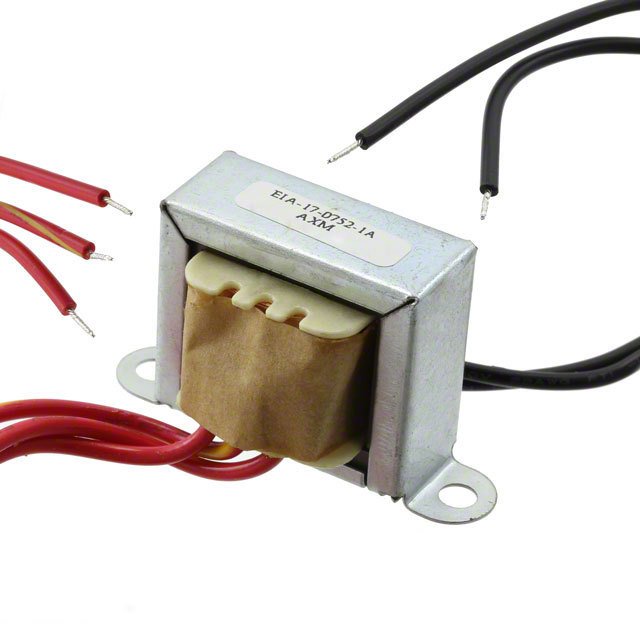

Triad Magnetics
Manufacturer : Triad Magnetics
Series : Single Secondary
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : 24V
Current - Output (Max) : 200mA
Primary Winding(s) : Single
Secondary Winding(s) : Single
Center Tap : Yes
Power - Max : 4.8 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 60.32mm L x 38.10mm W
Height - Seated (Max) : 34.93mm
Voltage - Isolation : 1500Vrms
Weight : 0.3 lb (136.08g)
0
132 in stock

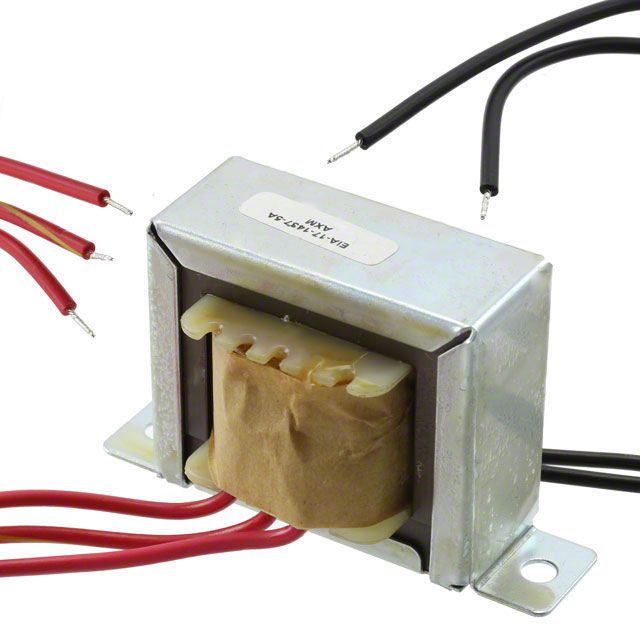

Triad Magnetics
Manufacturer : Triad Magnetics
Series : Single Secondary
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : 24V
Current - Output (Max) : 400mA
Primary Winding(s) : Single
Secondary Winding(s) : Single
Center Tap : Yes
Power - Max : 9.6 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 71.42mm L x 41.28mm W
Height - Seated (Max) : 41.28mm
Voltage - Isolation : 1500Vrms
Weight : 0.8 lb (362.87g)
0
102 in stock
Triad Magnetics
Manufacturer : Triad Magnetics
Series : -
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : 24V
Current - Output (Max) : 700mA
Primary Winding(s) : Single
Secondary Winding(s) : Single
Center Tap : Yes
Power - Max : 16.8 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 82.55mm L x 50.80mm W
Height - Seated (Max) : 50.80mm
Voltage - Isolation : 1500Vrms
Weight : 1.3 lbs (589.7g)
0
282 in stock

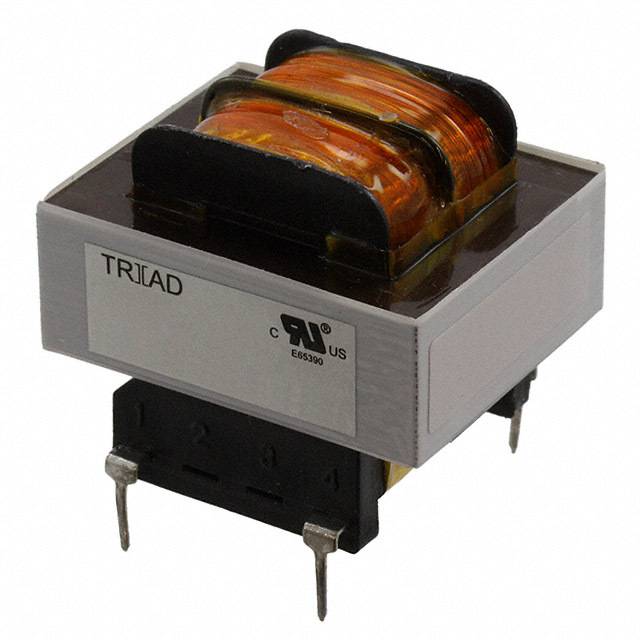

Triad Magnetics
Manufacturer : Triad Magnetics
Series : Split Pack™ Class 2/3, F
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : Parallel 60V, Series 120V
Current - Output (Max) : Parallel 20mA, Series 10mA
Primary Winding(s) : Single
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 1.1 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 34.93mm L x 28.58mm W
Height - Seated (Max) : 23.80mm
Voltage - Isolation : 2500Vrms
Weight : 0.17 lb (77.11g)
0
30 in stock
Triad Magnetics
Manufacturer : Triad Magnetics
Series : Split Pack™ Class 2/3, F
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : Parallel 60V, Series 120V
Current - Output (Max) : Parallel 40mA, Series 20mA
Primary Winding(s) : Single
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 2.5 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 34.93mm L x 28.58mm W
Height - Seated (Max) : 30.15mm
Voltage - Isolation : 2500Vrms
Weight : 0.25 lb (113.4g)
0
7 in stock
Triad Magnetics
Manufacturer : Triad Magnetics
Series : Split Pack™ Class 2/3, F
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : Parallel 60V, Series 120V
Current - Output (Max) : Parallel 100mA, Series 50mA
Primary Winding(s) : Single
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 6 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 41.28mm L x 33.32mm W
Height - Seated (Max) : 33.32mm
Voltage - Isolation : 2500Vrms
Weight : 0.44 lb (199.58g)
0
10 in stock
Triad Magnetics
Manufacturer : Triad Magnetics
Series : Split Pack™ Class 2/3, F
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : Parallel 60V, Series 120V
Current - Output (Max) : Parallel 200mA, Series 100mA
Primary Winding(s) : Single
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 12 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 47.63mm L x 39.67mm W
Height - Seated (Max) : 36.50mm
Voltage - Isolation : 2500Vrms
Weight : 0.7 lb (317.51g)
0
31 in stock
Triad Magnetics
Manufacturer : Triad Magnetics
Series : Split Pack™ Class 2/3, F
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : Parallel 60V, Series 120V
Current - Output (Max) : Parallel 320mA, Series 160mA
Primary Winding(s) : Single
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 20 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 57.15mm L x 47.63mm W
Height - Seated (Max) : 36.50mm
Voltage - Isolation : 2500Vrms
Weight : 0.8 lb (362.87g)
0
9 in stock
Triad Magnetics
Manufacturer : Triad Magnetics
Series : Split Pack™ Class 2/3, F
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : Parallel 60V, Series 120V
Current - Output (Max) : Parallel 600mA, Series 300mA
Primary Winding(s) : Single
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 36 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 66.68mm L x 55.55mm W
Height - Seated (Max) : 39.67mm
Voltage - Isolation : 2500Vrms
Weight : 1.1 lbs (499g)
0
9 in stock
