Triad Magnetics
- For over 70 years, consumer, commercial and industrial electronic devices have relied on innovative magnetics technology from Triad Magnetics. We offer solutions for power conversion, filtering, isolation and more. Our products include transformers for audio, gate drive, power, medical/dental, wall-mount and plug-in applications; as well as inductors for current sense, common mode, toroidal, filtering and power applications.
Today, you’ll find a wide range of Triad magnetic components in advanced computers, telecommunication systems, automation controls, audio devices and other equipment. Lewis W. Howard founded Triad during the 1940s in Venice, California. He was a UC Berkley graduate, a Wescon Trade Show cofounder and was recognized as an IEEE life member.
Part Number
Manufacturer
Description
Unit Price
In Stock

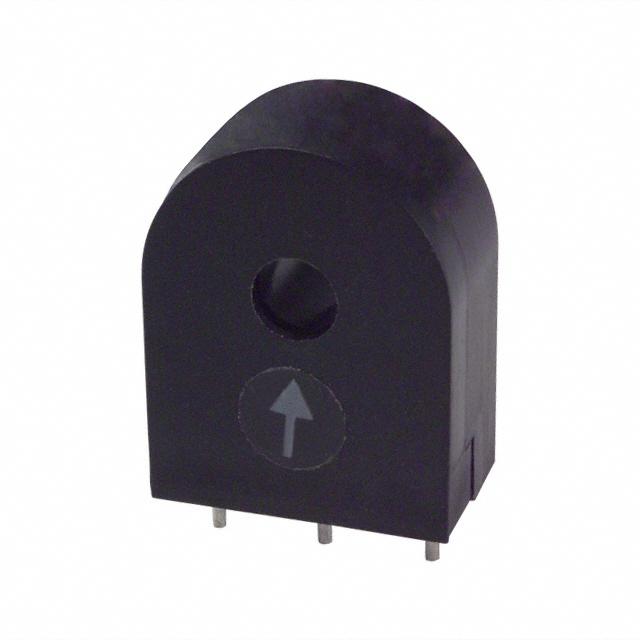

Triad Magnetics
Manufacturer : Triad Magnetics
Packaging : Bulk
Series : CST
Part Status : Active
Frequency Range : 20kHz ~ 200kHz
Type : Non-Invasive (Solid Core)
Current Rating : 35A
Inductance : 3.5mH
Energy Time (E.T.) : 500V µS
Turns Ratio - Primary:Secondary : -
Current Ratio : 50:1
DC Resistance (DCR) : 340 mOhm Max
Ratings : -
Mounting Type : Through Hole
Size / Dimension : 0.690" L x 0.385" W (17.53mm x 9.78mm)
Height - Seated (Max) : 0.915" (23.24mm)
Termination Style : PC Pin
0
2400 in stock
Triad Magnetics
Manufacturer : Triad Magnetics
Packaging : Bulk
Series : CST
Part Status : Active
Frequency Range : 20kHz ~ 200kHz
Type : Non-Invasive (Solid Core)
Current Rating : 35A
Inductance : 3.5mH
Energy Time (E.T.) : 500V µS
Turns Ratio - Primary:Secondary : -
Current Ratio : 50CT:1
DC Resistance (DCR) : 340 mOhm Max
Ratings : -
Mounting Type : Through Hole
Size / Dimension : 0.690" L x 0.385" W (17.53mm x 9.78mm)
Height - Seated (Max) : 0.915" (23.24mm)
Termination Style : PC Pin
0
745 in stock
Triad Magnetics
Manufacturer : Triad Magnetics
Packaging : Bulk
Series : CST
Part Status : Active
Frequency Range : 20kHz ~ 200kHz
Type : Non-Invasive (Solid Core)
Current Rating : 25A
Inductance : 14mH
Energy Time (E.T.) : 1000V µS
Turns Ratio - Primary:Secondary : -
Current Ratio : 100:1
DC Resistance (DCR) : 1.55 Ohm Max
Ratings : -
Mounting Type : Through Hole
Size / Dimension : 0.690" L x 0.385" W (17.53mm x 9.78mm)
Height - Seated (Max) : 0.915" (23.24mm)
Termination Style : PC Pin
0
5738 in stock
Triad Magnetics
Manufacturer : Triad Magnetics
Packaging : Bulk
Series : CST
Part Status : Active
Frequency Range : 20kHz ~ 200kHz
Type : Non-Invasive (Solid Core)
Current Rating : 25A
Inductance : 14mH
Energy Time (E.T.) : 1000V µS
Turns Ratio - Primary:Secondary : -
Current Ratio : 100CT:1
DC Resistance (DCR) : 1.55 Ohm Max
Ratings : -
Mounting Type : Through Hole
Size / Dimension : 0.690" L x 0.385" W (17.53mm x 9.78mm)
Height - Seated (Max) : 0.915" (23.24mm)
Termination Style : PC Pin
0
296 in stock
Triad Magnetics
Manufacturer : Triad Magnetics
Packaging : Bulk
Series : CST
Part Status : Active
Frequency Range : 20kHz ~ 200kHz
Type : Non-Invasive (Solid Core)
Current Rating : 25A
Inductance : 55mH
Energy Time (E.T.) : 2000V µS
Turns Ratio - Primary:Secondary : -
Current Ratio : 200:1
DC Resistance (DCR) : 3.75 Ohm Max
Ratings : -
Mounting Type : Through Hole
Size / Dimension : 0.690" L x 0.385" W (17.53mm x 9.78mm)
Height - Seated (Max) : 0.915" (23.24mm)
Termination Style : PC Pin
0
2657 in stock
Triad Magnetics
Manufacturer : Triad Magnetics
Packaging : Bulk
Series : CST
Part Status : Active
Frequency Range : 20kHz ~ 200kHz
Type : Non-Invasive (Solid Core)
Current Rating : 25A
Inductance : 55mH
Energy Time (E.T.) : 2000V µS
Turns Ratio - Primary:Secondary : -
Current Ratio : 200CT:1
DC Resistance (DCR) : 3.75 Ohm Max
Ratings : -
Mounting Type : Through Hole
Size / Dimension : 0.690" L x 0.385" W (17.53mm x 9.78mm)
Height - Seated (Max) : 0.915" (23.24mm)
Termination Style : PC Pin
0
483 in stock

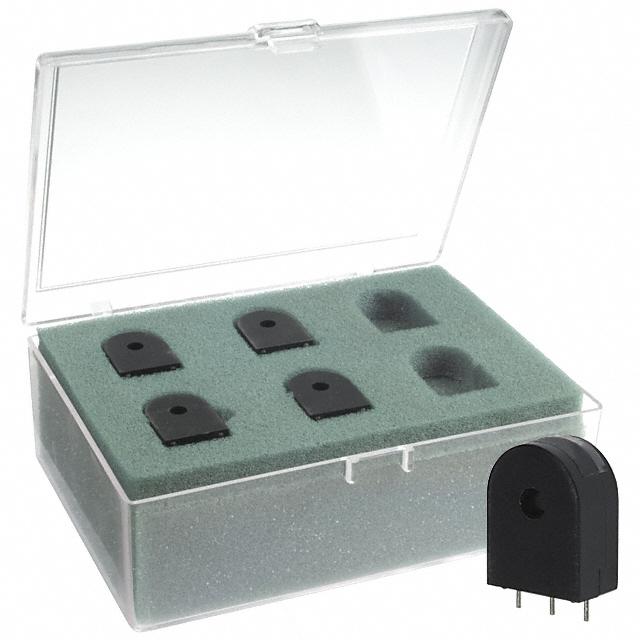

Triad Magnetics
Manufacturer : Triad Magnetics
Packaging : Plastic Box with Bin Guide
Series : CST
Part Status : Active
Kit Type : High Frequency Current Sense
Quantity : 6 Pieces (6 Values - 1 Each)
Mounting Type : Through Hole
0
14 in stock

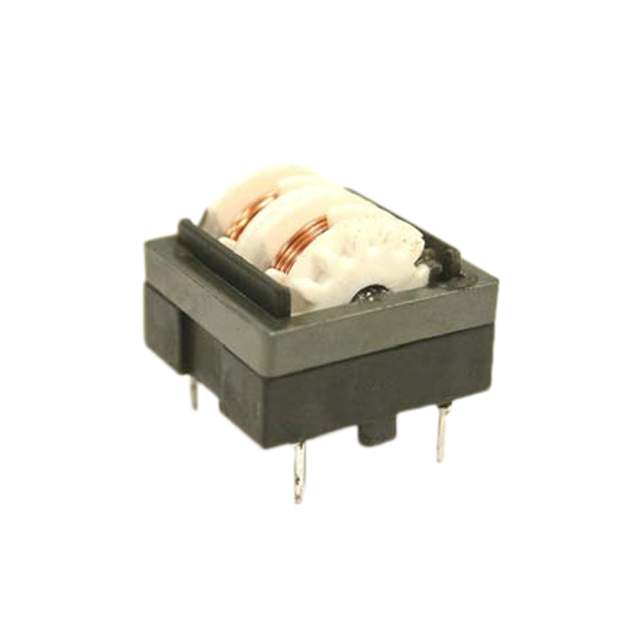

Triad Magnetics
Manufacturer : Triad Magnetics
Packaging : Bulk
Series : ET
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 24mH @ 10kHz
Current Rating (Max) : 600mA
DC Resistance (DCR) (Max) : 1.6 Ohm
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -20°C ~ 105°C
Ratings : -
Approvals : -
Features : ESD
Mounting Type : Through Hole
Size / Dimension : 1.043" L x 1.043" W (26.50mm x 26.50mm)
Height (Max) : 0.906" (23.00mm)
Package / Case : Horizontal, 4 PC Pin
0
69 in stock
Triad Magnetics
Manufacturer : Triad Magnetics
Packaging : Bulk
Series : ET
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 9.2mH @ 10kHz
Current Rating (Max) : 700mA
DC Resistance (DCR) (Max) : 750 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -20°C ~ 105°C
Ratings : -
Approvals : -
Features : ESD
Mounting Type : Through Hole
Size / Dimension : 1.043" L x 1.043" W (26.50mm x 26.50mm)
Height (Max) : 0.906" (23.00mm)
Package / Case : Horizontal, 4 PC Pin
0
712 in stock
Triad Magnetics
Manufacturer : Triad Magnetics
Packaging : Bulk
Series : ET
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 7.8mH @ 10kHz
Current Rating (Max) : 900mA
DC Resistance (DCR) (Max) : 500 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -20°C ~ 105°C
Ratings : -
Approvals : -
Features : ESD
Mounting Type : Through Hole
Size / Dimension : 1.043" L x 1.043" W (26.50mm x 26.50mm)
Height (Max) : 0.906" (23.00mm)
Package / Case : Horizontal, 4 PC Pin
0
94 in stock
Triad Magnetics
Manufacturer : Triad Magnetics
Packaging : Bulk
Series : ET
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 5.2mH @ 10kHz
Current Rating (Max) : 1A
DC Resistance (DCR) (Max) : 340 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -20°C ~ 105°C
Ratings : -
Approvals : -
Features : ESD
Mounting Type : Through Hole
Size / Dimension : 1.043" L x 1.043" W (26.50mm x 26.50mm)
Height (Max) : 0.906" (23.00mm)
Package / Case : Horizontal, 4 PC Pin
0
85 in stock
Triad Magnetics
Manufacturer : Triad Magnetics
Packaging : Bulk
Series : ET
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 3.6mH @ 10kHz
Current Rating (Max) : 1.5A
DC Resistance (DCR) (Max) : 250 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -20°C ~ 105°C
Ratings : -
Approvals : -
Features : ESD
Mounting Type : Through Hole
Size / Dimension : 1.043" L x 1.043" W (26.50mm x 26.50mm)
Height (Max) : 0.906" (23.00mm)
Package / Case : Horizontal, 4 PC Pin
0
180 in stock
