Nichicon

- For over 60 years, Nichicon has strived to be a “valuable supplier for our customers” by balancing advanced technology, strict quality control measures, and superior service. We are continuously researching and implementing innovative technologies to directly benefit our customers while offering the widest selection of aluminum electrolytic capacitors in the industry. We also offer the broadest array of conductive polymer capacitors worldwide.

In the competitive marketplace of electronics, Nichicon’s “zero-defect” philosophy ensures our components can endure diverse applications. We pride ourselves in the variety of capacitors offered including surface mount, snap-in, through-hole, and screw terminal. Additionally, our company upholds the strictest environmental standards including manufacturing only RoHS and REACH compliant components.


Part Number

Manufacturer

Description

Unit Price

In Stock

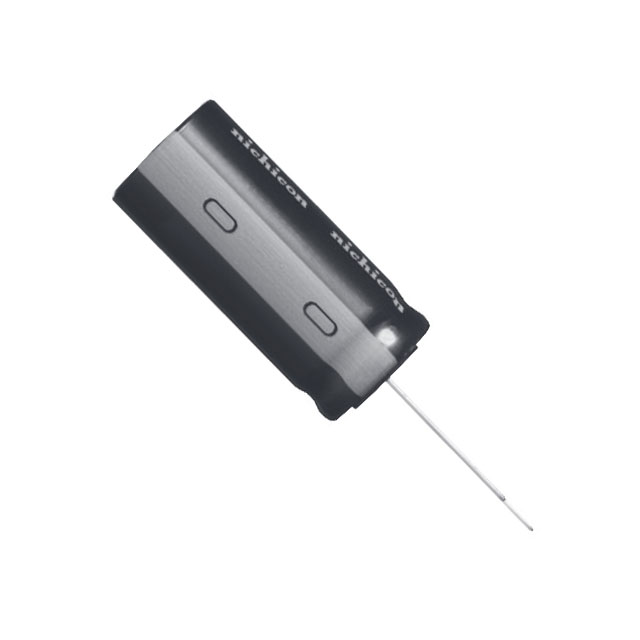

JUK0E276MHD

Nichicon

Manufacturer : Nichicon
Packaging : Bulk
Series : EVerCAP® JUK
Part Status : Active
Capacitance : 27F
Tolerance : ±20%
Voltage - Rated : 2.5V
ESR (Equivalent Series Resistance) : 35 mOhm @ 1kHz
Lifetime @ Temp. : 1000 Hrs @ 70°C
Termination : PC Pins
Mounting Type : Through Hole
Package / Case : Radial, Can
Lead Spacing : 0.295" (7.50mm)
Size / Dimension : 0.709" Dia (18.00mm)
Height - Seated (Max) : 1.654" (42.00mm)
Operating Temperature : -40°C ~ 70°C

50 in stock

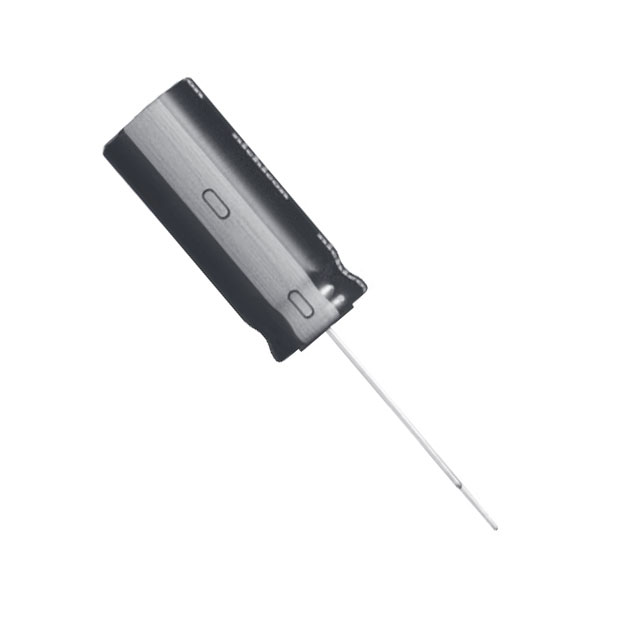

JUK0E685MHD

Nichicon

Manufacturer : Nichicon
Packaging : Bulk
Series : EVerCAP® JUK
Part Status : Active
Capacitance : 6.8F
Tolerance : ±20%
Voltage - Rated : 2.5V
ESR (Equivalent Series Resistance) : 85 mOhm @ 1kHz
Lifetime @ Temp. : 1000 Hrs @ 70°C
Termination : PC Pins
Mounting Type : Through Hole
Package / Case : Radial, Can
Lead Spacing : 0.197" (5.00mm)
Size / Dimension : 0.492" Dia (12.50mm)
Height - Seated (Max) : 1.319" (33.50mm)
Operating Temperature : -40°C ~ 70°C

57 in stock

JUM0H184ACD

Nichicon

Manufacturer : Nichicon
Packaging : Bulk
Series : EVerCAP® JUM
Part Status : Active
Capacitance : 180mF
Tolerance : 0% , 40%
Voltage - Rated : 5.5V
ESR (Equivalent Series Resistance) : 2 Ohm
Lifetime @ Temp. : 1000 Hrs @ 70°C
Termination : PC Pins
Mounting Type : Through Hole
Package / Case : Radial, Can
Lead Spacing : 0.201" (5.10mm)
Size / Dimension : 0.650" Dia (16.50mm)
Height - Seated (Max) : 0.532" (13.50mm)
Operating Temperature : -30°C ~ 85°C

48 in stock

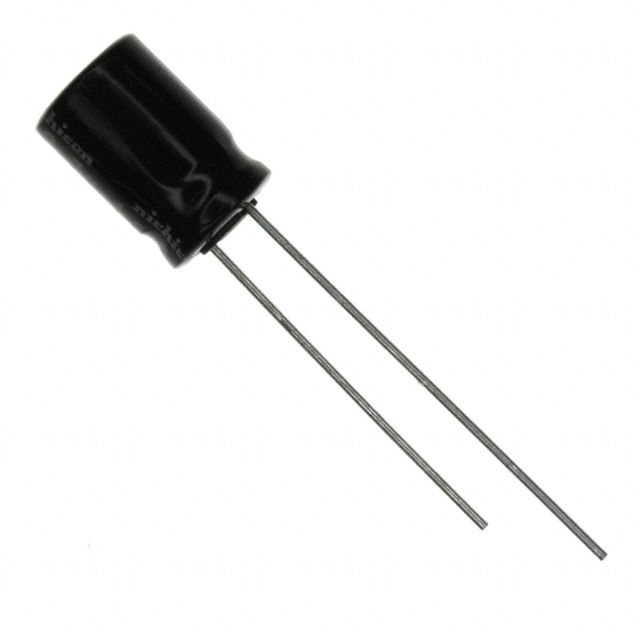

JUMT1105MPD

Nichicon

Manufacturer : Nichicon
Packaging : Bulk
Series : EVerCAP® JUM
Part Status : Active
Capacitance : 1F
Tolerance : ±20%
Voltage - Rated : 2.7V
ESR (Equivalent Series Resistance) : 2 Ohm @ 1kHz
Lifetime @ Temp. : 1000 Hrs @ 70°C
Termination : PC Pins
Mounting Type : Through Hole
Package / Case : Radial, Can
Lead Spacing : 0.138" (3.50mm)
Size / Dimension : 0.315" Dia (8.00mm)
Height - Seated (Max) : 0.512" (13.00mm)
Operating Temperature : -25°C ~ 70°C

740 in stock

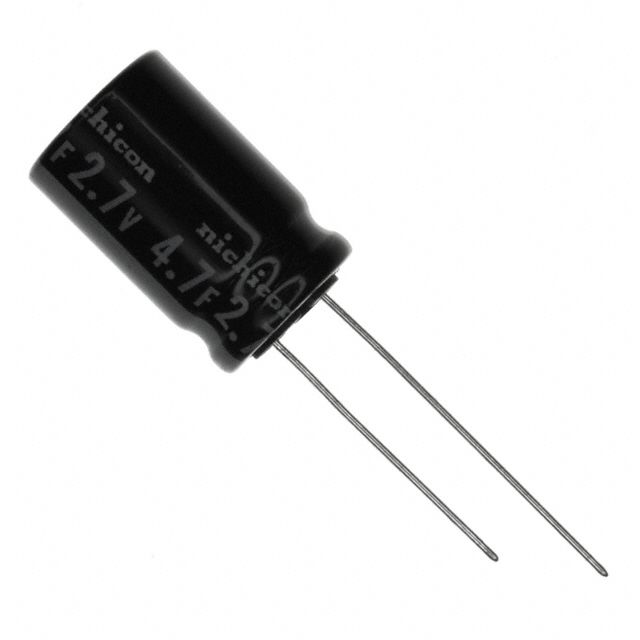

JUMT1106MHD

Nichicon

Manufacturer : Nichicon
Packaging : Bulk
Series : EVerCAP® JUM
Part Status : Active
Capacitance : 10F
Tolerance : ±20%
Voltage - Rated : 2.7V
ESR (Equivalent Series Resistance) : 200 mOhm @ 1kHz
Lifetime @ Temp. : 1000 Hrs @ 70°C
Termination : PC Pins
Mounting Type : Through Hole
Package / Case : Radial, Can
Lead Spacing : 0.197" (5.00mm)
Size / Dimension : 0.492" Dia (12.50mm)
Height - Seated (Max) : 1.319" (33.50mm)
Operating Temperature : -25°C ~ 70°C

92 in stock

JUMT1225MPD

Nichicon

Manufacturer : Nichicon
Packaging : Bulk
Series : EVerCAP® JUM
Part Status : Active
Capacitance : 2.2F
Tolerance : ±20%
Voltage - Rated : 2.7V
ESR (Equivalent Series Resistance) : 2 Ohm @ 1kHz
Lifetime @ Temp. : 1000 Hrs @ 70°C
Termination : PC Pins
Mounting Type : Through Hole
Package / Case : Radial, Can
Lead Spacing : 0.138" (3.50mm)
Size / Dimension : 0.315" Dia (8.00mm)
Height - Seated (Max) : 0.846" (21.50mm)
Operating Temperature : -25°C ~ 70°C

6077 in stock

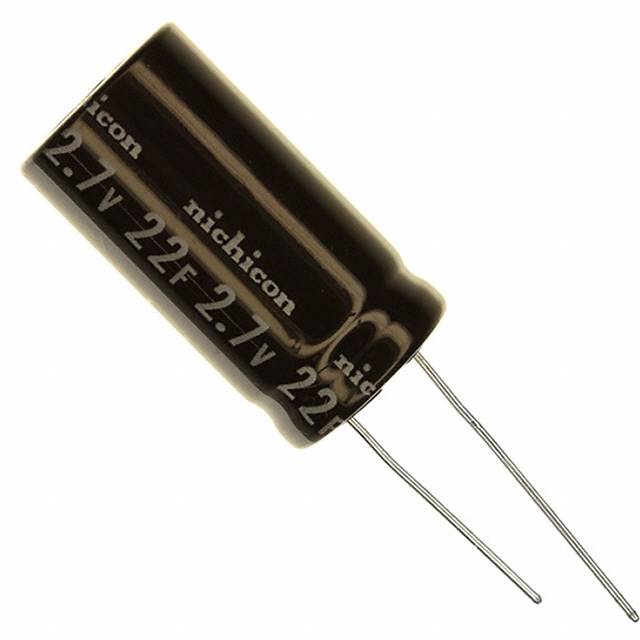

JUMT1226MHD

Nichicon

Manufacturer : Nichicon
Packaging : Bulk
Series : EVerCAP® JUM
Part Status : Active
Capacitance : 22F
Tolerance : ±20%
Voltage - Rated : 2.7V
ESR (Equivalent Series Resistance) : 200 mOhm @ 1kHz
Lifetime @ Temp. : 1000 Hrs @ 70°C
Termination : PC Pins
Mounting Type : Through Hole
Package / Case : Radial, Can
Lead Spacing : 0.295" (7.50mm)
Size / Dimension : 0.630" Dia (16.00mm)
Height - Seated (Max) : 1.319" (33.50mm)
Operating Temperature : -25°C ~ 70°C

13079 in stock

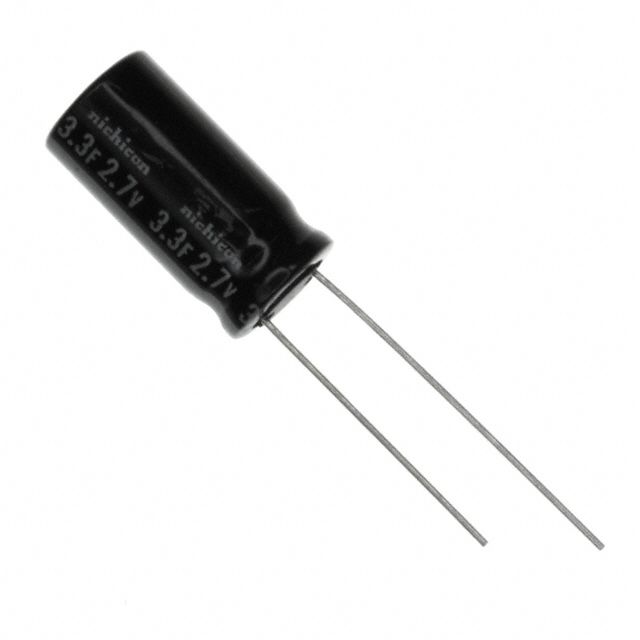

JUMT1335MPD

Nichicon

Manufacturer : Nichicon
Packaging : Bulk
Series : EVerCAP® JUM
Part Status : Active
Capacitance : 3.3F
Tolerance : ±20%
Voltage - Rated : 2.7V
ESR (Equivalent Series Resistance) : 1 Ohm @ 1kHz
Lifetime @ Temp. : 1000 Hrs @ 70°C
Termination : PC Pins
Mounting Type : Through Hole
Package / Case : Radial, Can
Lead Spacing : 0.197" (5.00mm)
Size / Dimension : 0.394" Dia (10.00mm)
Height - Seated (Max) : 0.866" (22.00mm)
Operating Temperature : -25°C ~ 70°C

397 in stock

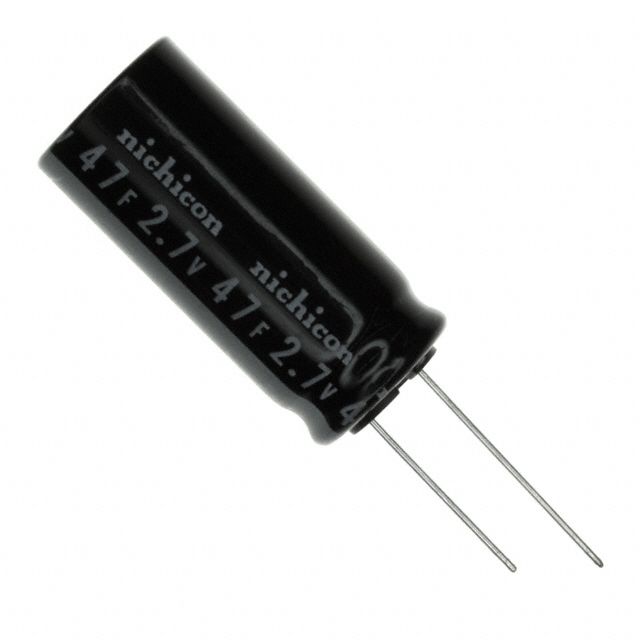

JUMT1336MHD

Nichicon

Manufacturer : Nichicon
Packaging : Bulk
Series : EVerCAP® JUM
Part Status : Active
Capacitance : 33F
Tolerance : ±20%
Voltage - Rated : 2.7V
ESR (Equivalent Series Resistance) : 100 mOhm @ 1kHz
Lifetime @ Temp. : 1000 Hrs @ 70°C
Termination : PC Pins
Mounting Type : Through Hole
Package / Case : Radial, Can
Lead Spacing : 0.295" (7.50mm)
Size / Dimension : 0.709" Dia (18.00mm)
Height - Seated (Max) : 1.319" (33.50mm)
Operating Temperature : -25°C ~ 70°C

14 in stock

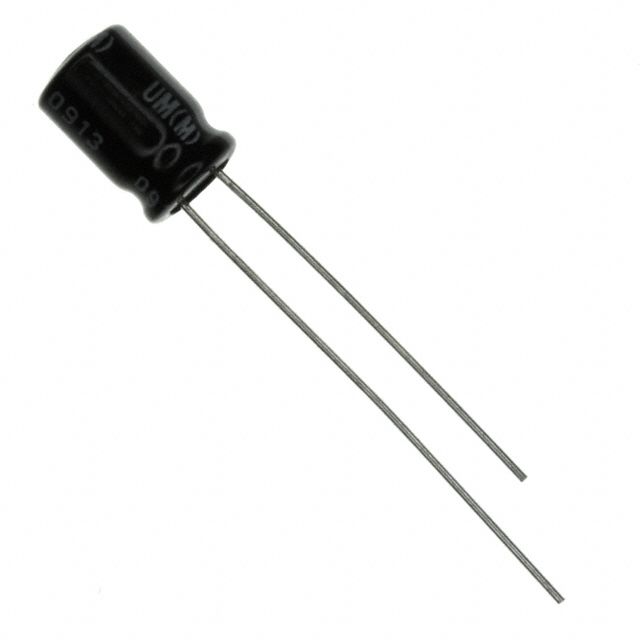

JUMT1474MED

Nichicon

Manufacturer : Nichicon
Packaging : Bulk
Series : EVerCAP® JUM
Part Status : Active
Capacitance : 470mF
Tolerance : ±20%
Voltage - Rated : 2.7V
ESR (Equivalent Series Resistance) : 4 Ohm @ 1kHz
Lifetime @ Temp. : 1000 Hrs @ 70°C
Termination : PC Pins
Mounting Type : Through Hole
Package / Case : Radial, Can
Lead Spacing : 0.098" (2.50mm)
Size / Dimension : 0.248" Dia (6.30mm)
Height - Seated (Max) : 0.413" (10.50mm)
Operating Temperature : -25°C ~ 70°C

100 in stock

JUMT1475MHD

Nichicon

Manufacturer : Nichicon
Packaging : Bulk
Series : EVerCAP® JUM
Part Status : Active
Capacitance : 4.7F
Tolerance : ±20%
Voltage - Rated : 2.7V
ESR (Equivalent Series Resistance) : 400 mOhm @ 1kHz
Lifetime @ Temp. : 1000 Hrs @ 70°C
Termination : PC Pins
Mounting Type : Through Hole
Package / Case : Radial, Can
Lead Spacing : 0.197" (5.00mm)
Size / Dimension : 0.492" Dia (12.50mm)
Height - Seated (Max) : 0.866" (22.00mm)
Operating Temperature : -25°C ~ 70°C

100 in stock

JUMT1476MHD

Nichicon

Manufacturer : Nichicon
Packaging : Bulk
Series : EVerCAP® JUM
Part Status : Active
Capacitance : 47F
Tolerance : ±20%
Voltage - Rated : 2.7V
ESR (Equivalent Series Resistance) : 100 mOhm @ 1kHz
Lifetime @ Temp. : 1000 Hrs @ 70°C
Termination : PC Pins
Mounting Type : Through Hole
Package / Case : Radial, Can
Lead Spacing : 0.295" (7.50mm)
Size / Dimension : 0.709" Dia (18.00mm)
Height - Seated (Max) : 1.654" (42.00mm)
Operating Temperature : -25°C ~ 70°C

92 in stock
