Nichicon

- For over 60 years, Nichicon has strived to be a “valuable supplier for our customers” by balancing advanced technology, strict quality control measures, and superior service. We are continuously researching and implementing innovative technologies to directly benefit our customers while offering the widest selection of aluminum electrolytic capacitors in the industry. We also offer the broadest array of conductive polymer capacitors worldwide.

In the competitive marketplace of electronics, Nichicon’s “zero-defect” philosophy ensures our components can endure diverse applications. We pride ourselves in the variety of capacitors offered including surface mount, snap-in, through-hole, and screw terminal. Additionally, our company upholds the strictest environmental standards including manufacturing only RoHS and REACH compliant components.


Part Number

Manufacturer

Description

Unit Price

In Stock

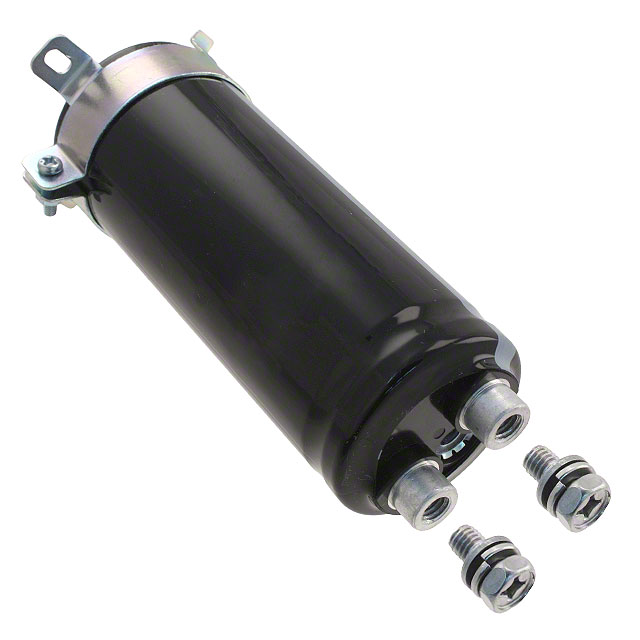

JJL0E707MSEDBN

Nichicon

Manufacturer : Nichicon
Packaging : Bulk
Series : EVerCAP® JL
Part Status : Active
Capacitance : 700F
Tolerance : ±20%
Voltage - Rated : 2.5V
ESR (Equivalent Series Resistance) : 3.5 mOhm
Lifetime @ Temp. : 2000 Hrs @ 60°C
Termination : Screw Terminals
Mounting Type : Chassis Mount
Package / Case : Radial, Can - Screw Terminals
Lead Spacing : 0.740" (18.80mm)
Size / Dimension : 1.575" Dia (40.00mm)
Height - Seated (Max) : 4.252" (108.00mm)
Operating Temperature : -25°C ~ 60°C

100 in stock

JUC0E105MPD

Nichicon

Manufacturer : Nichicon
Packaging : Bulk
Series : EVerCAP® UC
Part Status : Obsolete
Capacitance : 1F
Tolerance : ±20%
Voltage - Rated : 2.5V
ESR (Equivalent Series Resistance) : 2 Ohm @ 1kHz
Lifetime @ Temp. : 1000 Hrs @ 70°C
Termination : PC Pins
Mounting Type : Through Hole
Package / Case : Radial, Can
Lead Spacing : 0.138" (3.50mm)
Size / Dimension : 0.315" Dia (8.00mm)
Height - Seated (Max) : 0.512" (13.00mm)
Operating Temperature : -25°C ~ 70°C

100 in stock

JUC0E106MHD

Nichicon

Manufacturer : Nichicon
Packaging : Bulk
Series : EVerCAP® UC
Part Status : Obsolete
Capacitance : 10F
Tolerance : ±20%
Voltage - Rated : 2.5V
ESR (Equivalent Series Resistance) : 200 mOhm @ 1kHz
Lifetime @ Temp. : 1000 Hrs @ 70°C
Termination : PC Pins
Mounting Type : Through Hole
Package / Case : Radial, Can
Lead Spacing : 0.197" (5.00mm)
Size / Dimension : 0.492" Dia (12.50mm)
Height - Seated (Max) : 1.319" (33.50mm)
Operating Temperature : -25°C ~ 70°C

100 in stock

JUC0E106MPD

Nichicon

Manufacturer : Nichicon
Packaging : Bulk
Series : EVerCAP® UC
Part Status : Obsolete
Capacitance : 10F
Tolerance : ±20%
Voltage - Rated : 2.5V
ESR (Equivalent Series Resistance) : 200 mOhm @ 1kHz
Lifetime @ Temp. : 1000 Hrs @ 70°C
Termination : PC Pins
Mounting Type : Through Hole
Package / Case : Radial, Can
Lead Spacing : 0.197" (5.00mm)
Size / Dimension : 0.394" Dia (10.00mm)
Height - Seated (Max) : 1.654" (42.00mm)
Operating Temperature : -25°C ~ 70°C

100 in stock

JUC0E225MPD

Nichicon

Manufacturer : Nichicon
Packaging : Bulk
Series : EVerCAP® UC
Part Status : Obsolete
Capacitance : 2.2F
Tolerance : ±20%
Voltage - Rated : 2.5V
ESR (Equivalent Series Resistance) : 2 Ohm @ 1kHz
Lifetime @ Temp. : 1000 Hrs @ 70°C
Termination : PC Pins
Mounting Type : Through Hole
Package / Case : Radial, Can
Lead Spacing : 0.138" (3.50mm)
Size / Dimension : 0.315" Dia (8.00mm)
Height - Seated (Max) : 0.846" (21.50mm)
Operating Temperature : -25°C ~ 70°C

100 in stock

JUC0E226MHD

Nichicon

Manufacturer : Nichicon
Packaging : Bulk
Series : EVerCAP® UC
Part Status : Obsolete
Capacitance : 22F
Tolerance : ±20%
Voltage - Rated : 2.5V
ESR (Equivalent Series Resistance) : 200 mOhm @ 1kHz
Lifetime @ Temp. : 1000 Hrs @ 70°C
Termination : PC Pins
Mounting Type : Through Hole
Package / Case : Radial, Can
Lead Spacing : 0.295" (7.50mm)
Size / Dimension : 0.630" Dia (16.00mm)
Height - Seated (Max) : 1.319" (33.50mm)
Operating Temperature : -25°C ~ 70°C

100 in stock

JUC0E335MPD

Nichicon

Manufacturer : Nichicon
Packaging : Bulk
Series : EVerCAP® UC
Part Status : Obsolete
Capacitance : 3.3F
Tolerance : ±20%
Voltage - Rated : 2.5V
ESR (Equivalent Series Resistance) : 1 Ohm @ 1kHz
Lifetime @ Temp. : 1000 Hrs @ 70°C
Termination : PC Pins
Mounting Type : Through Hole
Package / Case : Radial, Can
Lead Spacing : 0.197" (5.00mm)
Size / Dimension : 0.394" Dia (10.00mm)
Height - Seated (Max) : 0.866" (22.00mm)
Operating Temperature : -25°C ~ 70°C

100 in stock

JUC0E336MHD

Nichicon

Manufacturer : Nichicon
Packaging : Bulk
Series : EVerCAP® UC
Part Status : Obsolete
Capacitance : 33F
Tolerance : ±20%
Voltage - Rated : 2.5V
ESR (Equivalent Series Resistance) : 100 mOhm @ 1kHz
Lifetime @ Temp. : 1000 Hrs @ 70°C
Termination : PC Pins
Mounting Type : Through Hole
Package / Case : Radial, Can
Lead Spacing : 0.295" (7.50mm)
Size / Dimension : 0.709" Dia (18.00mm)
Height - Seated (Max) : 1.319" (33.50mm)
Operating Temperature : -25°C ~ 70°C

100 in stock

JUC0E474MED

Nichicon

Manufacturer : Nichicon
Packaging : Bulk
Series : EVerCAP® UC
Part Status : Obsolete
Capacitance : 470mF
Tolerance : ±20%
Voltage - Rated : 2.5V
ESR (Equivalent Series Resistance) : 7 Ohm @ 1kHz
Lifetime @ Temp. : 1000 Hrs @ 70°C
Termination : PC Pins
Mounting Type : Through Hole
Package / Case : Radial, Can
Lead Spacing : 0.098" (2.50mm)
Size / Dimension : 0.248" Dia (6.30mm)
Height - Seated (Max) : 0.413" (10.50mm)
Operating Temperature : -25°C ~ 70°C

100 in stock

JUC0E475MHD

Nichicon

Manufacturer : Nichicon
Packaging : Bulk
Series : EVerCAP® UC
Part Status : Obsolete
Capacitance : 4.7F
Tolerance : ±20%
Voltage - Rated : 2.5V
ESR (Equivalent Series Resistance) : 500 mOhm @ 1kHz
Lifetime @ Temp. : 1000 Hrs @ 70°C
Termination : PC Pins
Mounting Type : Through Hole
Package / Case : Radial, Can
Lead Spacing : 0.197" (5.00mm)
Size / Dimension : 0.492" Dia (12.50mm)
Height - Seated (Max) : 0.866" (22.00mm)
Operating Temperature : -25°C ~ 70°C

100 in stock

JUC0E476MHD

Nichicon

Manufacturer : Nichicon
Packaging : Bulk
Series : EVerCAP® UC
Part Status : Obsolete
Capacitance : 47F
Tolerance : ±20%
Voltage - Rated : 2.5V
ESR (Equivalent Series Resistance) : 100 mOhm @ 1kHz
Lifetime @ Temp. : 1000 Hrs @ 70°C
Termination : PC Pins
Mounting Type : Through Hole
Package / Case : Radial, Can
Lead Spacing : 0.295" (7.50mm)
Size / Dimension : 0.709" Dia (18.00mm)
Height - Seated (Max) : 1.654" (42.00mm)
Operating Temperature : -25°C ~ 70°C

100 in stock

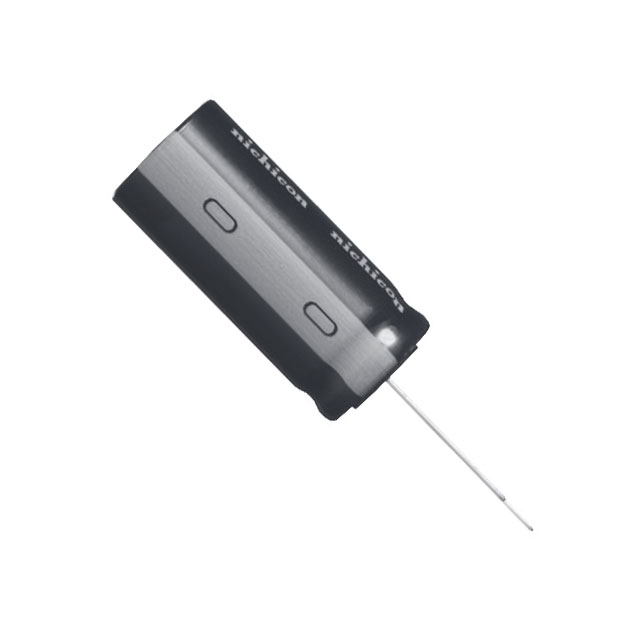

JUK0E126MHD

Nichicon

Manufacturer : Nichicon
Packaging : Bulk
Series : EVerCAP® JUK
Part Status : Active
Capacitance : 12F
Tolerance : ±20%
Voltage - Rated : 2.5V
ESR (Equivalent Series Resistance) : 60 mOhm @ 1kHz
Lifetime @ Temp. : 1000 Hrs @ 70°C
Termination : PC Pins
Mounting Type : Through Hole
Package / Case : Radial, Can
Lead Spacing : 0.295" (7.50mm)
Size / Dimension : 0.630" Dia (16.00mm)
Height - Seated (Max) : 1.319" (33.50mm)
Operating Temperature : -40°C ~ 70°C

50 in stock
