- For over 60 years, Nichicon has strived to be a “valuable supplier for our customers” by balancing advanced technology, strict quality control measures, and superior service. We are continuously researching and implementing innovative technologies to directly benefit our customers while offering the widest selection of aluminum electrolytic capacitors in the industry. We also offer the broadest array of conductive polymer capacitors worldwide.

In the competitive marketplace of electronics, Nichicon’s “zero-defect” philosophy ensures our components can endure diverse applications. We pride ourselves in the variety of capacitors offered including surface mount, snap-in, through-hole, and screw terminal. Additionally, our company upholds the strictest environmental standards including manufacturing only RoHS and REACH compliant components.


Part Number

Manufacturer

Description

Unit Price

In Stock

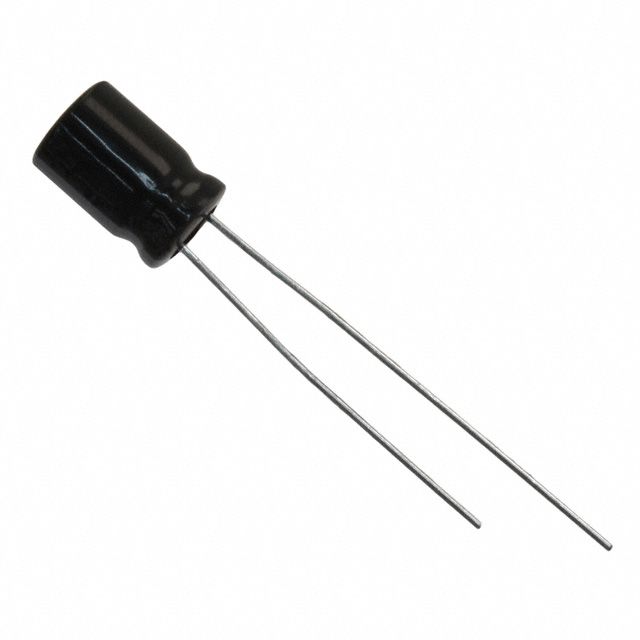

JUWT1105MCD

Nichicon

Manufacturer : Nichicon
Packaging : Bulk
Series : EVerCAP® JUW
Part Status : Active
Capacitance : 1F
Tolerance : ±20%
Voltage - Rated : 2.7V
ESR (Equivalent Series Resistance) : 4 Ohm @ 1kHz
Lifetime @ Temp. : 1000 Hrs @ 70°C
Termination : PC Pins
Mounting Type : Through Hole
Package / Case : Radial, Can
Lead Spacing : 0.098" (2.50mm)
Size / Dimension : 0.248" Dia (6.30mm)
Height - Seated (Max) : 0.413" (10.50mm)
Operating Temperature : -25°C ~ 70°C

235992 in stock

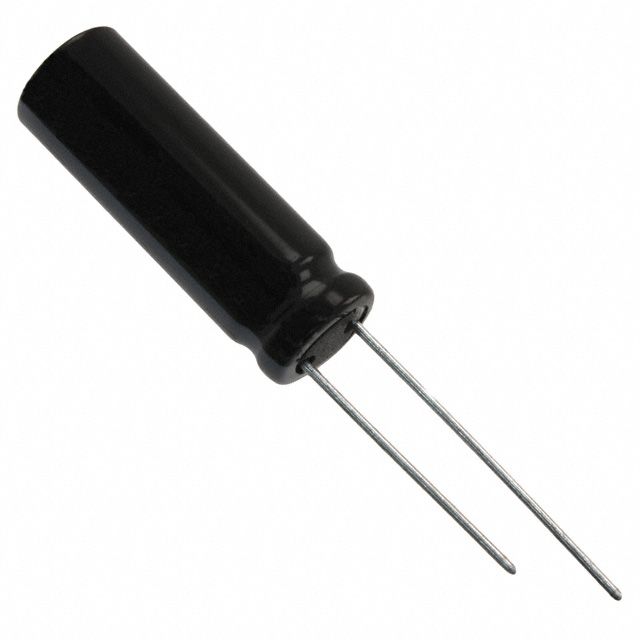

JUWT1126MPD

Nichicon

Manufacturer : Nichicon
Packaging : Bulk
Series : EVerCAP® JUW
Part Status : Active
Capacitance : 12F
Tolerance : ±20%
Voltage - Rated : 2.7V
ESR (Equivalent Series Resistance) : 400 mOhm @ 1kHz
Lifetime @ Temp. : 1000 Hrs @ 70°C
Termination : PC Pins
Mounting Type : Through Hole
Package / Case : Radial, Can
Lead Spacing : 0.197" (5.00mm)
Size / Dimension : 0.394" Dia (10.00mm)
Height - Seated (Max) : 1.319" (33.50mm)
Operating Temperature : -25°C ~ 70°C

103 in stock

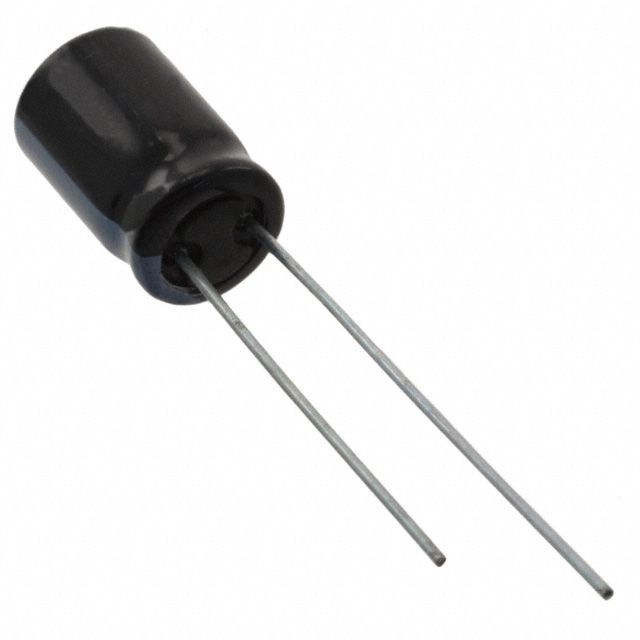

JUWT1155MPD

Nichicon

Manufacturer : Nichicon
Packaging : Bulk
Series : EVerCAP® JUW
Part Status : Active
Capacitance : 1.5F
Tolerance : ±20%
Voltage - Rated : 2.7V
ESR (Equivalent Series Resistance) : 3 Ohm @ 1kHz
Lifetime @ Temp. : 1000 Hrs @ 70°C
Termination : PC Pins
Mounting Type : Through Hole
Package / Case : Radial, Can
Lead Spacing : 0.138" (3.50mm)
Size / Dimension : 0.315" Dia (8.00mm)
Height - Seated (Max) : 0.512" (13.00mm)
Operating Temperature : -25°C ~ 70°C

36514 in stock

JUWT1226MHD

Nichicon

Manufacturer : Nichicon
Packaging : Bulk
Series : EVerCAP® JUW
Part Status : Active
Capacitance : 22F
Tolerance : ±20%
Voltage - Rated : 2.7V
ESR (Equivalent Series Resistance) : 300 mOhm @ 1kHz
Lifetime @ Temp. : 1000 Hrs @ 70°C
Termination : PC Pins
Mounting Type : Through Hole
Package / Case : Radial, Can
Lead Spacing : 0.197" (5.00mm)
Size / Dimension : 0.492" Dia (12.50mm)
Height - Seated (Max) : 1.319" (33.50mm)
Operating Temperature : -25°C ~ 70°C

100 in stock

JUWT1275MPD

Nichicon

Manufacturer : Nichicon
Packaging : Bulk
Series : EVerCAP® JUW
Part Status : Active
Capacitance : 2.7F
Tolerance : ±20%
Voltage - Rated : 2.7V
ESR (Equivalent Series Resistance) : 2 Ohm @ 1kHz
Lifetime @ Temp. : 1000 Hrs @ 70°C
Termination : PC Pins
Mounting Type : Through Hole
Package / Case : Radial, Can
Lead Spacing : 0.138" (3.50mm)
Size / Dimension : 0.315" Dia (8.00mm)
Height - Seated (Max) : 0.846" (21.50mm)
Operating Temperature : -25°C ~ 70°C

85 in stock

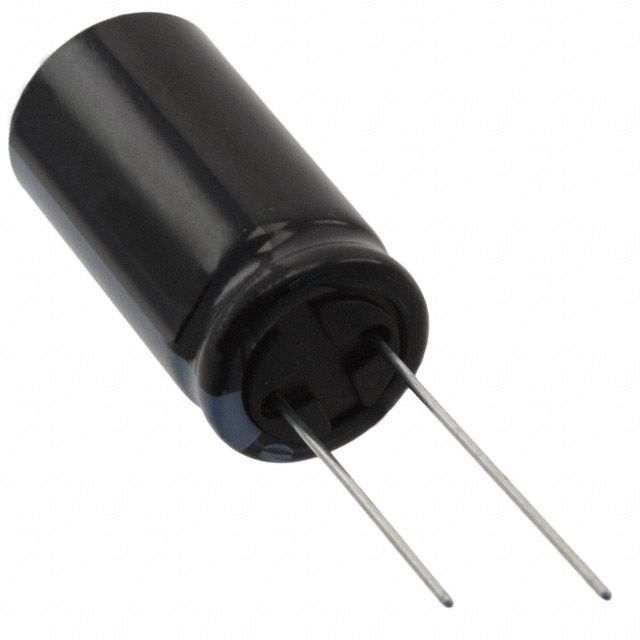

JUWT1336MHD

Nichicon

Manufacturer : Nichicon
Packaging : Bulk
Series : EVerCAP® JUW
Part Status : Active
Capacitance : 33F
Tolerance : ±20%
Voltage - Rated : 2.7V
ESR (Equivalent Series Resistance) : 200 mOhm @ 1kHz
Lifetime @ Temp. : 1000 Hrs @ 70°C
Termination : PC Pins
Mounting Type : Through Hole
Package / Case : Radial, Can
Lead Spacing : 0.295" (7.50mm)
Size / Dimension : 0.630" Dia (16.00mm)
Height - Seated (Max) : 1.319" (33.50mm)
Operating Temperature : -25°C ~ 70°C

100 in stock

JUWT1475MPD

Nichicon

Manufacturer : Nichicon
Packaging : Bulk
Series : EVerCAP® JUW
Part Status : Active
Capacitance : 4.7F
Tolerance : ±20%
Voltage - Rated : 2.7V
ESR (Equivalent Series Resistance) : 1 Ohm @ 1kHz
Lifetime @ Temp. : 1000 Hrs @ 70°C
Termination : PC Pins
Mounting Type : Through Hole
Package / Case : Radial, Can
Lead Spacing : 0.197" (5.00mm)
Size / Dimension : 0.394" Dia (10.00mm)
Height - Seated (Max) : 0.866" (22.00mm)
Operating Temperature : -25°C ~ 70°C

10054 in stock

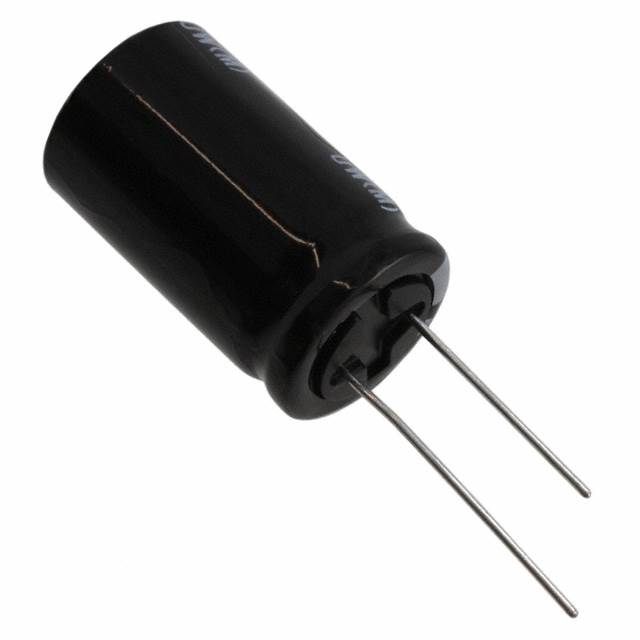

JUWT1476MHD

Nichicon

Manufacturer : Nichicon
Packaging : Bulk
Series : EVerCAP® JUW
Part Status : Active
Capacitance : 47F
Tolerance : ±20%
Voltage - Rated : 2.7V
ESR (Equivalent Series Resistance) : 200 mOhm @ 1kHz
Lifetime @ Temp. : 1000 Hrs @ 70°C
Termination : PC Pins
Mounting Type : Through Hole
Package / Case : Radial, Can
Lead Spacing : 0.295" (7.50mm)
Size / Dimension : 0.709" Dia (18.00mm)
Height - Seated (Max) : 1.319" (33.50mm)
Operating Temperature : -25°C ~ 70°C

1330 in stock

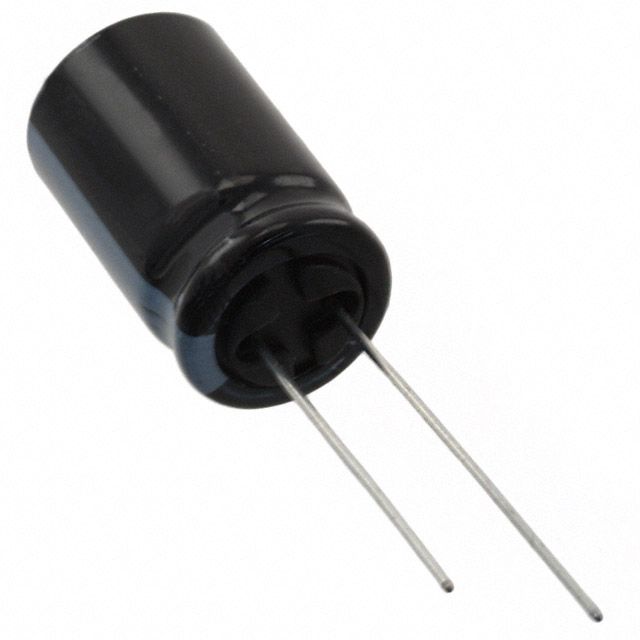

JUWT1685MHD

Nichicon

Manufacturer : Nichicon
Packaging : Bulk
Series : EVerCAP® JUW
Part Status : Active
Capacitance : 6.8F
Tolerance : ±20%
Voltage - Rated : 2.7V
ESR (Equivalent Series Resistance) : 800 mOhm @ 1kHz
Lifetime @ Temp. : 1000 Hrs @ 70°C
Termination : PC Pins
Mounting Type : Through Hole
Package / Case : Radial, Can
Lead Spacing : 0.197" (5.00mm)
Size / Dimension : 0.492" Dia (12.50mm)
Height - Seated (Max) : 0.866" (22.00mm)
Operating Temperature : -25°C ~ 70°C

118 in stock

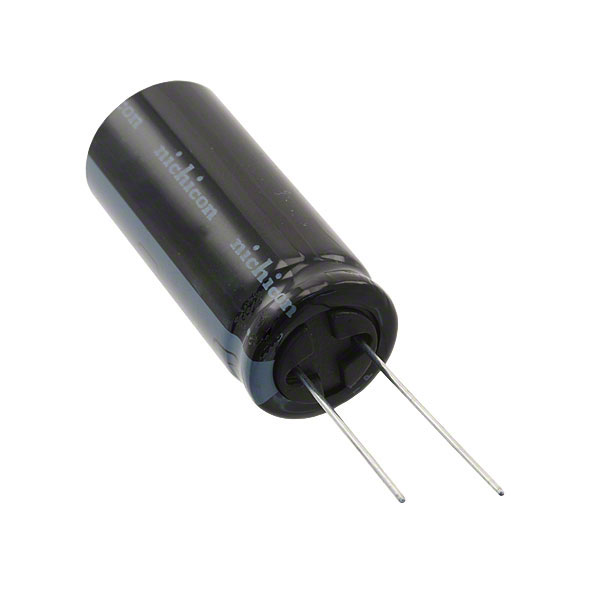

JUWT1826MHD

Nichicon

Manufacturer : Nichicon
Packaging : Bulk
Series : EVerCAP® JUW
Part Status : Active
Capacitance : 82F
Tolerance : ±20%
Voltage - Rated : 2.7V
ESR (Equivalent Series Resistance) : 100 mOhm @ 1kHz
Lifetime @ Temp. : 1000 Hrs @ 70°C
Termination : PC Pins
Mounting Type : Through Hole
Package / Case : Radial, Can
Lead Spacing : 0.295" (7.50mm)
Size / Dimension : 0.709" Dia (18.00mm)
Height - Seated (Max) : 1.654" (42.00mm)
Operating Temperature : -25°C ~ 70°C

688 in stock

LGG2E471MELA30

Nichicon

Manufacturer : Nichicon
Packaging : Bulk
Series : LGG
Part Status : Active
Capacitance : 470µF
Tolerance : ±20%
Voltage - Rated : 250V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -40°C ~ 105°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 1.3A @ 120Hz
Ripple Current @ High Frequency : 1.95A @ 50kHz
Impedance : -
Lead Spacing : 0.394" (10.00mm)
Size / Dimension : 0.984" Dia (25.00mm)
Height - Seated (Max) : 1.260" (32.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can - Snap-In

12232 in stock

LGG2W681MELC50

Nichicon

Manufacturer : Nichicon
Packaging : Bulk
Series : LGG
Part Status : Active
Capacitance : 680µF
Tolerance : ±20%
Voltage - Rated : 450V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -25°C ~ 105°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 1.91A @ 120Hz
Ripple Current @ High Frequency : 2.7313A @ 50kHz
Impedance : -
Lead Spacing : 0.394" (10.00mm)
Size / Dimension : 1.378" Dia (35.00mm)
Height - Seated (Max) : 2.047" (52.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can - Snap-In

1349 in stock
