Nichicon
- For over 60 years, Nichicon has strived to be a “valuable supplier for our customers” by balancing advanced technology, strict quality control measures, and superior service. We are continuously researching and implementing innovative technologies to directly benefit our customers while offering the widest selection of aluminum electrolytic capacitors in the industry. We also offer the broadest array of conductive polymer capacitors worldwide.
In the competitive marketplace of electronics, Nichicon’s “zero-defect” philosophy ensures our components can endure diverse applications. We pride ourselves in the variety of capacitors offered including surface mount, snap-in, through-hole, and screw terminal. Additionally, our company upholds the strictest environmental standards including manufacturing only RoHS and REACH compliant components.
Part Number
Manufacturer
Description
Unit Price
In Stock
Nichicon
Manufacturer : Nichicon
Packaging : Bulk

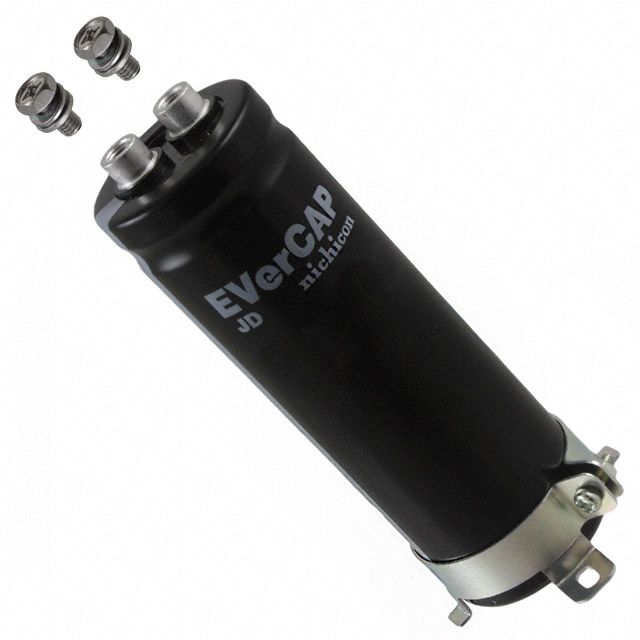

Series : EVerCAP® JJD
Part Status : Active
Capacitance : 800F
Tolerance : ±20%
Voltage - Rated : 2.5V
ESR (Equivalent Series Resistance) : 13 mOhm
Lifetime @ Temp. : 2000 Hrs @ 60°C
Termination : Screw Terminals
Mounting Type : Chassis Mount
Package / Case : Radial, Can - Screw Terminals
Lead Spacing : 0.500" (12.70mm)
Size / Dimension : 1.378" Dia (35.00mm)
Height - Seated (Max) : 4.252" (108.00mm)
Operating Temperature : -25°C ~ 60°C
0
100 in stock
Nichicon
Manufacturer : Nichicon
Packaging : Bulk
Series : EVerCAP® JL
Part Status : Active
Capacitance : 1600F
Tolerance : ±20%
Voltage - Rated : 2.5V
ESR (Equivalent Series Resistance) : 2 mOhm
Lifetime @ Temp. : 2000 Hrs @ 60°C
Termination : Screw Terminals
Mounting Type : Chassis Mount
Package / Case : Radial, Can - Screw Terminals
Lead Spacing : 1.024" (26.00mm)
Size / Dimension : 2.008" Dia (51.00mm)
Height - Seated (Max) : 6.024" (153.00mm)
Operating Temperature : -25°C ~ 60°C
0
100 in stock
Nichicon
Manufacturer : Nichicon
Packaging : Bulk
Series : EVerCAP® JL
Part Status : Active
Capacitance : 1700F
Tolerance : ±20%
Voltage - Rated : 2.5V
ESR (Equivalent Series Resistance) : 1.7 mOhm
Lifetime @ Temp. : 2000 Hrs @ 60°C
Termination : Screw Terminals
Mounting Type : Chassis Mount
Package / Case : Radial, Can - Screw Terminals
Lead Spacing : 1.024" (26.00mm)
Size / Dimension : 2.008" Dia (51.00mm)
Height - Seated (Max) : 5.709" (145.00mm)
Operating Temperature : -25°C ~ 60°C
0
100 in stock
Nichicon
Manufacturer : Nichicon
Packaging : -
Series : EVerCAP® JJL
Part Status : Active
Capacitance : 2000F
Tolerance : ±20%
Voltage - Rated : 2.5V
ESR (Equivalent Series Resistance) : 1.5 Ohm
Lifetime @ Temp. : 2000 Hrs @ 60°C
Termination : Screw Terminals
Mounting Type : Chassis Mount
Package / Case : Radial, Can - Screw Terminals
Lead Spacing : 1.024" (26.00mm)
Size / Dimension : 2.008" Dia (51.00mm)
Height - Seated (Max) : 6.693" (170.00mm)
Operating Temperature : -25°C ~ 60°C
0
100 in stock
Nichicon
Manufacturer : Nichicon
Packaging : -
Series : EVerCAP® JJL
Part Status : Active
Capacitance : 2000F
Tolerance : ±20%
Voltage - Rated : 2.5V
ESR (Equivalent Series Resistance) : 1.5 Ohm
Lifetime @ Temp. : 2000 Hrs @ 60°C
Termination : Screw Terminals
Mounting Type : Chassis Mount
Package / Case : Radial, Can - Screw Terminals
Lead Spacing : 1.024" (26.00mm)
Size / Dimension : 2.008" Dia (51.00mm)
Height - Seated (Max) : 6.693" (170.00mm)
Operating Temperature : -25°C ~ 60°C
0
100 in stock
Nichicon
Manufacturer : Nichicon
Packaging : -
Series : EVerCAP® JJL
Part Status : Active
Capacitance : 2000F
Tolerance : ±20%
Voltage - Rated : 2.5V
ESR (Equivalent Series Resistance) : 1.5 Ohm
Lifetime @ Temp. : 2000 Hrs @ 60°C
Termination : Screw Terminals
Mounting Type : Chassis Mount
Package / Case : Radial, Can - Screw Terminals
Lead Spacing : 1.024" (26.00mm)
Size / Dimension : 2.008" Dia (51.00mm)
Height - Seated (Max) : 6.693" (170.00mm)
Operating Temperature : -25°C ~ 60°C
0
100 in stock
Nichicon
Manufacturer : Nichicon
Packaging : Bulk
Series : EVerCAP® JL
Part Status : Not For New Designs
Capacitance : 2600F
Tolerance : ±20%
Voltage - Rated : 2.5V
ESR (Equivalent Series Resistance) : 1.3 mOhm
Lifetime @ Temp. : 2000 Hrs @ 60°C
Termination : Screw Terminals
Mounting Type : Chassis Mount
Package / Case : Radial, Can - Screw Terminals
Lead Spacing : 1.126" (28.60mm)
Size / Dimension : 2.500" Dia (63.50mm)
Height - Seated (Max) : 6.024" (153.00mm)
Operating Temperature : -25°C ~ 60°C
0
100 in stock
Nichicon
Manufacturer : Nichicon
Packaging : Bulk
Series : EVerCAP® JL
Part Status : Active
Capacitance : 400F
Tolerance : ±20%
Voltage - Rated : 2.5V
ESR (Equivalent Series Resistance) : 7 mOhm
Lifetime @ Temp. : 2000 Hrs @ 60°C
Termination : Screw Terminals
Mounting Type : Chassis Mount
Package / Case : Radial, Can - Screw Terminals
Lead Spacing : 0.500" (12.70mm)
Size / Dimension : 1.378" Dia (35.00mm)
Height - Seated (Max) : 3.465" (88.00mm)
Operating Temperature : -25°C ~ 60°C
0
100 in stock
Nichicon
Manufacturer : Nichicon
Packaging : Bulk
Series : EVerCAP® JL
Part Status : Active
Capacitance : 400F
Tolerance : ±20%
Voltage - Rated : 2.5V
ESR (Equivalent Series Resistance) : 7 mOhm
Lifetime @ Temp. : 2000 Hrs @ 60°C
Termination : Screw Terminals
Mounting Type : Chassis Mount
Package / Case : Radial, Can - Screw Terminals
Lead Spacing : 0.500" (12.70mm)
Size / Dimension : 1.378" Dia (35.00mm)
Height - Seated (Max) : 3.465" (88.00mm)
Operating Temperature : -25°C ~ 60°C
0
100 in stock
Nichicon
Manufacturer : Nichicon
Packaging : Bulk
Series : EVerCAP® JL
Part Status : Active
Capacitance : 550F
Tolerance : ±20%
Voltage - Rated : 2.5V
ESR (Equivalent Series Resistance) : 5 mOhm
Lifetime @ Temp. : 2000 Hrs @ 60°C
Termination : Screw Terminals
Mounting Type : Chassis Mount
Package / Case : Radial, Can - Screw Terminals
Lead Spacing : 0.500" (12.70mm)
Size / Dimension : 1.378" Dia (35.00mm)
Height - Seated (Max) : 4.252" (108.00mm)
Operating Temperature : -25°C ~ 60°C
0
100 in stock
Nichicon
Manufacturer : Nichicon
Packaging : Bulk
Series : EVerCAP® JL
Part Status : Active
Capacitance : 550F
Tolerance : ±20%
Voltage - Rated : 2.5V
ESR (Equivalent Series Resistance) : 5 mOhm
Lifetime @ Temp. : 2000 Hrs @ 60°C
Termination : Screw Terminals
Mounting Type : Chassis Mount
Package / Case : Radial, Can - Screw Terminals
Lead Spacing : 0.500" (12.70mm)
Size / Dimension : 1.378" Dia (35.00mm)
Height - Seated (Max) : 4.252" (108.00mm)
Operating Temperature : -25°C ~ 60°C
0
100 in stock
Nichicon
Manufacturer : Nichicon
Packaging : Bulk
Series : EVerCAP® JL
Part Status : Active
Capacitance : 700F
Tolerance : ±20%
Voltage - Rated : 2.5V
ESR (Equivalent Series Resistance) : 3.5 mOhm
Lifetime @ Temp. : 2000 Hrs @ 60°C
Termination : Screw Terminals
Mounting Type : Chassis Mount
Package / Case : Radial, Can - Screw Terminals
Lead Spacing : 0.740" (18.80mm)
Size / Dimension : 1.575" Dia (40.00mm)
Height - Seated (Max) : 4.252" (108.00mm)
Operating Temperature : -25°C ~ 60°C
0
100 in stock
