Illinois Capacitor
- Illinois Capacitor is a leading manufacturer of miniature capacitors for electronics, lighting, energy and other markets. These products include: aluminum electrolytic, metalized film, power film, supercapacitors (ultra capacitors) and other types. IC is one of the world’s most experienced capacitor manufacturers, well known for its benchmark quality, guaranteed delivery and responsive engineering support.
Part Number
Manufacturer
Description
Unit Price
In Stock

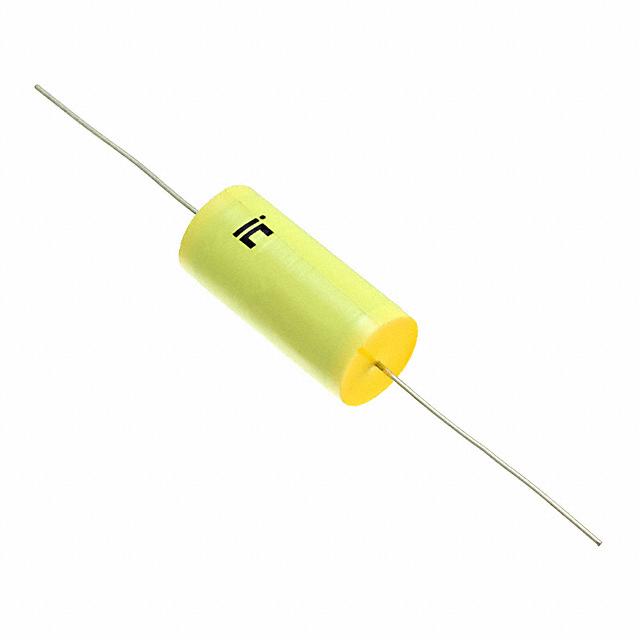

Illinois Capacitor
Manufacturer : Illinois Capacitor
Packaging : Bulk
Series : MPW
Part Status : Active
Capacitance : 0.47µF
Tolerance : ±10%
Voltage Rating - AC : 220V
Voltage Rating - DC : 400V
Dielectric Material : Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance) : 376 mOhms
Operating Temperature : -55°C ~ 105°C
Mounting Type : Through Hole
Package / Case : Axial
Size / Dimension : 0.551" Dia x 1.142" L (14.00mm x 29.00mm)
Height - Seated (Max) : -
Termination : PC Pins
Lead Spacing : -
Applications : DC Link, DC Filtering
Ratings : -
Features : Low ESR
0
138 in stock
Illinois Capacitor
Manufacturer : Illinois Capacitor
Packaging : Bulk
Series : MPW
Part Status : Active
Capacitance : 0.47µF
Tolerance : ±10%
Voltage Rating - AC : 250V
Voltage Rating - DC : 630V
Dielectric Material : Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance) : 376 mOhms
Operating Temperature : -55°C ~ 105°C
Mounting Type : Through Hole
Package / Case : Axial
Size / Dimension : 0.709" Dia x 1.339" L (18.00mm x 34.00mm)
Height - Seated (Max) : -
Termination : PC Pins
Lead Spacing : -
Applications : DC Link, DC Filtering
Ratings : -
Features : Low ESR
0
810 in stock

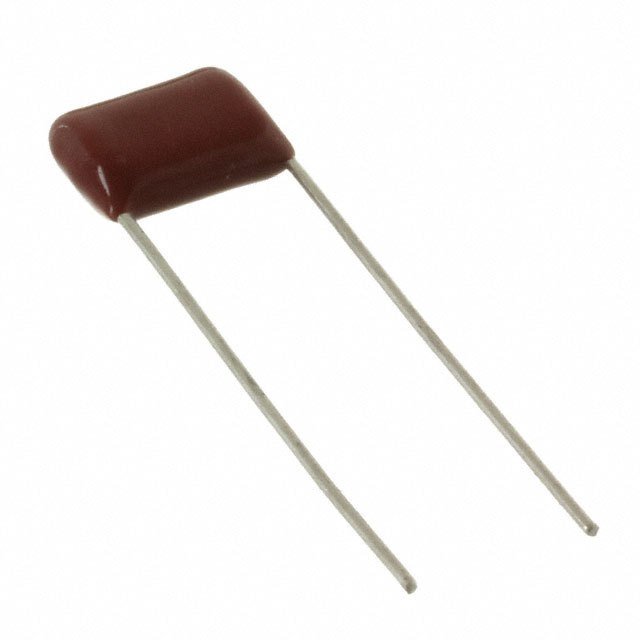

Illinois Capacitor
Manufacturer : Illinois Capacitor
Packaging : Bulk
Series : MSR
Part Status : Active
Capacitance : 0.47µF
Tolerance : ±10%
Voltage Rating - AC : 63V
Voltage Rating - DC : 100V
Dielectric Material : Polyester, Metallized
ESR (Equivalent Series Resistance) : 3.763 Ohms
Operating Temperature : -55°C ~ 125°C
Mounting Type : Through Hole
Package / Case : Radial
Size / Dimension : 0.709" L x 0.276" W (18.00mm x 7.00mm)
Height - Seated (Max) : 0.433" (11.00mm)
Termination : PC Pins
Lead Spacing : 0.591" (15.00mm)
Applications : General Purpose
Ratings : -
Features : -
0
4364 in stock
Illinois Capacitor
Manufacturer : Illinois Capacitor
Packaging : Bulk
Series : MSR
Part Status : Active
Capacitance : 0.47µF
Tolerance : ±10%
Voltage Rating - AC : 160V
Voltage Rating - DC : 250V
Dielectric Material : Polyester, Metallized
ESR (Equivalent Series Resistance) : 3.763 Ohms
Operating Temperature : -55°C ~ 125°C
Mounting Type : Through Hole
Package / Case : Radial
Size / Dimension : 0.886" L x 0.295" W (22.50mm x 7.50mm)
Height - Seated (Max) : 0.492" (12.50mm)
Termination : PC Pins
Lead Spacing : 0.787" (20.00mm)
Applications : General Purpose
Ratings : -
Features : -
0
2360 in stock
Illinois Capacitor
Manufacturer : Illinois Capacitor
Packaging : Bulk
Series : MSR
Part Status : Active
Capacitance : 0.47µF
Tolerance : ±10%
Voltage Rating - AC : 200V
Voltage Rating - DC : 400V
Dielectric Material : Polyester, Metallized
ESR (Equivalent Series Resistance) : -
Operating Temperature : -55°C ~ 125°C
Mounting Type : Through Hole
Package / Case : Radial
Size / Dimension : 0.925" L x 0.413" W (23.50mm x 10.50mm)
Height - Seated (Max) : 0.748" (19.00mm)
Termination : PC Pins
Lead Spacing : 0.787" (20.00mm)
Applications : General Purpose
Ratings : -
Features : -
0
4745 in stock
Illinois Capacitor
Manufacturer : Illinois Capacitor
Packaging : Bulk
Series : MSR
Part Status : Active
Capacitance : 0.47µF
Tolerance : ±10%
Voltage Rating - AC : 220V
Voltage Rating - DC : 630V
Dielectric Material : Polyester, Metallized
ESR (Equivalent Series Resistance) : -
Operating Temperature : -55°C ~ 125°C
Mounting Type : Through Hole
Package / Case : Radial
Size / Dimension : 1.260" L x 0.531" W (32.00mm x 13.50mm)
Height - Seated (Max) : 0.866" (22.00mm)
Termination : PC Pins
Lead Spacing : 1.083" (27.50mm)
Applications : General Purpose
Ratings : -
Features : -
0
350 in stock
Illinois Capacitor
Manufacturer : Illinois Capacitor
Packaging : Bulk
Series : MWR
Part Status : Active
Capacitance : 0.47µF
Tolerance : ±10%
Voltage Rating - AC : 63V
Voltage Rating - DC : 100V
Dielectric Material : Polyester, Metallized
ESR (Equivalent Series Resistance) : 3.01 Ohms
Operating Temperature : -40°C ~ 105°C
Mounting Type : Through Hole
Package / Case : Axial
Size / Dimension : 0.276" Dia x 0.610" L (7.00mm x 15.50mm)
Height - Seated (Max) : -
Termination : PC Pins
Lead Spacing : -
Applications : General Purpose
Ratings : -
Features : Low ESR
0
283 in stock
Illinois Capacitor
Manufacturer : Illinois Capacitor
Packaging : Bulk
Series : MWR
Part Status : Active
Capacitance : 0.47µF
Tolerance : ±10%
Voltage Rating - AC : 250V
Voltage Rating - DC : 1000V (1kV)
Dielectric Material : Polyester, Metallized
ESR (Equivalent Series Resistance) : 3.01 Ohms
Operating Temperature : -40°C ~ 105°C
Mounting Type : Through Hole
Package / Case : Axial
Size / Dimension : 0.768" Dia x 1.339" L (19.50mm x 34.00mm)
Height - Seated (Max) : -
Termination : PC Pins
Lead Spacing : -
Applications : General Purpose
Ratings : -
Features : Low ESR
0
146 in stock
Illinois Capacitor
Manufacturer : Illinois Capacitor
Packaging : Bulk
Series : MWR
Part Status : Active
Capacitance : 0.47µF
Tolerance : ±10%
Voltage Rating - AC : 160V
Voltage Rating - DC : 250V
Dielectric Material : Polyester, Metallized
ESR (Equivalent Series Resistance) : 3.01 Ohms
Operating Temperature : -40°C ~ 105°C
Mounting Type : Through Hole
Package / Case : Axial
Size / Dimension : 0.374" Dia x 0.748" L (9.50mm x 19.00mm)
Height - Seated (Max) : -
Termination : PC Pins
Lead Spacing : -
Applications : General Purpose
Ratings : -
Features : Low ESR
0
3134 in stock
Illinois Capacitor
Manufacturer : Illinois Capacitor
Packaging : Bulk
Series : MWR
Part Status : Active
Capacitance : 0.47µF
Tolerance : ±10%
Voltage Rating - AC : 220V
Voltage Rating - DC : 630V
Dielectric Material : Polyester, Metallized
ESR (Equivalent Series Resistance) : 3.01 Ohms
Operating Temperature : -40°C ~ 105°C
Mounting Type : Through Hole
Package / Case : Axial
Size / Dimension : 0.610" Dia x 1.339" L (15.50mm x 34.00mm)
Height - Seated (Max) : -
Termination : PC Pins
Lead Spacing : -
Applications : General Purpose
Ratings : -
Features : Low ESR
0
569 in stock

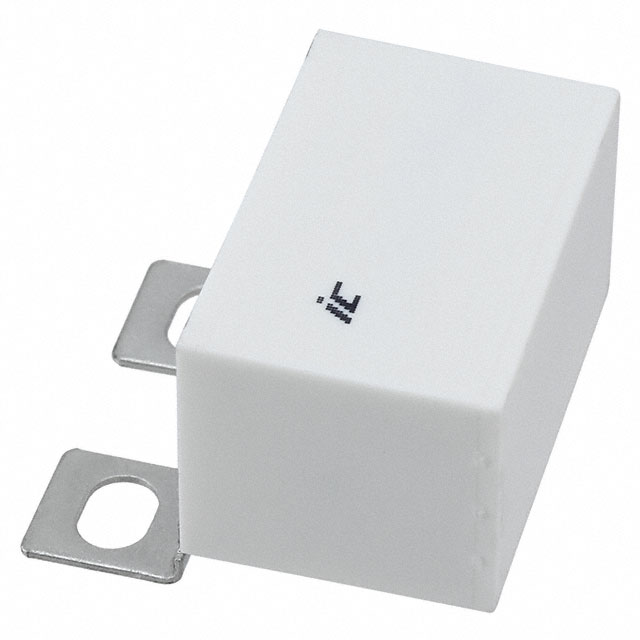

Illinois Capacitor
Manufacturer : Illinois Capacitor
Packaging : Bulk
Series : PMB
Part Status : Active
Capacitance : 0.47µF
Tolerance : ±10%
Voltage Rating - AC : 630V
Voltage Rating - DC : 1200V (1.2kV)
Dielectric Material : Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance) : 4.1 mOhms
Operating Temperature : -40°C ~ 85°C
Mounting Type : Chassis Mount
Package / Case : Rectangular Box
Size / Dimension : 1.673" L x 0.965" W (42.50mm x 24.50mm)
Height - Seated (Max) : 1.083" (27.50mm)
Termination : -
Lead Spacing : -
Applications : DC Link, DC Filtering; High Frequency, Switching; Snubber
Ratings : -
Features : -
0
135 in stock

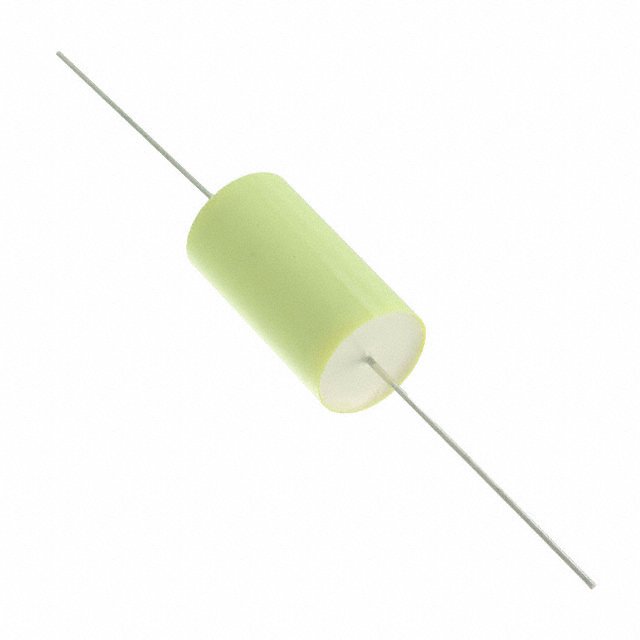

Illinois Capacitor
Manufacturer : Illinois Capacitor
Packaging : Bulk
Series : PPA
Part Status : Active
Capacitance : 0.47µF
Tolerance : ±10%
Voltage Rating - AC : 500V
Voltage Rating - DC : 850V
Dielectric Material : Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance) : 4 mOhms
Operating Temperature : -55°C ~ 85°C
Mounting Type : Through Hole
Package / Case : Axial
Size / Dimension : 0.846" Dia x 1.339" L (21.50mm x 34.00mm)
Height - Seated (Max) : -
Termination : PC Pins
Lead Spacing : -
Applications : DC Link, DC Filtering; High Frequency, Switching; Snubber
Ratings : -
Features : -
0
425 in stock
