Illinois Capacitor
- Illinois Capacitor is a leading manufacturer of miniature capacitors for electronics, lighting, energy and other markets. These products include: aluminum electrolytic, metalized film, power film, supercapacitors (ultra capacitors) and other types. IC is one of the world’s most experienced capacitor manufacturers, well known for its benchmark quality, guaranteed delivery and responsive engineering support.
Part Number
Manufacturer
Description
Unit Price
In Stock
Illinois Capacitor
Manufacturer : Illinois Capacitor
Packaging : -
Series : *
Part Status : Active
Capacitance : -
Tolerance : -
Voltage Rating - AC : -
Voltage Rating - DC : -
Dielectric Material : -
ESR (Equivalent Series Resistance) : -
Operating Temperature : -
Mounting Type : -
Package / Case : -
Size / Dimension : -
Height - Seated (Max) : -
Termination : -
Lead Spacing : -
Applications : -
Ratings : -
Features : -
0
20 in stock

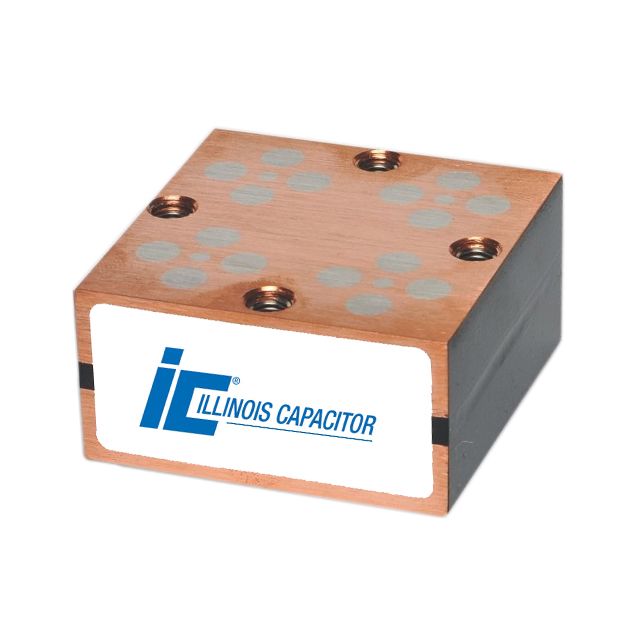

Illinois Capacitor
Manufacturer : Illinois Capacitor
Packaging : Bulk
Series : HC4
Part Status : Active
Capacitance : 0.5µF
Tolerance : ±10%
Voltage Rating - AC : 700V
Voltage Rating - DC : -
Dielectric Material : Polypropylene (PP)
ESR (Equivalent Series Resistance) : 1 mOhms
Operating Temperature : -40°C ~ 85°C
Mounting Type : Chassis Mount
Package / Case : Nonstandard
Size / Dimension : 2.874" L x 2.165" W (73.00mm x 55.00mm)
Height - Seated (Max) : 1.193" (30.30mm)
Termination : Threaded, Female
Lead Spacing : -
Applications : Conduction Cooled; High Pulse, DV/DT
Ratings : -
Features : -
0
2 in stock
Illinois Capacitor
Manufacturer : Illinois Capacitor
Packaging : Bulk
Series : DCN
Part Status : Active
Capacitance : 5F
Tolerance : -10%, +30%
Voltage - Rated : 2.7V
ESR (Equivalent Series Resistance) : 110 mOhm
Lifetime @ Temp. : 1000 Hrs @ 60°C
Termination : PC Pins
Mounting Type : Through Hole
Package / Case : Radial, Can
Lead Spacing : 0.197" (5.00mm)
Size / Dimension : 0.394" Dia (10.00mm)
Height - Seated (Max) : 0.787" (20.00mm)
Operating Temperature : -40°C ~ 60°C
0
11960 in stock
Illinois Capacitor
Manufacturer : Illinois Capacitor
Packaging : Bulk
Series : PHC
Part Status : Active
Capacitance : 5µF
Tolerance : ±10%
Voltage Rating - AC : 160V
Voltage Rating - DC : 250V
Dielectric Material : Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance) : 3.4 mOhms
Operating Temperature : -40°C ~ 85°C
Mounting Type : Through Hole
Package / Case : Axial
Size / Dimension : 0.728" Dia x 1.339" L (18.50mm x 34.00mm)
Height - Seated (Max) : -
Termination : PC Pins
Lead Spacing : -
Applications : DC Link, DC Filtering; High Frequency, Switching
Ratings : -
Features : Low ESR, Low ESL
0
633 in stock

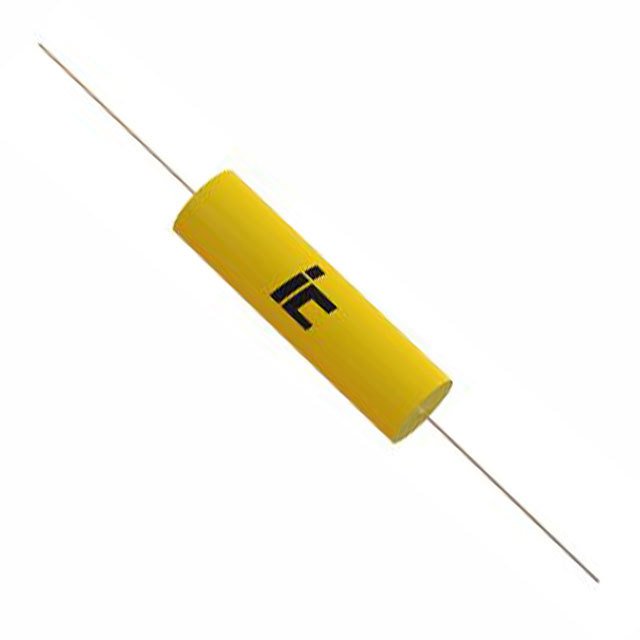

Illinois Capacitor
Manufacturer : Illinois Capacitor
Packaging : Bulk
Series : PHC
Part Status : Active
Capacitance : 5µF
Tolerance : ±10%
Voltage Rating - AC : 250V
Voltage Rating - DC : 400V
Dielectric Material : Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance) : 7.4 mOhms
Operating Temperature : -40°C ~ 85°C
Mounting Type : Through Hole
Package / Case : Axial
Size / Dimension : 0.886" Dia x 1.811" L (22.50mm x 46.00mm)
Height - Seated (Max) : -
Termination : PC Pins
Lead Spacing : -
Applications : DC Link, DC Filtering; High Frequency, Switching
Ratings : -
Features : Low ESR, Low ESL
0
35 in stock

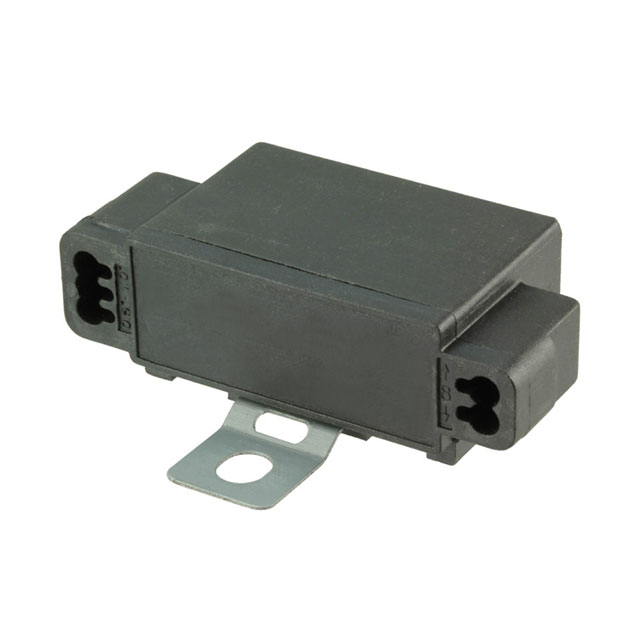

Illinois Capacitor
Manufacturer : Illinois Capacitor
Packaging : Bulk
Series : QPC
Part Status : Active
Capacitance : 5µF
Tolerance : ±10%
Voltage Rating - AC : 250V
Voltage Rating - DC : -
Dielectric Material : Polyester, Metallized
ESR (Equivalent Series Resistance) : -
Operating Temperature : -25°C ~ 70°C
Mounting Type : Chassis Mount
Package / Case : Rectangular Box
Size / Dimension : 1.811" L x 0.512" W (46.00mm x 13.00mm)
Height - Seated (Max) : 0.965" (24.50mm)
Termination : Screwless - Push-In Spring
Lead Spacing : -
Applications : Motor Run
Ratings : -
Features : -
0
72 in stock

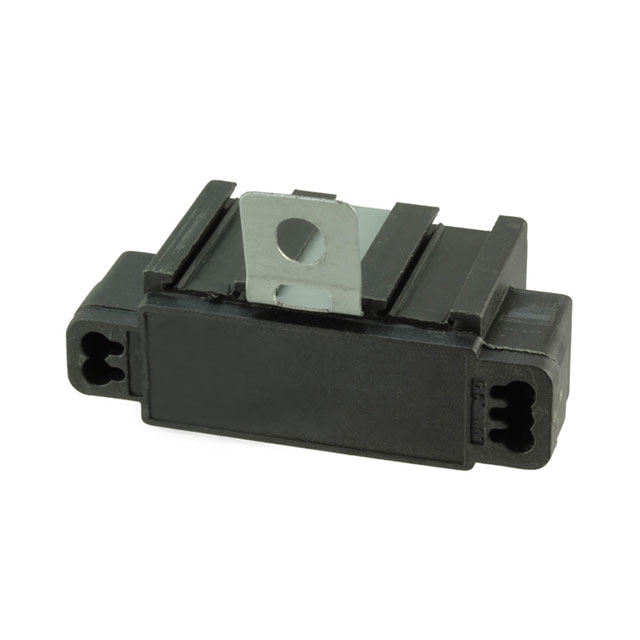

Illinois Capacitor
Manufacturer : Illinois Capacitor
Packaging : Bulk
Series : QPC
Part Status : Active
Capacitance : 5µF
Tolerance : ±10%
Voltage Rating - AC : 250V
Voltage Rating - DC : -
Dielectric Material : Polyester, Metallized
ESR (Equivalent Series Resistance) : -
Operating Temperature : -25°C ~ 70°C
Mounting Type : Chassis Mount
Package / Case : Rectangular Box
Size / Dimension : 1.811" L x 0.512" W (46.00mm x 13.00mm)
Height - Seated (Max) : 0.965" (24.50mm)
Termination : Screwless - Push-In Spring
Lead Spacing : -
Applications : Motor Run
Ratings : -
Features : -
0
58 in stock

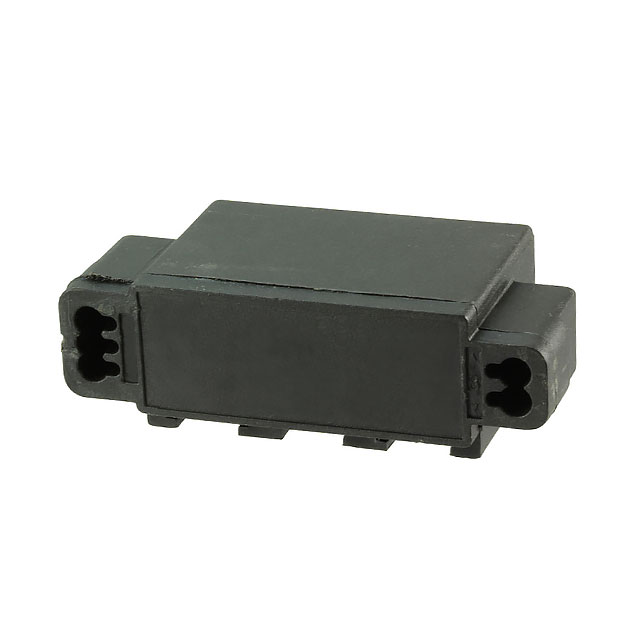

Illinois Capacitor
Manufacturer : Illinois Capacitor
Packaging : Bulk
Series : QPC
Part Status : Active
Capacitance : 5µF
Tolerance : ±10%
Voltage Rating - AC : 250V
Voltage Rating - DC : -
Dielectric Material : Polyester, Metallized
ESR (Equivalent Series Resistance) : -
Operating Temperature : -25°C ~ 70°C
Mounting Type : Chassis Mount
Package / Case : Rectangular Box
Size / Dimension : 1.811" L x 0.512" W (46.00mm x 13.00mm)
Height - Seated (Max) : 0.965" (24.50mm)
Termination : Screwless - Push-In Spring
Lead Spacing : -
Applications : Motor Run
Ratings : -
Features : -
0
59 in stock
Illinois Capacitor
Manufacturer : Illinois Capacitor
Packaging : Bulk
Series : DCN
Part Status : Active
Capacitance : 50F
Tolerance : -10%, +30%
Voltage - Rated : 2.7V
ESR (Equivalent Series Resistance) : 25 mOhm
Lifetime @ Temp. : 1000 Hrs @ 60°C
Termination : PC Pins
Mounting Type : Through Hole
Package / Case : Radial, Can
Lead Spacing : 0.295" (7.50mm)
Size / Dimension : 0.709" Dia (18.00mm)
Height - Seated (Max) : 1.654" (42.00mm)
Operating Temperature : -40°C ~ 60°C
0
2590 in stock

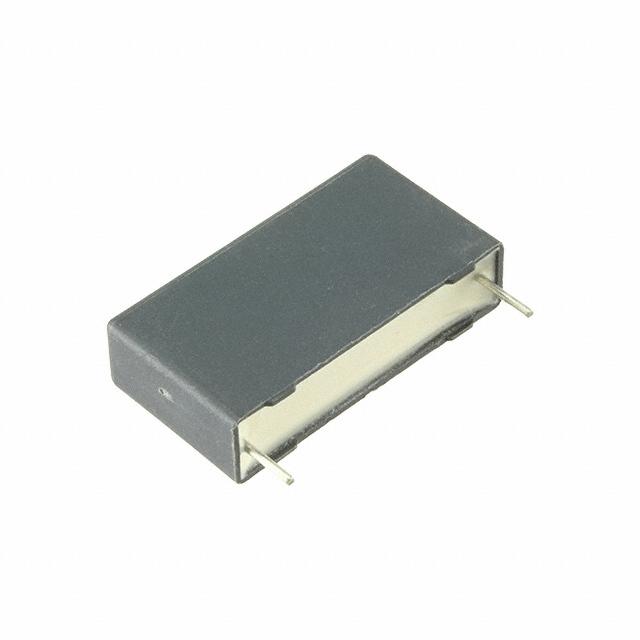

Illinois Capacitor
Manufacturer : Illinois Capacitor
Packaging : Bulk
Series : MKP
Part Status : Active
Capacitance : 0.56µF
Tolerance : ±10%
Voltage Rating - AC : 310V
Voltage Rating - DC : -
Dielectric Material : Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance) : -
Operating Temperature : -40°C ~ 110°C
Mounting Type : Through Hole
Package / Case : Radial
Size / Dimension : 1.024" L x 0.276" W (26.00mm x 7.00mm)
Height - Seated (Max) : 0.563" (14.30mm)
Termination : PC Pins
Lead Spacing : 0.886" (22.50mm)
Applications : EMI, RFI Suppression
Ratings : X2
Features : -
0
336 in stock

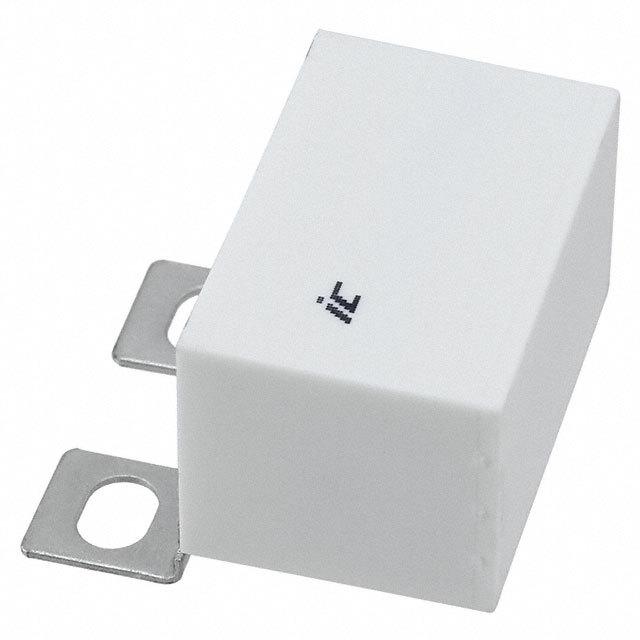

Illinois Capacitor
Manufacturer : Illinois Capacitor
Packaging : Bulk
Series : PMB
Part Status : Active
Capacitance : 0.56µF
Tolerance : ±10%
Voltage Rating - AC : 630V
Voltage Rating - DC : 1200V (1.2kV)
Dielectric Material : Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance) : 3.7 mOhms
Operating Temperature : -40°C ~ 85°C
Mounting Type : Chassis Mount
Package / Case : Rectangular Box
Size / Dimension : 1.673" L x 0.965" W (42.50mm x 24.50mm)
Height - Seated (Max) : 1.083" (27.50mm)
Termination : Screw Terminals
Lead Spacing : -
Applications : DC Link, DC Filtering; High Frequency, Switching; Snubber
Ratings : -
Features : -
0
198 in stock
Illinois Capacitor
Manufacturer : Illinois Capacitor
Packaging : Bulk
Series : PMB
Part Status : Active
Capacitance : 0.56µF
Tolerance : ±10%
Voltage Rating - AC : 700V
Voltage Rating - DC : 2000V (2kV)
Dielectric Material : Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance) : 3 mOhms
Operating Temperature : -40°C ~ 85°C
Mounting Type : Chassis Mount
Package / Case : Radial
Size / Dimension : 1.673" L x 1.299" W (42.50mm x 33.00mm)
Height - Seated (Max) : 1.811" (46.00mm)
Termination : Screw Terminals
Lead Spacing : -
Applications : DC Link, DC Filtering; High Frequency, Switching; Snubber
Ratings : -
Features : -
0
98 in stock
