Illinois Capacitor
- Illinois Capacitor is a leading manufacturer of miniature capacitors for electronics, lighting, energy and other markets. These products include: aluminum electrolytic, metalized film, power film, supercapacitors (ultra capacitors) and other types. IC is one of the world’s most experienced capacitor manufacturers, well known for its benchmark quality, guaranteed delivery and responsive engineering support.
Part Number
Manufacturer
Description
Unit Price
In Stock

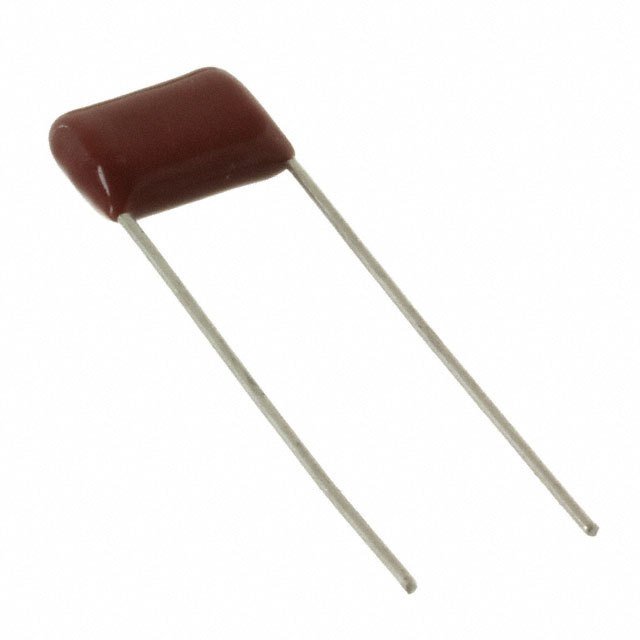

Illinois Capacitor
Manufacturer : Illinois Capacitor
Packaging : Bulk
Series : MSR
Part Status : Active
Capacitance : 0.047µF
Tolerance : ±10%
Voltage Rating - AC : 160V
Voltage Rating - DC : 250V
Dielectric Material : Polyester, Metallized
ESR (Equivalent Series Resistance) : 37.625 Ohms
Operating Temperature : -55°C ~ 125°C
Mounting Type : Through Hole
Package / Case : Radial
Size / Dimension : 0.492" L x 0.197" W (12.50mm x 5.00mm)
Height - Seated (Max) : 0.354" (9.00mm)
Termination : PC Pins
Lead Spacing : 0.394" (10.00mm)
Applications : General Purpose
Ratings : -
Features : -
0
12212 in stock
Illinois Capacitor
Manufacturer : Illinois Capacitor
Packaging : Bulk
Series : MSR
Part Status : Active
Capacitance : 0.047µF
Tolerance : ±10%
Voltage Rating - AC : 200V
Voltage Rating - DC : 400V
Dielectric Material : Polyester, Metallized
ESR (Equivalent Series Resistance) : 37.625 Ohms
Operating Temperature : -55°C ~ 125°C
Mounting Type : Through Hole
Package / Case : Radial
Size / Dimension : 0.512" L x 0.276" W (13.00mm x 7.00mm)
Height - Seated (Max) : 0.433" (11.00mm)
Termination : PC Pins
Lead Spacing : 0.394" (10.00mm)
Applications : General Purpose
Ratings : -
Features : -
0
7131 in stock
Illinois Capacitor
Manufacturer : Illinois Capacitor
Packaging : Bulk
Series : MWR
Part Status : Active
Capacitance : 0.047µF
Tolerance : ±10%
Voltage Rating - AC : 220V
Voltage Rating - DC : 630V
Dielectric Material : Polyester, Metallized
ESR (Equivalent Series Resistance) : 30.1 Ohms
Operating Temperature : -40°C ~ 105°C
Mounting Type : Through Hole
Package / Case : Axial
Size / Dimension : 0.295" Dia x 0.748" L (7.50mm x 19.00mm)
Height - Seated (Max) : -
Termination : PC Pins
Lead Spacing : -
Applications : General Purpose
Ratings : -
Features : Low ESR
0
2227 in stock
Illinois Capacitor
Manufacturer : Illinois Capacitor
Packaging : Bulk
Series : PPA
Part Status : Active
Capacitance : 0.047µF
Tolerance : ±10%
Voltage Rating - AC : 650V
Voltage Rating - DC : 2000V (2kV)
Dielectric Material : Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance) : 16.8 mOhms
Operating Temperature : -55°C ~ 85°C
Mounting Type : Through Hole
Package / Case : Axial, Can
Size / Dimension : 0.650" Dia x 1.142" L (16.50mm x 29.00mm)
Height - Seated (Max) : -
Termination : PC Pins
Lead Spacing : -
Applications : DC Link, DC Filtering; High Frequency, Switching; Snubber
Ratings : -
Features : -
0
323 in stock

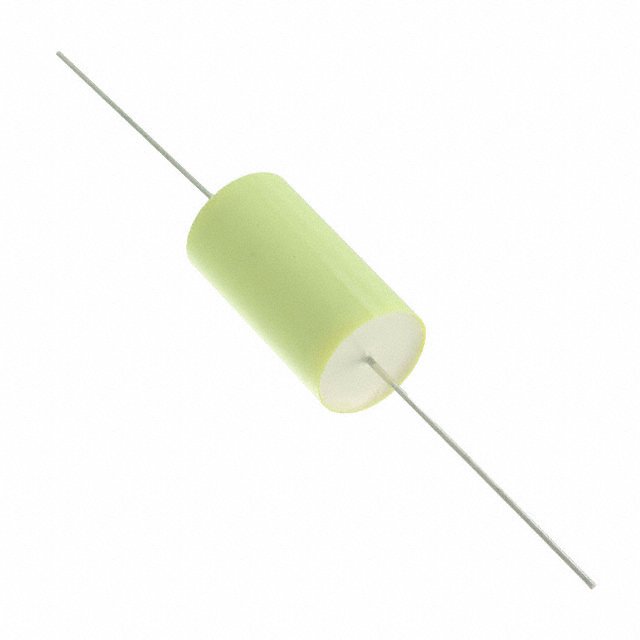

Illinois Capacitor
Manufacturer : Illinois Capacitor
Packaging : Bulk
Series : PPA
Part Status : Active
Capacitance : 0.047µF
Tolerance : ±10%
Voltage Rating - AC : 750V
Voltage Rating - DC : 3000V (3kV)
Dielectric Material : Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance) : 14 mOhms
Operating Temperature : -55°C ~ 85°C
Mounting Type : Through Hole
Package / Case : Axial
Size / Dimension : 0.886" Dia x 1.339" L (22.50mm x 34.00mm)
Height - Seated (Max) : -
Termination : PC Pins
Lead Spacing : -
Applications : DC Link, DC Filtering; High Frequency, Switching; Snubber
Ratings : -
Features : -
0
118 in stock

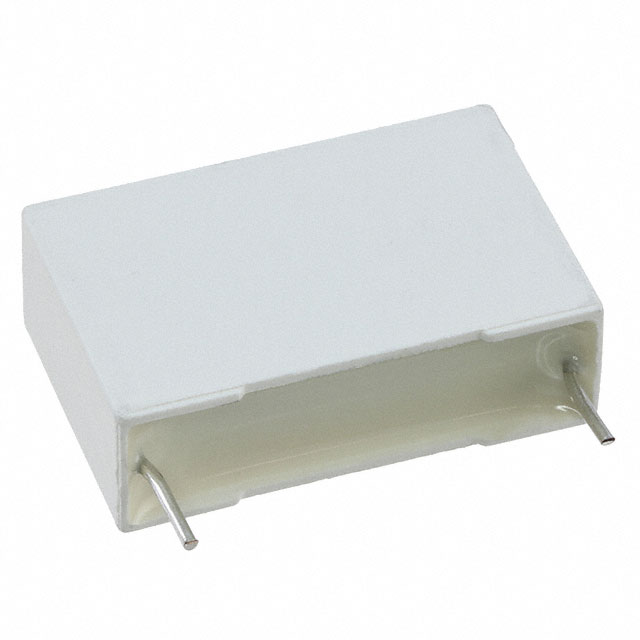

Illinois Capacitor
Manufacturer : Illinois Capacitor
Packaging : Bulk
Series : PPB
Part Status : Active
Capacitance : 0.047µF
Tolerance : ±10%
Voltage Rating - AC : 600V
Voltage Rating - DC : 1000V (1kV)
Dielectric Material : Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance) : -
Operating Temperature : -55°C ~ 105°C
Mounting Type : Through Hole
Package / Case : Radial
Size / Dimension : 1.043" L x 0.335" W (26.50mm x 8.50mm)
Height - Seated (Max) : 0.669" (17.00mm)
Termination : PC Pins
Lead Spacing : 0.886" (22.50mm)
Applications : Commutation; High Pulse, DV/DT; Snubber
Ratings : -
Features : -
0
809 in stock

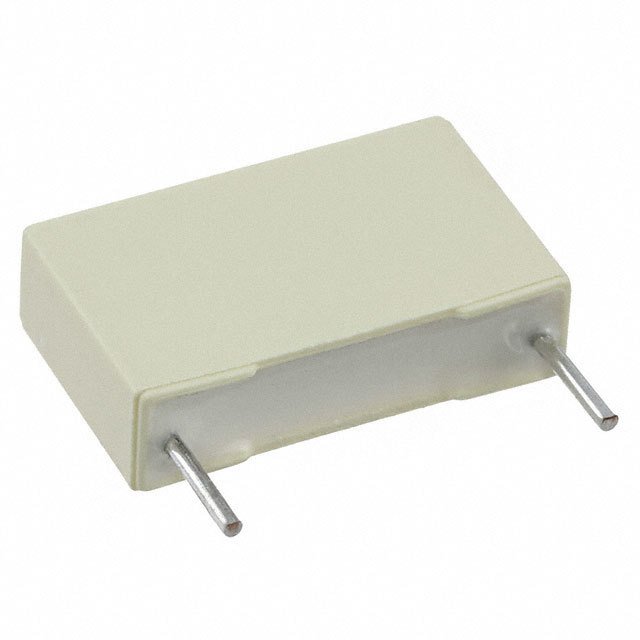

Illinois Capacitor
Manufacturer : Illinois Capacitor
Packaging : Bulk
Series : PPB
Part Status : Active
Capacitance : 0.047µF
Tolerance : ±10%
Voltage Rating - AC : 650V
Voltage Rating - DC : 1600V (1.6kV)
Dielectric Material : Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance) : -
Operating Temperature : -55°C ~ 105°C
Mounting Type : Through Hole
Package / Case : Radial
Size / Dimension : 1.260" L x 0.433" W (32.00mm x 11.00mm)
Height - Seated (Max) : 0.787" (20.00mm)
Termination : PC Pins
Lead Spacing : 1.083" (27.50mm)
Applications : Commutation; High Pulse, DV/DT; Snubber
Ratings : -
Features : -
0
813 in stock

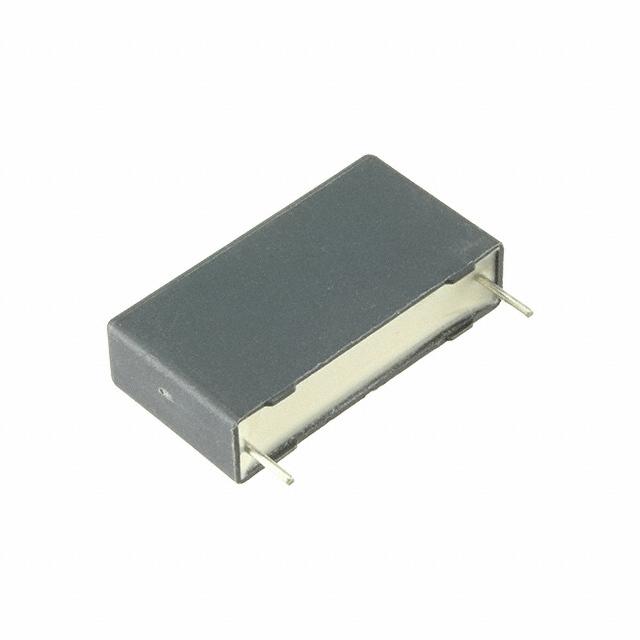

Illinois Capacitor
Manufacturer : Illinois Capacitor
Packaging : Bulk
Series : MKP
Part Status : Active
Capacitance : 0.47µF
Tolerance : ±10%
Voltage Rating - AC : 310V
Voltage Rating - DC : -
Dielectric Material : Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance) : -
Operating Temperature : -40°C ~ 110°C
Mounting Type : Through Hole
Package / Case : Radial
Size / Dimension : 1.220" L x 0.236" W (31.00mm x 6.00mm)
Height - Seated (Max) : 0.543" (13.80mm)
Termination : PC Pins
Lead Spacing : 1.083" (27.50mm)
Applications : EMI, RFI Suppression
Ratings : X2
Features : -
0
1460 in stock

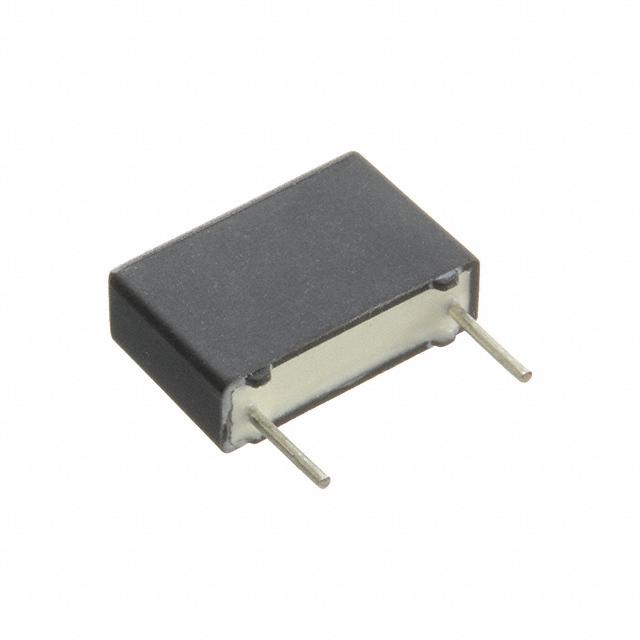

Illinois Capacitor
Manufacturer : Illinois Capacitor
Packaging : Bulk
Series : MKP
Part Status : Active
Capacitance : 0.47µF
Tolerance : ±10%
Voltage Rating - AC : 310V
Voltage Rating - DC : -
Dielectric Material : Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance) : -
Operating Temperature : -40°C ~ 110°C
Mounting Type : Through Hole
Package / Case : Radial
Size / Dimension : 1.024" L x 0.295" W (26.00mm x 7.50mm)
Height - Seated (Max) : 0.661" (16.80mm)
Termination : -
Lead Spacing : 0.886" (22.50mm)
Applications : EMI, RFI Suppression
Ratings : X2
Features : -
0
11058 in stock
Illinois Capacitor
Manufacturer : Illinois Capacitor
Packaging : Bulk
Series : MMR
Part Status : Active
Capacitance : 0.47µF
Tolerance : ±10%
Voltage Rating - AC : 160V
Voltage Rating - DC : 250V
Dielectric Material : Polyester, Metallized
ESR (Equivalent Series Resistance) : -
Operating Temperature : -40°C ~ 105°C
Mounting Type : Through Hole
Package / Case : Radial
Size / Dimension : 0.728" L x 0.217" W (18.50mm x 5.50mm)
Height - Seated (Max) : 0.512" (13.00mm)
Termination : PC Pins
Lead Spacing : 0.591" (15.00mm)
Applications : General Purpose
Ratings : -
Features : -
0
1459 in stock

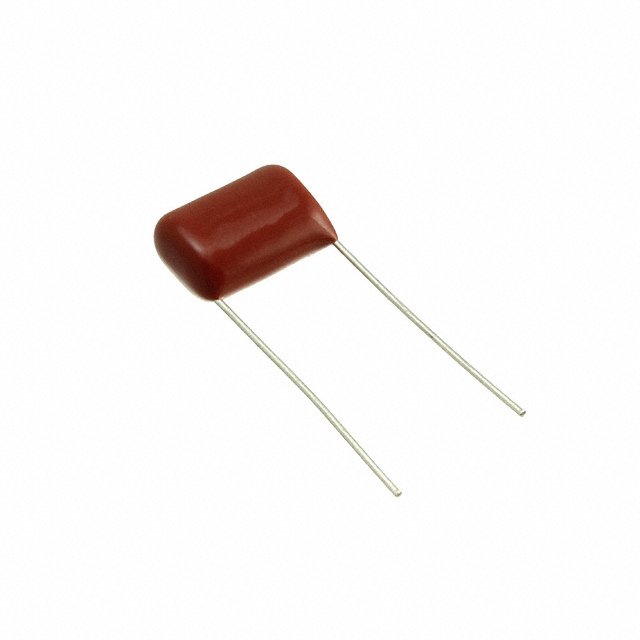

Illinois Capacitor
Manufacturer : Illinois Capacitor
Packaging : Bulk
Series : MMR
Part Status : Active
Capacitance : 0.47µF
Tolerance : ±10%
Voltage Rating - AC : 200V
Voltage Rating - DC : 400V
Dielectric Material : Polyester, Metallized
ESR (Equivalent Series Resistance) : -
Operating Temperature : -40°C ~ 105°C
Mounting Type : Through Hole
Package / Case : Radial
Size / Dimension : 0.728" L x 0.335" W (18.50mm x 8.50mm)
Height - Seated (Max) : 0.689" (17.50mm)
Termination : PC Pins
Lead Spacing : 0.591" (15.00mm)
Applications : General Purpose
Ratings : -
Features : -
0
1361 in stock

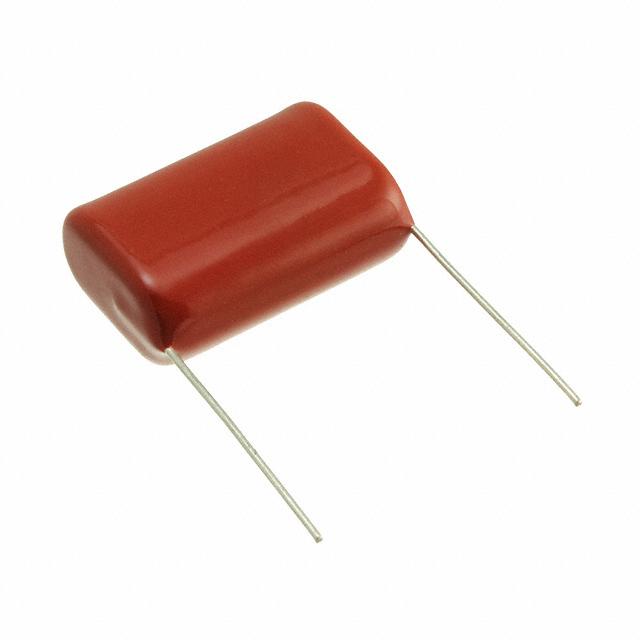

Illinois Capacitor
Manufacturer : Illinois Capacitor
Packaging : Bulk
Series : MMR
Part Status : Active
Capacitance : 0.47µF
Tolerance : ±10%
Voltage Rating - AC : 220V
Voltage Rating - DC : 630V
Dielectric Material : Polyester, Metallized
ESR (Equivalent Series Resistance) : -
Operating Temperature : -40°C ~ 105°C
Mounting Type : Through Hole
Package / Case : Radial
Size / Dimension : 1.024" L x 0.394" W (26.00mm x 10.00mm)
Height - Seated (Max) : 0.748" (19.00mm)
Termination : PC Pins
Lead Spacing : 0.886" (22.50mm)
Applications : General Purpose
Ratings : -
Features : -
0
1259 in stock
