Illinois Capacitor
- Illinois Capacitor is a leading manufacturer of miniature capacitors for electronics, lighting, energy and other markets. These products include: aluminum electrolytic, metalized film, power film, supercapacitors (ultra capacitors) and other types. IC is one of the world’s most experienced capacitor manufacturers, well known for its benchmark quality, guaranteed delivery and responsive engineering support.
Part Number
Manufacturer
Description
Unit Price
In Stock
Illinois Capacitor
Manufacturer : Illinois Capacitor
Packaging : Bulk
Series : DCN
Part Status : Active
Capacitance : 400F
Tolerance : -10%, +30%
Voltage - Rated : 2.7V
ESR (Equivalent Series Resistance) : 10 mOhm
Lifetime @ Temp. : 1000 Hrs @ 60°C
Termination : PC Pins
Mounting Type : Through Hole
Package / Case : Radial, Can - Snap-In
Lead Spacing : 0.886" (22.50mm)
Size / Dimension : 1.378" Dia (35.00mm)
Height - Seated (Max) : 2.441" (62.00mm)
Operating Temperature : -40°C ~ 60°C
0
165 in stock

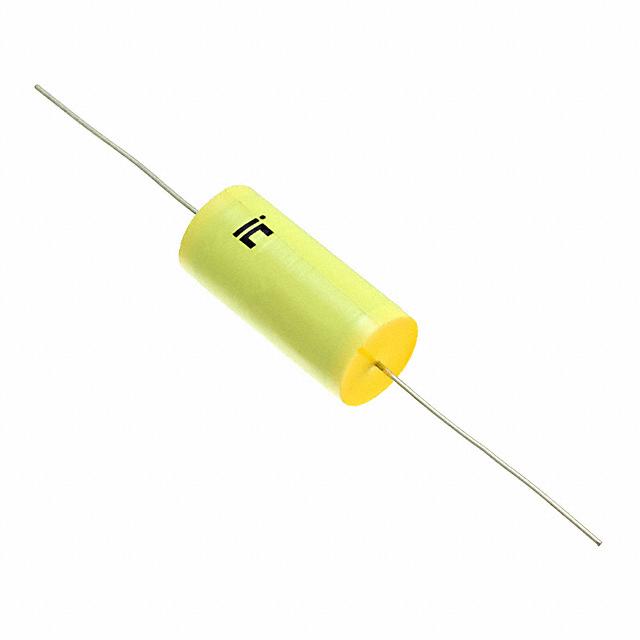

Illinois Capacitor
Manufacturer : Illinois Capacitor
Packaging : Bulk
Series : MPW
Part Status : Active
Capacitance : 4700pF
Tolerance : ±10%
Voltage Rating - AC : 220V
Voltage Rating - DC : 400V
Dielectric Material : Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance) : -
Operating Temperature : -55°C ~ 105°C
Mounting Type : Through Hole
Package / Case : Axial
Size / Dimension : 0.256" Dia x 0.571" L (6.50mm x 14.50mm)
Height - Seated (Max) : -
Termination : PC Pins
Lead Spacing : -
Applications : DC Link, DC Filtering
Ratings : -
Features : Low ESR
0
3582 in stock
Illinois Capacitor
Manufacturer : Illinois Capacitor
Packaging : Bulk
Series : MPW
Part Status : Active
Capacitance : 4700pF
Tolerance : ±10%
Voltage Rating - AC : 250V
Voltage Rating - DC : 630V
Dielectric Material : Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance) : 37.625 Ohms
Operating Temperature : -55°C ~ 105°C
Mounting Type : Through Hole
Package / Case : Axial
Size / Dimension : 0.236" Dia x 0.571" L (6.00mm x 14.50mm)
Height - Seated (Max) : -
Termination : PC Pins
Lead Spacing : -
Applications : DC Link, DC Filtering
Ratings : -
Features : Low ESR
0
826 in stock
Illinois Capacitor
Manufacturer : Illinois Capacitor
Packaging : Bulk
Series : MWR
Part Status : Active
Capacitance : 4700pF
Tolerance : ±10%
Voltage Rating - AC : 220V
Voltage Rating - DC : 630V
Dielectric Material : Polyester, Metallized
ESR (Equivalent Series Resistance) : -
Operating Temperature : -40°C ~ 105°C
Mounting Type : Through Hole
Package / Case : Axial
Size / Dimension : 0.217" Dia x 0.453" L (5.50mm x 11.50mm)
Height - Seated (Max) : -
Termination : PC Pins
Lead Spacing : -
Applications : General Purpose
Ratings : -
Features : Low ESR
0
355 in stock
Illinois Capacitor
Manufacturer : Illinois Capacitor
Packaging : Bulk
Series : MKP
Part Status : Active
Capacitance : 0.047µF
Tolerance : ±10%
Voltage Rating - AC : 310V
Voltage Rating - DC : -
Dielectric Material : Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance) : -
Operating Temperature : -40°C ~ 110°C
Mounting Type : Through Hole
Package / Case : Radial
Size / Dimension : 0.709" L x 0.157" W (18.00mm x 4.00mm)
Height - Seated (Max) : 0.354" (9.00mm)
Termination : PC Pins
Lead Spacing : 0.591" (15.00mm)
Applications : EMI, RFI Suppression
Ratings : X2
Features : -
0
11570 in stock

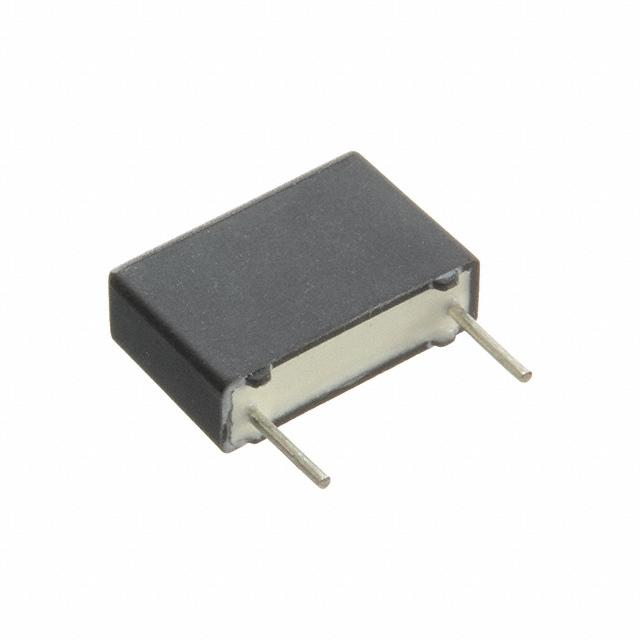

Illinois Capacitor
Manufacturer : Illinois Capacitor
Packaging : Bulk
Series : MKP
Part Status : Active
Capacitance : 0.047µF
Tolerance : ±10%
Voltage Rating - AC : 310V
Voltage Rating - DC : -
Dielectric Material : Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance) : -
Operating Temperature : -40°C ~ 110°C
Mounting Type : Through Hole
Package / Case : Radial
Size / Dimension : 0.512" L x 0.157" W (13.00mm x 4.00mm)
Height - Seated (Max) : 0.366" (9.30mm)
Termination : PC Pins
Lead Spacing : 0.394" (10.00mm)
Applications : EMI, RFI Suppression
Ratings : X2
Features : -
0
3131 in stock

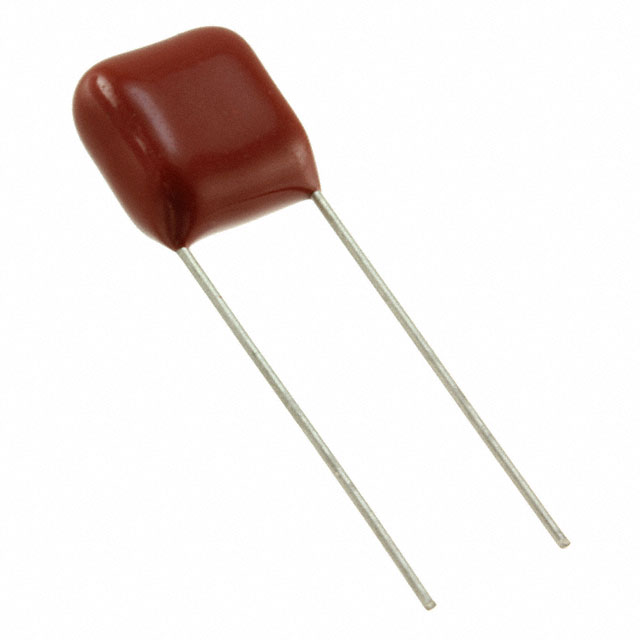

Illinois Capacitor
Manufacturer : Illinois Capacitor
Packaging : Bulk
Series : MMR
Part Status : Active
Capacitance : 0.047µF
Tolerance : ±10%
Voltage Rating - AC : 160V
Voltage Rating - DC : 250V
Dielectric Material : Polyester, Metallized
ESR (Equivalent Series Resistance) : -
Operating Temperature : -40°C ~ 105°C
Mounting Type : Through Hole
Package / Case : Radial
Size / Dimension : 0.413" L x 0.177" W (10.50mm x 4.50mm)
Height - Seated (Max) : 0.315" (8.00mm)
Termination : PC Pins
Lead Spacing : 0.295" (7.50mm)
Applications : General Purpose
Ratings : -
Features : -
0
1763 in stock
Illinois Capacitor
Manufacturer : Illinois Capacitor
Packaging : Bulk
Series : MMR
Part Status : Active
Capacitance : 0.047µF
Tolerance : ±10%
Voltage Rating - AC : 200V
Voltage Rating - DC : 400V
Dielectric Material : Polyester, Metallized
ESR (Equivalent Series Resistance) : -
Operating Temperature : -40°C ~ 105°C
Mounting Type : Through Hole
Package / Case : Radial
Size / Dimension : 0.512" L x 0.197" W (13.00mm x 5.00mm)
Height - Seated (Max) : 0.354" (9.00mm)
Termination : PC Pins
Lead Spacing : 0.394" (10.00mm)
Applications : General Purpose
Ratings : -
Features : -
0
1834 in stock

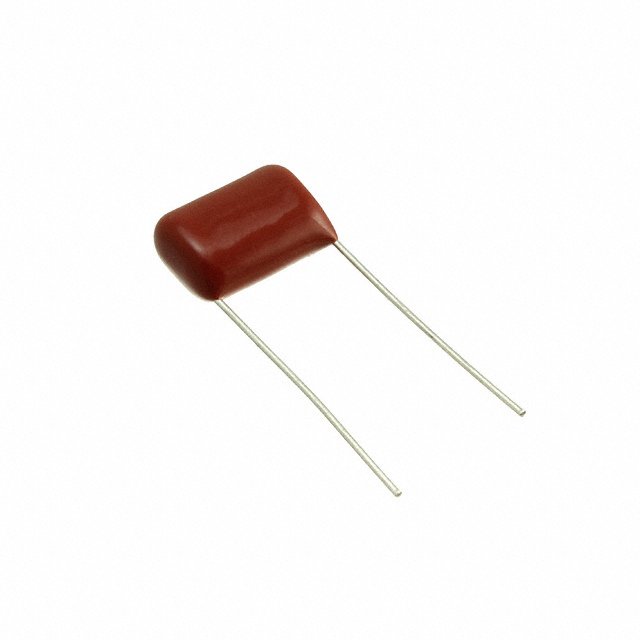

Illinois Capacitor
Manufacturer : Illinois Capacitor
Packaging : Bulk
Series : MMR
Part Status : Active
Capacitance : 0.047µF
Tolerance : ±10%
Voltage Rating - AC : 220V
Voltage Rating - DC : 630V
Dielectric Material : Polyester, Metallized
ESR (Equivalent Series Resistance) : -
Operating Temperature : -40°C ~ 105°C
Mounting Type : Through Hole
Package / Case : Radial
Size / Dimension : 0.492" L x 0.295" W (12.50mm x 7.50mm)
Height - Seated (Max) : 0.551" (14.00mm)
Termination : PC Pins
Lead Spacing : 0.394" (10.00mm)
Applications : General Purpose
Ratings : -
Features : -
0
1450 in stock
Illinois Capacitor
Manufacturer : Illinois Capacitor
Packaging : Bulk
Series : MPR
Part Status : Active
Capacitance : 0.047µF
Tolerance : ±10%
Voltage Rating - AC : 250V
Voltage Rating - DC : 630V
Dielectric Material : Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance) : 3.763 Ohms
Operating Temperature : -55°C ~ 105°C
Mounting Type : Through Hole
Package / Case : Radial
Size / Dimension : 0.709" L x 0.335" W (18.00mm x 8.50mm)
Height - Seated (Max) : 0.532" (13.50mm)
Termination : PC Pins
Lead Spacing : 0.591" (15.00mm)
Applications : DC Link, DC Filtering
Ratings : -
Features : Low ESR
0
4563 in stock
Illinois Capacitor
Manufacturer : Illinois Capacitor
Packaging : Bulk
Series : MPW
Part Status : Active
Capacitance : 0.047µF
Tolerance : ±10%
Voltage Rating - AC : 90V
Voltage Rating - DC : 160V
Dielectric Material : Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance) : 3.763 Ohms
Operating Temperature : -55°C ~ 105°C
Mounting Type : Through Hole
Package / Case : Axial
Size / Dimension : 0.217" Dia x 0.453" L (5.50mm x 11.50mm)
Height - Seated (Max) : -
Termination : PC Pins
Lead Spacing : -
Applications : DC Link, DC Filtering
Ratings : -
Features : Low ESR
0
883 in stock
Illinois Capacitor
Manufacturer : Illinois Capacitor
Packaging : Bulk
Series : MPW
Part Status : Active
Capacitance : 0.047µF
Tolerance : ±10%
Voltage Rating - AC : 250V
Voltage Rating - DC : 630V
Dielectric Material : Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance) : -
Operating Temperature : -55°C ~ 105°C
Mounting Type : Through Hole
Package / Case : Axial
Size / Dimension : 0.354" Dia x 0.807" L (9.00mm x 20.50mm)
Height - Seated (Max) : -
Termination : PC Pins
Lead Spacing : -
Applications : DC Link, DC Filtering
Ratings : -
Features : Low ESR
0
1357 in stock
