Illinois Capacitor
- Illinois Capacitor is a leading manufacturer of miniature capacitors for electronics, lighting, energy and other markets. These products include: aluminum electrolytic, metalized film, power film, supercapacitors (ultra capacitors) and other types. IC is one of the world’s most experienced capacitor manufacturers, well known for its benchmark quality, guaranteed delivery and responsive engineering support.
Part Number
Manufacturer
Description
Unit Price
In Stock
Illinois Capacitor
Manufacturer : Illinois Capacitor
Packaging : Bulk
Series : MMR
Part Status : Active
Capacitance : 0.022µF
Tolerance : ±10%
Voltage Rating - AC : 220V
Voltage Rating - DC : 630V
Dielectric Material : Polyester, Metallized
ESR (Equivalent Series Resistance) : -
Operating Temperature : -40°C ~ 105°C
Mounting Type : Through Hole
Package / Case : Radial
Size / Dimension : 0.492" L x 0.236" W (12.50mm x 6.00mm)
Height - Seated (Max) : 0.394" (10.00mm)
Termination : PC Pins
Lead Spacing : 0.394" (10.00mm)
Applications : General Purpose
Ratings : -
Features : -
0
1710 in stock

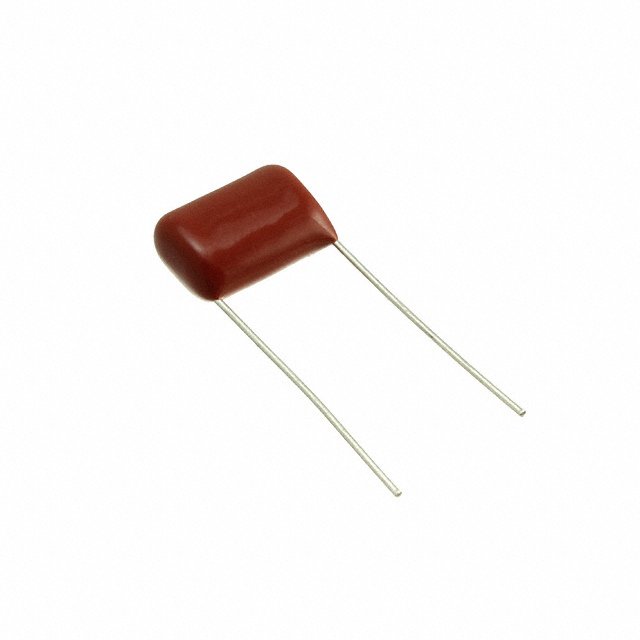

Illinois Capacitor
Manufacturer : Illinois Capacitor
Packaging : Bulk
Series : MPR
Part Status : Active
Capacitance : 0.022µF
Tolerance : ±10%
Voltage Rating - AC : 160V
Voltage Rating - DC : 250V
Dielectric Material : Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance) : 8.038 Ohms
Operating Temperature : -55°C ~ 105°C
Mounting Type : Through Hole
Package / Case : Radial
Size / Dimension : 0.512" L x 0.197" W (13.00mm x 5.00mm)
Height - Seated (Max) : 0.354" (9.00mm)
Termination : PC Pins
Lead Spacing : 0.394" (10.00mm)
Applications : DC Link, DC Filtering
Ratings : -
Features : Low ESR
0
1853 in stock

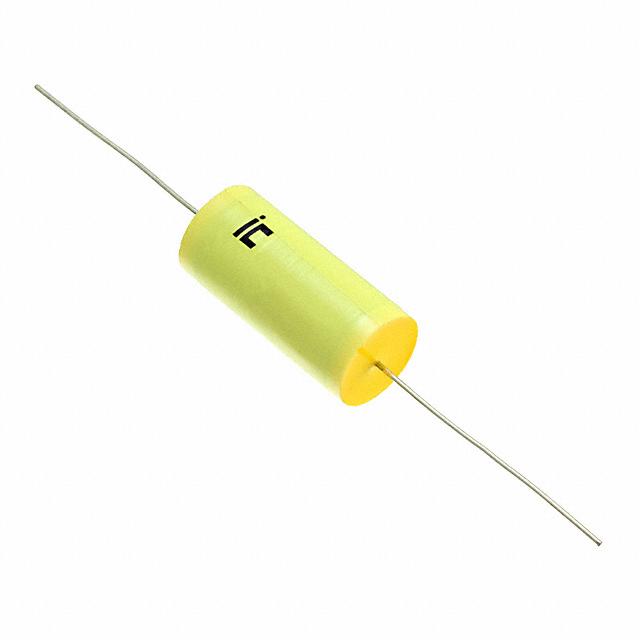

Illinois Capacitor
Manufacturer : Illinois Capacitor
Packaging : Bulk
Series : MPW
Part Status : Active
Capacitance : 0.022µF
Tolerance : ±10%
Voltage Rating - AC : 90V
Voltage Rating - DC : 160V
Dielectric Material : Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance) : 8.038 Ohms
Operating Temperature : -55°C ~ 105°C
Mounting Type : Through Hole
Package / Case : Axial
Size / Dimension : 0.217" Dia x 0.453" L (5.50mm x 11.50mm)
Height - Seated (Max) : -
Termination : PC Pins
Lead Spacing : -
Applications : DC Link, DC Filtering
Ratings : -
Features : Low ESR
0
4235 in stock
Illinois Capacitor
Manufacturer : Illinois Capacitor
Packaging : Bulk
Series : MPW
Part Status : Active
Capacitance : 0.022µF
Tolerance : ±10%
Voltage Rating - AC : 220V
Voltage Rating - DC : 400V
Dielectric Material : Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance) : 8.038 Ohms
Operating Temperature : -55°C ~ 105°C
Mounting Type : Through Hole
Package / Case : Axial
Size / Dimension : 0.276" Dia x 0.571" L (7.00mm x 14.50mm)
Height - Seated (Max) : -
Termination : PC Pins
Lead Spacing : -
Applications : DC Link, DC Filtering
Ratings : -
Features : Low ESR
0
1356 in stock
Illinois Capacitor
Manufacturer : Illinois Capacitor
Packaging : Bulk
Series : MPW
Part Status : Active
Capacitance : 0.022µF
Tolerance : ±10%
Voltage Rating - AC : 250V
Voltage Rating - DC : 630V
Dielectric Material : Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance) : 8.038 Ohms
Operating Temperature : -55°C ~ 105°C
Mounting Type : Through Hole
Package / Case : Axial
Size / Dimension : 0.335" Dia x 0.571" L (8.50mm x 14.50mm)
Height - Seated (Max) : -
Termination : PC Pins
Lead Spacing : -
Applications : DC Link, DC Filtering
Ratings : -
Features : Low ESR
0
2057 in stock
Illinois Capacitor
Manufacturer : Illinois Capacitor
Packaging : Bulk
Series : MSR
Part Status : Active
Capacitance : 0.022µF
Tolerance : ±10%
Voltage Rating - AC : 200V
Voltage Rating - DC : 400V
Dielectric Material : Polyester, Metallized
ESR (Equivalent Series Resistance) : 80.381 Ohms
Operating Temperature : -55°C ~ 125°C
Mounting Type : Through Hole
Package / Case : Radial
Size / Dimension : 0.512" L x 0.236" W (13.00mm x 6.00mm)
Height - Seated (Max) : 0.374" (9.50mm)
Termination : PC Pins
Lead Spacing : -
Applications : General Purpose
Ratings : -
Features : -
0
334 in stock

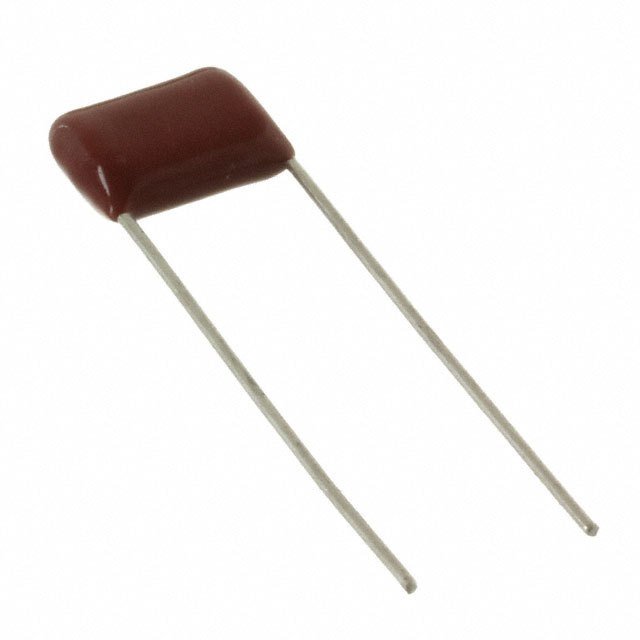

Illinois Capacitor
Manufacturer : Illinois Capacitor
Packaging : Bulk
Series : MSR
Part Status : Active
Capacitance : 0.022µF
Tolerance : ±10%
Voltage Rating - AC : 220V
Voltage Rating - DC : 630V
Dielectric Material : Polyester, Metallized
ESR (Equivalent Series Resistance) : 80.381 Ohms
Operating Temperature : -55°C ~ 125°C
Mounting Type : Through Hole
Package / Case : Radial
Size / Dimension : 0.512" L x 0.295" W (13.00mm x 7.50mm)
Height - Seated (Max) : 0.492" (12.50mm)
Termination : PC Pins
Lead Spacing : 0.394" (10.00mm)
Applications : General Purpose
Ratings : -
Features : -
0
2222 in stock
Illinois Capacitor
Manufacturer : Illinois Capacitor
Packaging : Bulk
Series : MWR
Part Status : Active
Capacitance : 0.022µF
Tolerance : ±10%
Voltage Rating - AC : 250V
Voltage Rating - DC : 1000V (1kV)
Dielectric Material : Polyester, Metallized
ESR (Equivalent Series Resistance) : 64.305 Ohms
Operating Temperature : -40°C ~ 105°C
Mounting Type : Through Hole
Package / Case : Axial
Size / Dimension : 0.374" Dia x 0.807" L (9.50mm x 20.50mm)
Height - Seated (Max) : -
Termination : PC Pins
Lead Spacing : -
Applications : General Purpose
Ratings : -
Features : Low ESR
0
729 in stock
Illinois Capacitor
Manufacturer : Illinois Capacitor
Packaging : Bulk
Series : MWR
Part Status : Active
Capacitance : 0.022µF
Tolerance : ±10%
Voltage Rating - AC : 200V
Voltage Rating - DC : 400V
Dielectric Material : Polyester, Metallized
ESR (Equivalent Series Resistance) : 64.305 Ohms
Operating Temperature : -40°C ~ 105°C
Mounting Type : Through Hole
Package / Case : Axial
Size / Dimension : 0.217" Dia x 0.551" L (5.50mm x 14.00mm)
Height - Seated (Max) : -
Termination : PC Pins
Lead Spacing : -
Applications : General Purpose
Ratings : -
Features : Low ESR
0
817 in stock

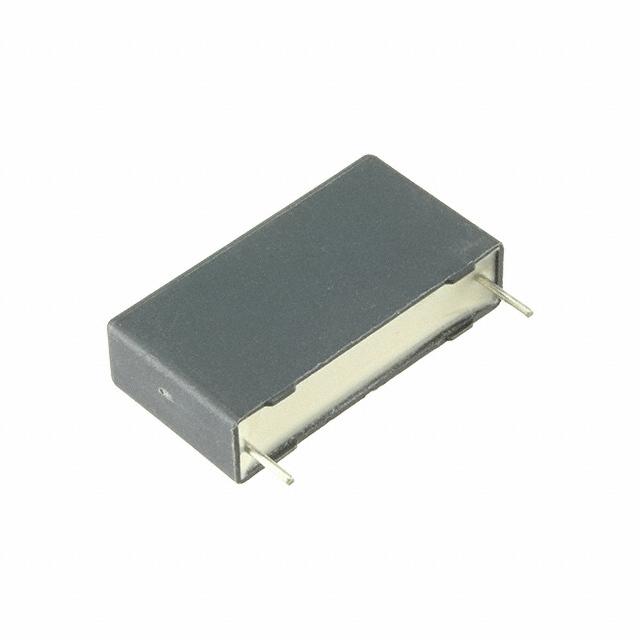

Illinois Capacitor
Manufacturer : Illinois Capacitor
Packaging : Bulk
Series : MKP
Part Status : Active
Capacitance : 0.22µF
Tolerance : ±10%
Voltage Rating - AC : 310V
Voltage Rating - DC : -
Dielectric Material : Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance) : -
Operating Temperature : -40°C ~ 110°C
Mounting Type : Through Hole
Package / Case : Radial
Size / Dimension : 1.024" L x 0.236" W (26.00mm x 6.00mm)
Height - Seated (Max) : 0.583" (14.80mm)
Termination : PC Pins
Lead Spacing : 0.886" (22.50mm)
Applications : EMI, RFI Suppression
Ratings : X2
Features : -
0
18190 in stock

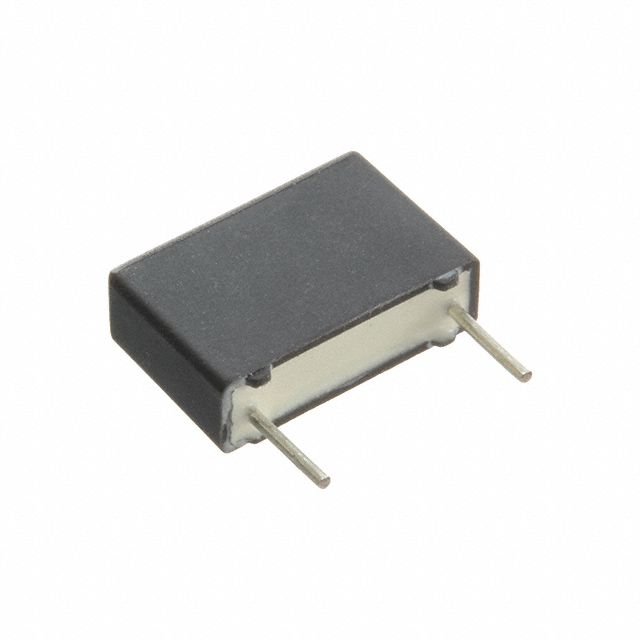

Illinois Capacitor
Manufacturer : Illinois Capacitor
Packaging : Bulk
Series : MKP
Part Status : Active
Capacitance : 0.22µF
Tolerance : ±10%
Voltage Rating - AC : 310V
Voltage Rating - DC : -
Dielectric Material : Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance) : -
Operating Temperature : -40°C ~ 110°C
Mounting Type : Through Hole
Package / Case : Radial
Size / Dimension : 0.709" L x 0.236" W (18.00mm x 6.00mm)
Height - Seated (Max) : 0.465" (11.80mm)
Termination : PC Pins
Lead Spacing : 0.591" (15.00mm)
Applications : EMI, RFI Suppression
Ratings : X2
Features : -
0
40950 in stock

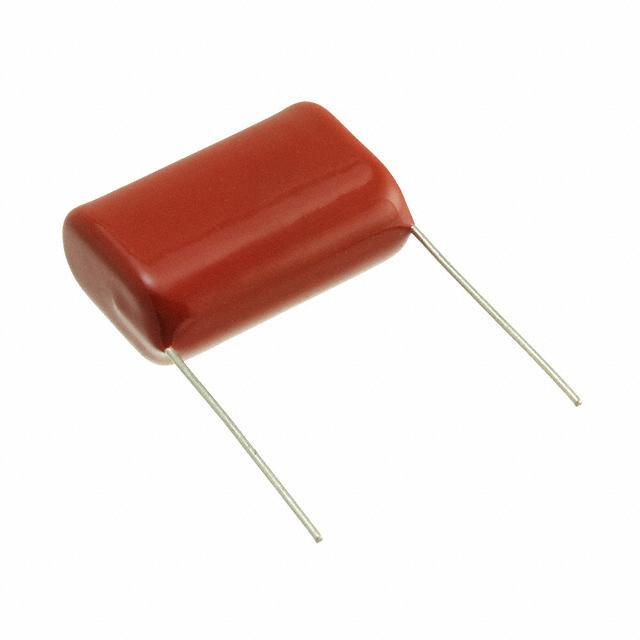

Illinois Capacitor
Manufacturer : Illinois Capacitor
Packaging : Bulk
Series : MMR
Part Status : Active
Capacitance : 0.22µF
Tolerance : ±10%
Voltage Rating - AC : 63V
Voltage Rating - DC : 100V
Dielectric Material : Polyester, Metallized
ESR (Equivalent Series Resistance) : -
Operating Temperature : -40°C ~ 105°C
Mounting Type : Through Hole
Package / Case : Radial
Size / Dimension : 0.406" L x 0.197" W (10.30mm x 5.00mm)
Height - Seated (Max) : 0.315" (8.00mm)
Termination : PC Pins
Lead Spacing : 0.295" (7.50mm)
Applications : General Purpose
Ratings : -
Features : -
0
3265 in stock
