Illinois Capacitor
- Illinois Capacitor is a leading manufacturer of miniature capacitors for electronics, lighting, energy and other markets. These products include: aluminum electrolytic, metalized film, power film, supercapacitors (ultra capacitors) and other types. IC is one of the world’s most experienced capacitor manufacturers, well known for its benchmark quality, guaranteed delivery and responsive engineering support.
Part Number
Manufacturer
Description
Unit Price
In Stock
Illinois Capacitor
Manufacturer : Illinois Capacitor
Packaging : -
Series : *
Part Status : Active
Capacitance : -
Tolerance : -
Voltage Rating - AC : -
Voltage Rating - DC : -
Dielectric Material : -
ESR (Equivalent Series Resistance) : -
Operating Temperature : -
Mounting Type : -
Package / Case : -
Size / Dimension : -
Height - Seated (Max) : -
Termination : -
Lead Spacing : -
Applications : -
Ratings : -
Features : -
0
20 in stock

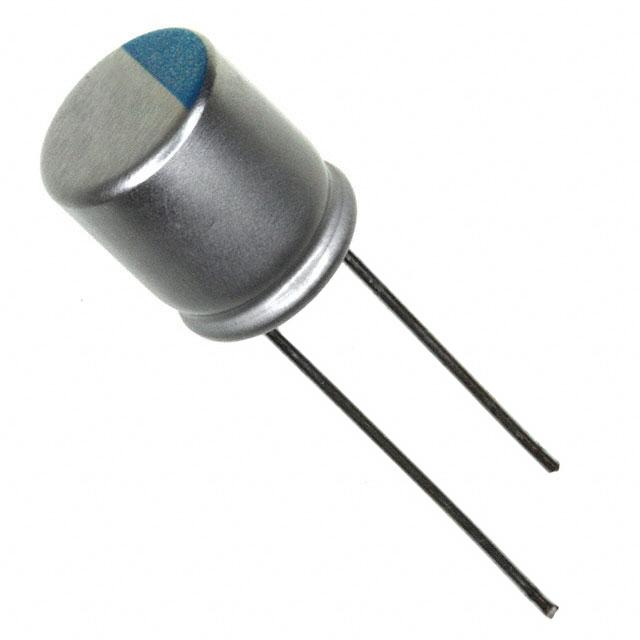

Illinois Capacitor
Manufacturer : Illinois Capacitor
Packaging : Bulk
Series : AVG
Part Status : Active
Type : Polymer
Capacitance : 180µF
Tolerance : ±20%
Voltage - Rated : 63V
ESR (Equivalent Series Resistance) : 28 mOhm
Lifetime @ Temp. : 2000 Hrs @ 125°C
Operating Temperature : -55°C ~ 125°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 127.5mA @ 120Hz
Ripple Current @ High Frequency : 2.55A @ 100kHz
Impedance : -
Lead Spacing : 0.197" (5.00mm)
Size / Dimension : 0.394" Dia (10.00mm)
Height - Seated (Max) : 0.532" (13.50mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
0
2116 in stock

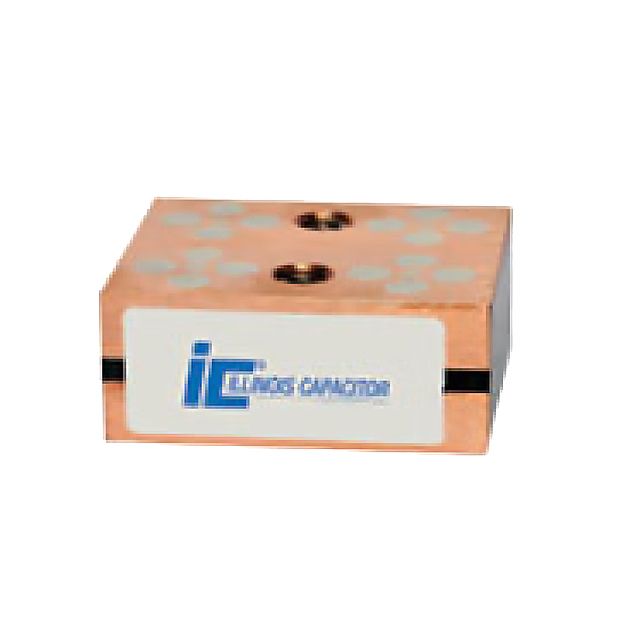

Illinois Capacitor
Manufacturer : Illinois Capacitor
Packaging : Bulk
Series : HC3
Part Status : Active
Capacitance : 0.2µF
Tolerance : ±10%
Voltage Rating - AC : 1000V (1kV)
Voltage Rating - DC : -
Dielectric Material : Polypropylene (PP)
ESR (Equivalent Series Resistance) : 1.2 mOhms
Operating Temperature : -40°C ~ 85°C
Mounting Type : Chassis Mount
Package / Case : Nonstandard
Size / Dimension : 2.205" L x 1.189" W (56.00mm x 30.20mm)
Height - Seated (Max) : 2.618" (66.50mm)
Termination : Threaded, Female
Lead Spacing : -
Applications : Conduction Cooled; High Pulse, DV/DT
Ratings : -
Features : -
0
8 in stock

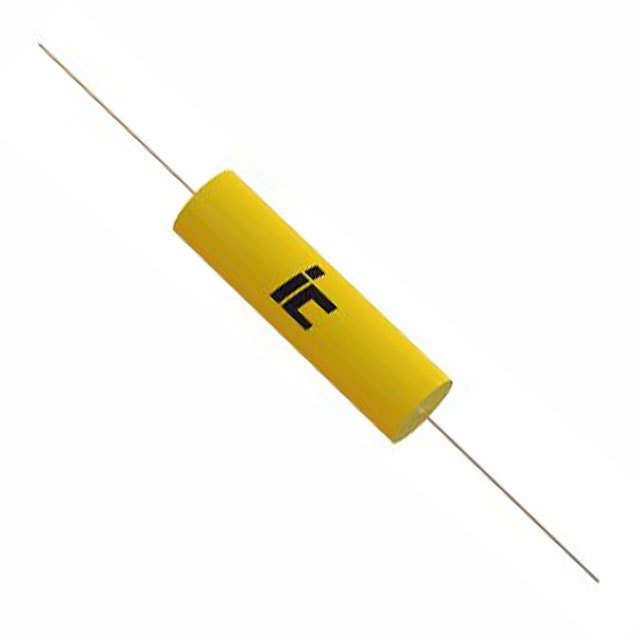

Illinois Capacitor
Manufacturer : Illinois Capacitor
Packaging : Bulk
Series : PHC
Part Status : Active
Capacitance : 2µF
Tolerance : ±10%
Voltage Rating - AC : 250V
Voltage Rating - DC : 400V
Dielectric Material : Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance) : 4.6 mOhms
Operating Temperature : -40°C ~ 85°C
Mounting Type : Through Hole
Package / Case : Axial
Size / Dimension : 0.689" Dia x 1.339" L (17.50mm x 34.00mm)
Height - Seated (Max) : -
Termination : PC Pins
Lead Spacing : -
Applications : DC Link, DC Filtering; High Frequency, Switching
Ratings : -
Features : Low ESR, Low ESL
0
863 in stock
Illinois Capacitor
Manufacturer : Illinois Capacitor
Packaging : Bulk
Series : PHC
Part Status : Active
Capacitance : 2µF
Tolerance : ±10%
Voltage Rating - AC : 330V
Voltage Rating - DC : 600V
Dielectric Material : Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance) : 5.3 mOhms
Operating Temperature : -40°C ~ 85°C
Mounting Type : Through Hole
Package / Case : Axial
Size / Dimension : 0.787" Dia x 1.811" L (20.00mm x 46.00mm)
Height - Seated (Max) : -
Termination : PC Pins
Lead Spacing : -
Applications : DC Link, DC Filtering; High Frequency, Switching
Ratings : -
Features : Low ESR, Low ESL
0
25 in stock

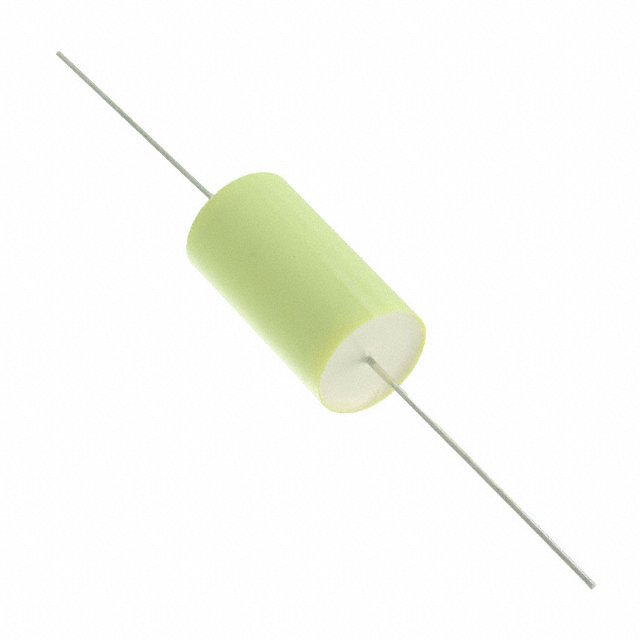

Illinois Capacitor
Manufacturer : Illinois Capacitor
Packaging : Bulk
Series : PPA
Part Status : Active
Capacitance : 2µF
Tolerance : ±10%
Voltage Rating - AC : 550V
Voltage Rating - DC : 1200V (1.2kV)
Dielectric Material : Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance) : 2.6 mOhms
Operating Temperature : -55°C ~ 85°C
Mounting Type : Through Hole
Package / Case : Axial
Size / Dimension : 1.535" Dia x 2.165" L (39.00mm x 55.00mm)
Height - Seated (Max) : -
Termination : PC Pins
Lead Spacing : -
Applications : DC Link, DC Filtering; High Frequency, Switching; Snubber
Ratings : -
Features : -
0
209 in stock
Illinois Capacitor
Manufacturer : Illinois Capacitor
Packaging : Bulk
Series : PPA
Part Status : Active
Capacitance : 2µF
Tolerance : ±10%
Voltage Rating - AC : 600V
Voltage Rating - DC : 1500V (1.5kV)
Dielectric Material : Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance) : 2.8 mOhms
Operating Temperature : -55°C ~ 85°C
Mounting Type : Through Hole
Package / Case : Axial
Size / Dimension : 1.654" Dia x 2.323" L (42.00mm x 59.00mm)
Height - Seated (Max) : -
Termination : PC Pins
Lead Spacing : -
Applications : DC Link, DC Filtering; High Frequency, Switching; Snubber
Ratings : -
Features : -
0
20 in stock

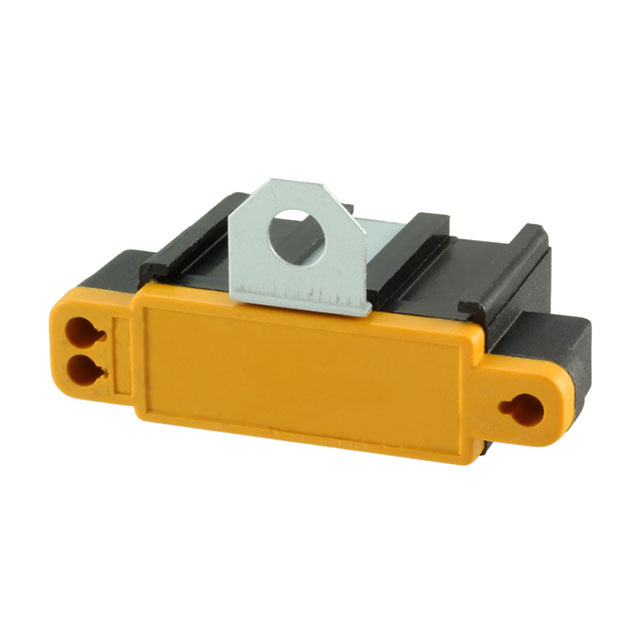

Illinois Capacitor
Manufacturer : Illinois Capacitor
Packaging : Bulk
Series : QPC
Part Status : Active
Capacitance : 2µF
Tolerance : ±10%
Voltage Rating - AC : 250V
Voltage Rating - DC : -
Dielectric Material : Polyester, Metallized
ESR (Equivalent Series Resistance) : -
Operating Temperature : -25°C ~ 70°C
Mounting Type : Chassis Mount
Package / Case : Rectangular Box
Size / Dimension : 1.811" L x 0.512" W (46.00mm x 13.00mm)
Height - Seated (Max) : 0.965" (24.50mm)
Termination : Screwless - Push-In Spring
Lead Spacing : -
Applications : Motor Run
Ratings : -
Features : -
0
91 in stock

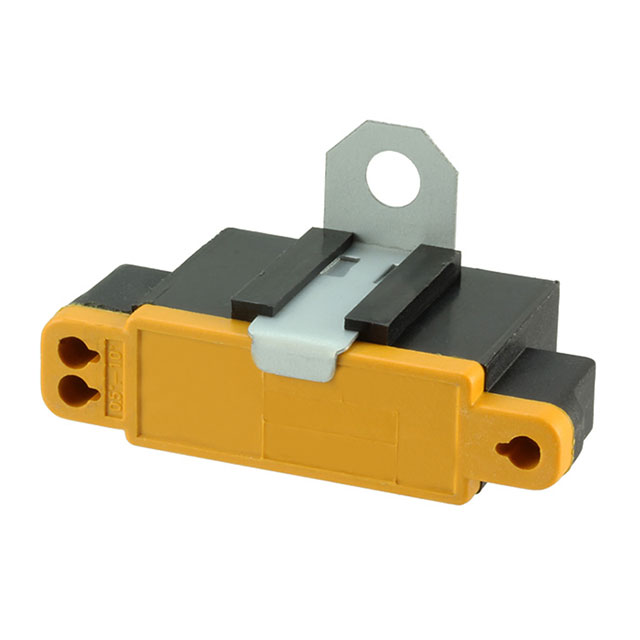

Illinois Capacitor
Manufacturer : Illinois Capacitor
Packaging : Bulk
Series : QPC
Part Status : Active
Capacitance : 2µF
Tolerance : ±10%
Voltage Rating - AC : 250V
Voltage Rating - DC : -
Dielectric Material : Polyester, Metallized
ESR (Equivalent Series Resistance) : -
Operating Temperature : -25°C ~ 70°C
Mounting Type : Chassis Mount
Package / Case : Rectangular Box
Size / Dimension : 1.811" L x 0.512" W (46.00mm x 13.00mm)
Height - Seated (Max) : 0.965" (24.50mm)
Termination : Screwless - Push-In Spring
Lead Spacing : -
Applications : Motor Run
Ratings : -
Features : -
0
94 in stock

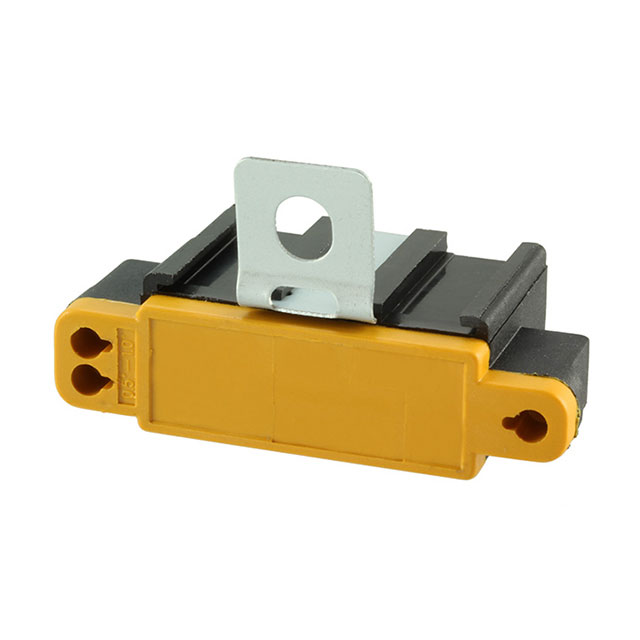

Illinois Capacitor
Manufacturer : Illinois Capacitor
Packaging : Bulk
Series : QPC
Part Status : Active
Capacitance : 2µF
Tolerance : ±10%
Voltage Rating - AC : 250V
Voltage Rating - DC : -
Dielectric Material : Polyester, Metallized
ESR (Equivalent Series Resistance) : -
Operating Temperature : -25°C ~ 70°C
Mounting Type : Chassis Mount
Package / Case : Rectangular Box
Size / Dimension : 1.811" L x 0.512" W (46.00mm x 13.00mm)
Height - Seated (Max) : 0.965" (24.50mm)
Termination : Screwless - Push-In Spring
Lead Spacing : -
Applications : Motor Run
Ratings : -
Features : -
0
96 in stock

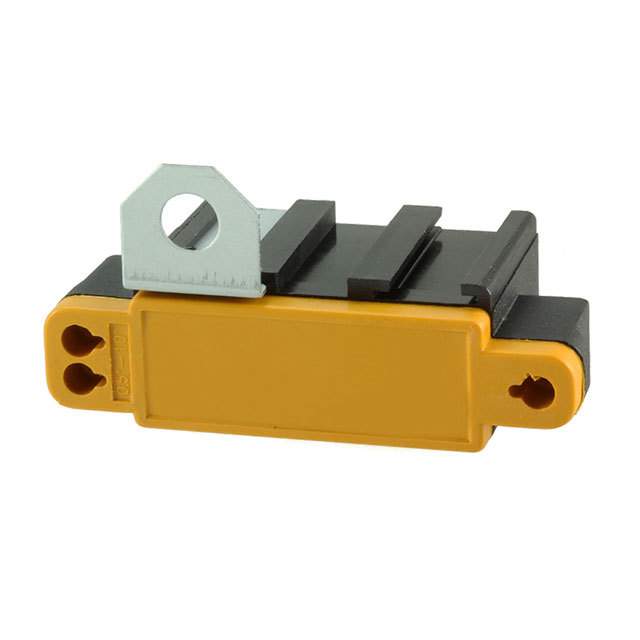

Illinois Capacitor
Manufacturer : Illinois Capacitor
Packaging : Bulk
Series : QPC
Part Status : Active
Capacitance : 2µF
Tolerance : ±10%
Voltage Rating - AC : 250V
Voltage Rating - DC : -
Dielectric Material : Polyester, Metallized
ESR (Equivalent Series Resistance) : -
Operating Temperature : -25°C ~ 70°C
Mounting Type : Chassis Mount
Package / Case : Rectangular Box
Size / Dimension : 1.811" L x 0.512" W (46.00mm x 13.00mm)
Height - Seated (Max) : 0.965" (24.50mm)
Termination : Screwless - Push-In Spring
Lead Spacing : -
Applications : Motor Run
Ratings : -
Features : -
0
80 in stock

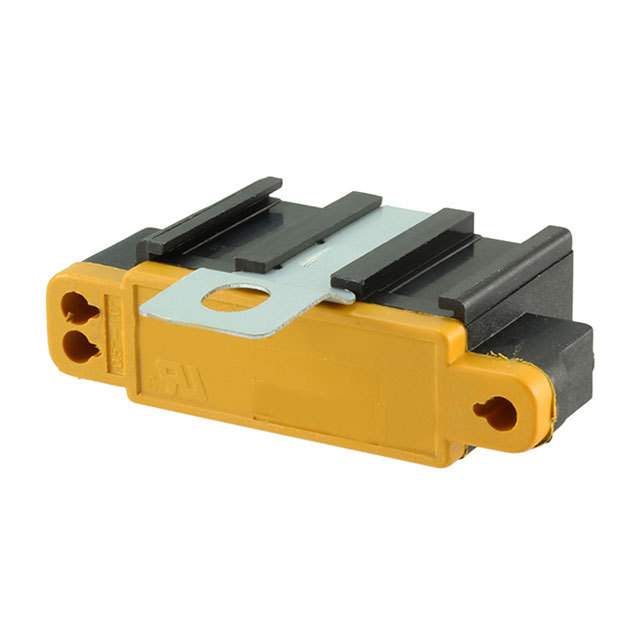

Illinois Capacitor
Manufacturer : Illinois Capacitor
Packaging : Bulk
Series : QPC
Part Status : Active
Capacitance : 2µF
Tolerance : ±10%
Voltage Rating - AC : 250V
Voltage Rating - DC : -
Dielectric Material : Polyester, Metallized
ESR (Equivalent Series Resistance) : -
Operating Temperature : -25°C ~ 70°C
Mounting Type : Chassis Mount
Package / Case : Rectangular Box
Size / Dimension : 1.811" L x 0.512" W (46.00mm x 13.00mm)
Height - Seated (Max) : 0.965" (24.50mm)
Termination : Screwless - Push-In Spring
Lead Spacing : -
Applications : Motor Run
Ratings : -
Features : -
0
96 in stock
