Illinois Capacitor
- Illinois Capacitor is a leading manufacturer of miniature capacitors for electronics, lighting, energy and other markets. These products include: aluminum electrolytic, metalized film, power film, supercapacitors (ultra capacitors) and other types. IC is one of the world’s most experienced capacitor manufacturers, well known for its benchmark quality, guaranteed delivery and responsive engineering support.
Part Number
Manufacturer
Description
Unit Price
In Stock

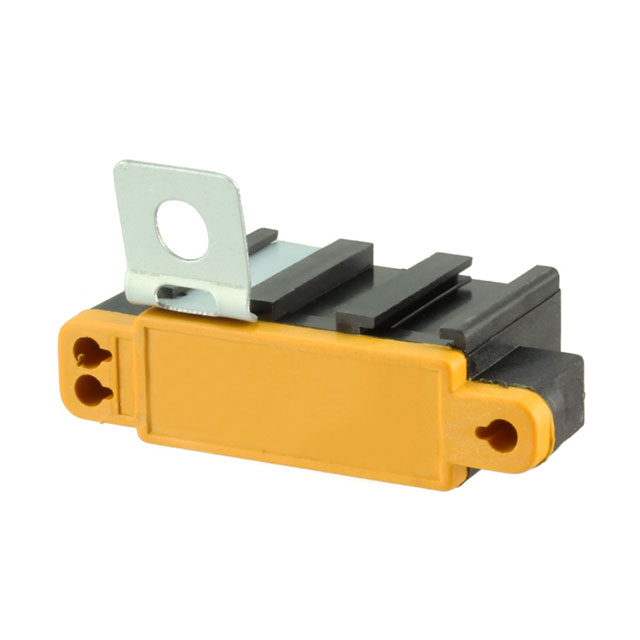

Illinois Capacitor
Manufacturer : Illinois Capacitor
Packaging : Bulk
Series : QPC
Part Status : Active
Capacitance : 2µF
Tolerance : ±10%
Voltage Rating - AC : 250V
Voltage Rating - DC : -
Dielectric Material : Polyester, Metallized
ESR (Equivalent Series Resistance) : -
Operating Temperature : -25°C ~ 70°C
Mounting Type : Chassis Mount
Package / Case : Rectangular Box
Size / Dimension : 1.811" L x 0.512" W (46.00mm x 13.00mm)
Height - Seated (Max) : 0.965" (24.50mm)
Termination : Screwless - Push-In Spring
Lead Spacing : -
Applications : Motor Run
Ratings : -
Features : -
0
97 in stock
Illinois Capacitor
Manufacturer : Illinois Capacitor
Packaging : Bulk
Series : PHC
Part Status : Active
Capacitance : 20µF
Tolerance : ±10%
Voltage Rating - AC : 160V
Voltage Rating - DC : 250V
Dielectric Material : Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance) : 5 mOhms
Operating Temperature : -40°C ~ 85°C
Mounting Type : Through Hole
Package / Case : Axial
Size / Dimension : 1.142" Dia x 1.811" L (29.00mm x 46.00mm)
Height - Seated (Max) : -
Termination : PC Pins
Lead Spacing : -
Applications : DC Link, DC Filtering; High Frequency, Switching
Ratings : -
Features : Low ESR, Low ESL
0
209 in stock

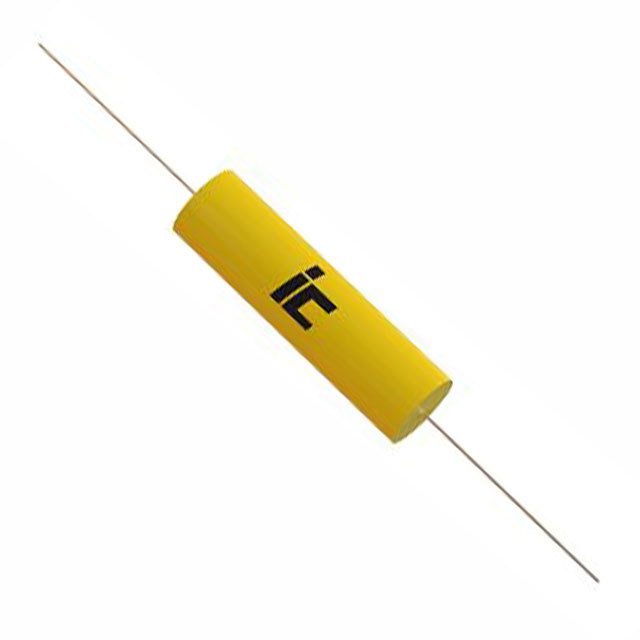

Illinois Capacitor
Manufacturer : Illinois Capacitor
Packaging : Bulk
Series : PHC
Part Status : Active
Capacitance : 20µF
Tolerance : ±10%
Voltage Rating - AC : 250V
Voltage Rating - DC : 400V
Dielectric Material : Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance) : 4.3 mOhms
Operating Temperature : -40°C ~ 85°C
Mounting Type : Through Hole
Package / Case : Axial
Size / Dimension : 1.378" Dia x 2.323" L (35.00mm x 59.00mm)
Height - Seated (Max) : -
Termination : PC Pins
Lead Spacing : -
Applications : DC Link, DC Filtering; High Frequency, Switching
Ratings : -
Features : Low ESR, Low ESL
0
191 in stock
Illinois Capacitor
Manufacturer : Illinois Capacitor
Packaging : Bulk
Series : DCN
Part Status : Active
Capacitance : 200F
Tolerance : ±20%
Voltage - Rated : 2.7V
ESR (Equivalent Series Resistance) : 15 mOhm
Lifetime @ Temp. : 1000 Hrs @ 60°C
Termination : PC Pins
Mounting Type : Through Hole
Package / Case : Radial, Can - Snap-In
Lead Spacing : 0.394" (10.00mm)
Size / Dimension : 1.181" Dia (30.00mm)
Height - Seated (Max) : 2.047" (52.00mm)
Operating Temperature : -40°C ~ 60°C
0
22 in stock

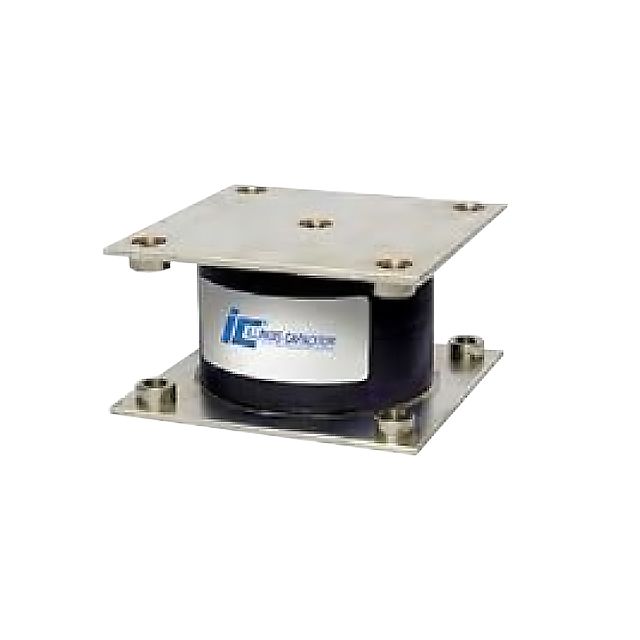

Illinois Capacitor
Manufacturer : Illinois Capacitor
Packaging : Bulk
Series : LC5
Part Status : Active
Capacitance : 21µF
Tolerance : ±10%
Voltage Rating - AC : 500V
Voltage Rating - DC : -
Dielectric Material : Polypropylene (PP)
ESR (Equivalent Series Resistance) : 400 µOhms
Operating Temperature : -40°C ~ 85°C
Mounting Type : Chassis Mount
Package / Case : Nonstandard
Size / Dimension : 3.937" L x 3.937" W (100.00mm x 100.00mm)
Height - Seated (Max) : 2.146" (54.50mm)
Termination : Threaded, Female
Lead Spacing : -
Applications : Conduction Cooled; High Pulse, DV/DT
Ratings : -
Features : -
0
6 in stock

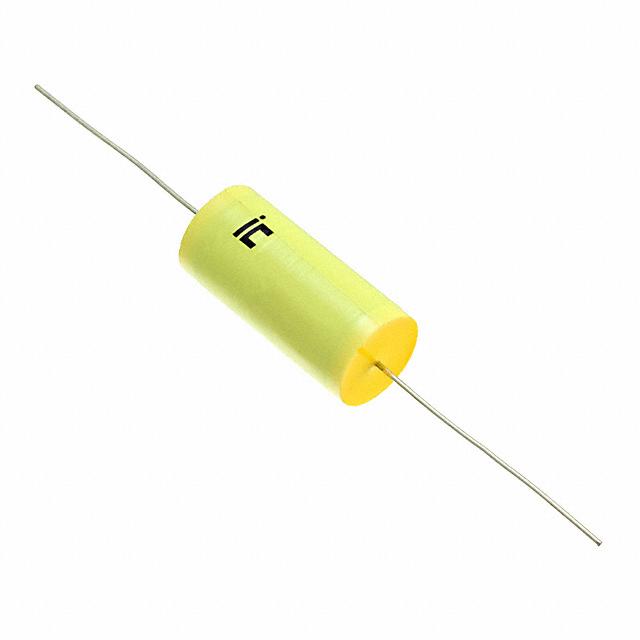

Illinois Capacitor
Manufacturer : Illinois Capacitor
Packaging : Bulk
Series : MPW
Part Status : Active
Capacitance : 2200pF
Tolerance : ±10%
Voltage Rating - AC : 250V
Voltage Rating - DC : 630V
Dielectric Material : Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance) : 80.381 Ohms
Operating Temperature : -55°C ~ 105°C
Mounting Type : Through Hole
Package / Case : Axial
Size / Dimension : 0.256" Dia x 0.571" L (6.50mm x 14.50mm)
Height - Seated (Max) : -
Termination : PC Pins
Lead Spacing : -
Applications : DC Link, DC Filtering
Ratings : -
Features : Low ESR
0
753 in stock

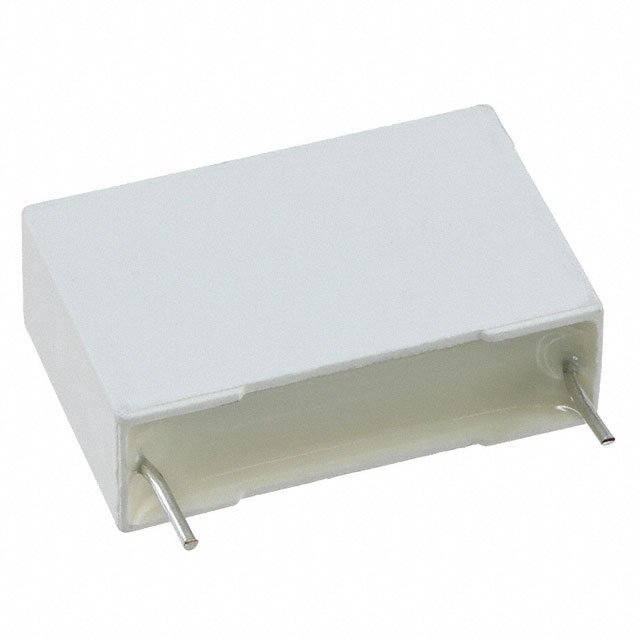

Illinois Capacitor
Manufacturer : Illinois Capacitor
Packaging : Bulk
Series : PPB
Part Status : Active
Capacitance : 2200pF
Tolerance : ±10%
Voltage Rating - AC : 650V
Voltage Rating - DC : 1600V (1.6kV)
Dielectric Material : Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance) : -
Operating Temperature : -55°C ~ 105°C
Mounting Type : Through Hole
Package / Case : Radial
Size / Dimension : 0.709" L x 0.197" W (18.00mm x 5.00mm)
Height - Seated (Max) : 0.433" (11.00mm)
Termination : PC Pins
Lead Spacing : 0.591" (15.00mm)
Applications : Commutation; High Pulse, DV/DT; Snubber
Ratings : -
Features : -
0
488 in stock

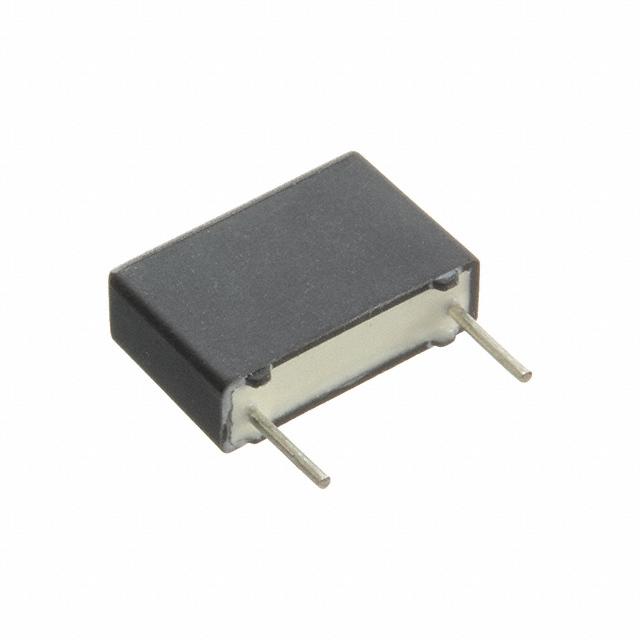

Illinois Capacitor
Manufacturer : Illinois Capacitor
Packaging : Bulk
Series : MKP
Part Status : Active
Capacitance : 0.022µF
Tolerance : ±10%
Voltage Rating - AC : 310V
Voltage Rating - DC : -
Dielectric Material : Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance) : -
Operating Temperature : -40°C ~ 110°C
Mounting Type : Through Hole
Package / Case : Radial
Size / Dimension : 0.512" L x 0.197" W (13.00mm x 5.00mm)
Height - Seated (Max) : 0.406" (10.30mm)
Termination : PC Pins
Lead Spacing : 0.295" (7.50mm)
Applications : EMI, RFI Suppression
Ratings : X2
Features : -
0
2000 in stock
Illinois Capacitor
Manufacturer : Illinois Capacitor
Packaging : Bulk
Series : MKP
Part Status : Active
Capacitance : 0.022µF
Tolerance : ±10%
Voltage Rating - AC : 310V
Voltage Rating - DC : -
Dielectric Material : Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance) : -
Operating Temperature : -40°C ~ 110°C
Mounting Type : Through Hole
Package / Case : Radial
Size / Dimension : 0.709" L x 0.157" W (18.00mm x 4.00mm)
Height - Seated (Max) : 0.366" (9.30mm)
Termination : PC Pins
Lead Spacing : 0.591" (15.00mm)
Applications : EMI, RFI Suppression
Ratings : X2
Features : -
0
300 in stock
Illinois Capacitor
Manufacturer : Illinois Capacitor
Packaging : Bulk
Series : MKP
Part Status : Active
Capacitance : 0.022µF
Tolerance : ±10%
Voltage Rating - AC : 310V
Voltage Rating - DC : -
Dielectric Material : Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance) : -
Operating Temperature : -40°C ~ 110°C
Mounting Type : Through Hole
Package / Case : Radial
Size / Dimension : 0.394" L x 0.157" W (10.00mm x 4.00mm)
Height - Seated (Max) : 0.327" (8.30mm)
Termination : PC Pins
Lead Spacing : 0.295" (7.50mm)
Applications : EMI, RFI Suppression
Ratings : X2
Features : -
0
18594 in stock
Illinois Capacitor
Manufacturer : Illinois Capacitor
Packaging : Bulk
Series : MMR
Part Status : Active
Capacitance : 0.022µF
Tolerance : ±10%
Voltage Rating - AC : 160V
Voltage Rating - DC : 250V
Dielectric Material : Polyester, Metallized
ESR (Equivalent Series Resistance) : -
Operating Temperature : -40°C ~ 105°C
Mounting Type : Through Hole
Package / Case : Radial
Size / Dimension : 0.413" L x 0.177" W (10.50mm x 4.50mm)
Height - Seated (Max) : 0.295" (7.50mm)
Termination : PC Pins
Lead Spacing : 0.295" (7.50mm)
Applications : General Purpose
Ratings : -
Features : -
0
1 in stock

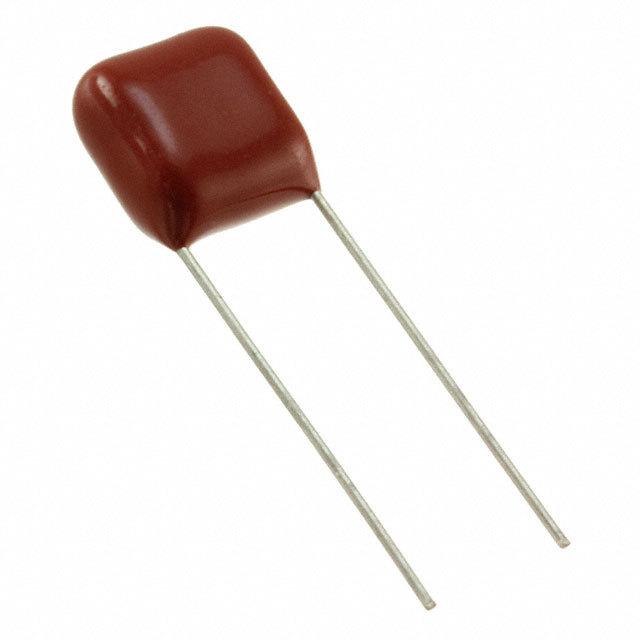

Illinois Capacitor
Manufacturer : Illinois Capacitor
Packaging : Bulk
Series : MMR
Part Status : Active
Capacitance : 0.022µF
Tolerance : ±10%
Voltage Rating - AC : 200V
Voltage Rating - DC : 400V
Dielectric Material : Polyester, Metallized
ESR (Equivalent Series Resistance) : -
Operating Temperature : -40°C ~ 105°C
Mounting Type : Through Hole
Package / Case : Radial
Size / Dimension : 0.413" L x 0.197" W (10.50mm x 5.00mm)
Height - Seated (Max) : 0.335" (8.50mm)
Termination : PC Pins
Lead Spacing : 0.295" (7.50mm)
Applications : General Purpose
Ratings : -
Features : -
0
8849 in stock
