Illinois Capacitor
- Illinois Capacitor is a leading manufacturer of miniature capacitors for electronics, lighting, energy and other markets. These products include: aluminum electrolytic, metalized film, power film, supercapacitors (ultra capacitors) and other types. IC is one of the world’s most experienced capacitor manufacturers, well known for its benchmark quality, guaranteed delivery and responsive engineering support.
Part Number
Manufacturer
Description
Unit Price
In Stock
Illinois Capacitor
Manufacturer : Illinois Capacitor
Packaging : Bulk
Series : MMR
Part Status : Active
Capacitance : 0.22µF
Tolerance : ±10%
Voltage Rating - AC : 160V
Voltage Rating - DC : 250V
Dielectric Material : Polyester, Metallized
ESR (Equivalent Series Resistance) : -
Operating Temperature : -40°C ~ 105°C
Mounting Type : Through Hole
Package / Case : Radial
Size / Dimension : 0.492" L x 0.236" W (12.50mm x 6.00mm)
Height - Seated (Max) : 0.433" (11.00mm)
Termination : PC Pins
Lead Spacing : 0.394" (10.00mm)
Applications : General Purpose
Ratings : -
Features : -
0
3152 in stock

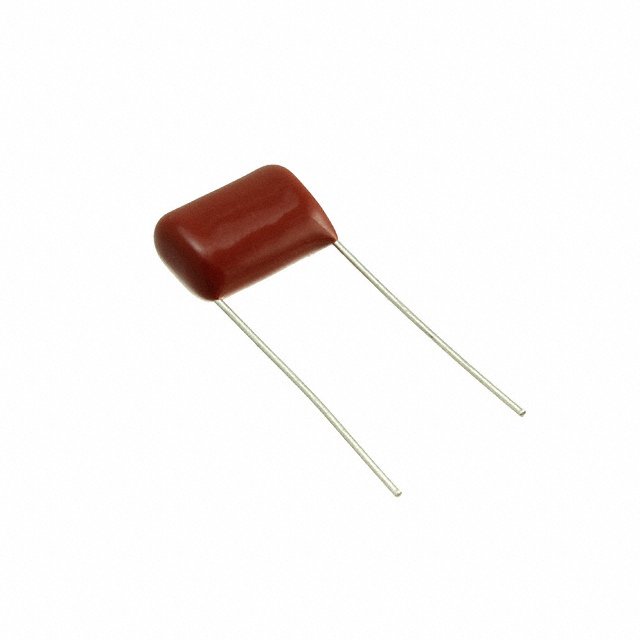

Illinois Capacitor
Manufacturer : Illinois Capacitor
Packaging : Bulk
Series : MMR
Part Status : Active
Capacitance : 0.22µF
Tolerance : ±10%
Voltage Rating - AC : 200V
Voltage Rating - DC : 400V
Dielectric Material : Polyester, Metallized
ESR (Equivalent Series Resistance) : -
Operating Temperature : -40°C ~ 105°C
Mounting Type : Through Hole
Package / Case : Radial
Size / Dimension : 0.728" L x 0.236" W (18.50mm x 6.00mm)
Height - Seated (Max) : 0.532" (13.50mm)
Termination : PC Pins
Lead Spacing : 0.591" (15.00mm)
Applications : General Purpose
Ratings : -
Features : -
0
1287 in stock
Illinois Capacitor
Manufacturer : Illinois Capacitor
Packaging : Bulk
Series : MMR
Part Status : Active
Capacitance : 0.22µF
Tolerance : ±10%
Voltage Rating - AC : 220V
Voltage Rating - DC : 630V
Dielectric Material : Polyester, Metallized
ESR (Equivalent Series Resistance) : -
Operating Temperature : -40°C ~ 105°C
Mounting Type : Through Hole
Package / Case : Radial
Size / Dimension : 0.728" L x 0.354" W (18.50mm x 9.00mm)
Height - Seated (Max) : 0.650" (16.50mm)
Termination : PC Pins
Lead Spacing : 0.591" (15.00mm)
Applications : General Purpose
Ratings : -
Features : -
0
963 in stock
Illinois Capacitor
Manufacturer : Illinois Capacitor
Packaging : Bulk
Series : MPW
Part Status : Active
Capacitance : 0.22µF
Tolerance : ±10%
Voltage Rating - AC : 90V
Voltage Rating - DC : 160V
Dielectric Material : Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance) : 804 mOhms
Operating Temperature : -55°C ~ 105°C
Mounting Type : Through Hole
Package / Case : Axial
Size / Dimension : 0.315" Dia x 0.571" L (8.00mm x 14.50mm)
Height - Seated (Max) : -
Termination : PC Pins
Lead Spacing : -
Applications : DC Link, DC Filtering
Ratings : -
Features : Low ESR
0
746 in stock
Illinois Capacitor
Manufacturer : Illinois Capacitor
Packaging : Bulk
Series : MPW
Part Status : Active
Capacitance : 0.22µF
Tolerance : ±10%
Voltage Rating - AC : 220V
Voltage Rating - DC : 400V
Dielectric Material : Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance) : -
Operating Temperature : -55°C ~ 105°C
Mounting Type : Through Hole
Package / Case : Axial
Size / Dimension : 0.413" Dia x 1.142" L (10.50mm x 29.00mm)
Height - Seated (Max) : -
Termination : PC Pins
Lead Spacing : -
Applications : DC Link, DC Filtering
Ratings : -
Features : Low ESR
0
937 in stock

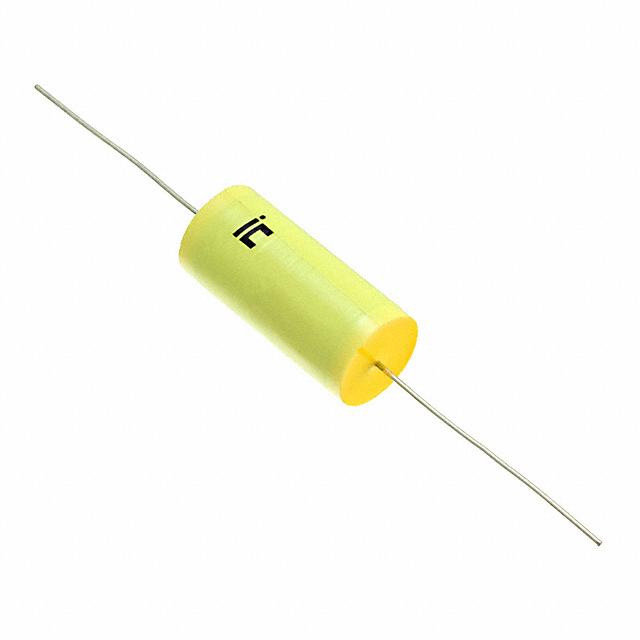

Illinois Capacitor
Manufacturer : Illinois Capacitor
Packaging : Bulk
Series : MPW
Part Status : Active
Capacitance : 0.22µF
Tolerance : ±10%
Voltage Rating - AC : 250V
Voltage Rating - DC : 630V
Dielectric Material : Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance) : 804 mOhms
Operating Temperature : -55°C ~ 105°C
Mounting Type : Through Hole
Package / Case : Axial
Size / Dimension : 0.492" Dia x 1.339" L (12.50mm x 34.00mm)
Height - Seated (Max) : -
Termination : PC Pins
Lead Spacing : -
Applications : DC Link, DC Filtering
Ratings : -
Features : Low ESR
0
692 in stock
Illinois Capacitor
Manufacturer : Illinois Capacitor
Packaging : Bulk
Series : MSR
Part Status : Active
Capacitance : 0.22µF
Tolerance : ±10%
Voltage Rating - AC : 160V
Voltage Rating - DC : 250V
Dielectric Material : Polyester, Metallized
ESR (Equivalent Series Resistance) : 8.038 Ohms
Operating Temperature : -55°C ~ 125°C
Mounting Type : Through Hole
Package / Case : Radial
Size / Dimension : 0.709" L x 0.236" W (18.00mm x 6.00mm)
Height - Seated (Max) : 0.453" (11.50mm)
Termination : PC Pins
Lead Spacing : 0.591" (15.00mm)
Applications : General Purpose
Ratings : -
Features : -
0
8352 in stock
Illinois Capacitor
Manufacturer : Illinois Capacitor
Packaging : Bulk
Series : MSR
Part Status : Active
Capacitance : 0.22µF
Tolerance : ±10%
Voltage Rating - AC : 200V
Voltage Rating - DC : 400V
Dielectric Material : Polyester, Metallized
ESR (Equivalent Series Resistance) : 8.038 Ohms
Operating Temperature : -55°C ~ 125°C
Mounting Type : Through Hole
Package / Case : Radial
Size / Dimension : 0.886" L x 0.315" W (22.50mm x 8.00mm)
Height - Seated (Max) : 0.571" (14.50mm)
Termination : PC Pins
Lead Spacing : 0.787" (20.00mm)
Applications : General Purpose
Ratings : -
Features : -
0
4483 in stock

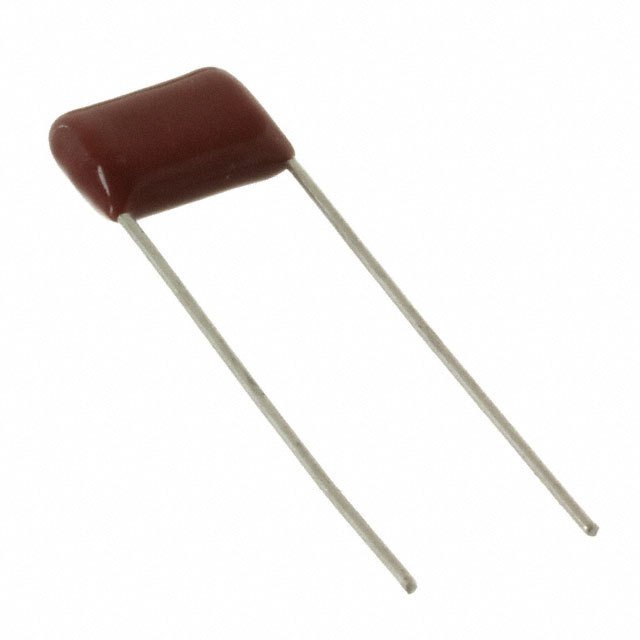

Illinois Capacitor
Manufacturer : Illinois Capacitor
Packaging : Bulk
Series : MSR
Part Status : Active
Capacitance : 0.22µF
Tolerance : ±10%
Voltage Rating - AC : 220V
Voltage Rating - DC : 630V
Dielectric Material : Polyester, Metallized
ESR (Equivalent Series Resistance) : 8.038 Ohms
Operating Temperature : -55°C ~ 125°C
Mounting Type : Through Hole
Package / Case : Radial
Size / Dimension : 0.886" L x 0.453" W (22.50mm x 11.50mm)
Height - Seated (Max) : 0.748" (19.00mm)
Termination : PC Pins
Lead Spacing : 0.787" (20.00mm)
Applications : General Purpose
Ratings : -
Features : -
0
1821 in stock
Illinois Capacitor
Manufacturer : Illinois Capacitor
Packaging : Bulk
Series : MWR
Part Status : Active
Capacitance : 0.22µF
Tolerance : ±10%
Voltage Rating - AC : 63V
Voltage Rating - DC : 100V
Dielectric Material : Polyester, Metallized
ESR (Equivalent Series Resistance) : -
Operating Temperature : -40°C ~ 105°C
Mounting Type : Through Hole
Package / Case : Axial
Size / Dimension : 0.256" Dia x 0.551" L (6.50mm x 14.00mm)
Height - Seated (Max) : -
Termination : PC Pins
Lead Spacing : -
Applications : General Purpose
Ratings : -
Features : Low ESR
0
632 in stock
Illinois Capacitor
Manufacturer : Illinois Capacitor
Packaging : Bulk
Series : MWR
Part Status : Active
Capacitance : 0.22µF
Tolerance : ±10%
Voltage Rating - AC : 160V
Voltage Rating - DC : 250V
Dielectric Material : Polyester, Metallized
ESR (Equivalent Series Resistance) : -
Operating Temperature : -40°C ~ 105°C
Mounting Type : Through Hole
Package / Case : Axial
Size / Dimension : 0.276" Dia x 0.748" L (7.00mm x 19.00mm)
Height - Seated (Max) : -
Termination : PC Pins
Lead Spacing : -
Applications : General Purpose
Ratings : -
Features : Low ESR
0
2127 in stock

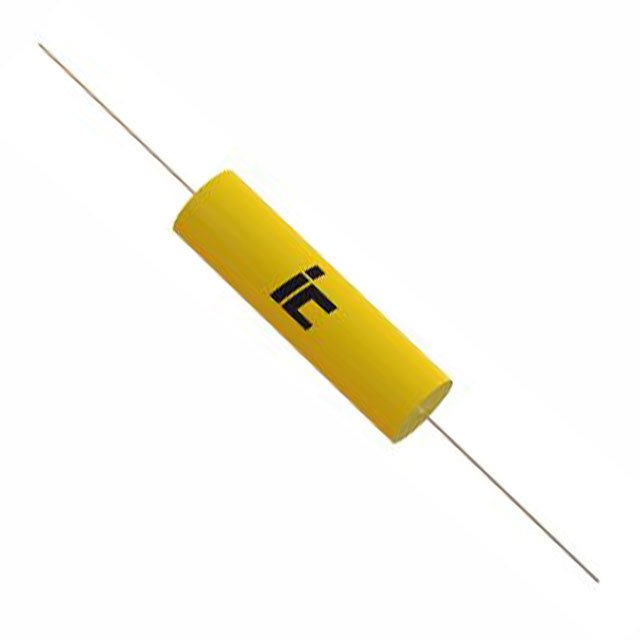

Illinois Capacitor
Manufacturer : Illinois Capacitor
Packaging : Bulk
Series : PHC
Part Status : Active
Capacitance : 0.22µF
Tolerance : ±10%
Voltage Rating - AC : 450V
Voltage Rating - DC : 850V
Dielectric Material : Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance) : 8.4 mOhms
Operating Temperature : -40°C ~ 85°C
Mounting Type : Through Hole
Package / Case : Axial
Size / Dimension : 1.457" Dia x 2.165" L (37.00mm x 55.00mm)
Height - Seated (Max) : -
Termination : PC Pins
Lead Spacing : -
Applications : DC Link, DC Filtering; High Frequency, Switching
Ratings : -
Features : Low ESR, Low ESL
0
2423 in stock
