Cornell Dubilier

- Cornell Dubilier is the source for capacitors that transform your applications to success stories. It excels with aluminum electrolytic, mica, motor run and AC and DC plastic film capacitors. Cornell Dubilier only makes capacitors and has been doing it for almost 100 years. The world leaders in welders, UPS systems, motors, drives, avionics, power and military electronics and medical lasers are prominently among its more than 33,000 customers.


Part Number

Manufacturer

Description

Unit Price

In Stock

EDLHW475D2R3R

Cornell Dubilier Electronics

Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Bulk
Series : HW
Part Status : Obsolete
Capacitance : 4.7F
Tolerance : -
Voltage - Rated : 2.3V
ESR (Equivalent Series Resistance) : 300 mOhm @ 1kHz
Lifetime @ Temp. : 1000 Hrs @ 85°C
Termination : PC Pins
Mounting Type : Through Hole
Package / Case : Radial, Can
Lead Spacing : 0.197" (5.00mm)
Size / Dimension : 0.492" Dia (12.50mm)
Height - Seated (Max) : 0.984" (25.00mm)
Operating Temperature : -25°C ~ 70°C

100 in stock

EDLHW506D2R3R

Cornell Dubilier Electronics

Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Bulk
Series : HW
Part Status : Obsolete
Capacitance : 50F
Tolerance : -
Voltage - Rated : 2.3V
ESR (Equivalent Series Resistance) : 100 mOhm @ 1kHz
Lifetime @ Temp. : 1000 Hrs @ 85°C
Termination : PC Pins
Mounting Type : Through Hole
Package / Case : Radial, Can
Lead Spacing : 0.295" (7.50mm)
Size / Dimension : 0.709" Dia (18.00mm)
Height - Seated (Max) : 1.654" (42.00mm)
Operating Temperature : -25°C ~ 60°C

100 in stock

EDLHW706D2R1R

Cornell Dubilier Electronics

Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Bulk
Series : HW
Part Status : Obsolete
Capacitance : 70F
Tolerance : -
Voltage - Rated : 2.1V
ESR (Equivalent Series Resistance) : 100 mOhm @ 1kHz
Lifetime @ Temp. : 1000 Hrs @ 85°C
Termination : PC Pins
Mounting Type : Through Hole
Package / Case : Radial, Can
Lead Spacing : 0.295" (7.50mm)
Size / Dimension : 0.709" Dia (18.00mm)
Height - Seated (Max) : 2.047" (52.00mm)
Operating Temperature : -25°C ~ 60°C

100 in stock

EDLKIT-1

Cornell Dubilier Electronics

Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : -
Series : -
Part Status : Obsolete
Kit Type : -
Capacitance Range : -
Mounting Type : -
Voltage - Rated : -
Tolerance : -
Applications : -
Features : -
Quantity : -
Packages Included : -

100 in stock

EDLKIT-2

Cornell Dubilier Electronics

100 in stock

EDLKIT-3

Cornell Dubilier Electronics

100 in stock

EDLNF104A5R5C

Cornell Dubilier Electronics

Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Bulk
Series : NF
Part Status : Obsolete
Capacitance : 100mF
Tolerance : -
Voltage - Rated : 5.5V
ESR (Equivalent Series Resistance) : 75 Ohm @ 1kHz
Lifetime @ Temp. : 1000 Hrs @ 70°C
Termination : PC Pins
Mounting Type : Through Hole
Package / Case : Radial, Can
Lead Spacing : 0.197" (5.00mm)
Size / Dimension : 0.531" Dia (13.50mm)
Height - Seated (Max) : 0.295" (7.50mm)
Operating Temperature : -25°C ~ 70°C

100 in stock

EDLNF105B5R5C

Cornell Dubilier Electronics

Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Bulk
Series : NF
Part Status : Last Time Buy
Capacitance : 1F
Tolerance : -
Voltage - Rated : 5.5V
ESR (Equivalent Series Resistance) : 30 Ohm @ 1kHz
Lifetime @ Temp. : 1000 Hrs @ 70°C
Termination : PC Pins
Mounting Type : Through Hole
Package / Case : Radial, Can
Lead Spacing : 0.197" (5.00mm)
Size / Dimension : 0.846" Dia (21.50mm)
Height - Seated (Max) : 0.315" (8.00mm)
Operating Temperature : -25°C ~ 70°C

22 in stock

EDLNF155B5R5C

Cornell Dubilier Electronics

Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Bulk
Series : NF
Part Status : Last Time Buy
Capacitance : 1.5F
Tolerance : -
Voltage - Rated : 5.5V
ESR (Equivalent Series Resistance) : 30 Ohm @ 1kHz
Lifetime @ Temp. : 1000 Hrs @ 70°C
Termination : PC Pins
Mounting Type : Through Hole
Package / Case : Radial, Can
Lead Spacing : 0.197" (5.00mm)
Size / Dimension : 0.846" Dia (21.50mm)
Height - Seated (Max) : 0.315" (8.00mm)
Operating Temperature : -25°C ~ 70°C

100 in stock

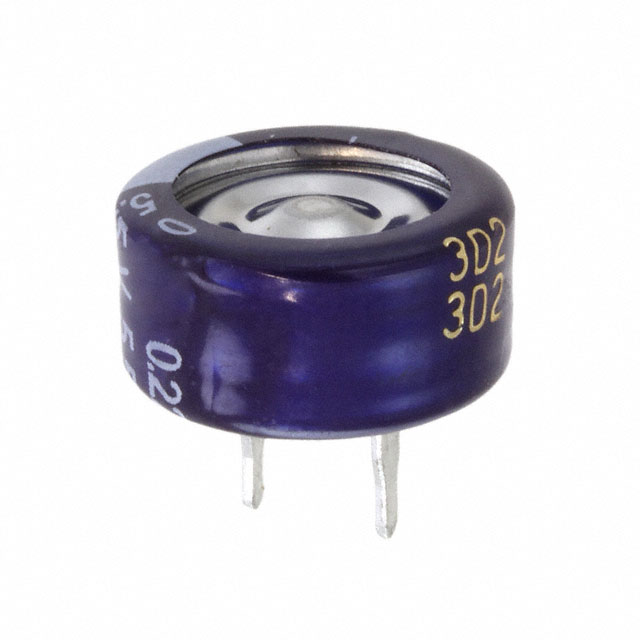

EDLNF224A5R5C

Cornell Dubilier Electronics

Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Bulk
Series : NF
Part Status : Last Time Buy
Capacitance : 220mF
Tolerance : -
Voltage - Rated : 5.5V
ESR (Equivalent Series Resistance) : 75 Ohm @ 1kHz
Lifetime @ Temp. : 1000 Hrs @ 70°C
Termination : PC Pins
Mounting Type : Through Hole
Package / Case : Radial, Can
Lead Spacing : 0.197" (5.00mm)
Size / Dimension : 0.531" Dia (13.50mm)
Height - Seated (Max) : 0.295" (7.50mm)
Operating Temperature : -25°C ~ 70°C

627 in stock

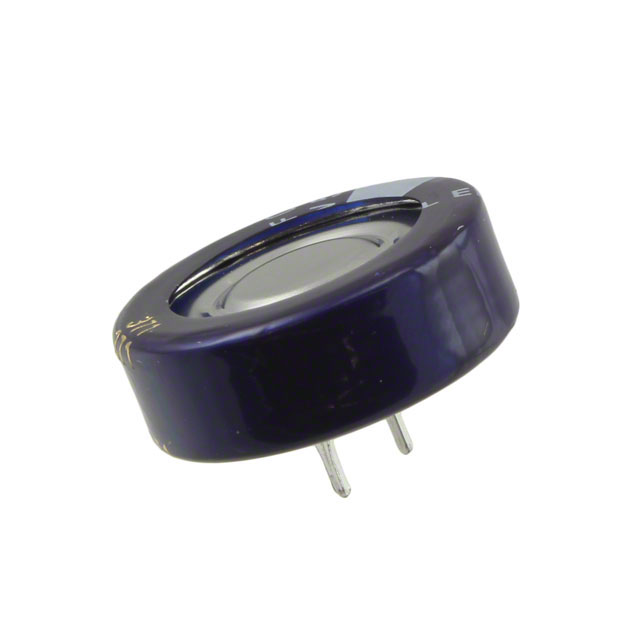

EDLNF474B5R5C

Cornell Dubilier Electronics

Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Bulk
Series : NF
Part Status : Last Time Buy
Capacitance : 470mF
Tolerance : -
Voltage - Rated : 5.5V
ESR (Equivalent Series Resistance) : 30 Ohm @ 1kHz
Lifetime @ Temp. : 1000 Hrs @ 70°C
Termination : PC Pins
Mounting Type : Through Hole
Package / Case : Radial, Can
Lead Spacing : 0.197" (5.00mm)
Size / Dimension : 0.846" Dia (21.50mm)
Height - Seated (Max) : 0.315" (8.00mm)
Operating Temperature : -25°C ~ 70°C

80 in stock

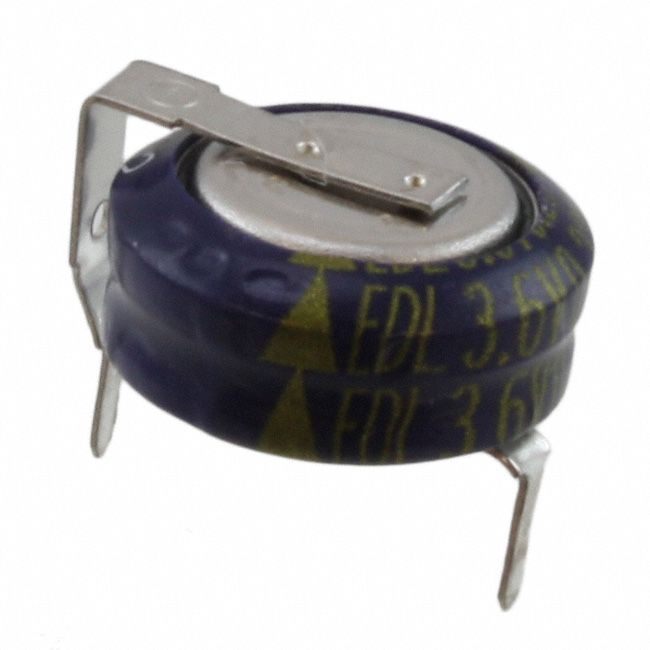

EDLRD224H3R6C

Cornell Dubilier Electronics

Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Bulk
Series : RD
Part Status : Last Time Buy
Capacitance : 220mF
Tolerance : -20%, +80%
Voltage - Rated : 3.6V
ESR (Equivalent Series Resistance) : 50 Ohm @ 1kHz
Lifetime @ Temp. : 2000 Hrs @ 85°C
Termination : PC Pins
Mounting Type : Through Hole
Package / Case : Radial, Can, Horizontal
Lead Spacing : 0.394" (10.00mm)
Size / Dimension : 0.413" Dia (10.50mm)
Height - Seated (Max) : 0.236" (6.00mm)
Operating Temperature : -25°C ~ 85°C

104 in stock
