Cornell Dubilier

- Cornell Dubilier is the source for capacitors that transform your applications to success stories. It excels with aluminum electrolytic, mica, motor run and AC and DC plastic film capacitors. Cornell Dubilier only makes capacitors and has been doing it for almost 100 years. The world leaders in welders, UPS systems, motors, drives, avionics, power and military electronics and medical lasers are prominently among its more than 33,000 customers.


Part Number

Manufacturer

Description

Unit Price

In Stock

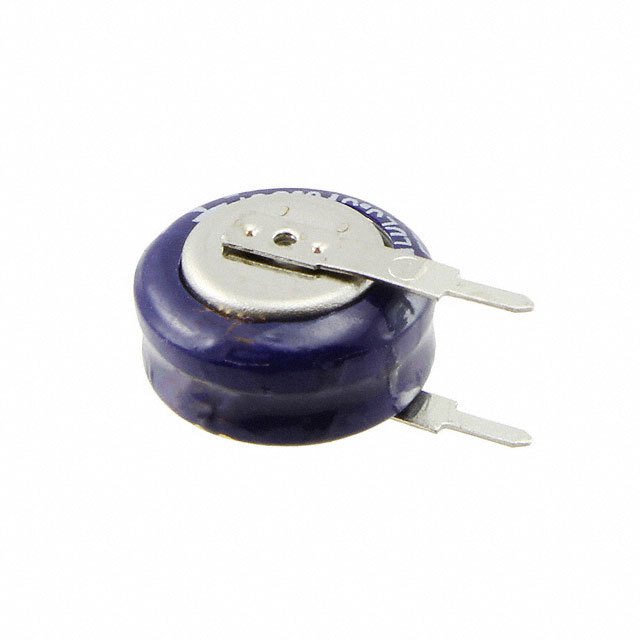

EDLSD334V5R5C

Cornell Dubilier Electronics

Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Bulk
Series : SD
Part Status : Last Time Buy
Capacitance : 330mF
Tolerance : -
Voltage - Rated : 5.5V
ESR (Equivalent Series Resistance) : 75 Ohm @ 1kHz
Lifetime @ Temp. : 1000 Hrs @ 70°C
Termination : PC Pins
Mounting Type : Through Hole
Package / Case : Axial, Can - Vertical
Lead Spacing : 0.197" (5.00mm)
Size / Dimension : 0.413" Dia (10.50mm)
Height - Seated (Max) : 0.453" (11.50mm)
Operating Temperature : -25°C ~ 70°C

680 in stock

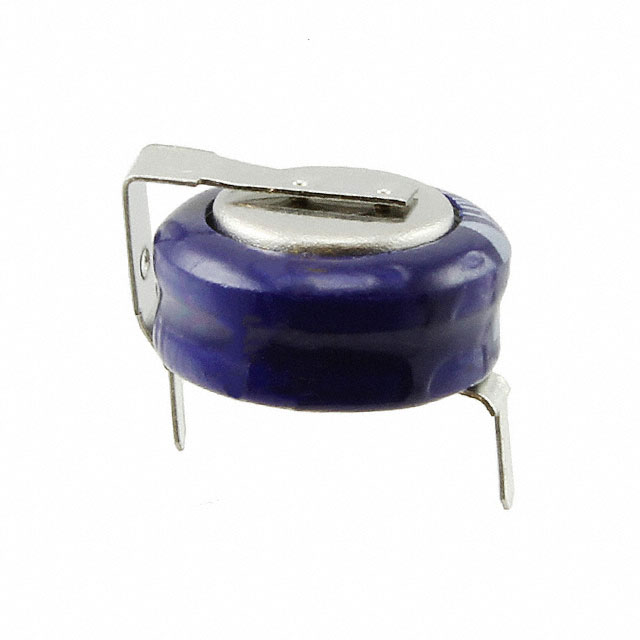

EDLSD473H5R5C

Cornell Dubilier Electronics

Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Bulk
Series : SD
Part Status : Obsolete
Capacitance : 47mF
Tolerance : -
Voltage - Rated : 5.5V
ESR (Equivalent Series Resistance) : 120 Ohm @ 1kHz
Lifetime @ Temp. : 1000 Hrs @ 70°C
Termination : PC Pins
Mounting Type : Through Hole
Package / Case : Axial, Can - Horizontal
Lead Spacing : 0.394" (10.00mm)
Size / Dimension : 0.453" Dia (11.50mm)
Height - Seated (Max) : 0.217" (5.50mm)
Operating Temperature : -25°C ~ 70°C

100 in stock

EDLSD473V5R5C

Cornell Dubilier Electronics

Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Bulk
Series : SD
Part Status : Obsolete
Capacitance : 47mF
Tolerance : -
Voltage - Rated : 5.5V
ESR (Equivalent Series Resistance) : 120 Ohm @ 1kHz
Lifetime @ Temp. : 1000 Hrs @ 70°C
Termination : PC Pins
Mounting Type : Through Hole
Package / Case : Axial, Can - Vertical
Lead Spacing : 0.197" (5.00mm)
Size / Dimension : 0.413" Dia (10.50mm)
Height - Seated (Max) : 0.453" (11.50mm)
Operating Temperature : -25°C ~ 70°C

100 in stock

EDLSG105H5R5C

Cornell Dubilier Electronics

Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Bulk
Series : SG
Part Status : Last Time Buy
Capacitance : 1F
Tolerance : -
Voltage - Rated : 5.5V
ESR (Equivalent Series Resistance) : 30 Ohm @ 1kHz
Lifetime @ Temp. : 1000 Hrs @ 70°C
Termination : PC Pins
Mounting Type : Through Hole
Package / Case : Axial, Can - Horizontal
Lead Spacing : 0.787" (20.00mm)
Size / Dimension : 0.787" Dia (20.00mm)
Height - Seated (Max) : 0.256" (6.50mm)
Operating Temperature : -25°C ~ 70°C

548 in stock

EDLSG105V5R5C

Cornell Dubilier Electronics

Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Bulk
Series : SG
Part Status : Last Time Buy
Capacitance : 1F
Tolerance : -
Voltage - Rated : 5.5V
ESR (Equivalent Series Resistance) : 30 Ohm @ 1kHz
Lifetime @ Temp. : 1000 Hrs @ 70°C
Termination : PC Pins
Mounting Type : Through Hole
Package / Case : Axial, Can - Vertical
Lead Spacing : 0.197" (5.00mm)
Size / Dimension : 0.748" Dia (19.00mm)
Height - Seated (Max) : 0.217" (5.50mm)
Operating Temperature : -25°C ~ 70°C

8800 in stock

EDLSG155H5R5C

Cornell Dubilier Electronics

Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Bulk
Series : SG
Part Status : Last Time Buy
Capacitance : 1.5F
Tolerance : -
Voltage - Rated : 5.5V
ESR (Equivalent Series Resistance) : 30 Ohm @ 1kHz
Lifetime @ Temp. : 1000 Hrs @ 70°C
Termination : PC Pins
Mounting Type : Through Hole
Package / Case : Axial, Can - Horizontal
Lead Spacing : 0.787" (20.00mm)
Size / Dimension : 0.787" Dia (20.00mm)
Height - Seated (Max) : 0.256" (6.50mm)
Operating Temperature : -25°C ~ 70°C

800 in stock

EDLSG155V5R5C

Cornell Dubilier Electronics

Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Bulk
Series : SG
Part Status : Last Time Buy
Capacitance : 1.5F
Tolerance : -
Voltage - Rated : 5.5V
ESR (Equivalent Series Resistance) : 30 Ohm @ 1kHz
Lifetime @ Temp. : 1000 Hrs @ 70°C
Termination : PC Pins
Mounting Type : Through Hole
Package / Case : Axial, Can - Vertical
Lead Spacing : 0.197" (5.00mm)
Size / Dimension : 0.748" Dia (19.00mm)
Height - Seated (Max) : 0.827" (21.00mm)
Operating Temperature : -25°C ~ 70°C

9 in stock

EDLSG474H5R5C

Cornell Dubilier Electronics

Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Bulk
Series : SG
Part Status : Last Time Buy
Capacitance : 470mF
Tolerance : -
Voltage - Rated : 5.5V
ESR (Equivalent Series Resistance) : 30 Ohm @ 1kHz
Lifetime @ Temp. : 1000 Hrs @ 70°C
Termination : PC Pins
Mounting Type : Through Hole
Package / Case : Axial, Can - Horizontal
Lead Spacing : 0.787" (20.00mm)
Size / Dimension : 0.787" Dia (20.00mm)
Height - Seated (Max) : 0.256" (6.50mm)
Operating Temperature : -25°C ~ 70°C

100 in stock

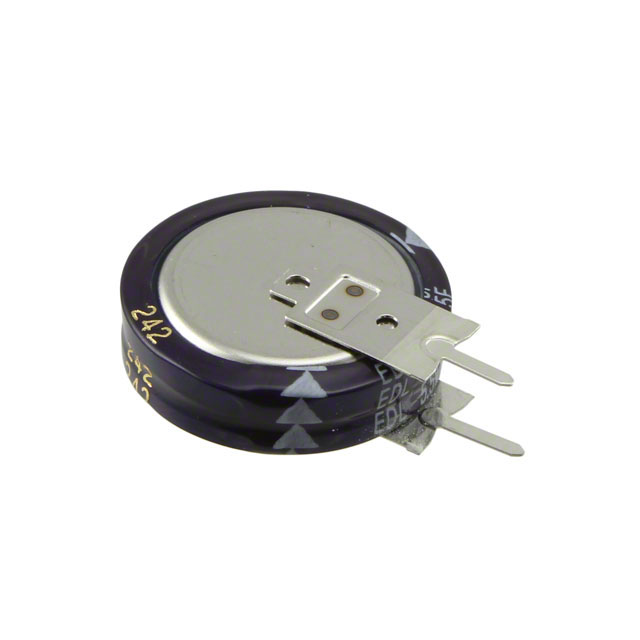

EDLSG474V5R5C

Cornell Dubilier Electronics

Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Bulk
Series : SG
Part Status : Last Time Buy
Capacitance : 470mF
Tolerance : -
Voltage - Rated : 5.5V
ESR (Equivalent Series Resistance) : 30 Ohm @ 1kHz
Lifetime @ Temp. : 1000 Hrs @ 70°C
Termination : PC Pins
Mounting Type : Through Hole
Package / Case : Axial, Can - Vertical
Lead Spacing : 0.197" (5.00mm)
Size / Dimension : 0.748" Dia (19.00mm)
Height - Seated (Max) : 0.217" (5.50mm)
Operating Temperature : -25°C ~ 70°C

100 in stock

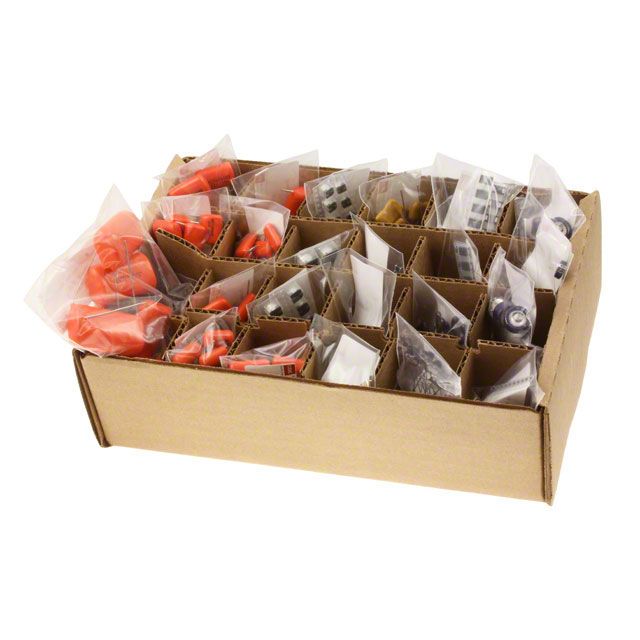

EDU-KIT1

Cornell Dubilier Electronics

Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : -
Series : -
Part Status : Obsolete
Kit Type : -
Capacitance Range : -
Mounting Type : -
Voltage - Rated : -
Tolerance : -
Applications : -
Features : -
Quantity : -
Packages Included : -

12 in stock

ESRD100M06B

Cornell Dubilier Electronics

Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Bulk
Alternate Packaging
Series : ESRD
Part Status : Obsolete
Type : Polymer
Capacitance : 10µF
Tolerance : ±20%
Voltage - Rated : 6.3V
ESR (Equivalent Series Resistance) : 55 mOhm
Lifetime @ Temp. : 1000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : Bypass, Decoupling
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 1.4A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Max) : 0.071" (1.80mm)
Surface Mount Land Size : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Mounting Type : Surface Mount
Package / Case : 2917 (7343 Metric)

100 in stock

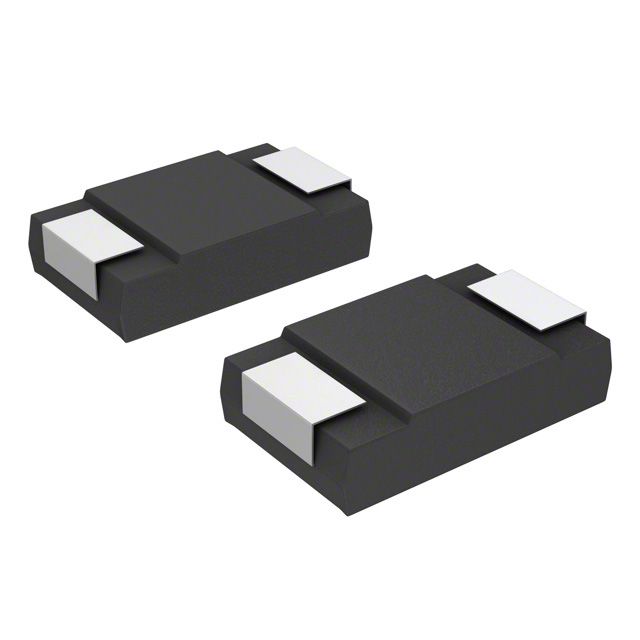

ESRD100M06R

Cornell Dubilier Electronics

Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Tape & Reel (TR)
Series : ESRD
Part Status : Last Time Buy
Type : Polymer
Capacitance : 10µF
Tolerance : ±20%
Voltage - Rated : 6.3V
ESR (Equivalent Series Resistance) : 55 mOhm
Lifetime @ Temp. : 1000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : Bypass, Decoupling
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 1.4A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Max) : 0.071" (1.80mm)
Surface Mount Land Size : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Mounting Type : Surface Mount
Package / Case : 2917 (7343 Metric)

100 in stock
