Cornell Dubilier

- Cornell Dubilier is the source for capacitors that transform your applications to success stories. It excels with aluminum electrolytic, mica, motor run and AC and DC plastic film capacitors. Cornell Dubilier only makes capacitors and has been doing it for almost 100 years. The world leaders in welders, UPS systems, motors, drives, avionics, power and military electronics and medical lasers are prominently among its more than 33,000 customers.


Part Number

Manufacturer

Description

Unit Price

In Stock

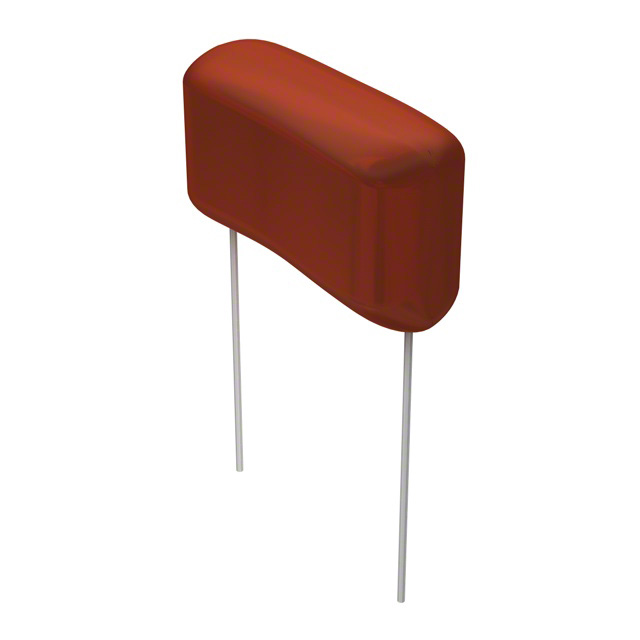

DPM2W1K-F

Cornell Dubilier Electronics

Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Bulk
Series : DPM
Part Status : Active
Capacitance : 1µF
Tolerance : ±10%
Voltage Rating - AC : 160V
Voltage Rating - DC : 250V
Dielectric Material : Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance) : -
Operating Temperature : -55°C ~ 105°C
Mounting Type : Through Hole
Package / Case : Radial
Size / Dimension : 1.024" L x 0.472" W (26.00mm x 12.00mm)
Height - Seated (Max) : 0.906" (23.00mm)
Termination : PC Pins
Lead Spacing : 0.886" (22.50mm)
Applications : DC Link, DC Filtering; High Frequency, Switching
Ratings : -
Features : Low ESR, Low ESL

1481 in stock

DPP2S22K-F

Cornell Dubilier Electronics

Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Bulk
Series : DPP
Part Status : Active
Capacitance : 0.022µF
Tolerance : ±10%
Voltage Rating - AC : 140V
Voltage Rating - DC : 250V
Dielectric Material : Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance) : -
Operating Temperature : -55°C ~ 105°C
Mounting Type : Through Hole
Package / Case : Radial
Size / Dimension : 0.591" L x 0.315" W (15.00mm x 8.00mm)
Height - Seated (Max) : 0.630" (16.00mm)
Termination : PC Pins
Lead Spacing : 0.394" (10.00mm)
Applications : High Frequency, Switching
Ratings : -
Features : Low ESR

1794 in stock

DPP4S33K-F

Cornell Dubilier Electronics

Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Bulk
Series : DPP
Part Status : Active
Capacitance : 0.033µF
Tolerance : ±10%
Voltage Rating - AC : 250V
Voltage Rating - DC : 400V
Dielectric Material : Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance) : -
Operating Temperature : -55°C ~ 105°C
Mounting Type : Through Hole
Package / Case : Radial
Size / Dimension : 0.768" L x 0.394" W (19.50mm x 10.00mm)
Height - Seated (Max) : 0.787" (20.00mm)
Termination : PC Pins
Lead Spacing : 0.591" (15.00mm)
Applications : High Frequency, Switching
Ratings : -
Features : Low ESR

622 in stock

DPP6D1K-F

Cornell Dubilier Electronics

Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Bulk
Series : DPP
Part Status : Active
Capacitance : 1000pF
Tolerance : ±10%
Voltage Rating - AC : 250V
Voltage Rating - DC : 630V
Dielectric Material : Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance) : -
Operating Temperature : -55°C ~ 105°C
Mounting Type : Through Hole
Package / Case : Radial
Size / Dimension : 0.591" L x 0.256" W (15.00mm x 6.50mm)
Height - Seated (Max) : 0.610" (15.50mm)
Termination : PC Pins
Lead Spacing : 0.394" (10.00mm)
Applications : High Frequency, Switching
Ratings : -
Features : Low ESR

1852 in stock

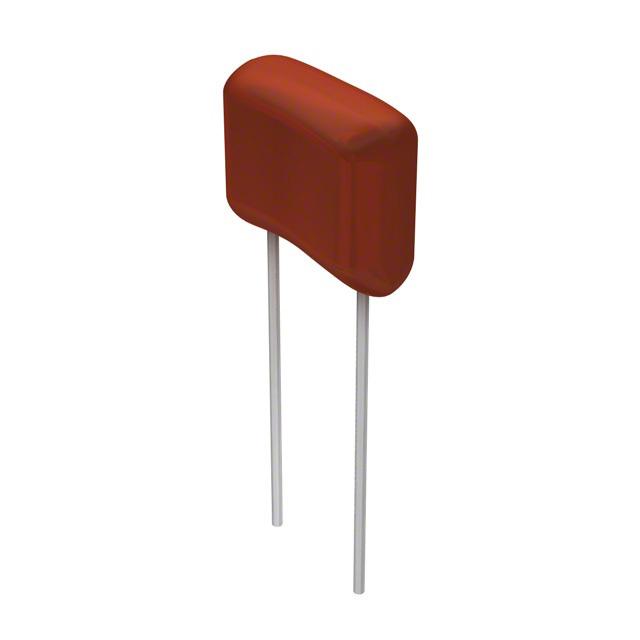

DPP6D22K-F

Cornell Dubilier Electronics

Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Bulk
Series : DPP
Part Status : Active
Capacitance : 2200pF
Tolerance : ±10%
Voltage Rating - AC : 250V
Voltage Rating - DC : 630V
Dielectric Material : Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance) : -
Operating Temperature : -55°C ~ 105°C
Mounting Type : Through Hole
Package / Case : Radial
Size / Dimension : 0.591" L x 0.276" W (15.00mm x 7.00mm)
Height - Seated (Max) : 0.610" (15.50mm)
Termination : PC Pins
Lead Spacing : 0.394" (10.00mm)
Applications : High Frequency, Switching
Ratings : -
Features : Low ESR

511 in stock

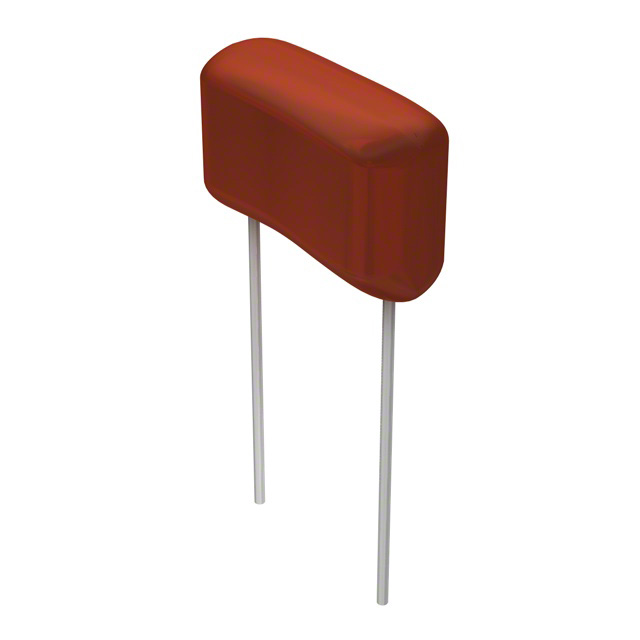

DPP6D47K-F

Cornell Dubilier Electronics

Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Bulk
Series : DPP
Part Status : Active
Capacitance : 4700pF
Tolerance : ±10%
Voltage Rating - AC : 250V
Voltage Rating - DC : 630V
Dielectric Material : Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance) : -
Operating Temperature : -55°C ~ 105°C
Mounting Type : Through Hole
Package / Case : Radial
Size / Dimension : 0.768" L x 0.315" W (19.50mm x 8.00mm)
Height - Seated (Max) : 0.610" (15.50mm)
Termination : PC Pins
Lead Spacing : 0.591" (15.00mm)
Applications : High Frequency, Switching
Ratings : -
Features : Low ESR

299 in stock

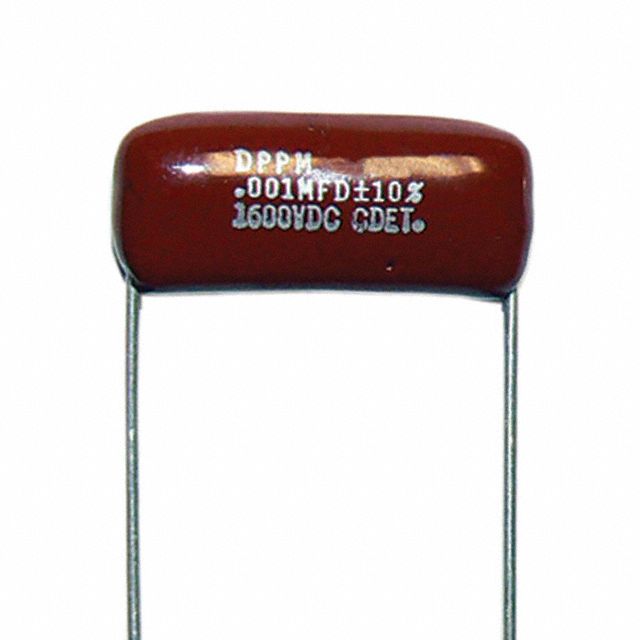

DPPM10D1K-F

Cornell Dubilier Electronics

Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Bulk
Series : DPPM
Part Status : Active
Capacitance : 1000pF
Tolerance : ±10%
Voltage Rating - AC : 450V
Voltage Rating - DC : 1000V (1kV)
Dielectric Material : Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance) : -
Operating Temperature : -40°C ~ 105°C
Mounting Type : Through Hole
Package / Case : Radial
Size / Dimension : 0.984" L x 0.256" W (25.00mm x 6.50mm)
Height - Seated (Max) : 0.512" (13.00mm)
Termination : PC Pins
Lead Spacing : 0.827" (21.00mm)
Applications : High Frequency, Switching; High Pulse, DV/DT; Snubber
Ratings : -
Features : -

3188 in stock

DPPM10D47K-F

Cornell Dubilier Electronics

Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Bulk
Series : DPPM
Part Status : Active
Capacitance : 4700pF
Tolerance : ±10%
Voltage Rating - AC : 450V
Voltage Rating - DC : 1000V (1kV)
Dielectric Material : Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance) : -
Operating Temperature : -40°C ~ 105°C
Mounting Type : Through Hole
Package / Case : Radial
Size / Dimension : 0.984" L x 0.295" W (25.00mm x 7.50mm)
Height - Seated (Max) : 0.591" (15.00mm)
Termination : PC Pins
Lead Spacing : 0.827" (21.00mm)
Applications : High Frequency, Switching; High Pulse, DV/DT; Snubber
Ratings : -
Features : -

947 in stock

DPPM20D1K-F

Cornell Dubilier Electronics

Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Bulk
Series : DPPM
Part Status : Active
Capacitance : 1000pF
Tolerance : ±10%
Voltage Rating - AC : 500V
Voltage Rating - DC : 2000V (2kV)
Dielectric Material : Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance) : -
Operating Temperature : -40°C ~ 105°C
Mounting Type : Through Hole
Package / Case : Radial
Size / Dimension : 0.984" L x 0.276" W (25.00mm x 7.00mm)
Height - Seated (Max) : 0.551" (14.00mm)
Termination : PC Pins
Lead Spacing : 0.827" (21.00mm)
Applications : High Frequency, Switching; High Pulse, DV/DT; Snubber
Ratings : -
Features : -

904 in stock

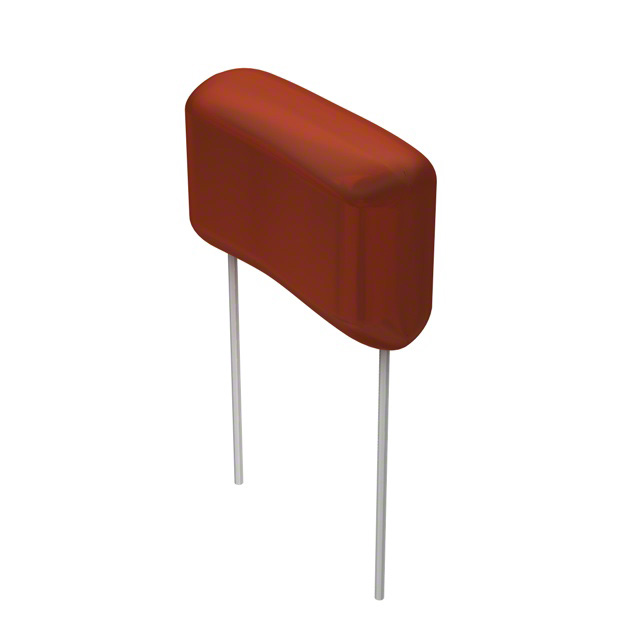

DPPM20D22K-F

Cornell Dubilier Electronics

Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Bulk
Series : DPPM
Part Status : Active
Capacitance : 2200pF
Tolerance : ±10%
Voltage Rating - AC : 500V
Voltage Rating - DC : 2000V (2kV)
Dielectric Material : Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance) : -
Operating Temperature : -40°C ~ 105°C
Mounting Type : Through Hole
Package / Case : Radial
Size / Dimension : 0.984" L x 0.354" W (25.00mm x 9.00mm)
Height - Seated (Max) : 0.689" (17.50mm)
Termination : PC Pins
Lead Spacing : 0.827" (21.00mm)
Applications : High Frequency, Switching; High Pulse, DV/DT; Snubber
Ratings : -
Features : -

2550 in stock

DPPM20D33K-F

Cornell Dubilier Electronics

Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Bulk
Series : DPPM
Part Status : Active
Capacitance : 3300pF
Tolerance : ±10%
Voltage Rating - AC : 500V
Voltage Rating - DC : 2000V (2kV)
Dielectric Material : Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance) : -
Operating Temperature : -40°C ~ 105°C
Mounting Type : Through Hole
Package / Case : Radial
Size / Dimension : 0.984" L x 0.413" W (25.00mm x 10.50mm)
Height - Seated (Max) : 0.748" (19.00mm)
Termination : PC Pins
Lead Spacing : 0.827" (21.00mm)
Applications : High Frequency, Switching; High Pulse, DV/DT; Snubber
Ratings : -
Features : -

961 in stock

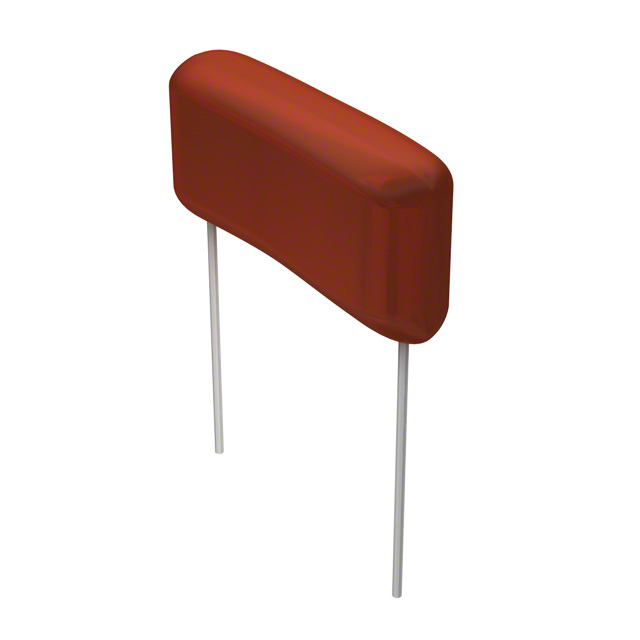

DPPM20D47K-F

Cornell Dubilier Electronics

Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Bulk
Series : DPPM
Part Status : Active
Capacitance : 4700pF
Tolerance : ±10%
Voltage Rating - AC : 500V
Voltage Rating - DC : 2000V (2kV)
Dielectric Material : Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance) : -
Operating Temperature : -40°C ~ 105°C
Mounting Type : Through Hole
Package / Case : Radial
Size / Dimension : 1.220" L x 0.394" W (31.00mm x 10.00mm)
Height - Seated (Max) : 0.807" (20.50mm)
Termination : PC Pins
Lead Spacing : 1.043" (26.50mm)
Applications : High Frequency, Switching; High Pulse, DV/DT; Snubber
Ratings : -
Features : -

891 in stock
