Cornell Dubilier

- Cornell Dubilier is the source for capacitors that transform your applications to success stories. It excels with aluminum electrolytic, mica, motor run and AC and DC plastic film capacitors. Cornell Dubilier only makes capacitors and has been doing it for almost 100 years. The world leaders in welders, UPS systems, motors, drives, avionics, power and military electronics and medical lasers are prominently among its more than 33,000 customers.


Part Number

Manufacturer

Description

Unit Price

In Stock

DPPM20S1K-F

Cornell Dubilier Electronics

Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Bulk
Series : DPPM
Part Status : Active
Capacitance : 10000pF
Tolerance : ±10%
Voltage Rating - AC : 500V
Voltage Rating - DC : 2000V (2kV)
Dielectric Material : Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance) : -
Operating Temperature : -40°C ~ 105°C
Mounting Type : Through Hole
Package / Case : Radial
Size / Dimension : 1.220" L x 0.551" W (31.00mm x 14.00mm)
Height - Seated (Max) : 0.925" (23.50mm)
Termination : PC Pins
Lead Spacing : 1.043" (26.50mm)
Applications : High Frequency, Switching; High Pulse, DV/DT; Snubber
Ratings : -
Features : -

3016 in stock

EDLEN204A3R3S

Cornell Dubilier Electronics

Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Bulk
Series : EN
Part Status : Obsolete
Capacitance : 200mF
Tolerance : -
Voltage - Rated : 3.3V
ESR (Equivalent Series Resistance) : 200 Ohm @ 1kHz
Lifetime @ Temp. : 1000 Hrs @ 60°C
Termination : SMD (SMT) Tabs
Mounting Type : Surface Mount
Package / Case : Coin, Wide Terminals - Opposite Sides
Lead Spacing : -
Size / Dimension : 0.268" Dia (6.80mm)
Height - Seated (Max) : 0.071" (1.80mm)
Operating Temperature : -10°C ~ 60°C

100 in stock

EDLEN204RL3R3S

Cornell Dubilier Electronics

Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Bulk
Series : EN
Part Status : Obsolete
Capacitance : 200mF
Tolerance : -
Voltage - Rated : 3.3V
ESR (Equivalent Series Resistance) : 200 Ohm @ 1kHz
Lifetime @ Temp. : 1000 Hrs @ 60°C
Termination : SMD (SMT) Tabs
Mounting Type : Surface Mount
Package / Case : Coin, Thin Terminals - Opposite Sides
Lead Spacing : -
Size / Dimension : 0.268" Dia (6.80mm)
Height - Seated (Max) : 0.071" (1.80mm)
Operating Temperature : -10°C ~ 60°C

100 in stock

EDLF104A5R5C

Cornell Dubilier Electronics

Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Bulk
Series : F
Part Status : Last Time Buy
Capacitance : 100mF
Tolerance : -
Voltage - Rated : 5.5V
ESR (Equivalent Series Resistance) : 100 Ohm @ 1kHz
Lifetime @ Temp. : 1000 Hrs @ 85°C
Termination : PC Pins
Mounting Type : Through Hole
Package / Case : Radial, Can
Lead Spacing : 0.197" (5.00mm)
Size / Dimension : 0.531" Dia (13.50mm)
Height - Seated (Max) : 0.374" (9.50mm)
Operating Temperature : -25°C ~ 85°C

3000 in stock

EDLF105B5R5C

Cornell Dubilier Electronics

Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Bulk
Series : F
Part Status : Last Time Buy
Capacitance : 1F
Tolerance : -
Voltage - Rated : 5.5V
ESR (Equivalent Series Resistance) : 50 Ohm @ 1kHz
Lifetime @ Temp. : 1000 Hrs @ 85°C
Termination : PC Pins
Mounting Type : Through Hole
Package / Case : Radial, Can
Lead Spacing : 0.197" (5.00mm)
Size / Dimension : 0.846" Dia (21.50mm)
Height - Seated (Max) : 0.374" (9.50mm)
Operating Temperature : -25°C ~ 85°C

100 in stock

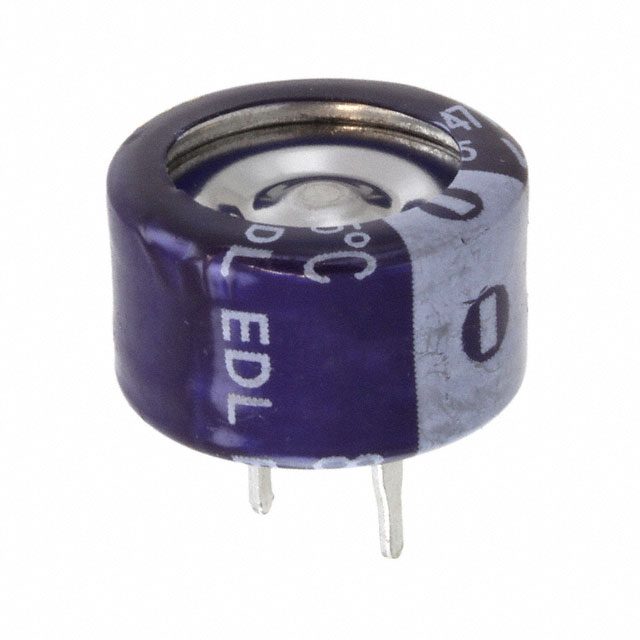

EDLF473A5R5C

Cornell Dubilier Electronics

Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Bulk
Series : F
Part Status : Obsolete
Capacitance : 47mF
Tolerance : -
Voltage - Rated : 5.5V
ESR (Equivalent Series Resistance) : 120 Ohm @ 1kHz
Lifetime @ Temp. : 1000 Hrs @ 85°C
Termination : PC Pins
Mounting Type : Through Hole
Package / Case : Radial, Can
Lead Spacing : 0.197" (5.00mm)
Size / Dimension : 0.531" Dia (13.50mm)
Height - Seated (Max) : 0.374" (9.50mm)
Operating Temperature : -25°C ~ 85°C

100 in stock

EDLF474B5R5C

Cornell Dubilier Electronics

Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Bulk
Series : F
Part Status : Last Time Buy
Capacitance : 470mF
Tolerance : -
Voltage - Rated : 5.5V
ESR (Equivalent Series Resistance) : 75 Ohm @ 1kHz
Lifetime @ Temp. : 1000 Hrs @ 85°C
Termination : PC Pins
Mounting Type : Through Hole
Package / Case : Radial, Can
Lead Spacing : 0.197" (5.00mm)
Size / Dimension : 0.846" Dia (21.50mm)
Height - Seated (Max) : 0.374" (9.50mm)
Operating Temperature : -25°C ~ 85°C

100 in stock

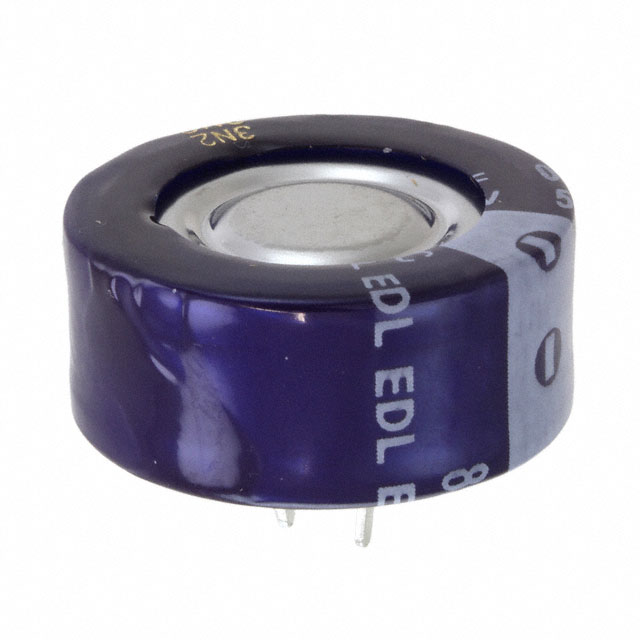

EDLF684B5R5C

Cornell Dubilier Electronics

Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Bulk
Series : F
Part Status : Last Time Buy
Capacitance : 680mF
Tolerance : -
Voltage - Rated : 5.5V
ESR (Equivalent Series Resistance) : 50 Ohm @ 1kHz
Lifetime @ Temp. : 1000 Hrs @ 85°C
Termination : PC Pins
Mounting Type : Through Hole
Package / Case : Radial, Can
Lead Spacing : 0.197" (5.00mm)
Size / Dimension : 0.846" Dia (21.50mm)
Height - Seated (Max) : 0.374" (9.50mm)
Operating Temperature : -25°C ~ 85°C

100 in stock

EDLHW106D2R3R

Cornell Dubilier Electronics

Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Bulk
Series : HW
Part Status : Obsolete
Capacitance : 10F
Tolerance : -
Voltage - Rated : 2.3V
ESR (Equivalent Series Resistance) : 200 mOhm @ 1kHz
Lifetime @ Temp. : 1000 Hrs @ 85°C
Termination : PC Pins
Mounting Type : Through Hole
Package / Case : Radial, Can
Lead Spacing : 0.197" (5.00mm)
Size / Dimension : 0.492" Dia (12.50mm)
Height - Seated (Max) : 1.457" (37.00mm)
Operating Temperature : -25°C ~ 70°C

100 in stock

EDLHW226D2R3R

Cornell Dubilier Electronics

Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Bulk
Series : HW
Part Status : Obsolete
Capacitance : 22F
Tolerance : -
Voltage - Rated : 2.3V
ESR (Equivalent Series Resistance) : 100 mOhm @ 1kHz
Lifetime @ Temp. : 1000 Hrs @ 85°C
Termination : PC Pins
Mounting Type : Through Hole
Package / Case : Radial, Can
Lead Spacing : 0.295" (7.50mm)
Size / Dimension : 0.709" Dia (18.00mm)
Height - Seated (Max) : 1.457" (37.00mm)
Operating Temperature : -25°C ~ 70°C

100 in stock

EDLHW306D2R3R

Cornell Dubilier Electronics

Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Bulk
Series : HW
Part Status : Obsolete
Capacitance : 30F
Tolerance : -
Voltage - Rated : 2.3V
ESR (Equivalent Series Resistance) : 100 mOhm @ 1kHz
Lifetime @ Temp. : 1000 Hrs @ 85°C
Termination : PC Pins
Mounting Type : Through Hole
Package / Case : Radial, Can
Lead Spacing : 0.295" (7.50mm)
Size / Dimension : 0.709" Dia (18.00mm)
Height - Seated (Max) : 1.457" (37.00mm)
Operating Temperature : -25°C ~ 60°C

100 in stock

EDLHW335D2R3R

Cornell Dubilier Electronics

Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Bulk
Series : HW
Part Status : Obsolete
Capacitance : 3.3F
Tolerance : -
Voltage - Rated : 2.3V
ESR (Equivalent Series Resistance) : 300 mOhm @ 1kHz
Lifetime @ Temp. : 1000 Hrs @ 85°C
Termination : PC Pins
Mounting Type : Through Hole
Package / Case : Radial, Can
Lead Spacing : 0.197" (5.00mm)
Size / Dimension : 0.492" Dia (12.50mm)
Height - Seated (Max) : 0.984" (25.00mm)
Operating Temperature : -25°C ~ 70°C

100 in stock
