Comchip Technology
- Comchip Technology Corporation leads in the design and manufacture of SMD discrete semiconductors. With innovative research and patented manufacturing capabilities, Comchip offers bridge rectifiers, fast efficient rectifiers, switching diodes, Zener diodes, Schottky diodes, TVS and ESD surge protectors. We have the right diode for your application. Comchip Technology is the first manufacturer to standardize DFN/flat chip packaging that are RoHS compliant and zero Tin-Whisker potential by using gold termination. DFN packages are available in SOD-323F (1005), SOD-523F (0603), SOD-723F (0503), SOD-923F (0402) and 0201 sizes.
Comchip products are suitable for vast array of applications including lighting, automotive, industrial computers, TFT-LCD panels, network/telecom, medical, portable and consumer electronics, as well as high reliability applications that can benefit from the zero Tin-Whisker potential.. To ensure superior quality and reliability, Comchip’s quality control process and factory are TS16949, ISO9001, and ISO14001 certified. As an added layer of security, Comchip’s bridge rectifier and TVS have passed UL testing for safety device application. Many Comchip diodes meet the automotive stress test requirements AEC-Q101 and are well suited for automotive as well as high reliability application.
Part Number
Manufacturer
Description
Unit Price
In Stock
Comchip Technology
Manufacturer : Comchip Technology
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Type : Zener
Unidirectional Channels : -
Bidirectional Channels : 1
Voltage - Reverse Standoff (Typ) : 5V (Max)
Voltage - Breakdown (Min) : 5.5V
Voltage - Clamping (Max) @ Ipp : 15V
Current - Peak Pulse (10/1000µs) : 2A (8/20µs)
Power - Peak Pulse : 30W
Power Line Protection : No
Applications : General Purpose
Capacitance @ Frequency : 3pF @ 1MHz
Operating Temperature : -40°C ~ 125°C (TJ)
Mounting Type : Surface Mount
Package / Case : 0201 (0603 Metric)
Supplier Device Package : 0201/DFN0603
0
10000 in stock
Comchip Technology
Manufacturer : Comchip Technology
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Type : Zener
Unidirectional Channels : -
Bidirectional Channels : 1
Voltage - Reverse Standoff (Typ) : 5V (Max)
Voltage - Breakdown (Min) : 6V
Voltage - Clamping (Max) @ Ipp : 30V (Typ)
Current - Peak Pulse (10/1000µs) : 2A (8/20µs)
Power - Peak Pulse : 30W
Power Line Protection : No
Applications : General Purpose
Capacitance @ Frequency : 0.2pF @ 1MHz
Operating Temperature : -40°C ~ 125°C (TJ)
Mounting Type : Surface Mount
Package / Case : 0201 (0603 Metric)
Supplier Device Package : 0201/DFN0603
0
20000 in stock

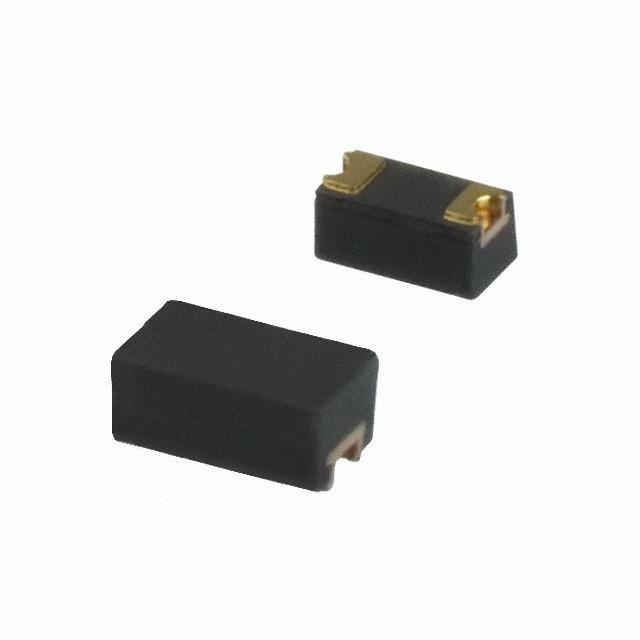

Comchip Technology
Manufacturer : Comchip Technology
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Discontinued at
Diode Type : PIN - Single
Voltage - Peak Reverse (Max) : 180V
Current - Max : -
Capacitance @ Vr, F : 0.9pF @ 40V, 100MHz
Resistance @ If, F : 750 mOhm @ 50mA, 100MHz
Power Dissipation (Max) : 500mW
Operating Temperature : 150°C (TJ)
Package / Case : 1005 (2512 Metric)
Supplier Device Package : 1005/SOD-323F
0
100 in stock

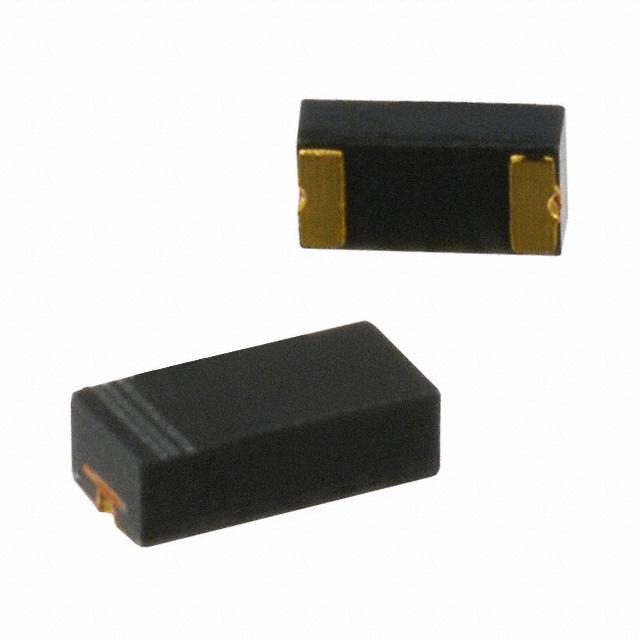

Comchip Technology
Manufacturer : Comchip Technology
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Discontinued at
Diode Type : PIN - Single
Voltage - Peak Reverse (Max) : 35V
Current - Max : -
Capacitance @ Vr, F : 0.9pF @ 20V, 100MHz
Resistance @ If, F : 700 mOhm @ 10mA, 100MHz
Power Dissipation (Max) : 300mW
Operating Temperature : 150°C (TJ)
Package / Case : 2-SMD, No Lead
Supplier Device Package : 0603/SOD-523F
0
100 in stock

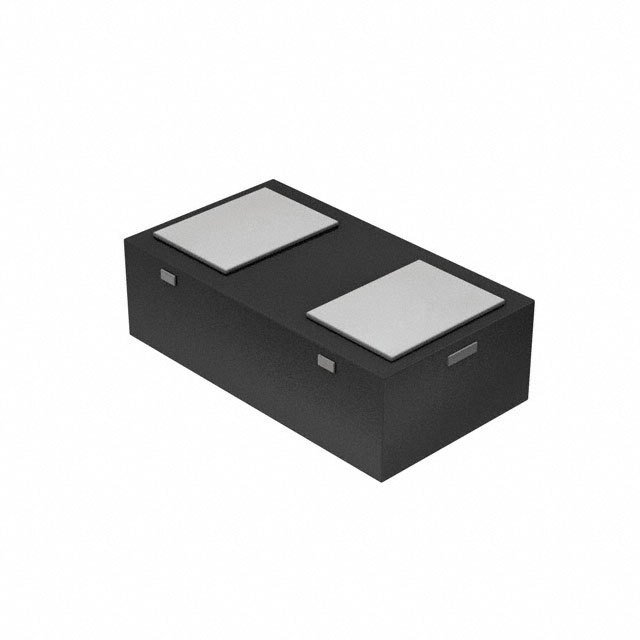

Comchip Technology
Manufacturer : Comchip Technology
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Discontinued at
Diode Type : PIN - Single
Voltage - Peak Reverse (Max) : 180V
Current - Max : -
Capacitance @ Vr, F : 0.22pF @ 40V, 100MHz
Resistance @ If, F : 1.5 Ohm @ 50mA, 100MHz
Power Dissipation (Max) : 300mW
Operating Temperature : 150°C (TJ)
Package / Case : 2-SMD, No Lead
Supplier Device Package : 0603C/SOD-523F
0
100 in stock

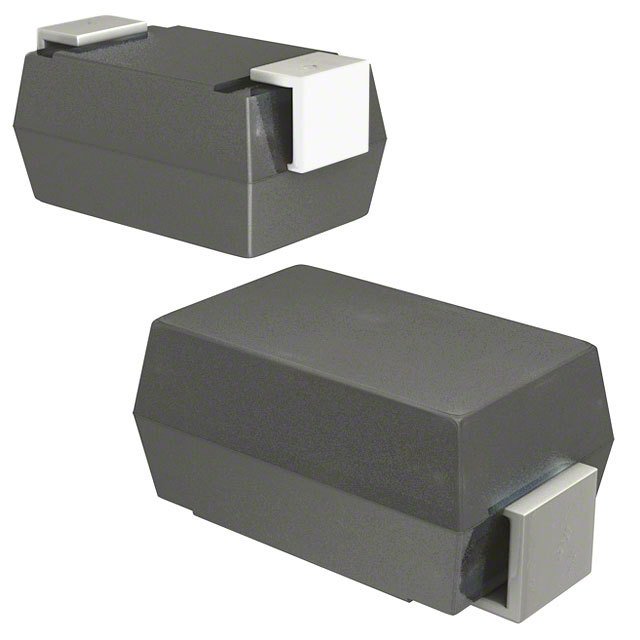

Comchip Technology
Manufacturer : Comchip Technology
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 600V
Current - Average Rectified (Io) : 1A
Voltage - Forward (Vf) (Max) @ If : 1.5V @ 1A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : 35ns
Current - Reverse Leakage @ Vr : 5µA @ 600V
Capacitance @ Vr, F : -
Mounting Type : Surface Mount
Package / Case : DO-214AC, SMA
Supplier Device Package : DO-214AC (SMA)
Operating Temperature - Junction : -55°C ~ 150°C
0
3240 in stock

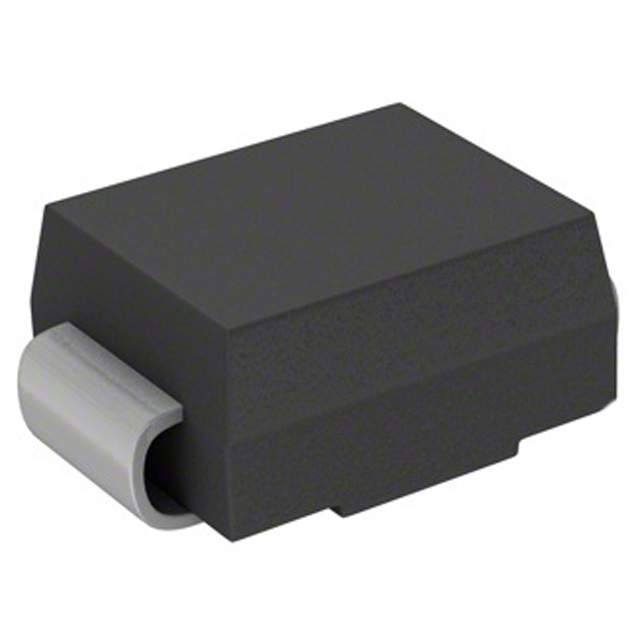

Comchip Technology
Manufacturer : Comchip Technology
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 200V
Current - Average Rectified (Io) : 2A
Voltage - Forward (Vf) (Max) @ If : 920mV @ 2A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : 35ns
Current - Reverse Leakage @ Vr : 5µA @ 200V
Capacitance @ Vr, F : -
Mounting Type : Surface Mount
Package / Case : DO-214AA, SMB
Supplier Device Package : DO-214AA (SMB)
Operating Temperature - Junction : 150°C (Max)
0
1018 in stock

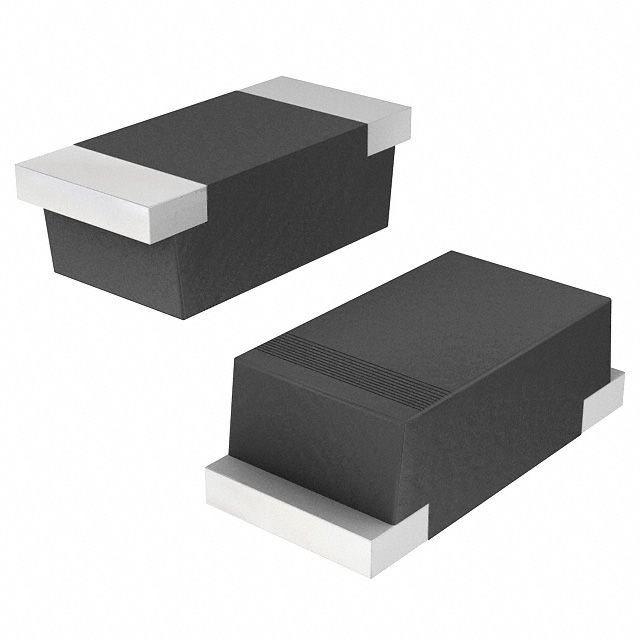

Comchip Technology
Manufacturer : Comchip Technology
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 200V
Current - Average Rectified (Io) : 1A
Voltage - Forward (Vf) (Max) @ If : 950mV @ 1A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : 35ns
Current - Reverse Leakage @ Vr : 5µA @ 200V
Capacitance @ Vr, F : 10pF @ 4V, 1MHz
Mounting Type : Surface Mount
Package / Case : SOD-123H
Supplier Device Package : SOD-123H
Operating Temperature - Junction : -55°C ~ 150°C
0
7724 in stock
Comchip Technology
Manufacturer : Comchip Technology
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 400V
Current - Average Rectified (Io) : 1A
Voltage - Forward (Vf) (Max) @ If : 1.25V @ 1A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : 35ns
Current - Reverse Leakage @ Vr : 5µA @ 400V
Capacitance @ Vr, F : 10pF @ 4V, 1MHz
Mounting Type : Surface Mount
Package / Case : SOD-123H
Supplier Device Package : SOD-123H
Operating Temperature - Junction : -55°C ~ 150°C
0
5990 in stock
Comchip Technology
Manufacturer : Comchip Technology
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 600V
Current - Average Rectified (Io) : 1A
Voltage - Forward (Vf) (Max) @ If : 1.7V @ 1A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : 35ns
Current - Reverse Leakage @ Vr : 5µA @ 600V
Capacitance @ Vr, F : 10pF @ 4V, 1MHz
Mounting Type : Surface Mount
Package / Case : SOD-123H
Supplier Device Package : SOD-123H
Operating Temperature - Junction : -55°C ~ 150°C
0
11883 in stock

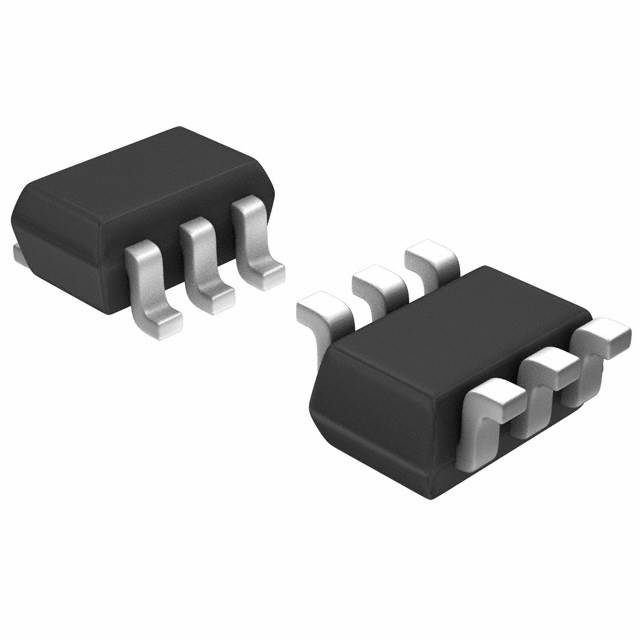

Comchip Technology
Manufacturer : Comchip Technology
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : -
Part Status : Obsolete
Type : Steering (Rail to Rail)
Unidirectional Channels : 4
Bidirectional Channels : -
Voltage - Reverse Standoff (Typ) : 5V (Max)
Voltage - Breakdown (Min) : 6V
Voltage - Clamping (Max) @ Ipp : 9V
Current - Peak Pulse (10/1000µs) : 6.5A (8/20µs)
Power - Peak Pulse : -
Power Line Protection : Yes
Applications : General Purpose
Capacitance @ Frequency : -
Operating Temperature : -55°C ~ 85°C (TJ)
Mounting Type : Surface Mount
Package / Case : 6-TSSOP, SC-88, SOT-363
Supplier Device Package : SC-70-6
0
100 in stock

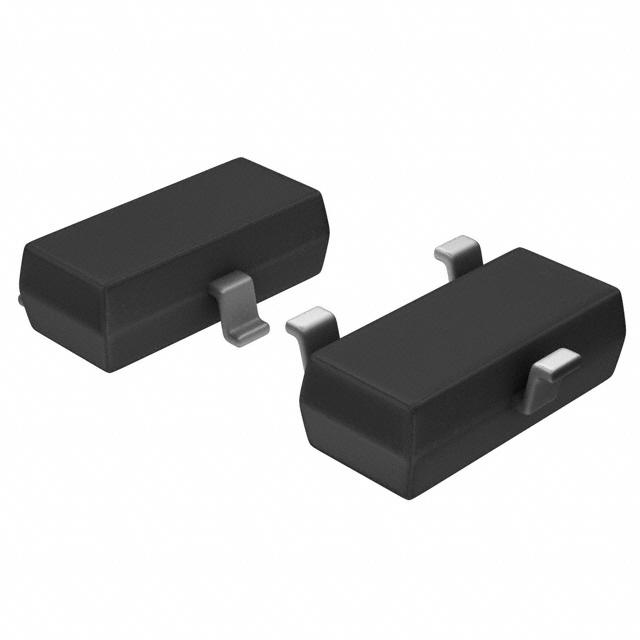

Comchip Technology
Manufacturer : Comchip Technology
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Type : Zener
Unidirectional Channels : 2
Bidirectional Channels : -
Voltage - Reverse Standoff (Typ) : 3.3V
Voltage - Breakdown (Min) : 4V
Voltage - Clamping (Max) @ Ipp : 8V
Current - Peak Pulse (10/1000µs) : 17A (8/20µs)
Power - Peak Pulse : 300W
Power Line Protection : No
Applications : General Purpose
Capacitance @ Frequency : -
Operating Temperature : -55°C ~ 125°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-236-3, SC-59, SOT-23-3
Supplier Device Package : SOT-23-3
0
5901 in stock
