Comchip Technology
- Comchip Technology Corporation leads in the design and manufacture of SMD discrete semiconductors. With innovative research and patented manufacturing capabilities, Comchip offers bridge rectifiers, fast efficient rectifiers, switching diodes, Zener diodes, Schottky diodes, TVS and ESD surge protectors. We have the right diode for your application. Comchip Technology is the first manufacturer to standardize DFN/flat chip packaging that are RoHS compliant and zero Tin-Whisker potential by using gold termination. DFN packages are available in SOD-323F (1005), SOD-523F (0603), SOD-723F (0503), SOD-923F (0402) and 0201 sizes.
Comchip products are suitable for vast array of applications including lighting, automotive, industrial computers, TFT-LCD panels, network/telecom, medical, portable and consumer electronics, as well as high reliability applications that can benefit from the zero Tin-Whisker potential.. To ensure superior quality and reliability, Comchip’s quality control process and factory are TS16949, ISO9001, and ISO14001 certified. As an added layer of security, Comchip’s bridge rectifier and TVS have passed UL testing for safety device application. Many Comchip diodes meet the automotive stress test requirements AEC-Q101 and are well suited for automotive as well as high reliability application.
Part Number
Manufacturer
Description
Unit Price
In Stock
Comchip Technology
Manufacturer : Comchip Technology
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Type : Zener
Unidirectional Channels : 2
Bidirectional Channels : -
Voltage - Reverse Standoff (Typ) : 5V
Voltage - Breakdown (Min) : 6.1V
Voltage - Clamping (Max) @ Ipp : 10V
Current - Peak Pulse (10/1000µs) : 8A (8/20µs)
Power - Peak Pulse : 80W
Power Line Protection : No
Applications : General Purpose
Capacitance @ Frequency : -
Operating Temperature : -
Mounting Type : Surface Mount
Package / Case : TO-236-3, SC-59, SOT-23-3
Supplier Device Package : SOT-23-3
0
28932 in stock
Comchip Technology
Manufacturer : Comchip Technology
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Type : Zener
Unidirectional Channels : 2
Bidirectional Channels : 1
Voltage - Reverse Standoff (Typ) : 5V (Max)
Voltage - Breakdown (Min) : 6V
Voltage - Clamping (Max) @ Ipp : 19V
Current - Peak Pulse (10/1000µs) : 4A (8/20µs)
Power - Peak Pulse : 76W
Power Line Protection : No
Applications : General Purpose
Capacitance @ Frequency : 0.6pF @ 1MHz
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-236-3, SC-59, SOT-23-3
Supplier Device Package : SOT-23
0
23168 in stock
Comchip Technology
Manufacturer : Comchip Technology
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Type : Zener
Unidirectional Channels : -
Bidirectional Channels : 4
Voltage - Reverse Standoff (Typ) : 24V
Voltage - Breakdown (Min) : 25V
Voltage - Clamping (Max) @ Ipp : 47V
Current - Peak Pulse (10/1000µs) : 1A (8/20µs)
Power - Peak Pulse : 47W
Power Line Protection : No
Applications : General Purpose
Capacitance @ Frequency : -
Operating Temperature : -
Mounting Type : Surface Mount

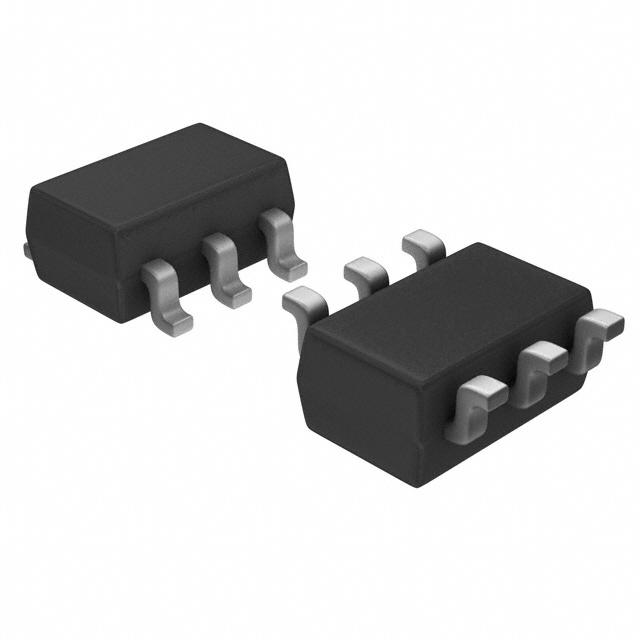

Package / Case : SOT-23-6
Supplier Device Package : SOT-23-6
0
7131 in stock
Comchip Technology
Manufacturer : Comchip Technology
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Type : Steering (Rail to Rail)
Unidirectional Channels : 4
Bidirectional Channels : -
Voltage - Reverse Standoff (Typ) : 5V (Max)
Voltage - Breakdown (Min) : 6V
Voltage - Clamping (Max) @ Ipp : 12.5V
Current - Peak Pulse (10/1000µs) : 10A (8/20µs)
Power - Peak Pulse : 125W
Power Line Protection : Yes
Applications : General Purpose
Capacitance @ Frequency : 2.2pF @ 1MHz
Operating Temperature : -40°C ~ 125°C (TJ)
Mounting Type : Surface Mount
Package / Case : SOT-23-6
Supplier Device Package : SOT-23-6
0
100 in stock
Comchip Technology
Manufacturer : Comchip Technology
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Type : Zener
Unidirectional Channels : -
Bidirectional Channels : 4
Voltage - Reverse Standoff (Typ) : 5V
Voltage - Breakdown (Min) : 5.1V
Voltage - Clamping (Max) @ Ipp : 15V
Current - Peak Pulse (10/1000µs) : 5A (8/20µs)
Power - Peak Pulse : 75W
Power Line Protection : No
Applications : General Purpose
Capacitance @ Frequency : -
Operating Temperature : -
Mounting Type : Surface Mount
Package / Case : SOT-23-6
Supplier Device Package : SOT-23-6
0
21445 in stock
Comchip Technology
Manufacturer : Comchip Technology
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Type : Zener
Unidirectional Channels : -
Bidirectional Channels : 1
Voltage - Reverse Standoff (Typ) : 24V
Voltage - Breakdown (Min) : 25V
Voltage - Clamping (Max) @ Ipp : 47V
Current - Peak Pulse (10/1000µs) : 1A (8/20µs)
Power - Peak Pulse : 47W
Power Line Protection : No
Applications : General Purpose
Capacitance @ Frequency : 10pF @ 1MHz
Operating Temperature : -
Mounting Type : Surface Mount

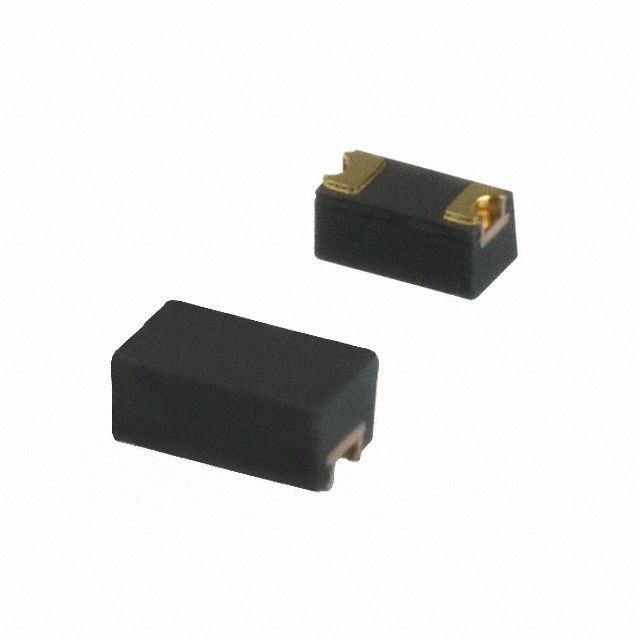

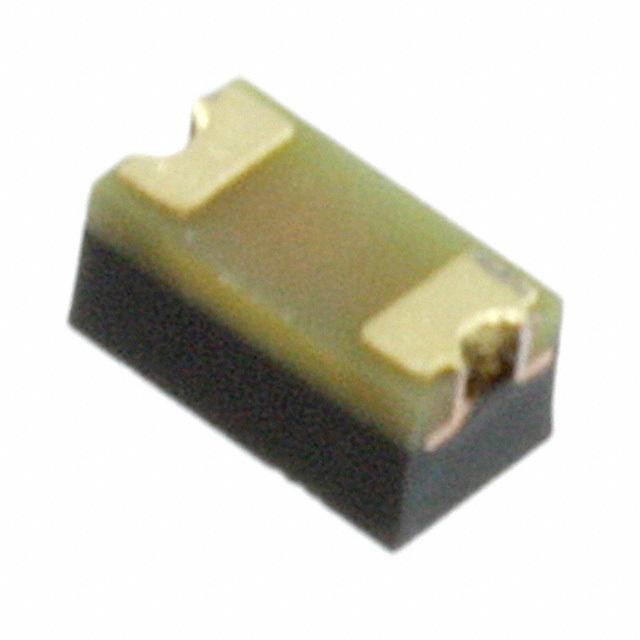

Package / Case : 2-SMD, No Lead
Supplier Device Package : 0603/SOD-523F
0
72268 in stock
Comchip Technology
Manufacturer : Comchip Technology
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Type : Zener
Unidirectional Channels : 1
Bidirectional Channels : -
Voltage - Reverse Standoff (Typ) : 24V
Voltage - Breakdown (Min) : 26.5V
Voltage - Clamping (Max) @ Ipp : 50V
Current - Peak Pulse (10/1000µs) : 3A (8/20µs)
Power - Peak Pulse : 150W
Power Line Protection : No
Applications : General Purpose
Capacitance @ Frequency : 35pF @ 1MHz
Operating Temperature : -55°C ~ 125°C (TJ)
Mounting Type : Surface Mount
Package / Case : 2-SMD, No Lead
Supplier Device Package : 0603/SOD-523F
0
7300 in stock
Comchip Technology
Manufacturer : Comchip Technology
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Type : Zener
Unidirectional Channels : -
Bidirectional Channels : 1
Voltage - Reverse Standoff (Typ) : 24V
Voltage - Breakdown (Min) : 25V
Voltage - Clamping (Max) @ Ipp : 47V
Current - Peak Pulse (10/1000µs) : 1A (8/20µs)
Power - Peak Pulse : 47W
Power Line Protection : No
Applications : General Purpose
Capacitance @ Frequency : 10pF @ 1MHz
Operating Temperature : -
Mounting Type : Surface Mount
Package / Case : 2-SMD, No Lead
Supplier Device Package : 0603/SOD-523F
0
4000 in stock
Comchip Technology
Manufacturer : Comchip Technology
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Type : Zener
Unidirectional Channels : -
Bidirectional Channels : 1
Voltage - Reverse Standoff (Typ) : 5V
Voltage - Breakdown (Min) : 5.1V
Voltage - Clamping (Max) @ Ipp : 15V
Current - Peak Pulse (10/1000µs) : 5A (8/20µs)
Power - Peak Pulse : 75W
Power Line Protection : No
Applications : General Purpose
Capacitance @ Frequency : 15pF @ 1MHz
Operating Temperature : -
Mounting Type : Surface Mount
Package / Case : 2-SMD, No Lead
Supplier Device Package : 0603/SOD-523F
0
232896 in stock
Comchip Technology
Manufacturer : Comchip Technology
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Type : Zener
Unidirectional Channels : -
Bidirectional Channels : 1
Voltage - Reverse Standoff (Typ) : 5V
Voltage - Breakdown (Min) : 6.1V
Voltage - Clamping (Max) @ Ipp : 17V
Current - Peak Pulse (10/1000µs) : 4A (8/20µs)
Power - Peak Pulse : -
Power Line Protection : No
Applications : General Purpose
Capacitance @ Frequency : 25pF @ 1MHz
Operating Temperature : -55°C ~ 125°C (TJ)
Mounting Type : Surface Mount
Package / Case : 2-SMD, No Lead
Supplier Device Package : 0603 (1608 Metric)
0
38437 in stock
Comchip Technology
Manufacturer : Comchip Technology
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Type : Zener
Unidirectional Channels : -
Bidirectional Channels : 1
Voltage - Reverse Standoff (Typ) : 5V
Voltage - Breakdown (Min) : 5.1V
Voltage - Clamping (Max) @ Ipp : 15V
Current - Peak Pulse (10/1000µs) : 5A (8/20µs)
Power - Peak Pulse : 75W
Power Line Protection : No
Applications : General Purpose
Capacitance @ Frequency : 15pF @ 1MHz
Operating Temperature : -
Mounting Type : Surface Mount
Package / Case : 2-SMD, No Lead
Supplier Device Package : 0603/SOD-523F
0
4000 in stock
Comchip Technology
Manufacturer : Comchip Technology
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Type : Zener
Unidirectional Channels : 1
Bidirectional Channels : -
Voltage - Reverse Standoff (Typ) : 5V
Voltage - Breakdown (Min) : 6V
Voltage - Clamping (Max) @ Ipp : 12.5V
Current - Peak Pulse (10/1000µs) : 16A (8/20µs)
Power - Peak Pulse : 200W
Power Line Protection : No
Applications : General Purpose
Capacitance @ Frequency : 90pF @ 1MHz
Operating Temperature : -
Mounting Type : Surface Mount
Package / Case : 2-SMD, No Lead
Supplier Device Package : 0603 (1608 Metric)
0
196853 in stock
