Comchip Technology
- Comchip Technology Corporation leads in the design and manufacture of SMD discrete semiconductors. With innovative research and patented manufacturing capabilities, Comchip offers bridge rectifiers, fast efficient rectifiers, switching diodes, Zener diodes, Schottky diodes, TVS and ESD surge protectors. We have the right diode for your application. Comchip Technology is the first manufacturer to standardize DFN/flat chip packaging that are RoHS compliant and zero Tin-Whisker potential by using gold termination. DFN packages are available in SOD-323F (1005), SOD-523F (0603), SOD-723F (0503), SOD-923F (0402) and 0201 sizes.
Comchip products are suitable for vast array of applications including lighting, automotive, industrial computers, TFT-LCD panels, network/telecom, medical, portable and consumer electronics, as well as high reliability applications that can benefit from the zero Tin-Whisker potential.. To ensure superior quality and reliability, Comchip’s quality control process and factory are TS16949, ISO9001, and ISO14001 certified. As an added layer of security, Comchip’s bridge rectifier and TVS have passed UL testing for safety device application. Many Comchip diodes meet the automotive stress test requirements AEC-Q101 and are well suited for automotive as well as high reliability application.
Part Number
Manufacturer
Description
Unit Price
In Stock
Comchip Technology
Manufacturer : Comchip Technology
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 1000V
Current - Average Rectified (Io) : 1A
Voltage - Forward (Vf) (Max) @ If : 1.7V @ 1A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : 75ns
Current - Reverse Leakage @ Vr : 5µA @ 1000V
Capacitance @ Vr, F : -
Mounting Type : Surface Mount

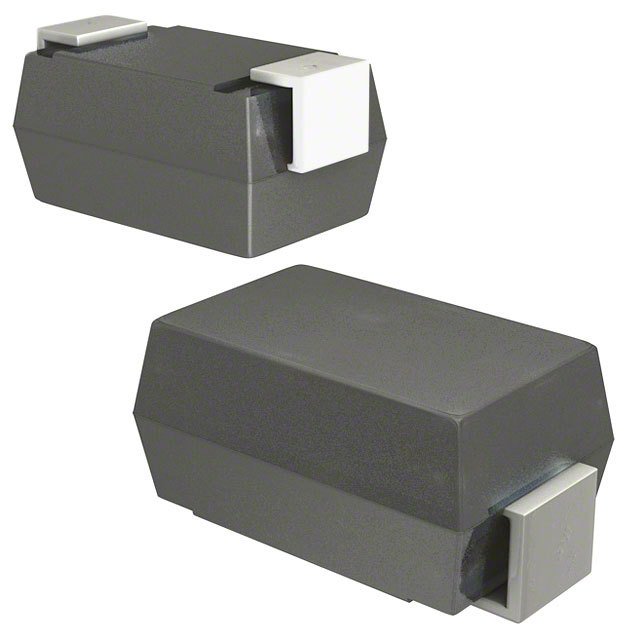

Package / Case : DO-214AC, SMA
Supplier Device Package : DO-214AC (SMA)
Operating Temperature - Junction : 150°C (Max)
0
29658 in stock
Comchip Technology
Manufacturer : Comchip Technology
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 1000V
Current - Average Rectified (Io) : 2A
Voltage - Forward (Vf) (Max) @ If : 1.7V @ 2A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : 75ns
Current - Reverse Leakage @ Vr : 5µA @ 1000V
Capacitance @ Vr, F : -
Mounting Type : Surface Mount

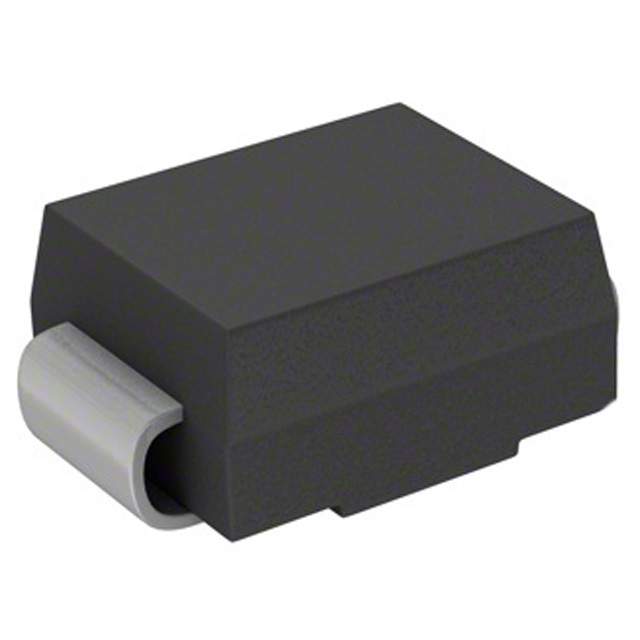

Package / Case : DO-214AA, SMB
Supplier Device Package : DO-214AA (SMB)
Operating Temperature - Junction : 150°C (Max)
0
131148 in stock
Comchip Technology
Manufacturer : Comchip Technology
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 1000V
Current - Average Rectified (Io) : 3A
Voltage - Forward (Vf) (Max) @ If : 1.7V @ 3A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : 75ns
Current - Reverse Leakage @ Vr : 5µA @ 1000V
Capacitance @ Vr, F : -
Mounting Type : Surface Mount

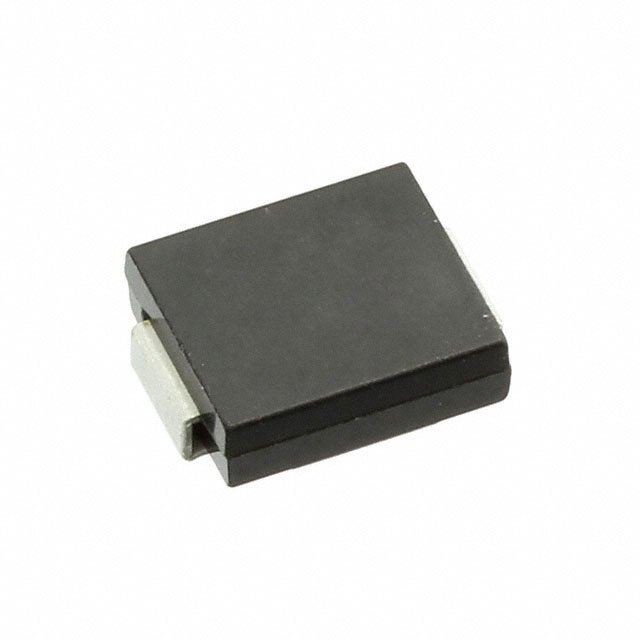

Package / Case : DO-214AB, SMC
Supplier Device Package : DO-214AB (SMC)
Operating Temperature - Junction : 150°C (Max)
0
6244 in stock
Comchip Technology
Manufacturer : Comchip Technology
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 200V
Current - Average Rectified (Io) : 1A
Voltage - Forward (Vf) (Max) @ If : 1V @ 1A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : 50ns
Current - Reverse Leakage @ Vr : 5µA @ 200V
Capacitance @ Vr, F : -
Mounting Type : Surface Mount
Package / Case : SOD-123T
Supplier Device Package : Mini SMA/SOD-123
Operating Temperature - Junction : -55°C ~ 150°C
0
2223 in stock
Comchip Technology
Manufacturer : Comchip Technology
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 200V
Current - Average Rectified (Io) : 1A
Voltage - Forward (Vf) (Max) @ If : 1V @ 1A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : 50ns
Current - Reverse Leakage @ Vr : 5µA @ 200V
Capacitance @ Vr, F : -
Mounting Type : Surface Mount
Package / Case : SOD-123H
Supplier Device Package : SOD-123H
Operating Temperature - Junction : -55°C ~ 150°C
0
8768 in stock
Comchip Technology
Manufacturer : Comchip Technology
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 400V
Current - Average Rectified (Io) : 1A
Voltage - Forward (Vf) (Max) @ If : 1.3V @ 1A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : 50ns
Current - Reverse Leakage @ Vr : 5µA @ 400V
Capacitance @ Vr, F : -
Mounting Type : Surface Mount
Package / Case : SOD-123H
Supplier Device Package : SOD-123H
Operating Temperature - Junction : -55°C ~ 150°C
0
6338 in stock
Comchip Technology
Manufacturer : Comchip Technology
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 1000V
Current - Average Rectified (Io) : 1A
Voltage - Forward (Vf) (Max) @ If : 1.7V @ 1A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : 75ns
Current - Reverse Leakage @ Vr : 5µA @ 1000V
Capacitance @ Vr, F : -
Mounting Type : Surface Mount
Package / Case : SOD-123H
Supplier Device Package : SOD-123H
Operating Temperature - Junction : -55°C ~ 150°C
0
19254 in stock
Comchip Technology
Manufacturer : Comchip Technology
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 200V
Current - Average Rectified (Io) : 1A
Voltage - Forward (Vf) (Max) @ If : 1.7V @ 1A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : 50ns
Current - Reverse Leakage @ Vr : -
Capacitance @ Vr, F : 10pF @ 4V, 1MHz
Mounting Type : Surface Mount
Package / Case : 2-SMD, No Lead
Supplier Device Package : 1206/SOD-123
Operating Temperature - Junction : -65°C ~ 175°C
0
2899 in stock
Comchip Technology
Manufacturer : Comchip Technology
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 400V
Current - Average Rectified (Io) : 1A
Voltage - Forward (Vf) (Max) @ If : 1.7V @ 1A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : 50ns
Current - Reverse Leakage @ Vr : -
Capacitance @ Vr, F : 10pF @ 4V, 1MHz
Mounting Type : Surface Mount
Package / Case : 2-SMD, No Lead
Supplier Device Package : 1206/SOD-123
Operating Temperature - Junction : -65°C ~ 175°C
0
13 in stock
Comchip Technology
Manufacturer : Comchip Technology
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 600V
Current - Average Rectified (Io) : 1A
Voltage - Forward (Vf) (Max) @ If : 1.7V @ 1A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : 50ns
Current - Reverse Leakage @ Vr : -
Capacitance @ Vr, F : 10pF @ 4V, 1MHz
Mounting Type : Surface Mount
Package / Case : 2-SMD, No Lead
Supplier Device Package : 1206/SOD-123
Operating Temperature - Junction : -65°C ~ 175°C
0
2075 in stock
Comchip Technology
Manufacturer : Comchip Technology
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 800V
Current - Average Rectified (Io) : 1A
Voltage - Forward (Vf) (Max) @ If : 1.7V @ 1A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : 75ns
Current - Reverse Leakage @ Vr : -
Capacitance @ Vr, F : 10pF @ 4V, 1MHz
Mounting Type : Surface Mount
Package / Case : 2-SMD, No Lead
Supplier Device Package : 1206/SOD-123
Operating Temperature - Junction : -65°C ~ 175°C
0
2760 in stock
Comchip Technology
Manufacturer : Comchip Technology
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 1000V
Current - Average Rectified (Io) : 1A
Voltage - Forward (Vf) (Max) @ If : 1.7V @ 1A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : 75ns
Current - Reverse Leakage @ Vr : -
Capacitance @ Vr, F : 10pF @ 4V, 1MHz
Mounting Type : Surface Mount
Package / Case : 2-SMD, No Lead
Supplier Device Package : 1206/SOD-123
Operating Temperature - Junction : -65°C ~ 175°C
0
1535 in stock
