Comchip Technology
- Comchip Technology Corporation leads in the design and manufacture of SMD discrete semiconductors. With innovative research and patented manufacturing capabilities, Comchip offers bridge rectifiers, fast efficient rectifiers, switching diodes, Zener diodes, Schottky diodes, TVS and ESD surge protectors. We have the right diode for your application. Comchip Technology is the first manufacturer to standardize DFN/flat chip packaging that are RoHS compliant and zero Tin-Whisker potential by using gold termination. DFN packages are available in SOD-323F (1005), SOD-523F (0603), SOD-723F (0503), SOD-923F (0402) and 0201 sizes.
Comchip products are suitable for vast array of applications including lighting, automotive, industrial computers, TFT-LCD panels, network/telecom, medical, portable and consumer electronics, as well as high reliability applications that can benefit from the zero Tin-Whisker potential.. To ensure superior quality and reliability, Comchip’s quality control process and factory are TS16949, ISO9001, and ISO14001 certified. As an added layer of security, Comchip’s bridge rectifier and TVS have passed UL testing for safety device application. Many Comchip diodes meet the automotive stress test requirements AEC-Q101 and are well suited for automotive as well as high reliability application.
Part Number
Manufacturer
Description
Unit Price
In Stock

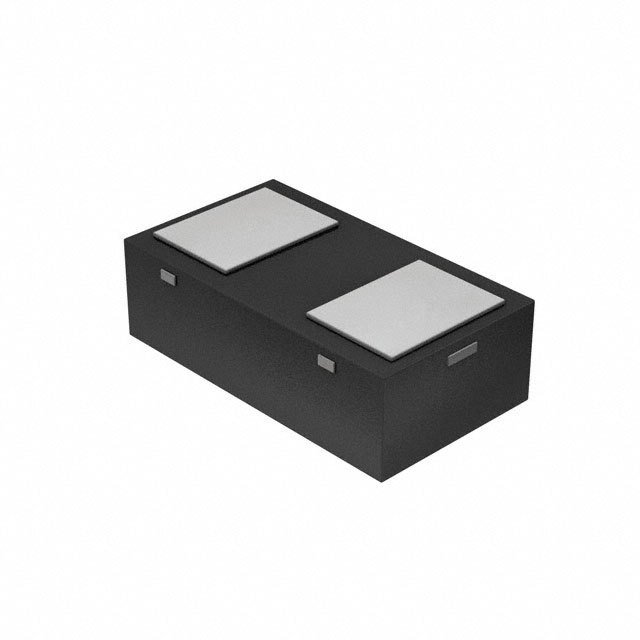

Comchip Technology
Manufacturer : Comchip Technology
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Type : Zener
Unidirectional Channels : -
Bidirectional Channels : 1
Voltage - Reverse Standoff (Typ) : 5V (Max)
Voltage - Breakdown (Min) : 6.1V
Voltage - Clamping (Max) @ Ipp : 14.5V
Current - Peak Pulse (10/1000µs) : 4A (8/20µs)
Power - Peak Pulse : 58W
Power Line Protection : No
Applications : General Purpose
Capacitance @ Frequency : 25pF @ 1MHz
Operating Temperature : -
Mounting Type : Surface Mount
Package / Case : SOD-923
Supplier Device Package : 0402C/SOD-923F
0
9752 in stock
Comchip Technology
Manufacturer : Comchip Technology
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Type : Zener
Unidirectional Channels : -
Bidirectional Channels : 1
Voltage - Reverse Standoff (Typ) : 5V (Max)
Voltage - Breakdown (Min) : 6V
Voltage - Clamping (Max) @ Ipp : 20V
Current - Peak Pulse (10/1000µs) : 3A (8/20µs)
Power - Peak Pulse : 60W
Power Line Protection : No
Applications : General Purpose
Capacitance @ Frequency : 0.3pF @ 1MHz
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 0402 (1006 Metric)
Supplier Device Package : 0402/SOD-923F
0
9124 in stock
Comchip Technology
Manufacturer : Comchip Technology
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Type : Zener
Unidirectional Channels : -
Bidirectional Channels : 1
Voltage - Reverse Standoff (Typ) : 5V (Max)
Voltage - Breakdown (Min) : 7V
Voltage - Clamping (Max) @ Ipp : 18V
Current - Peak Pulse (10/1000µs) : 2A (8/20µs)
Power - Peak Pulse : 35W
Power Line Protection : No
Applications : General Purpose
Capacitance @ Frequency : 0.15pF @ 1MHz
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 0402 (1006 Metric)
Supplier Device Package : 0402C/SOD-923F
0
4377 in stock
Comchip Technology
Manufacturer : Comchip Technology
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Type : Zener
Unidirectional Channels : -
Bidirectional Channels : 1
Voltage - Reverse Standoff (Typ) : 5V (Max)
Voltage - Breakdown (Min) : 7V
Voltage - Clamping (Max) @ Ipp : 25V
Current - Peak Pulse (10/1000µs) : 4A (8/20µs)
Power - Peak Pulse : 100W
Power Line Protection : No
Applications : General Purpose
Capacitance @ Frequency : 0.28pF @ 1MHz
Operating Temperature : -40°C ~ 125°C (TJ)
Mounting Type : Surface Mount
Package / Case : 0402 (1006 Metric)
Supplier Device Package : 0402C/SOD-923F
0
15000 in stock
Comchip Technology
Manufacturer : Comchip Technology
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Type : Zener
Unidirectional Channels : -
Bidirectional Channels : 1
Voltage - Reverse Standoff (Typ) : 5V (Max)
Voltage - Breakdown (Min) : 5.5V
Voltage - Clamping (Max) @ Ipp : 16V
Current - Peak Pulse (10/1000µs) : 8A (8/20µs)
Power - Peak Pulse : 128W
Power Line Protection : No
Applications : General Purpose
Capacitance @ Frequency : 15pF @ 1MHz
Operating Temperature : -40°C ~ 125°C (TJ)
Mounting Type : Surface Mount
Package / Case : 0402 (1006 Metric)
Supplier Device Package : 0402/SOD-923F
0
7500 in stock
Comchip Technology
Manufacturer : Comchip Technology
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Type : Zener
Unidirectional Channels : -
Bidirectional Channels : 1
Voltage - Reverse Standoff (Typ) : 5V
Voltage - Breakdown (Min) : 5.1V
Voltage - Clamping (Max) @ Ipp : 15V
Current - Peak Pulse (10/1000µs) : 5A (8/20µs)
Power - Peak Pulse : 75W
Power Line Protection : No
Applications : General Purpose
Capacitance @ Frequency : 15pF @ 1MHz
Operating Temperature : -
Mounting Type : Surface Mount
Package / Case : SOD-923
Supplier Device Package : 0402C/SOD-923F
0
7674 in stock
Comchip Technology
Manufacturer : Comchip Technology
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Type : Zener
Unidirectional Channels : -
Bidirectional Channels : 1
Voltage - Reverse Standoff (Typ) : 5V (Max)
Voltage - Breakdown (Min) : 5.6V
Voltage - Clamping (Max) @ Ipp : 17V
Current - Peak Pulse (10/1000µs) : 5A (8/20µs)
Power - Peak Pulse : 85W
Power Line Protection : No
Applications : General Purpose
Capacitance @ Frequency : 6pF @ 1MHz
Operating Temperature : -40°C ~ 125°C (TJ)
Mounting Type : Surface Mount
Package / Case : 0402 (1006 Metric)
Supplier Device Package : 0402/SOD-923F
0
22372 in stock
Comchip Technology
Manufacturer : Comchip Technology
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Type : Zener
Unidirectional Channels : -
Bidirectional Channels : 1
Voltage - Reverse Standoff (Typ) : 5V (Max)
Voltage - Breakdown (Min) : 5.6V
Voltage - Clamping (Max) @ Ipp : 12V
Current - Peak Pulse (10/1000µs) : 11A (8/20µs)
Power - Peak Pulse : -
Power Line Protection : No
Applications : General Purpose
Capacitance @ Frequency : 24pF @ 1MHz
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 0402 (1006 Metric)
Supplier Device Package : 0402/SOD-923F
0
11485 in stock
Comchip Technology
Manufacturer : Comchip Technology
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Type : Zener
Unidirectional Channels : 1
Bidirectional Channels : -
Voltage - Reverse Standoff (Typ) : 5V
Voltage - Breakdown (Min) : 6V
Voltage - Clamping (Max) @ Ipp : 12.5V
Current - Peak Pulse (10/1000µs) : 16A (8/20µs)
Power - Peak Pulse : 200W
Power Line Protection : No
Applications : General Purpose
Capacitance @ Frequency : 90pF @ 1MHz
Operating Temperature : -
Mounting Type : Surface Mount
Package / Case : SOD-923
Supplier Device Package : 0402C/SOD-923F
0
4460 in stock
Comchip Technology
Manufacturer : Comchip Technology
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Type : Zener
Unidirectional Channels : 1
Bidirectional Channels : -
Voltage - Reverse Standoff (Typ) : 5V (Max)
Voltage - Breakdown (Min) : 5.4V
Voltage - Clamping (Max) @ Ipp : 20V
Current - Peak Pulse (10/1000µs) : 2.5A (8/20µs)
Power - Peak Pulse : 50W
Power Line Protection : No
Applications : General Purpose
Capacitance @ Frequency : 0.6pF @ 1MHz
Operating Temperature : -
Mounting Type : Surface Mount
Package / Case : SOD-923
Supplier Device Package : 0402C/SOD-923F
0
9255 in stock
Comchip Technology
Manufacturer : Comchip Technology
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Type : Zener
Unidirectional Channels : 1
Bidirectional Channels : -
Voltage - Reverse Standoff (Typ) : 5V (Max)
Voltage - Breakdown (Min) : 6V
Voltage - Clamping (Max) @ Ipp : 15V
Current - Peak Pulse (10/1000µs) : 2.5A (8/20µs)
Power - Peak Pulse : 30W
Power Line Protection : No
Applications : General Purpose
Capacitance @ Frequency : 0.3pF @ 1MHz
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 0402 (1006 Metric)
Supplier Device Package : 0402/SOD-923F
0
5535 in stock

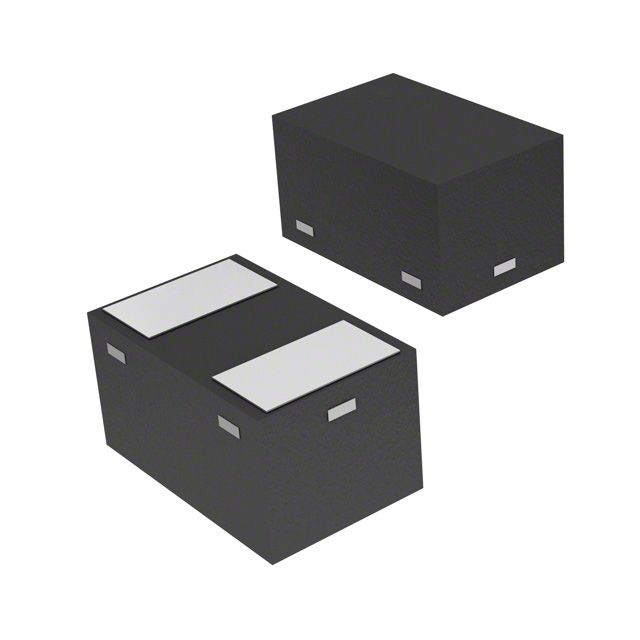

Comchip Technology
Manufacturer : Comchip Technology
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Type : Zener
Unidirectional Channels : 1
Bidirectional Channels : -
Voltage - Reverse Standoff (Typ) : 12V
Voltage - Breakdown (Min) : 13.3V
Voltage - Clamping (Max) @ Ipp : 24V
Current - Peak Pulse (10/1000µs) : 5A (8/20µs)
Power - Peak Pulse : 120W
Power Line Protection : No
Applications : General Purpose
Capacitance @ Frequency : 60pF @ 1MHz
Operating Temperature : -
Mounting Type : Surface Mount
Package / Case : 0402 (1005 Metric)
Supplier Device Package : 0402/SOD-923F
0
100 in stock
