Triad Magnetics

- For over 70 years, consumer, commercial and industrial electronic devices have relied on innovative magnetics technology from Triad Magnetics. We offer solutions for power conversion, filtering, isolation and more. Our products include transformers for audio, gate drive, power, medical/dental, wall-mount and plug-in applications; as well as inductors for current sense, common mode, toroidal, filtering and power applications.

Today, you’ll find a wide range of Triad magnetic components in advanced computers, telecommunication systems, automation controls, audio devices and other equipment. Lewis W. Howard founded Triad during the 1940s in Venice, California. He was a UC Berkley graduate, a Wescon Trade Show cofounder and was recognized as an IEEE life member.

Part Number
Manufacturer
Description
Unit Price
In Stock

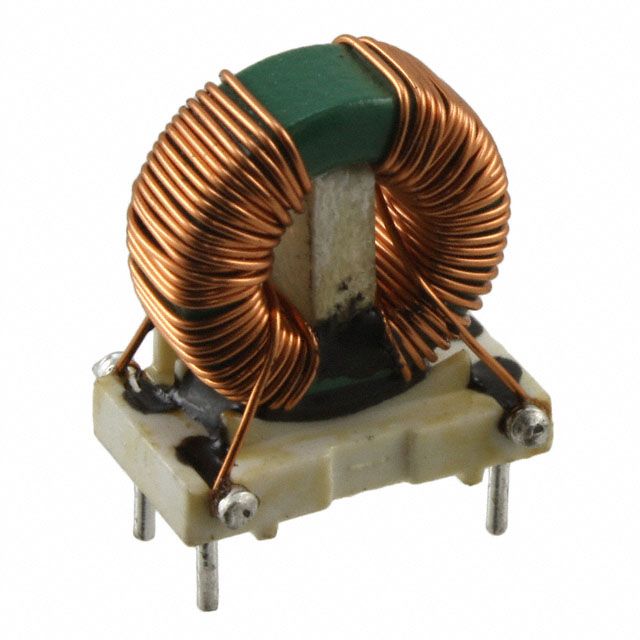

CMT-8102 CMT-8102

Triad Magnetics
Manufacturer : Triad Magnetics
Packaging : Bulk
Series : CMT
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 2.5mH @ 1kHz
Current Rating (Max) : 2.4A
DC Resistance (DCR) (Max) : 90 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -55°C ~ 105°C
Ratings : -
Approvals : -
Features : ESD
Mounting Type : Through Hole
Size / Dimension : 0.760" L x 0.615" W (19.30mm x 15.62mm)
Height (Max) : 0.900" (22.86mm)
Package / Case : Vertical, 4 PC Pin
0
524 in stock

CMT-8104 CMT-8104

Triad Magnetics
Manufacturer : Triad Magnetics
Packaging : Bulk
Series : CMT
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 10mH @ 1kHz
Current Rating (Max) : 2.4A
DC Resistance (DCR) (Max) : 170 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -55°C ~ 105°C
Ratings : -
Approvals : -
Features : ESD
Mounting Type : Through Hole
Size / Dimension : 1.200" L x 0.600" W (30.48mm x 15.24mm)
Height (Max) : 1.200" (30.48mm)
Package / Case : Vertical, 4 PC Pin
0
10 in stock

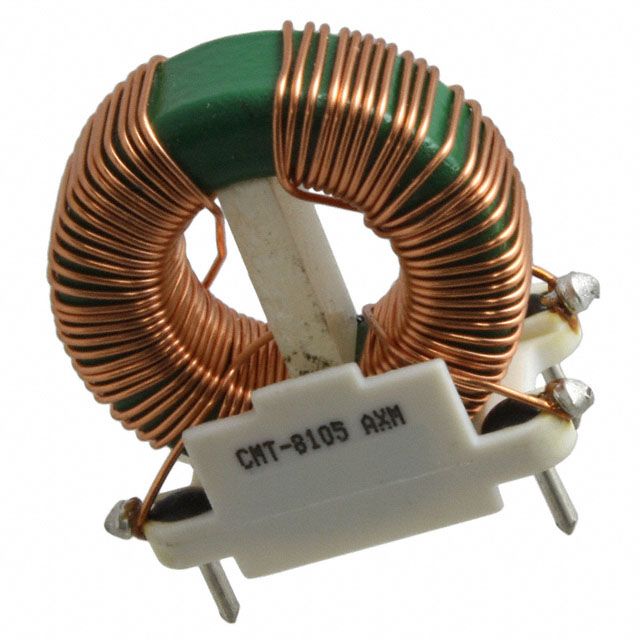

CMT-8105 CMT-8105

Triad Magnetics
Manufacturer : Triad Magnetics
Packaging : Bulk
Series : CMT
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 7mH @ 1kHz
Current Rating (Max) : 2.8A
DC Resistance (DCR) (Max) : 120 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -55°C ~ 105°C
Ratings : -
Approvals : -
Features : ESD
Mounting Type : Through Hole
Size / Dimension : 1.200" L x 0.600" W (30.48mm x 15.24mm)
Height (Max) : 1.200" (30.48mm)
Package / Case : Vertical, 4 PC Pin
0
704 in stock

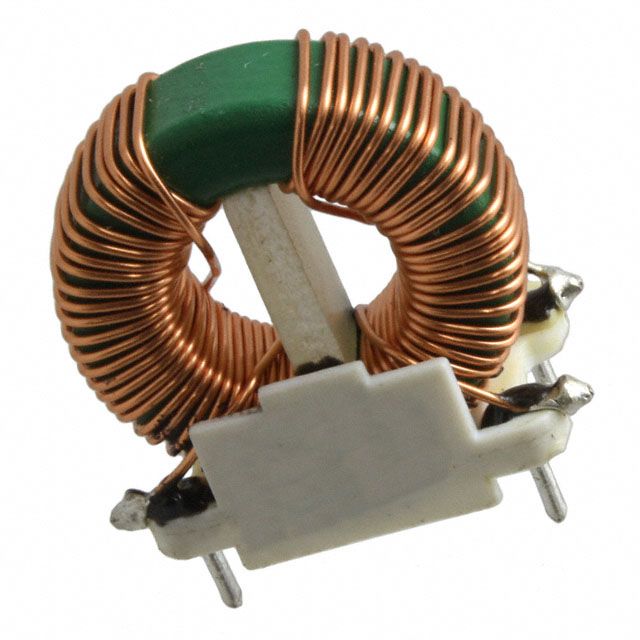

CMT-8106 CMT-8106

Triad Magnetics
Manufacturer : Triad Magnetics
Packaging : Bulk
Series : CMT
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 5mH @ 1kHz
Current Rating (Max) : 3.7A
DC Resistance (DCR) (Max) : 70 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -55°C ~ 105°C
Ratings : -
Approvals : -
Features : ESD
Mounting Type : Through Hole
Size / Dimension : 1.200" L x 0.600" W (30.48mm x 15.24mm)
Height (Max) : 1.200" (30.48mm)
Package / Case : Vertical, 4 PC Pin
0
275 in stock

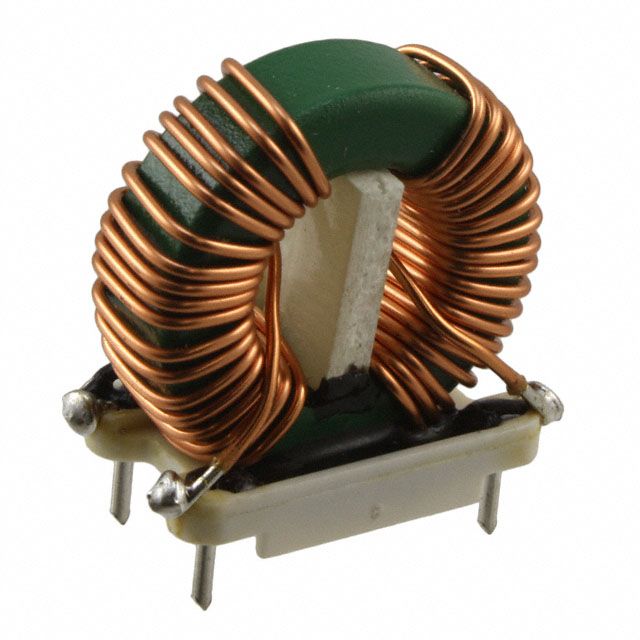

CMT-8107 CMT-8107

Triad Magnetics
Manufacturer : Triad Magnetics
Packaging : Bulk
Series : CMT
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 2mH @ 1kHz
Current Rating (Max) : 6.6A
DC Resistance (DCR) (Max) : 22 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -55°C ~ 105°C
Ratings : -
Approvals : -
Features : ESD
Mounting Type : Through Hole
Size / Dimension : 1.200" L x 0.600" W (30.48mm x 15.24mm)
Height (Max) : 1.200" (30.48mm)
Package / Case : Vertical, 4 PC Pin
0
43 in stock

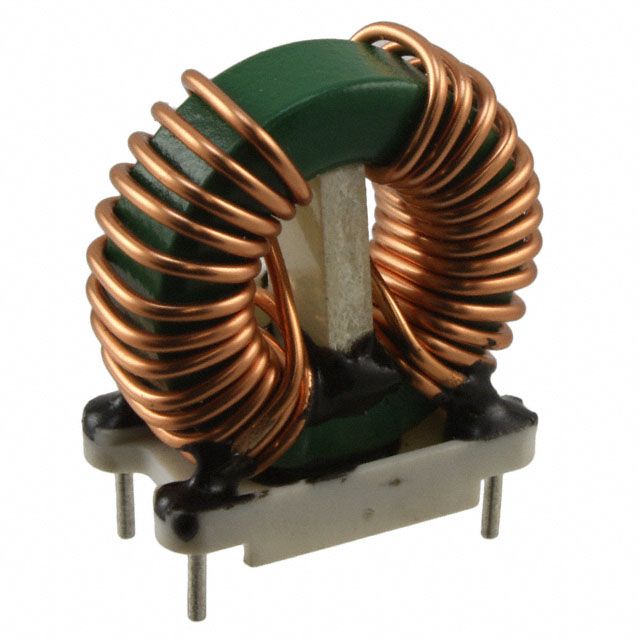

CMT-8108 CMT-8108

Triad Magnetics
Manufacturer : Triad Magnetics
Packaging : Bulk
Series : CMT
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 1mH @ 1kHz
Current Rating (Max) : 10A
DC Resistance (DCR) (Max) : 10 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -55°C ~ 105°C
Ratings : -
Approvals : -
Features : ESD
Mounting Type : Through Hole
Size / Dimension : 1.200" L x 0.600" W (30.48mm x 15.24mm)
Height (Max) : 1.200" (30.48mm)
Package / Case : Vertical, 4 PC Pin
0
1142 in stock

CMT-8109 CMT-8109

Triad Magnetics
Manufacturer : Triad Magnetics
Packaging : Bulk
Series : CMT
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 30mH @ 1kHz
Current Rating (Max) : 2.3A
DC Resistance (DCR) (Max) : 330 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -55°C ~ 105°C
Ratings : -
Approvals : -
Features : ESD
Mounting Type : Through Hole
Size / Dimension : 1.350" L x 0.800" W (34.29mm x 20.32mm)
Height (Max) : 1.450" (36.83mm)
Package / Case : Vertical, 4 PC Pin
0
2430 in stock

CMT-8110 CMT-8110

Triad Magnetics
Manufacturer : Triad Magnetics
Packaging : Bulk
Series : CMT
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 20mH @ 1kHz
Current Rating (Max) : 2.9A
DC Resistance (DCR) (Max) : 210 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -55°C ~ 105°C
Ratings : -
Approvals : -
Features : ESD
Mounting Type : Through Hole
Size / Dimension : 1.350" L x 0.800" W (34.29mm x 20.32mm)
Height (Max) : 1.450" (36.83mm)
Package / Case : Vertical, 4 PC Pin
0
255 in stock

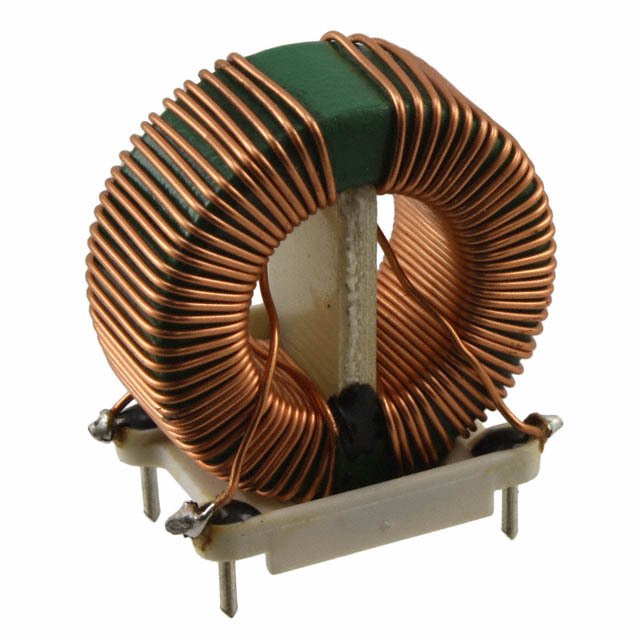

CMT-8111 CMT-8111

Triad Magnetics
Manufacturer : Triad Magnetics
Packaging : Bulk
Series : CMT
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 12mH @ 1kHz
Current Rating (Max) : 4A
DC Resistance (DCR) (Max) : 110 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -55°C ~ 105°C
Ratings : -
Approvals : -
Features : ESD
Mounting Type : Through Hole
Size / Dimension : 1.350" L x 0.800" W (34.29mm x 20.32mm)
Height (Max) : 1.450" (36.83mm)
Package / Case : Vertical, 4 PC Pin
0
57 in stock

CMT-8112 CMT-8112

Triad Magnetics
Manufacturer : Triad Magnetics
Packaging : Bulk
Series : CMT
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 8mH @ 1kHz
Current Rating (Max) : 5.6A
DC Resistance (DCR) (Max) : 55 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -55°C ~ 105°C
Ratings : -
Approvals : -
Features : ESD
Mounting Type : Through Hole
Size / Dimension : 1.350" L x 0.800" W (34.29mm x 20.32mm)
Height (Max) : 1.450" (36.83mm)
Package / Case : Vertical, 4 PC Pin
0
890 in stock

CMT-8113 CMT-8113

Triad Magnetics
Manufacturer : Triad Magnetics
Packaging : Bulk
Series : CMT
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 5mH @ 1kHz
Current Rating (Max) : 8.9A
DC Resistance (DCR) (Max) : 22 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -55°C ~ 105°C
Ratings : -
Approvals : -
Features : ESD
Mounting Type : Through Hole
Size / Dimension : 1.450" L x 0.800" W (36.83mm x 20.32mm)
Height (Max) : 1.500" (38.10mm)
Package / Case : Vertical, 4 PC Pin
0
65 in stock

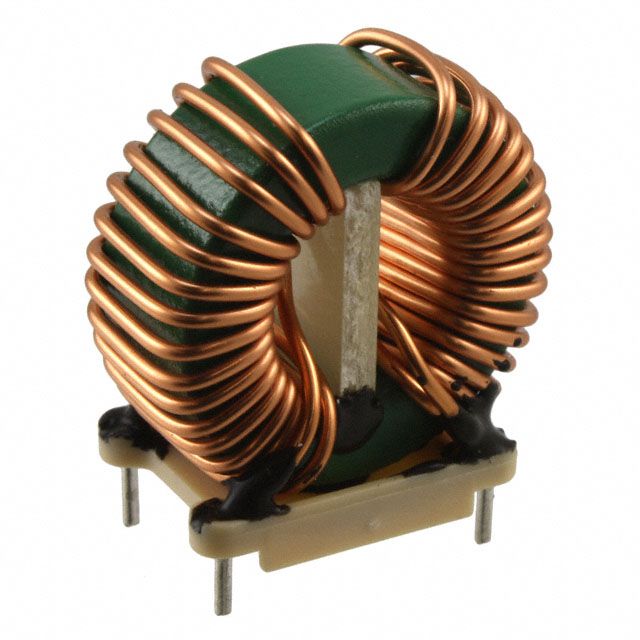

CMT-8114 CMT-8114

Triad Magnetics
Manufacturer : Triad Magnetics
Packaging : Bulk
Series : CMT
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 2.5mH @ 1kHz
Current Rating (Max) : 12.5A
DC Resistance (DCR) (Max) : 11 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -55°C ~ 105°C
Ratings : -
Approvals : -
Features : ESD
Mounting Type : Through Hole
Size / Dimension : 1.450" L x 0.800" W (36.83mm x 20.32mm)
Height (Max) : 1.500" (38.10mm)
Package / Case : Vertical, 4 PC Pin
0
1250 in stock
