Triad Magnetics
- For over 70 years, consumer, commercial and industrial electronic devices have relied on innovative magnetics technology from Triad Magnetics. We offer solutions for power conversion, filtering, isolation and more. Our products include transformers for audio, gate drive, power, medical/dental, wall-mount and plug-in applications; as well as inductors for current sense, common mode, toroidal, filtering and power applications.
Today, you’ll find a wide range of Triad magnetic components in advanced computers, telecommunication systems, automation controls, audio devices and other equipment. Lewis W. Howard founded Triad during the 1940s in Venice, California. He was a UC Berkley graduate, a Wescon Trade Show cofounder and was recognized as an IEEE life member.
Part Number
Manufacturer
Description
Unit Price
In Stock
Triad Magnetics
Manufacturer : Triad Magnetics
Packaging : Bulk
Series : CMF
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 47mH @ 10kHz
Current Rating (Max) : 1.1A
DC Resistance (DCR) (Max) : 884 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : 300V
Operating Temperature : -40°C ~ 105°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 1.043" L x 0.976" W (26.50mm x 24.80mm)
Height (Max) : 0.551" (14.00mm)
Package / Case : Vertical, 4 PC Pin
0
187 in stock
Triad Magnetics
Manufacturer : Triad Magnetics
Packaging : Bulk
Series : CMF
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 68mH @ 10kHz
Current Rating (Max) : 900mA
DC Resistance (DCR) (Max) : 1.21 Ohm
Voltage Rating - DC : -
Voltage Rating - AC : 300V
Operating Temperature : -40°C ~ 105°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 1.043" L x 0.976" W (26.50mm x 24.80mm)
Height (Max) : 0.551" (14.00mm)
Package / Case : Vertical, 4 PC Pin
0
161 in stock

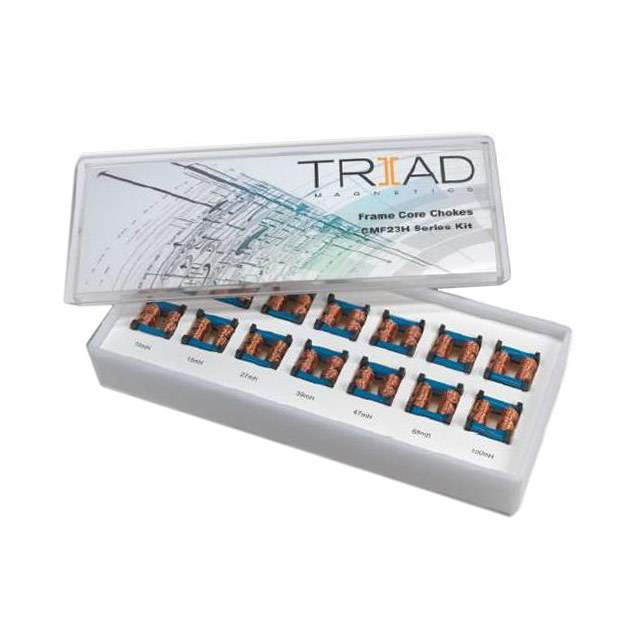

Triad Magnetics
Manufacturer : Triad Magnetics
Packaging : Plastic Box with Bin Guide
Series : CMF
Part Status : Active
Kit Type : Common Mode Chokes
Quantity : 21 Pieces (7 Values - 3 Each)
Mounting Type : Through Hole
Packages Included : Horizontal, 4 PC Pin
Features : -
0
10 in stock
Triad Magnetics
Manufacturer : Triad Magnetics
Packaging : Bulk
Series : CMF
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 10mH @ 10kHz
Current Rating (Max) : 2.3A
DC Resistance (DCR) (Max) : 206 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : 300V
Operating Temperature : -40°C ~ 105°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 1.142" L x 0.591" W (29.00mm x 15.00mm)
Height (Max) : 1.063" (27.00mm)
Package / Case : Vertical, 4 PC Pin
0
291 in stock
Triad Magnetics
Manufacturer : Triad Magnetics
Packaging : Bulk
Series : CMF
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 100mH @ 10kHz
Current Rating (Max) : 700mA
DC Resistance (DCR) (Max) : 1.99 Ohm
Voltage Rating - DC : -
Voltage Rating - AC : 300V
Operating Temperature : -40°C ~ 105°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 1.142" L x 0.591" W (29.00mm x 15.00mm)
Height (Max) : 1.063" (27.00mm)
Package / Case : Vertical, 4 PC Pin
0
292 in stock
Triad Magnetics
Manufacturer : Triad Magnetics
Packaging : Bulk
Series : CMF
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 15mH @ 10kHz
Current Rating (Max) : 1.9A
DC Resistance (DCR) (Max) : 306 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : 300V
Operating Temperature : -40°C ~ 105°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 1.142" L x 0.591" W (29.00mm x 15.00mm)
Height (Max) : 1.063" (27.00mm)
Package / Case : Vertical, 4 PC Pin
0
600 in stock
Triad Magnetics
Manufacturer : Triad Magnetics
Packaging : Bulk
Series : CMF
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 27mH @ 10kHz
Current Rating (Max) : 1.4A
DC Resistance (DCR) (Max) : 484 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : 300V
Operating Temperature : -40°C ~ 105°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 1.142" L x 0.591" W (29.00mm x 15.00mm)
Height (Max) : 1.063" (27.00mm)
Package / Case : Vertical, 4 PC Pin
0
300 in stock
Triad Magnetics
Manufacturer : Triad Magnetics
Packaging : Bulk
Series : CMF
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 39mH @ 10kHz
Current Rating (Max) : 1.2A
DC Resistance (DCR) (Max) : 766 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : 300V
Operating Temperature : -40°C ~ 105°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 1.142" L x 0.591" W (29.00mm x 15.00mm)
Height (Max) : 1.063" (27.00mm)
Package / Case : Vertical, 4 PC Pin
0
66 in stock
Triad Magnetics
Manufacturer : Triad Magnetics
Packaging : Bulk
Series : CMF
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 47mH @ 10kHz
Current Rating (Max) : 1.1A
DC Resistance (DCR) (Max) : 884 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : 300V
Operating Temperature : -40°C ~ 105°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 1.142" L x 0.591" W (29.00mm x 15.00mm)
Height (Max) : 1.063" (27.00mm)
Package / Case : Vertical, 4 PC Pin
0
289 in stock
Triad Magnetics
Manufacturer : Triad Magnetics
Packaging : Bulk
Series : CMF
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 68mH @ 10kHz
Current Rating (Max) : 900mA
DC Resistance (DCR) (Max) : 1.21 Ohm
Voltage Rating - DC : -
Voltage Rating - AC : 300V
Operating Temperature : -40°C ~ 105°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 1.142" L x 0.591" W (29.00mm x 15.00mm)
Height (Max) : 1.063" (27.00mm)
Package / Case : Vertical, 4 PC Pin
0
291 in stock

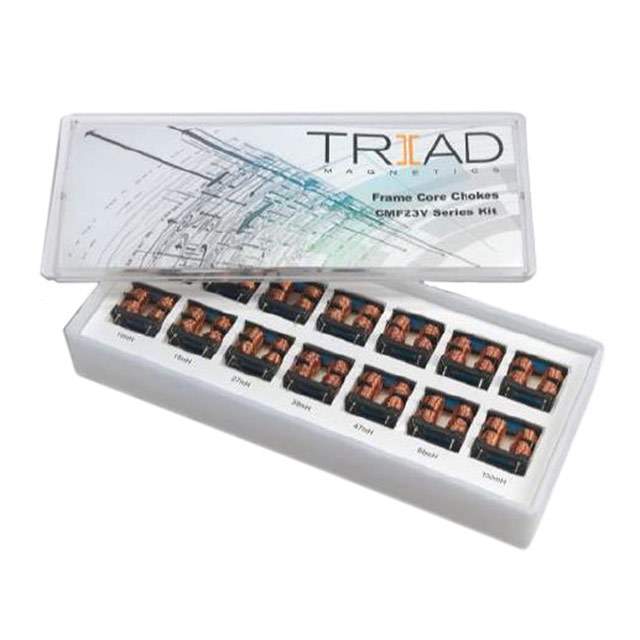

Triad Magnetics
Manufacturer : Triad Magnetics
Packaging : Plastic Box with Bin Guide
Series : CMF
Part Status : Active
Kit Type : Common Mode Chokes
Quantity : 21 Pieces (7 Values - 3 Each)
Mounting Type : Through Hole
Packages Included : Vertical, 4 PC Pin
Features : -
0
10 in stock

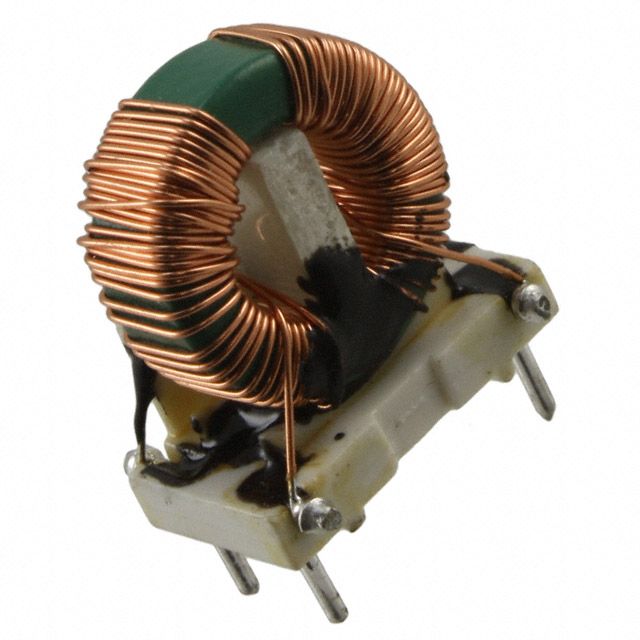

Triad Magnetics
Manufacturer : Triad Magnetics
Packaging : Bulk
Series : CMT
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 4mH @ 1kHz
Current Rating (Max) : 1.7A
DC Resistance (DCR) (Max) : 173 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -55°C ~ 105°C
Ratings : -
Approvals : -
Features : ESD
Mounting Type : Through Hole
Size / Dimension : 0.760" L x 0.615" W (19.30mm x 15.62mm)
Height (Max) : 0.900" (22.86mm)
Package / Case : Vertical, 4 PC Pin
0
735 in stock
