Triad Magnetics
- For over 70 years, consumer, commercial and industrial electronic devices have relied on innovative magnetics technology from Triad Magnetics. We offer solutions for power conversion, filtering, isolation and more. Our products include transformers for audio, gate drive, power, medical/dental, wall-mount and plug-in applications; as well as inductors for current sense, common mode, toroidal, filtering and power applications.
Today, you’ll find a wide range of Triad magnetic components in advanced computers, telecommunication systems, automation controls, audio devices and other equipment. Lewis W. Howard founded Triad during the 1940s in Venice, California. He was a UC Berkley graduate, a Wescon Trade Show cofounder and was recognized as an IEEE life member.
Part Number
Manufacturer
Description
Unit Price
In Stock
Triad Magnetics
Manufacturer : Triad Magnetics
Packaging : Plastic Box with Bin Guide
Series : CME
Part Status : Active
Kit Type : Common Mode Chokes for Power Lines
Quantity : 9 Pieces (9 Values - 1 Each)
Mounting Type : Through Hole
Packages Included : -
Features : -
0
55 in stock

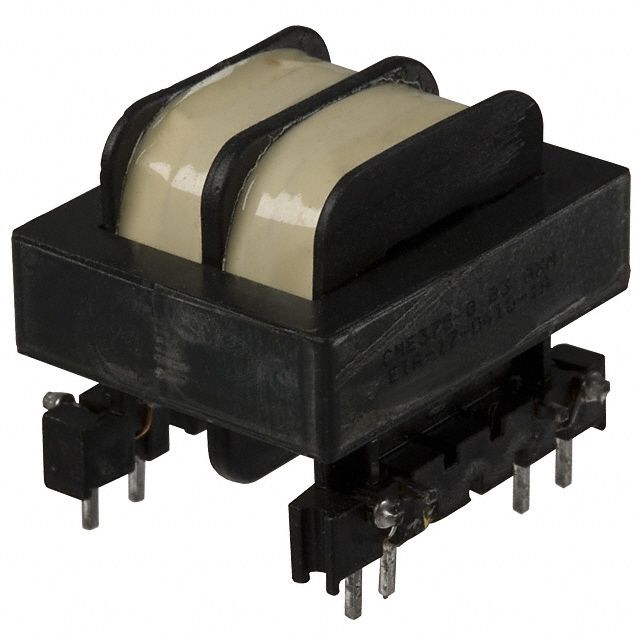

Triad Magnetics
Manufacturer : Triad Magnetics
Packaging : Bulk
Series : CME
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 4.4mH @ 10kHz
Current Rating (Max) : 5.5A
DC Resistance (DCR) (Max) : 49 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -
Ratings : -
Approvals : -
Features : ESD
Mounting Type : Through Hole
Size / Dimension : 1.500" L x 1.260" W (38.10mm x 32.00mm)
Height (Max) : 1.180" (29.97mm)
Package / Case : Vertical, 4 PC Pin
0
299 in stock

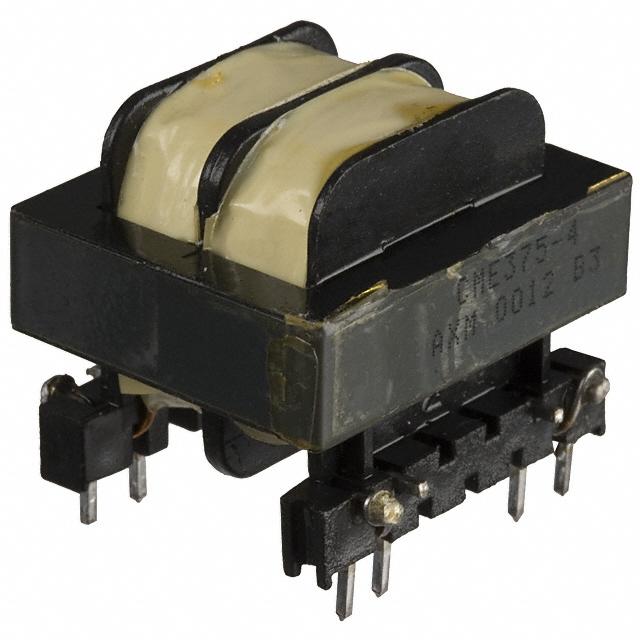

Triad Magnetics
Manufacturer : Triad Magnetics
Packaging : Bulk
Series : CME
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 6.9mH @ 10kHz
Current Rating (Max) : 4.4A
DC Resistance (DCR) (Max) : 77 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -
Ratings : -
Approvals : -
Features : ESD
Mounting Type : Through Hole
Size / Dimension : 1.500" L x 1.260" W (38.10mm x 32.00mm)
Height (Max) : 1.180" (29.97mm)
Package / Case : Vertical, 4 PC Pin
0
937 in stock

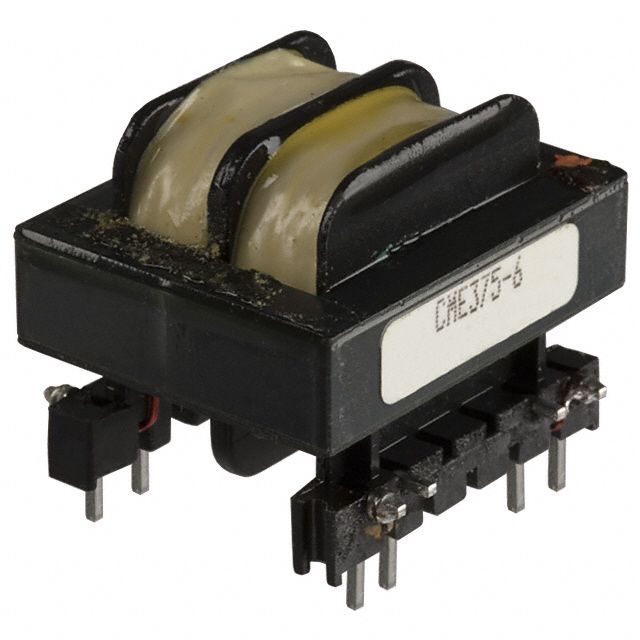

Triad Magnetics
Manufacturer : Triad Magnetics
Packaging : Bulk
Series : CME
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 10.9mH @ 10kHz
Current Rating (Max) : 3.5A
DC Resistance (DCR) (Max) : 122 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -
Ratings : -
Approvals : -
Features : ESD
Mounting Type : Through Hole
Size / Dimension : 1.500" L x 1.260" W (38.10mm x 32.00mm)
Height (Max) : 1.180" (29.97mm)
Package / Case : Vertical, 4 PC Pin
0
122 in stock
Triad Magnetics
Manufacturer : Triad Magnetics
Packaging : Bulk
Series : CME
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 17.8mH @ 10kHz
Current Rating (Max) : 2.7A
DC Resistance (DCR) (Max) : 196 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -
Ratings : -
Approvals : -
Features : ESD
Mounting Type : Through Hole
Size / Dimension : 1.500" L x 1.260" W (38.10mm x 32.00mm)
Height (Max) : 1.180" (29.97mm)
Package / Case : Vertical, 4 PC Pin
0
371 in stock
Triad Magnetics
Manufacturer : Triad Magnetics
Packaging : Bulk
Series : CME
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 17.8mH @ 10kHz
Current Rating (Max) : 2.7A
DC Resistance (DCR) (Max) : 196 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -
Ratings : -
Approvals : -
Features : ESD
Mounting Type : Through Hole
Size / Dimension : 1.500" L x 1.260" W (38.10mm x 32.00mm)
Height (Max) : 1.180" (29.97mm)
Package / Case : Vertical, 4 PC Pin
0
11 in stock
Triad Magnetics
Manufacturer : Triad Magnetics
Packaging : Bulk
Series : CME
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 43.6mH @ 10kHz
Current Rating (Max) : 1.75A
DC Resistance (DCR) (Max) : 489 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -
Ratings : -
Approvals : -
Features : ESD
Mounting Type : Through Hole
Size / Dimension : 1.500" L x 1.260" W (38.10mm x 32.00mm)
Height (Max) : 1.180" (29.97mm)
Package / Case : Vertical, 4 PC Pin
0
875 in stock
Triad Magnetics
Manufacturer : Triad Magnetics
Packaging : Bulk
Series : CME
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 70.3mH @ 10kHz
Current Rating (Max) : 1.38A
DC Resistance (DCR) (Max) : 785 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -
Ratings : -
Approvals : -
Features : ESD
Mounting Type : Through Hole
Size / Dimension : 1.500" L x 1.260" W (38.10mm x 32.00mm)
Height (Max) : 1.180" (29.97mm)
Package / Case : Vertical, 4 PC Pin
0
416 in stock
Triad Magnetics
Manufacturer : Triad Magnetics
Packaging : Bulk
Series : CME
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 111.6mH @ 10kHz
Current Rating (Max) : 1.1A
DC Resistance (DCR) (Max) : 1.24 Ohm
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -
Ratings : -
Approvals : -
Features : ESD
Mounting Type : Through Hole
Size / Dimension : 1.500" L x 1.260" W (38.10mm x 32.00mm)
Height (Max) : 1.180" (29.97mm)
Package / Case : Vertical, 4 PC Pin
0
8 in stock
Triad Magnetics
Manufacturer : Triad Magnetics
Packaging : Bulk
Series : CME
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 176.1mH @ 10kHz
Current Rating (Max) : 870mA
DC Resistance (DCR) (Max) : 1.98 Ohm
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -
Ratings : -
Approvals : -
Features : ESD
Mounting Type : Through Hole
Size / Dimension : 1.500" L x 1.260" W (38.10mm x 32.00mm)
Height (Max) : 1.180" (29.97mm)
Package / Case : Vertical, 4 PC Pin
0
25 in stock
Triad Magnetics
Manufacturer : Triad Magnetics
Packaging : Plastic Box with Bin Guide
Series : CME
Part Status : Active
Kit Type : Common Mode Chokes for Power Lines
Quantity : 9 Pieces (9 Values - 1 Each)
Mounting Type : Through Hole
Packages Included : -
Features : -
0
18 in stock

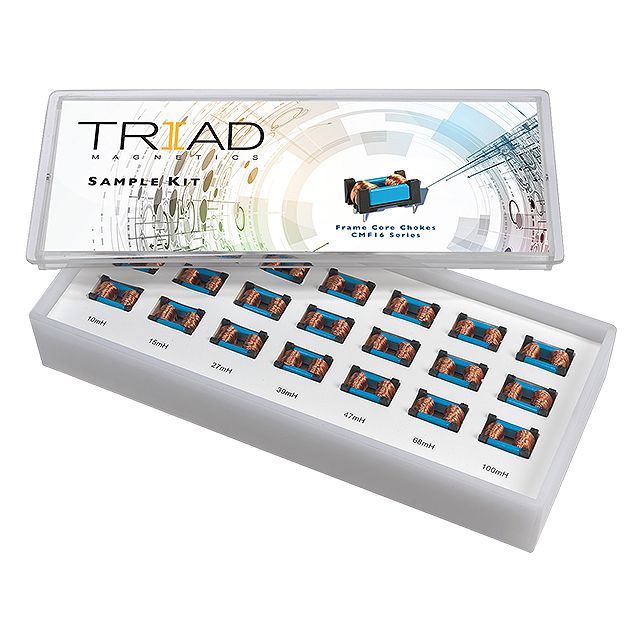

Triad Magnetics
Manufacturer : Triad Magnetics
Packaging : Bulk
Series : CMF
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 10mH @ 10kHz
Current Rating (Max) : 1.6A
DC Resistance (DCR) (Max) : 320 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : 300V
Operating Temperature : -40°C ~ 105°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 0.965" L x 0.571" W (24.50mm x 14.50mm)
Height (Max) : 0.531" (13.50mm)
Package / Case : Vertical, 4 PC Pin
0
760 in stock
