Standex-Meder Electronics
- Standex-Meder Electronics is a worldwide market leader in the design, development and manufacture of standard and custom electro-magnetic components, including magnetics products and reed switch-based solutions.
Our magnetic offerings include planar, Rogowski, current, and low- and high-frequency transformers and inductors. Our reed switch-based solutions include Meder, Standex and OKI brand reed switches, as well as a complete portfolio of reed relays, and a comprehensive array of fluid level, proximity, motion, water flow, HVAC condensate, hydraulic pressure differential, capacitive, conductive and inductive sensors.
Part Number
Manufacturer
Description
Unit Price
In Stock

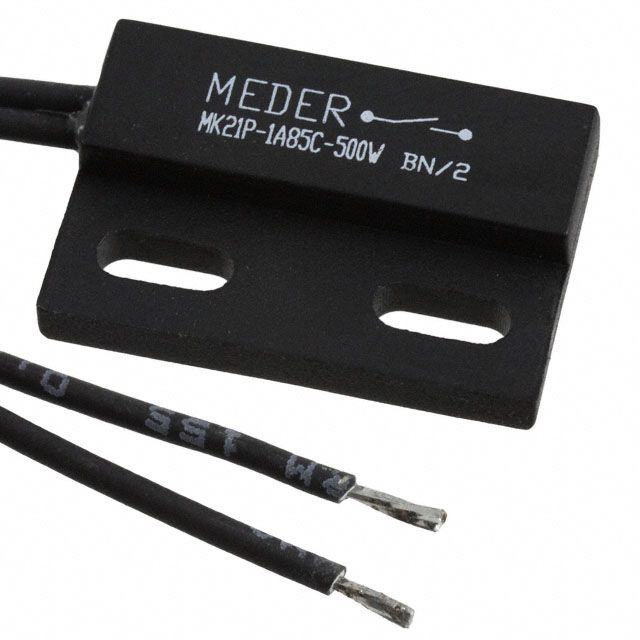

Standex-Meder Electronics
Manufacturer : Standex-Meder Electronics
Series : MK21
Part Status : Active
Output Type : SPST-NO
Type : Reed Switch
Actuator Material : Magnet
Termination Style : Wire Leads
Frequency : -
Voltage - Supply : -
Must Operate : 10 ~ 60AT
Must Release : 4 ~ 54AT
Operating Temperature : -30°C ~ 150°C (TA)
Package / Case : Molded Body
0
6 in stock
Standex-Meder Electronics
Manufacturer : Standex-Meder Electronics
Series : MK21
Part Status : Obsolete
Output Type : SPST-NO
Type : Reed Switch
Actuator Material : Magnet
Termination Style : Wire Leads
Frequency : -
Voltage - Supply : -
Must Operate : 20 ~ 60AT
Must Release : 12 ~ 54AT
Operating Temperature : -30°C ~ 150°C (TA)
Package / Case : Molded Body
0
100 in stock

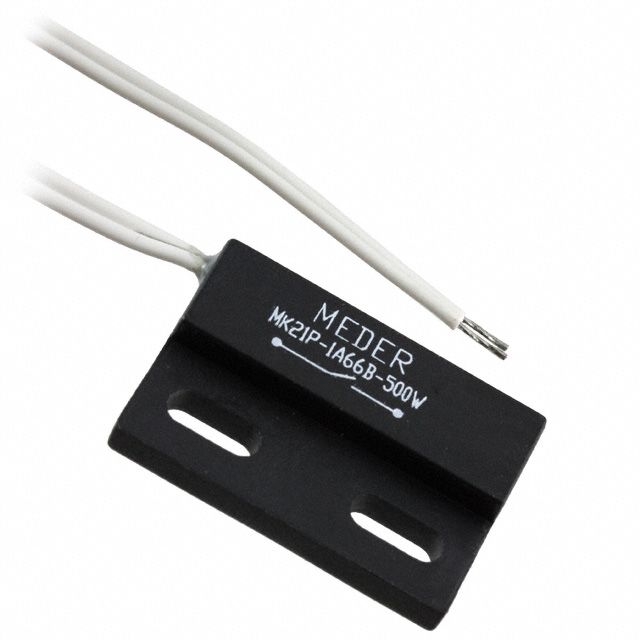

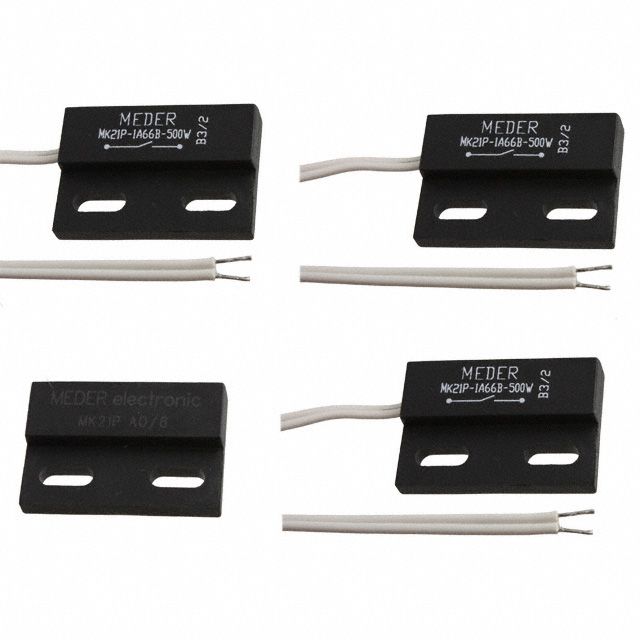

Standex-Meder Electronics
Manufacturer : Standex-Meder Electronics
Series : MK21
Part Status : Active
Sensor Type : Proximity, Magnetic
Sensing Range : 25 ~ 56 AT
Interface : -
Sensitivity : >1.70mT, >2.30mT, 2.70mT
Voltage - Supply : -
Embedded : No
Supplied Contents : Board(s), Cable(s), Accessories
Utilized IC / Part : MK21P-1A66B (9212100054), MK21P-1A66C (9213100054), MK21P-1A66D (9214100054)
0
10 in stock

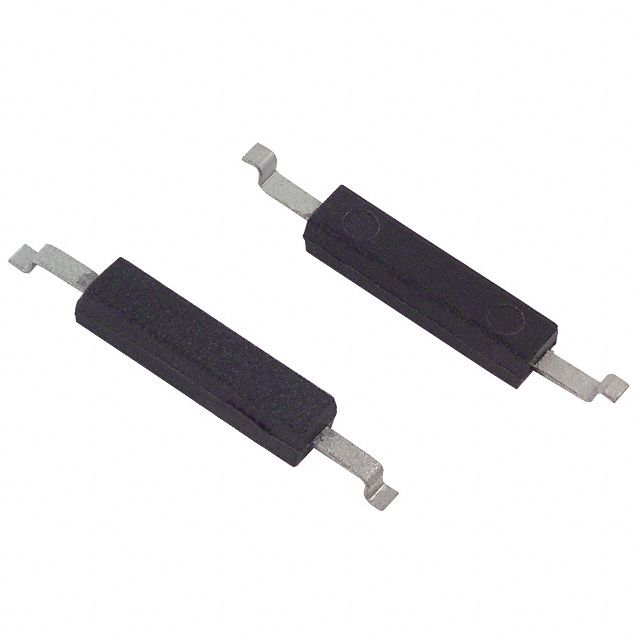

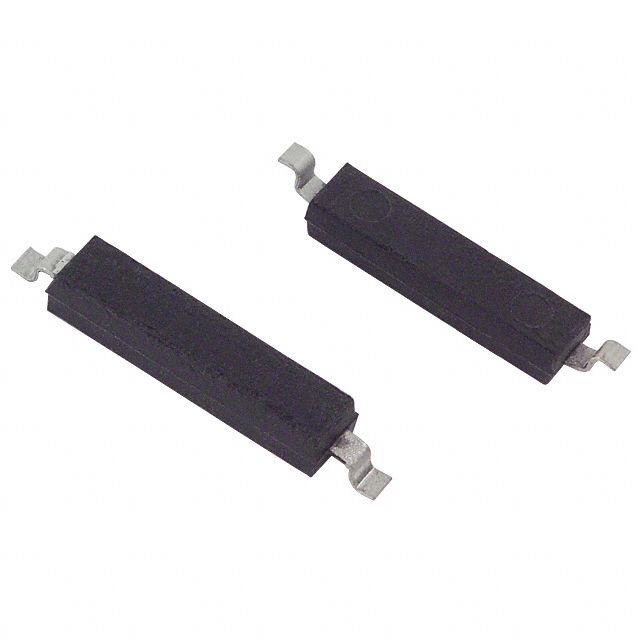

Standex-Meder Electronics
Manufacturer : Standex-Meder Electronics
Packaging : Tape & Reel (TR)
Series : MK22
Part Status : Active
Type : Molded Body
Circuit : SPST-NO
Operate Range : 10 ~ 15AT
Release Range : -
Current - Switching : 1A (AC/DC)
Voltage - Switching AC : 200V
Voltage - Switching DC : 200V
Power - Rated : 20W
Operate Time : 0.5ms
Release Time : 0.1ms
Mounting Type : Surface Mount
Termination Style : Gull Wing
Length - Overall : 0.614" (15.60mm)
Size - Body : 0.457" L x 0.116" W x 0.091" H (11.60mm x 2.95mm x 2.30mm)
Height Above Board : 0.094" (2.40mm)
Operating Temperature : -40°C ~ 130°C
Capacitance : 0.3pF
Current - Carry : 1.25A (AC/DC)
0
100 in stock
Standex-Meder Electronics
Manufacturer : Standex-Meder Electronics
Packaging : Tape & Reel (TR)
Series : MK22
Part Status : Active
Type : Molded Body
Circuit : SPST-NO
Operate Range : 10 ~ 15AT
Release Range : -
Current - Switching : 1A (AC/DC)
Voltage - Switching AC : 200V
Voltage - Switching DC : 200V
Power - Rated : 20W
Operate Time : 0.5ms
Release Time : 0.1ms
Mounting Type : Surface Mount
Termination Style : Gull Wing
Length - Overall : 0.768" (19.50mm)
Size - Body : 0.457" L x 0.116" W x 0.091" H (11.60mm x 2.95mm x 2.30mm)
Height Above Board : 0.094" (2.40mm)
Operating Temperature : -40°C ~ 130°C
Capacitance : 0.3pF
Current - Carry : 1.25A (AC/DC)
0
100 in stock

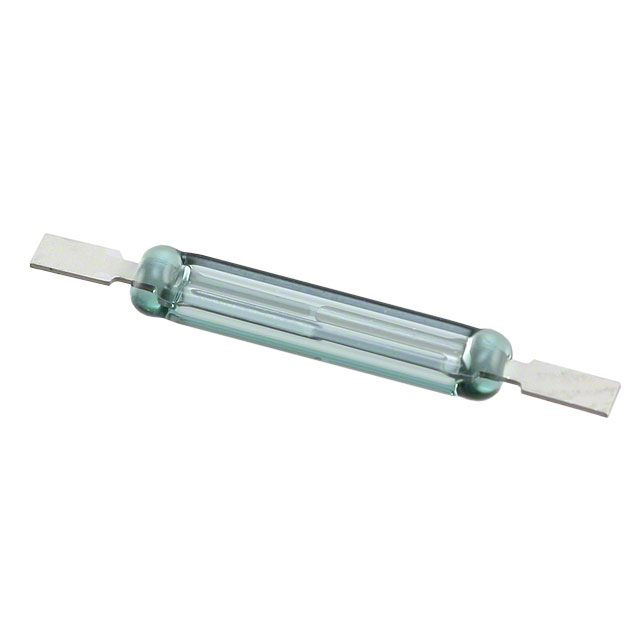

Standex-Meder Electronics
Manufacturer : Standex-Meder Electronics
Packaging : Cut Tape (CT)
Alternate Packaging
Series : MK23
Part Status : Discontinued at
Type : Glass Body
Circuit : SPST-NO
Operate Range : 5 ~ 10AT
Release Range : -
Current - Switching : 1A (AC/DC)
Voltage - Switching AC : 200V
Voltage - Switching DC : 200V
Power - Rated : 15W
Operate Time : 0.5ms
Release Time : 0.1ms
Mounting Type : Surface Mount
Termination Style : Axial, Flat
Length - Overall : 0.614" (15.60mm)
Size - Body : 0.087" Dia x 0.413" L (2.20mm x 10.50mm)
Height Above Board : -
Operating Temperature : -40°C ~ 130°C
Capacitance : 0.3pF
Current - Carry : 1.25A (AC/DC)
0
100 in stock

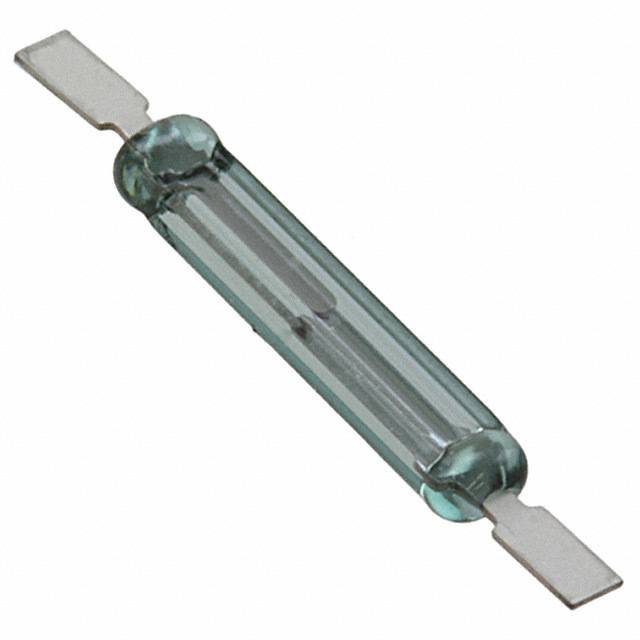

Standex-Meder Electronics
Manufacturer : Standex-Meder Electronics
Packaging : Cut Tape (CT)
Alternate Packaging
Series : MK23
Part Status : Discontinued at
Type : Glass Body
Circuit : SPST-NO
Operate Range : 10 ~ 15AT
Release Range : -
Current - Switching : 1A (AC/DC)
Voltage - Switching AC : 200V
Voltage - Switching DC : 200V
Power - Rated : 15W
Operate Time : 0.5ms
Release Time : 0.1ms
Mounting Type : Surface Mount
Termination Style : Axial, Flat
Length - Overall : 0.614" (15.60mm)
Size - Body : 0.087" Dia x 0.413" L (2.20mm x 10.50mm)
Height Above Board : -
Operating Temperature : -40°C ~ 130°C
Capacitance : 0.3pF
Current - Carry : 1.25A (AC/DC)
0
100 in stock

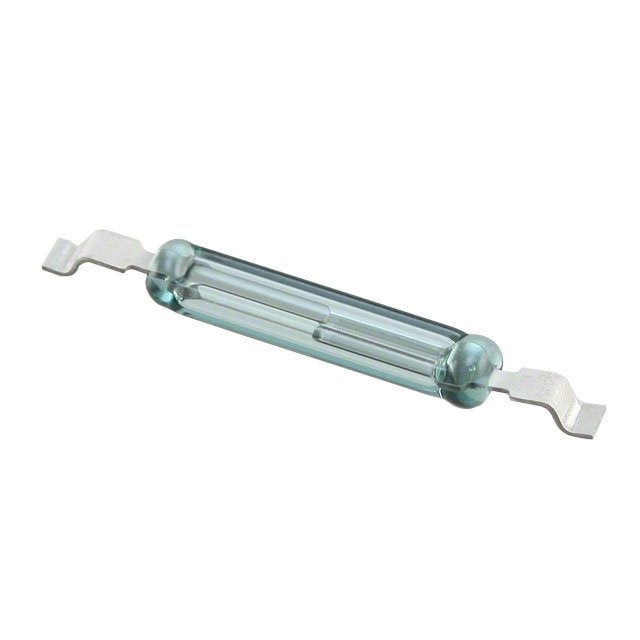

Standex-Meder Electronics
Manufacturer : Standex-Meder Electronics
Packaging : Tape & Reel (TR)
Series : MK23
Part Status : Active
Type : Glass Body
Circuit : SPST-NO
Operate Range : 10 ~ 15AT
Release Range : -
Current - Switching : 1A (AC/DC)
Voltage - Switching AC : 200V
Voltage - Switching DC : 200V
Power - Rated : 15W
Operate Time : 0.5ms
Release Time : 0.1ms
Mounting Type : Surface Mount
Termination Style : Gull Wing
Length - Overall : 0.620" (15.75mm)
Size - Body : 0.087" Dia x 0.413" L (2.20mm x 10.50mm)
Height Above Board : 0.077" (1.95mm)
Operating Temperature : -40°C ~ 130°C
Capacitance : 0.3pF
Current - Carry : 1.25A (AC/DC)
0
100 in stock

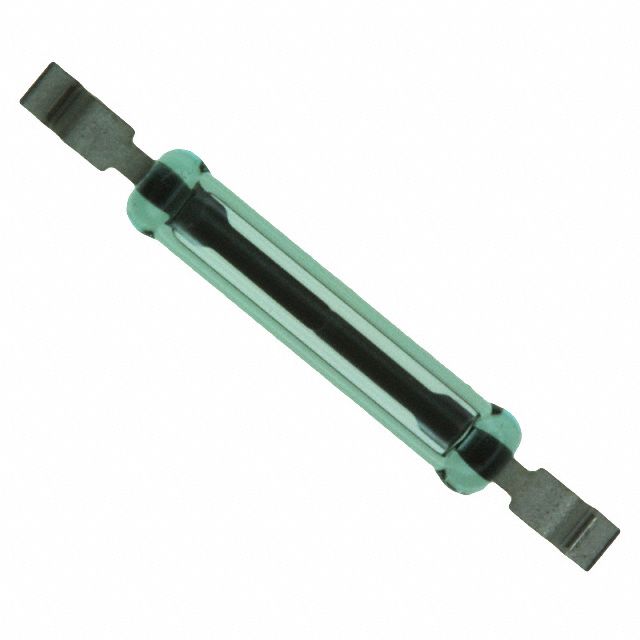

Standex-Meder Electronics
Manufacturer : Standex-Meder Electronics
Packaging : Tape & Reel (TR)
Series : MK23
Part Status : Active
Type : Glass Body
Circuit : SPST-NO
Operate Range : 10 ~ 15AT
Release Range : -
Current - Switching : 1A (AC/DC)
Voltage - Switching AC : 200V
Voltage - Switching DC : 200V
Power - Rated : 15W
Operate Time : 0.5ms
Release Time : 0.1ms
Mounting Type : Surface Mount
Termination Style : Gull Wing
Length - Overall : 0.776" (19.70mm)
Size - Body : 0.087" Dia x 0.413" L (2.20mm x 10.50mm)
Height Above Board : 0.077" (1.95mm)
Operating Temperature : -40°C ~ 130°C
Capacitance : 0.3pF
Current - Carry : 1.25A (AC/DC)
0
100 in stock

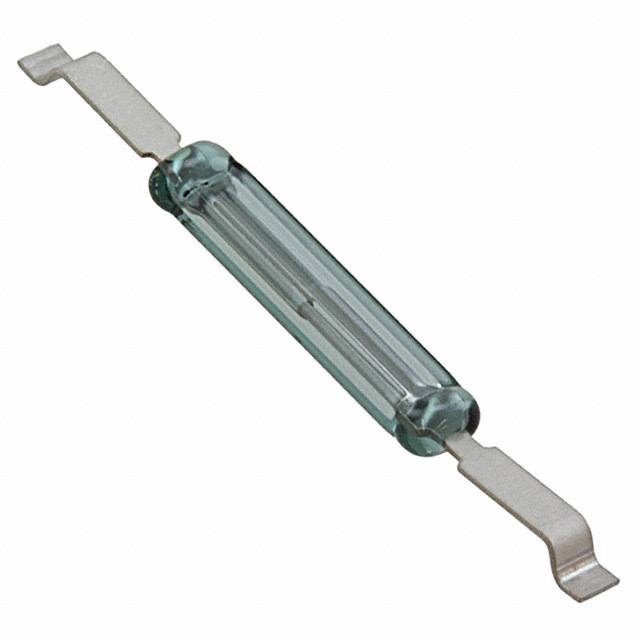

Standex-Meder Electronics
Manufacturer : Standex-Meder Electronics
Packaging : Tape & Reel (TR)
Series : MK23
Part Status : Active
Type : Glass Body
Circuit : SPST-NO
Operate Range : 15 ~ 20AT
Release Range : -
Current - Switching : 1A (AC/DC)
Voltage - Switching AC : 200V
Voltage - Switching DC : 200V
Power - Rated : 15W
Operate Time : 0.5ms
Release Time : 0.1ms
Mounting Type : Surface Mount
Termination Style : Gull Wing
Length - Overall : 0.620" (15.75mm)
Size - Body : 0.087" Dia x 0.413" L (2.20mm x 10.50mm)
Height Above Board : 0.077" (1.95mm)
Operating Temperature : -40°C ~ 130°C
Capacitance : 0.3pF
Current - Carry : 1.25A (AC/DC)
0
100 in stock
Standex-Meder Electronics
Manufacturer : Standex-Meder Electronics
Packaging : Tape & Reel (TR)
Series : MK23
Part Status : Active
Type : Glass Body
Circuit : SPST-NO
Operate Range : 15 ~ 20AT
Release Range : -
Current - Switching : 1A (AC/DC)
Voltage - Switching AC : 200V
Voltage - Switching DC : 200V
Power - Rated : 15W
Operate Time : 0.5ms
Release Time : 0.1ms
Mounting Type : Surface Mount
Termination Style : Gull Wing
Length - Overall : 0.776" (19.70mm)
Size - Body : 0.087" Dia x 0.413" L (2.20mm x 10.50mm)
Height Above Board : 0.077" (1.95mm)
Operating Temperature : -40°C ~ 130°C
Capacitance : 0.3pF
Current - Carry : 1.25A (AC/DC)
0
100 in stock

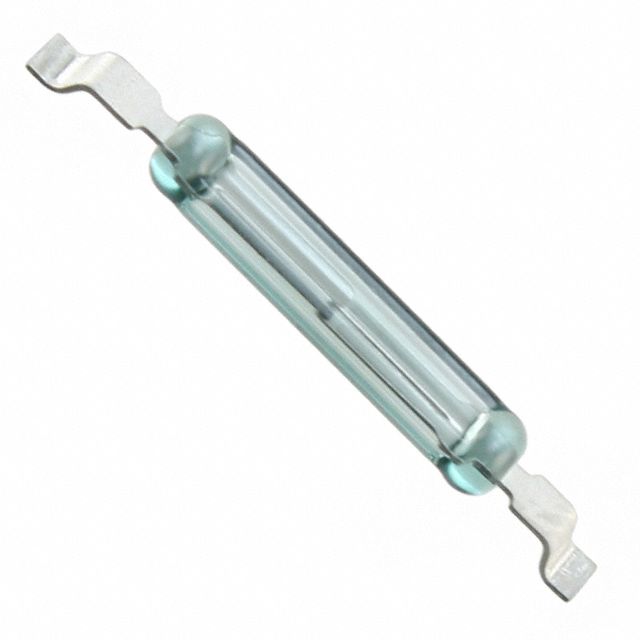

Standex-Meder Electronics
Manufacturer : Standex-Meder Electronics
Packaging : Tape & Reel (TR)
Series : MK23
Part Status : Active
Type : Glass Body
Circuit : SPST-NO
Operate Range : 20 ~ 25AT
Release Range : -
Current - Switching : 1A (AC/DC)
Voltage - Switching AC : 200V
Voltage - Switching DC : 200V
Power - Rated : 15W
Operate Time : 0.5ms
Release Time : 0.1ms
Mounting Type : Surface Mount
Termination Style : Gull Wing
Length - Overall : 0.620" (15.75mm)
Size - Body : 0.087" Dia x 0.413" L (2.20mm x 10.50mm)
Height Above Board : 0.077" (1.95mm)
Operating Temperature : -40°C ~ 130°C
Capacitance : 0.3pF
Current - Carry : 1.25A (AC/DC)
0
100 in stock
