Standex-Meder Electronics
- Standex-Meder Electronics is a worldwide market leader in the design, development and manufacture of standard and custom electro-magnetic components, including magnetics products and reed switch-based solutions.
Our magnetic offerings include planar, Rogowski, current, and low- and high-frequency transformers and inductors. Our reed switch-based solutions include Meder, Standex and OKI brand reed switches, as well as a complete portfolio of reed relays, and a comprehensive array of fluid level, proximity, motion, water flow, HVAC condensate, hydraulic pressure differential, capacitive, conductive and inductive sensors.
Part Number
Manufacturer
Description
Unit Price
In Stock

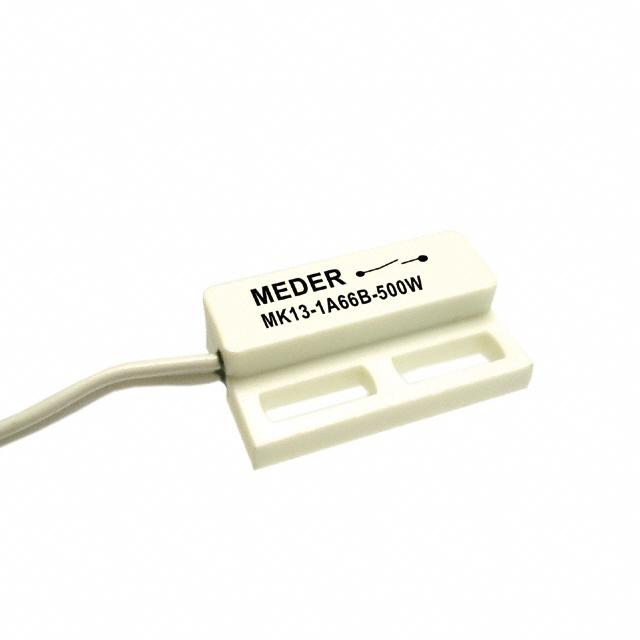

Standex-Meder Electronics
Manufacturer : Standex-Meder Electronics
Series : MK13
Part Status : Active
Output Type : SPST-NO
Type : Reed Switch
Actuator Material : Magnet
Termination Style : Cable, Flat
Frequency : -
Voltage - Supply : -
Must Operate : 10 ~ 30AT
Must Release : 4 ~ 27AT
Operating Temperature : -30°C ~ 70°C (TA)
Package / Case : Molded Body
0
550 in stock

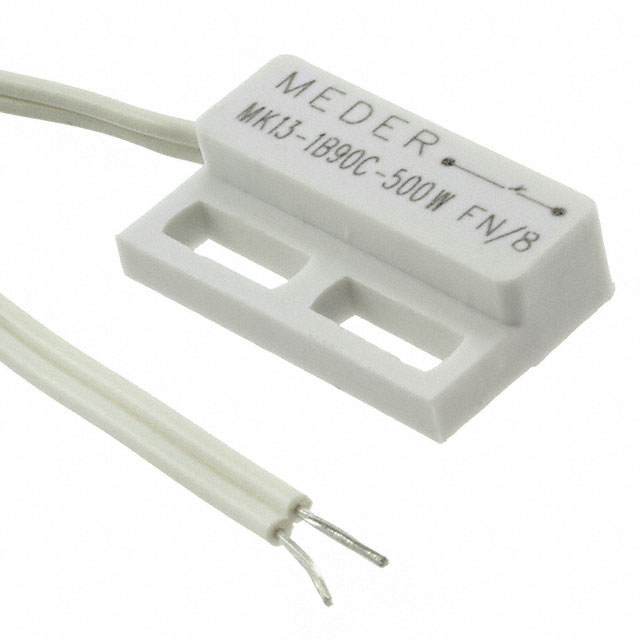

Standex-Meder Electronics
Manufacturer : Standex-Meder Electronics
Series : MK13
Part Status : Active
Output Type : SPST-NC
Type : Reed Switch
Actuator Material : Magnet
Termination Style : Wire Leads
Frequency : -
Voltage - Supply : -
Must Operate : 15 ~ 40AT
Must Release : -
Operating Temperature : -30°C ~ 70°C (TA)
Package / Case : Molded Body
0
383 in stock

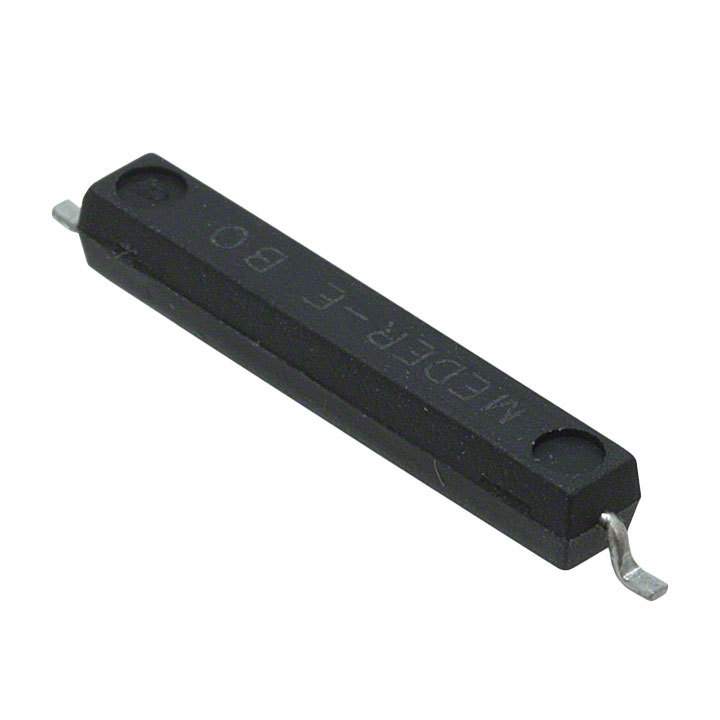

Standex-Meder Electronics
Manufacturer : Standex-Meder Electronics
Packaging : Tape & Reel (TR)
Series : MK15-501
Part Status : Obsolete
Type : Molded Body
Circuit : SPST-NO
Operate Range : 15 ~ 20AT
Release Range : -
Current - Switching : 500mA (AC/DC)
Voltage - Switching AC : 200V
Voltage - Switching DC : 200V
Power - Rated : 10W
Operate Time : 0.5ms
Release Time : 0.1ms
Mounting Type : Surface Mount
Termination Style : Gull Wing
Length - Overall : 0.768" (19.50mm)
Size - Body : 0.630" L x 0.110" W x 0.110" H (16.00mm x 2.80mm x 2.80mm)
Height Above Board : 0.110" (2.80mm)
Operating Temperature : -40°C ~ 125°C
Capacitance : 0.3pF
Current - Carry : 1A (AC/DC)
0
100 in stock
Standex-Meder Electronics
Manufacturer : Standex-Meder Electronics
Packaging : Tape & Reel (TR)
Series : MK15-501
Part Status : Obsolete
Type : Molded Body
Circuit : SPST-NO
Operate Range : 20 ~ 25AT
Release Range : -
Current - Switching : 500mA (AC/DC)
Voltage - Switching AC : 200V
Voltage - Switching DC : 200V
Power - Rated : 10W
Operate Time : 0.5ms
Release Time : 0.1ms
Mounting Type : Surface Mount
Termination Style : Gull Wing
Length - Overall : 0.768" (19.50mm)
Size - Body : 0.630" L x 0.110" W x 0.110" H (16.00mm x 2.80mm x 2.80mm)
Height Above Board : 0.110" (2.80mm)
Operating Temperature : -40°C ~ 125°C
Capacitance : 0.3pF
Current - Carry : 1A (AC/DC)
0
100 in stock
Standex-Meder Electronics
Manufacturer : Standex-Meder Electronics
Packaging : Cut Tape (CT)
Alternate Packaging
Series : MK15
Part Status : Active
Type : Molded Body
Circuit : SPST-NO
Operate Range : 10 ~ 15AT
Release Range : -
Current - Switching : 500mA (AC/DC)
Voltage - Switching AC : 180V
Voltage - Switching DC : 180V
Power - Rated : 10W
Operate Time : 0.5ms
Release Time : 0.05ms
Mounting Type : Surface Mount
Termination Style : Gull Wing
Length - Overall : 0.768" (19.50mm)
Size - Body : 0.630" L x 0.098" W x 0.098" H (16.00mm x 2.50mm x 2.50mm)
Height Above Board : 0.102" (2.60mm)
Operating Temperature : -40°C ~ 130°C
Capacitance : 0.3pF
Current - Carry : 1A (AC/DC)
0
38491 in stock
Standex-Meder Electronics
Manufacturer : Standex-Meder Electronics
Packaging : Cut Tape (CT)
Alternate Packaging
Series : MK15
Part Status : Active
Type : Molded Body
Circuit : SPST-NC
Operate Range : 10 ~ 15AT
Release Range : -
Current - Switching : 500mA (AC/DC)
Voltage - Switching AC : 180V
Voltage - Switching DC : 180V
Power - Rated : 10W
Operate Time : 0.5ms
Release Time : 0.05ms
Mounting Type : Surface Mount
Termination Style : Gull Wing
Length - Overall : 0.768" (19.50mm)
Size - Body : 0.630" L x 0.098" W x 0.148" H (16.00mm x 2.50mm x 3.75mm)
Height Above Board : 0.152" (3.85mm)
Operating Temperature : -40°C ~ 130°C
Capacitance : 0.3pF
Current - Carry : 1A (AC/DC)
0
2680 in stock
Standex-Meder Electronics
Manufacturer : Standex-Meder Electronics
Packaging : Cut Tape (CT)
Alternate Packaging
Series : MK15
Part Status : Discontinued at
Type : Molded Body
Circuit : SPST-NO
Operate Range : 15 ~ 20AT
Release Range : -
Current - Switching : 500mA (AC/DC)
Voltage - Switching AC : 180V
Voltage - Switching DC : 180V
Power - Rated : 10W
Operate Time : 0.5ms
Release Time : 0.05ms
Mounting Type : Surface Mount
Termination Style : Gull Wing
Length - Overall : 0.768" (19.50mm)
Size - Body : 0.630" L x 0.098" W x 0.098" H (16.00mm x 2.50mm x 2.50mm)
Height Above Board : 0.102" (2.60mm)
Operating Temperature : -40°C ~ 130°C
Capacitance : 0.3pF
Current - Carry : 1A (AC/DC)
0
100 in stock
Standex-Meder Electronics
Manufacturer : Standex-Meder Electronics
Packaging : Cut Tape (CT)
Alternate Packaging
Series : MK15
Part Status : Active
Type : Molded Body
Circuit : SPST-NO
Operate Range : 25 ~ 30AT
Release Range : -
Current - Switching : 500mA (AC/DC)
Voltage - Switching AC : 180V
Voltage - Switching DC : 180V
Power - Rated : 10W
Operate Time : 0.5ms
Release Time : 0.05ms
Mounting Type : Surface Mount
Termination Style : Gull Wing
Length - Overall : 0.768" (19.50mm)
Size - Body : 0.630" L x 0.098" W x 0.098" H (16.00mm x 2.50mm x 2.50mm)
Height Above Board : 0.102" (2.60mm)
Operating Temperature : -40°C ~ 130°C
Capacitance : 0.3pF
Current - Carry : 1A (AC/DC)
0
7504 in stock

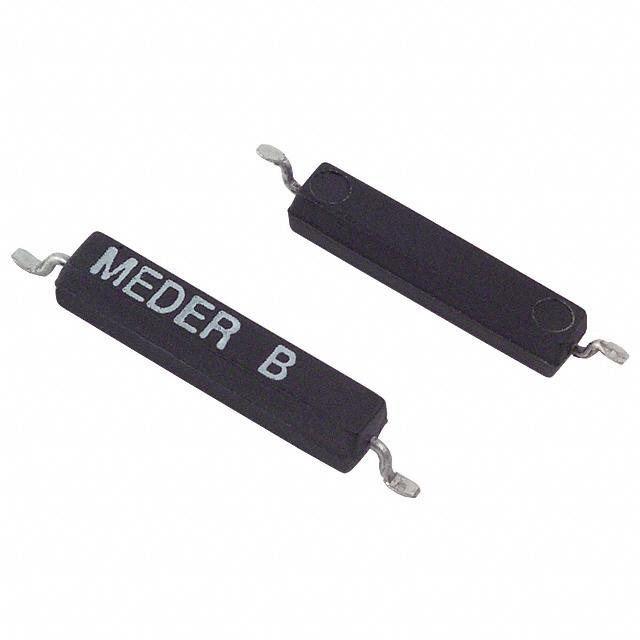

Standex-Meder Electronics
Manufacturer : Standex-Meder Electronics
Packaging : Cut Tape (CT)
Alternate Packaging
Series : MK16
Part Status : Active
Type : Molded Body
Circuit : SPST-NO
Operate Range : 10 ~ 15AT
Release Range : -
Current - Switching : 400mA (AC/DC)
Voltage - Switching AC : 200V
Voltage - Switching DC : 200V
Power - Rated : 10W
Operate Time : 0.6ms
Release Time : 0.05ms
Mounting Type : Surface Mount
Termination Style : Gull Wing
Length - Overall : 0.614" (15.60mm)
Size - Body : 0.457" L x 0.091" W x 0.091" H (11.60mm x 2.30mm x 2.30mm)
Height Above Board : 0.094" (2.40mm)
Operating Temperature : -40°C ~ 130°C
Capacitance : 0.2pF
Current - Carry : 500mA (AC/DC)
0
26495 in stock

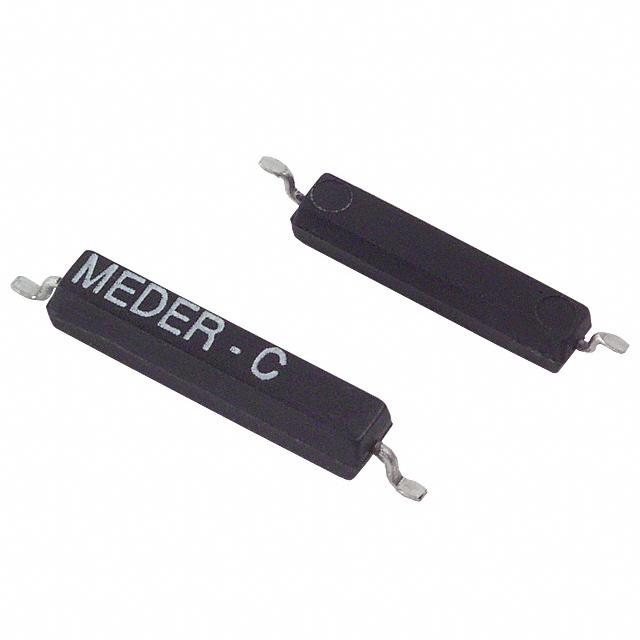

Standex-Meder Electronics
Manufacturer : Standex-Meder Electronics
Packaging : Cut Tape (CT)
Alternate Packaging
Series : MK16
Part Status : Active
Type : Molded Body
Circuit : SPST-NO
Operate Range : 15 ~ 20AT
Release Range : -
Current - Switching : 400mA (AC/DC)
Voltage - Switching AC : 200V
Voltage - Switching DC : 200V
Power - Rated : 10W
Operate Time : 0.6ms
Release Time : 0.05ms
Mounting Type : Surface Mount
Termination Style : Gull Wing
Length - Overall : 0.614" (15.60mm)
Size - Body : 0.457" L x 0.091" W x 0.091" H (11.60mm x 2.30mm x 2.30mm)
Height Above Board : 0.094" (2.40mm)
Operating Temperature : -40°C ~ 130°C
Capacitance : 0.2pF
Current - Carry : 500mA (AC/DC)
0
14073 in stock

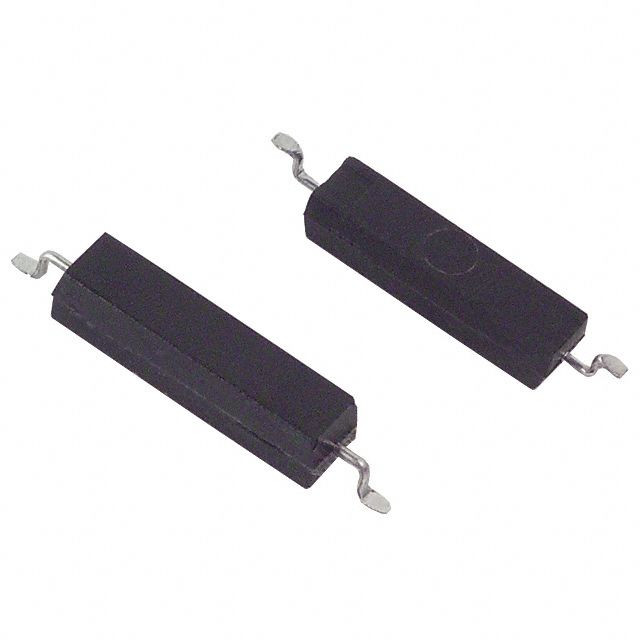

Standex-Meder Electronics
Manufacturer : Standex-Meder Electronics
Packaging : Cut Tape (CT)
Alternate Packaging
Series : MK17
Part Status : Active
Type : Molded Body
Circuit : SPST-NO
Operate Range : 10 ~ 15AT
Release Range : -
Current - Switching : 500mA (AC/DC)
Voltage - Switching AC : 170V
Voltage - Switching DC : 170V
Power - Rated : 10W
Operate Time : 0.6ms
Release Time : 0.05ms
Mounting Type : Surface Mount
Termination Style : Gull Wing
Length - Overall : 0.484" (12.30mm)
Size - Body : 0.335" L x 0.083" W x 0.083" H (8.50mm x 2.10mm x 2.10mm)
Height Above Board : 0.083" (2.10mm)
Operating Temperature : -40°C ~ 130°C
Capacitance : 0.4pF
Current - Carry : 500mA (AC/DC)
0
9097 in stock

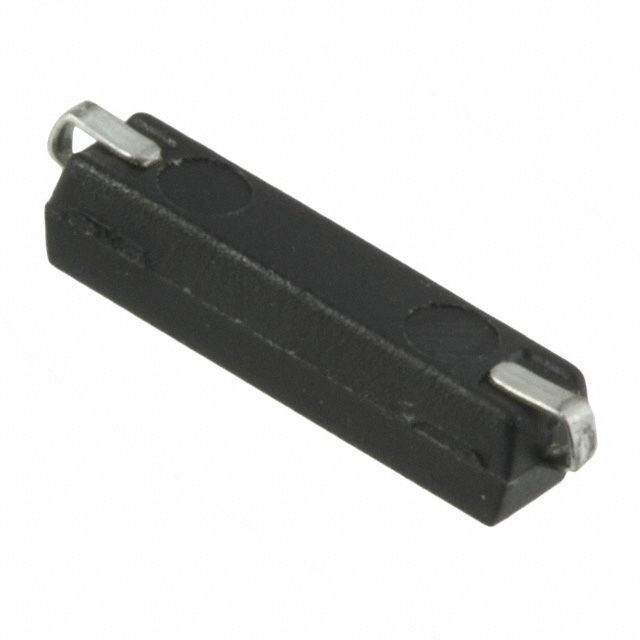

Standex-Meder Electronics
Manufacturer : Standex-Meder Electronics
Packaging : Cut Tape (CT)
Alternate Packaging
Series : MK17
Part Status : Active
Type : Molded Body
Circuit : SPST-NO
Operate Range : 10 ~ 15AT
Release Range : -
Current - Switching : 500mA (AC/DC)
Voltage - Switching AC : 170V
Voltage - Switching DC : 170V
Power - Rated : 10W
Operate Time : 0.6ms
Release Time : 0.05ms
Mounting Type : Surface Mount
Termination Style : J Lead
Length - Overall : 0.382" (9.70mm)
Size - Body : 0.335" L x 0.083" W x 0.083" H (8.50mm x 2.10mm x 2.10mm)
Height Above Board : 0.083" (2.10mm)
Operating Temperature : -40°C ~ 130°C
Capacitance : 0.4pF
Current - Carry : 500mA (AC/DC)
0
4630 in stock
