Standex-Meder Electronics
- Standex-Meder Electronics is a worldwide market leader in the design, development and manufacture of standard and custom electro-magnetic components, including magnetics products and reed switch-based solutions.
Our magnetic offerings include planar, Rogowski, current, and low- and high-frequency transformers and inductors. Our reed switch-based solutions include Meder, Standex and OKI brand reed switches, as well as a complete portfolio of reed relays, and a comprehensive array of fluid level, proximity, motion, water flow, HVAC condensate, hydraulic pressure differential, capacitive, conductive and inductive sensors.
Part Number
Manufacturer
Description
Unit Price
In Stock

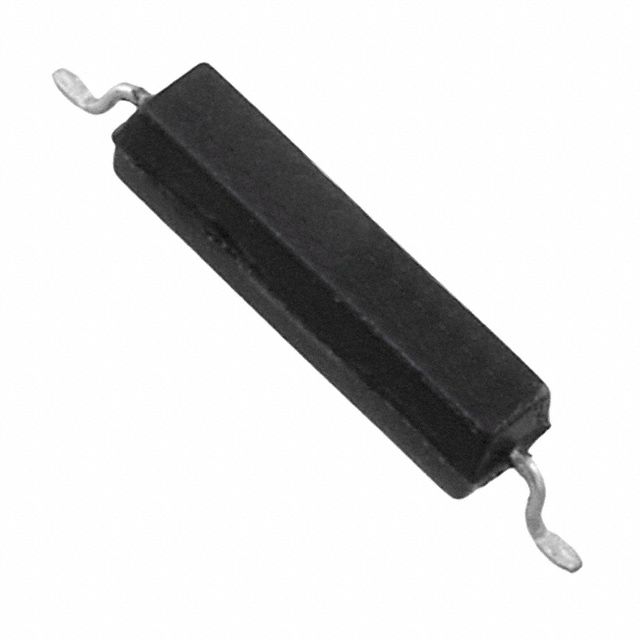

Standex-Meder Electronics
Manufacturer : Standex-Meder Electronics
Packaging : Cut Tape (CT)
Alternate Packaging
Series : MK17
Part Status : Active
Type : Molded Body
Circuit : SPST-NO
Operate Range : 15 ~ 20AT
Release Range : -
Current - Switching : 500mA (AC/DC)
Voltage - Switching AC : 170V
Voltage - Switching DC : 170V
Power - Rated : 10W
Operate Time : 0.6ms
Release Time : 0.05ms
Mounting Type : Surface Mount
Termination Style : Gull Wing
Length - Overall : 0.484" (12.30mm)
Size - Body : 0.335" L x 0.083" W x 0.083" H (8.50mm x 2.10mm x 2.10mm)
Height Above Board : 0.083" (2.10mm)
Operating Temperature : -40°C ~ 130°C
Capacitance : 0.4pF
Current - Carry : 500mA (AC/DC)
0
1869 in stock

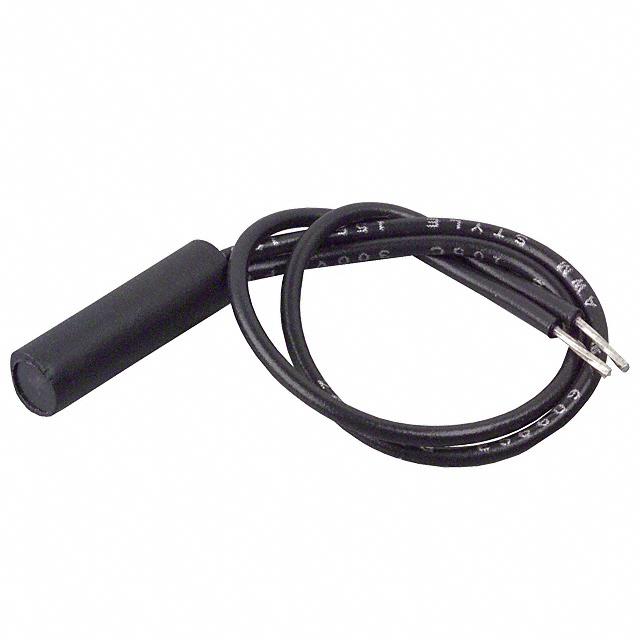

Standex-Meder Electronics
Manufacturer : Standex-Meder Electronics
Series : MK18
Part Status : Active
Output Type : SPST-NO
Type : Reed Switch
Actuator Material : Magnet
Termination Style : Wire Leads
Frequency : -
Voltage - Supply : -
Must Operate : 10 ~ 25AT
Must Release : 4 ~ 22AT
Operating Temperature : -30°C ~ 70°C (TA)
Package / Case : Molded Body
0
87 in stock

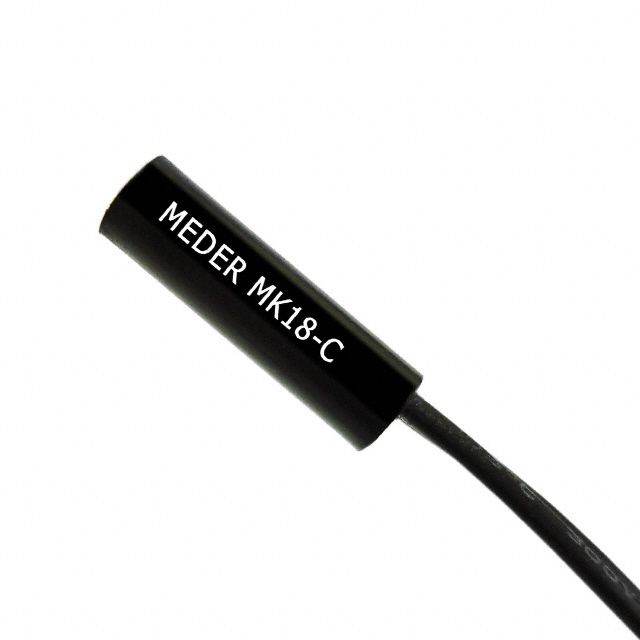

Standex-Meder Electronics
Manufacturer : Standex-Meder Electronics
Series : MK18
Part Status : Active
Output Type : SPST-NO
Type : Reed Switch
Actuator Material : Magnet
Termination Style : Wire Leads
Frequency : -
Voltage - Supply : -
Must Operate : 10 ~ 25AT
Must Release : 4 ~ 22AT
Operating Temperature : -30°C ~ 70°C (TA)
Package / Case : Molded Body
0
50 in stock
Standex-Meder Electronics
Manufacturer : Standex-Meder Electronics
Series : MK18
Part Status : Active
Output Type : SPST-NO
Type : Reed Switch
Actuator Material : Magnet
Termination Style : Wire Leads
Frequency : -
Voltage - Supply : -
Must Operate : 10 ~ 25AT
Must Release : 4 ~ 22AT
Operating Temperature : -30°C ~ 70°C (TA)
Package / Case : Molded Body
0
1004 in stock
Standex-Meder Electronics
Manufacturer : Standex-Meder Electronics
Series : MK20/1
Part Status : Active
Output Type : SPST-NO
Type : Reed Switch
Actuator Material : Magnet
Termination Style : Wire Leads
Frequency : -
Voltage - Supply : -
Must Operate : 10 ~ 25AT
Must Release : 4 ~ 22AT
Operating Temperature : -30°C ~ 70°C (TA)
Package / Case : Cylinder
0
1921 in stock
Standex-Meder Electronics
Manufacturer : Standex-Meder Electronics
Series : MK20/1
Part Status : Active
Output Type : SPST-NO
Type : Reed Switch
Actuator Material : Magnet
Termination Style : Cable Leads
Frequency : -
Voltage - Supply : -
Must Operate : 10 ~ 15AT
Must Release : 4 ~ 22AT
Operating Temperature : -30°C ~ 70°C (TA)
Package / Case : Cylinder
0
200 in stock

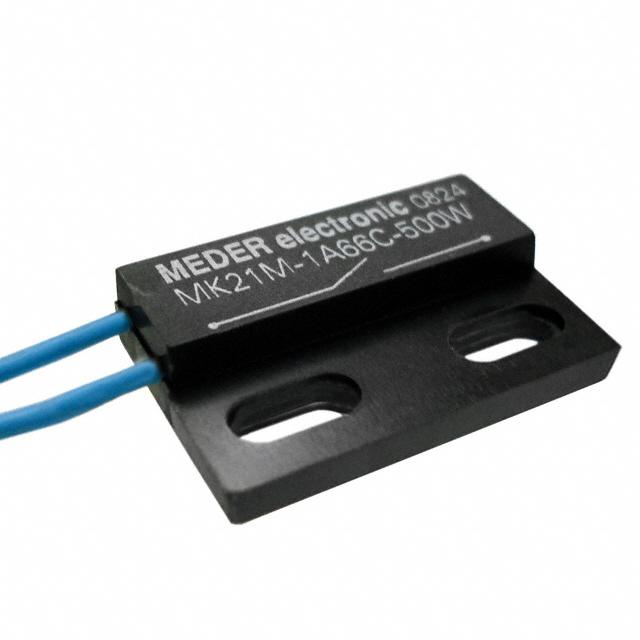

Standex-Meder Electronics
Manufacturer : Standex-Meder Electronics
Series : MK21
Part Status : Obsolete
Output Type : SPST-NO
Type : Reed Switch
Actuator Material : Magnet
Termination Style : Wire Leads
Frequency : -
Voltage - Supply : -
Must Operate : 10 ~ 60AT
Must Release : 4 ~ 54AT
Operating Temperature : -30°C ~ 70°C (TA)
Package / Case : Molded Body
0
100 in stock

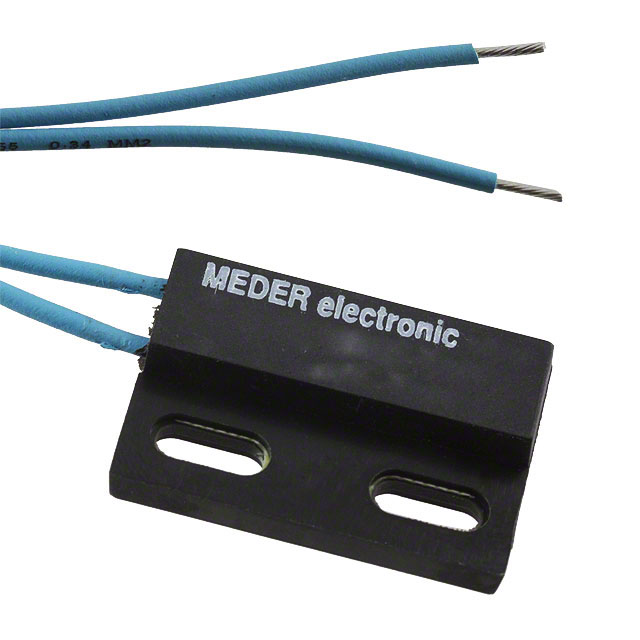

Standex-Meder Electronics
Manufacturer : Standex-Meder Electronics
Series : MK21
Part Status : Obsolete
Output Type : SPST-NO
Type : Reed Switch
Actuator Material : Magnet
Termination Style : Wire Leads
Frequency : -
Voltage - Supply : -
Must Operate : 10 ~ 60AT
Must Release : 4 ~ 54AT
Operating Temperature : -30°C ~ 70°C (TA)
Package / Case : Molded Body
0
100 in stock
Standex-Meder Electronics
Manufacturer : Standex-Meder Electronics
Series : MK21
Part Status : Obsolete
Output Type : SPST-NO
Type : Reed Switch
Actuator Material : Magnet
Termination Style : Wire Leads
Frequency : -
Voltage - Supply : -
Must Operate : -
Must Release : -
Operating Temperature : -30°C ~ 70°C (TA)
Package / Case : Molded Body
0
100 in stock
Standex-Meder Electronics
Manufacturer : Standex-Meder Electronics
Series : MK21
Part Status : Obsolete
Output Type : SPST-NO
Type : Reed Switch
Actuator Material : Magnet
Termination Style : Wire Leads
Frequency : -
Voltage - Supply : -
Must Operate : -
Must Release : -
Operating Temperature : -30°C ~ 70°C (TA)
Package / Case : Molded Body
0
100 in stock

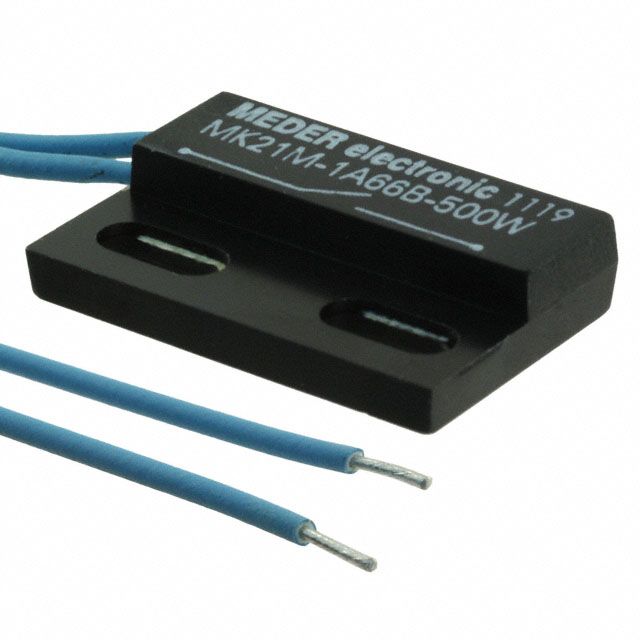

Standex-Meder Electronics
Manufacturer : Standex-Meder Electronics
Series : MK21
Part Status : Active
Output Type : SPST-NO
Type : Reed Switch
Actuator Material : Magnet
Termination Style : Wire Leads
Frequency : -
Voltage - Supply : -
Must Operate : 10 ~ 15AT
Must Release : 4 ~ 54AT
Operating Temperature : -30°C ~ 70°C (TA)
Package / Case : Molded Body
0
26 in stock
Standex-Meder Electronics
Manufacturer : Standex-Meder Electronics
Series : MK21
Part Status : Active
Output Type : SPST-NO
Type : Reed Switch
Actuator Material : Magnet
Termination Style : Wire Leads
Frequency : -
Voltage - Supply : -
Must Operate : 10 ~ 60AT
Must Release : 4 ~ 54AT
Operating Temperature : -30°C ~ 70°C (TA)
Package / Case : Molded Body
0
364 in stock
