SMC Diode Solutions
- Sangdest Microelectronic (Nanjing) Co., Ltd (SMC) was founded in 1997. SMC's products (formerly sold under the Sensitron Semiconductor brand name) are sold for a variety of applications in the commercial market including LCD displays, telecom equipment, power supplies, industrial, and aircraft industries which have demanding reliability and quality requirements.
SMC manufactures and designs their own products which are widely accepted in both domestic and international markets. SMC follows rigorous qualification standards from large aerospace, communication, and consumer electronics suppliers that are known world-wide for both their superior products and within the industry for their exceptionally demanding supplier qualification teams. SMC is ISO9001, ISO14001 and TS16949 qualified.
SMC's staff is dedicated to consistently meeting our customer's high expectations by delivering quality products with on-time delivery. Please challenge our team to meet your unique requirements.
Part Number
Manufacturer
Description
Unit Price
In Stock

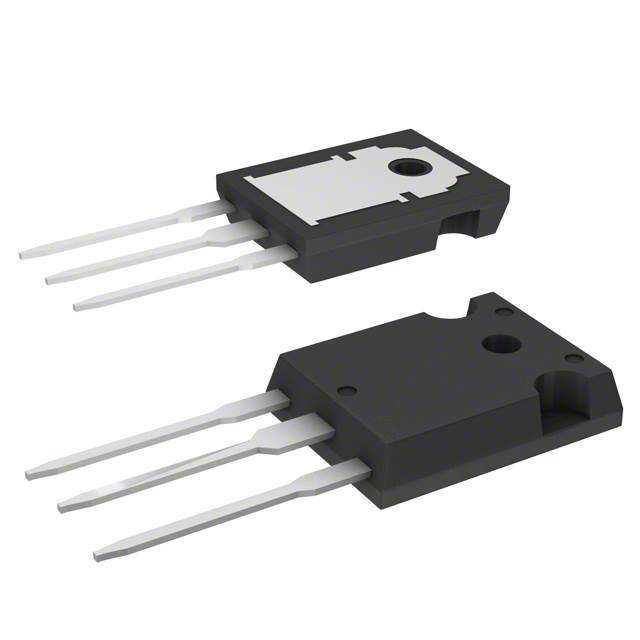

SMC Diode Solutions
Manufacturer : SMC Diode Solutions
Packaging : Tube
Series : -
Part Status : Active
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 150V
Current - Average Rectified (Io) : -
Voltage - Forward (Vf) (Max) @ If : 830mV @ 30A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 100µA @ 150V
Capacitance @ Vr, F : 820pF @ 5V, 1MHz
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247AD
Operating Temperature - Junction : -55°C ~ 175°C
0
143 in stock
SMC Diode Solutions
Manufacturer : SMC Diode Solutions
Packaging : Bulk
Series : -
Part Status : Active
Diode Configuration : 1 Pair Common Cathode
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 100V
Current - Average Rectified (Io) (per Diode) : 30A
Voltage - Forward (Vf) (Max) @ If : 930mV @ 30A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 1.5mA @ 100V
Operating Temperature - Junction : -55°C ~ 175°C
Mounting Type : Through Hole
Package / Case : PRM3
Supplier Device Package : PRM3
0
46 in stock

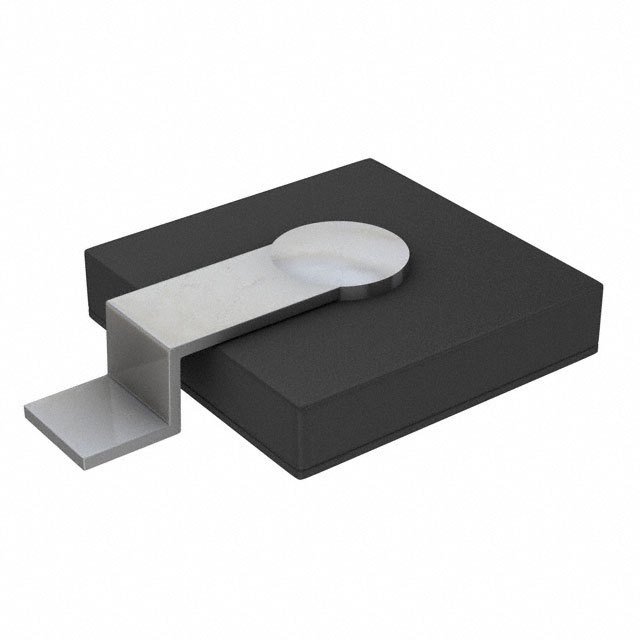

SMC Diode Solutions
Manufacturer : SMC Diode Solutions
Packaging : Bulk
Series : -
Part Status : Active
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 100V
Current - Average Rectified (Io) : 60A
Voltage - Forward (Vf) (Max) @ If : 870mV @ 60A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 1mA @ 100V
Capacitance @ Vr, F : 1500pF @ 5V, 1MHz
Mounting Type : Surface Mount
Package / Case : SPD-2A
Supplier Device Package : SPD-2A
Operating Temperature - Junction : -55°C ~ 175°C
0
129 in stock

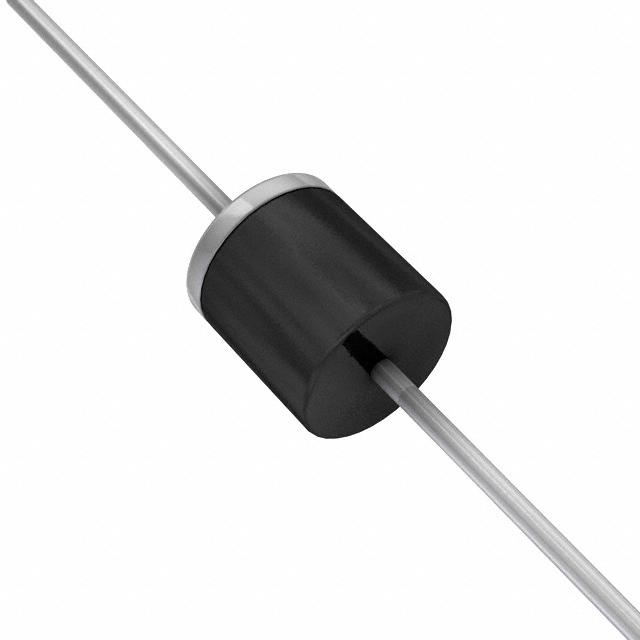

SMC Diode Solutions
Manufacturer : SMC Diode Solutions
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 600V
Current - Average Rectified (Io) : 6A
Voltage - Forward (Vf) (Max) @ If : 950mV @ 6A
Speed : Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 10µA @ 600V
Capacitance @ Vr, F : 150pF @ 4V, 1MHz
Mounting Type : Through Hole
Package / Case : R6, Axial
Supplier Device Package : R-6
Operating Temperature - Junction : -65°C ~ 175°C
0
3847 in stock

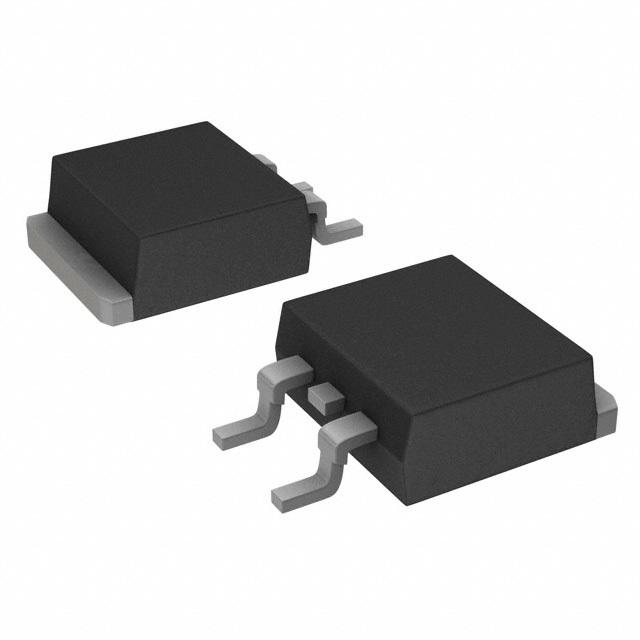

SMC Diode Solutions
Manufacturer : SMC Diode Solutions
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Configuration : 1 Pair Common Cathode
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 30V
Current - Average Rectified (Io) (per Diode) : -
Voltage - Forward (Vf) (Max) @ If : 450mV @ 3A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 1mA @ 30V
Operating Temperature - Junction : -55°C ~ 150°C
Mounting Type : Surface Mount
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package : DPAK
0
4942 in stock

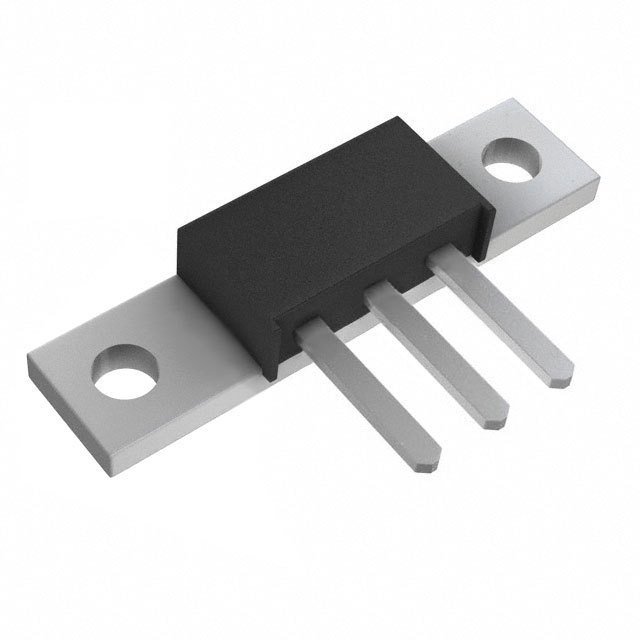

SMC Diode Solutions
Manufacturer : SMC Diode Solutions
Packaging : Bulk
Series : -
Part Status : Active
Diode Configuration : 1 Pair Common Cathode
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 45V
Current - Average Rectified (Io) (per Diode) : 80A
Voltage - Forward (Vf) (Max) @ If : 740mV @ 80A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 5mA @ 45V
Operating Temperature - Junction : -55°C ~ 175°C
Mounting Type : Chassis Mount
Package / Case : PRM2
Supplier Device Package : PRM2
0
48 in stock
SMC Diode Solutions
Manufacturer : SMC Diode Solutions
Packaging : Bulk
Series : -
Part Status : Active
Diode Configuration : 1 Pair Common Cathode
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 45V
Current - Average Rectified (Io) (per Diode) : 80A
Voltage - Forward (Vf) (Max) @ If : 740mV @ 80A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 5mA @ 45V
Operating Temperature - Junction : -55°C ~ 175°C
Mounting Type : Chassis Mount
Package / Case : PRM2
Supplier Device Package : PRM2
0
262 in stock
SMC Diode Solutions
Manufacturer : SMC Diode Solutions
Packaging : Bulk
Series : -
Part Status : Active
Diode Configuration : 1 Pair Common Cathode
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 30V
Current - Average Rectified (Io) (per Diode) : 40A
Voltage - Forward (Vf) (Max) @ If : 550mV @ 40A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 5mA @ 30V
Operating Temperature - Junction : -55°C ~ 150°C
Mounting Type : Chassis Mount
Package / Case : PRM2
Supplier Device Package : PRM2
0
47 in stock
SMC Diode Solutions
Manufacturer : SMC Diode Solutions
Packaging : Bulk
Series : -
Part Status : Active
Diode Configuration : 1 Pair Common Cathode
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 100V
Current - Average Rectified (Io) (per Diode) : 40A
Voltage - Forward (Vf) (Max) @ If : 1V @ 40A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 1.5mA @ 100V
Operating Temperature - Junction : -55°C ~ 175°C
Mounting Type : Chassis Mount
Package / Case : PRM2
Supplier Device Package : PRM2
0
44 in stock

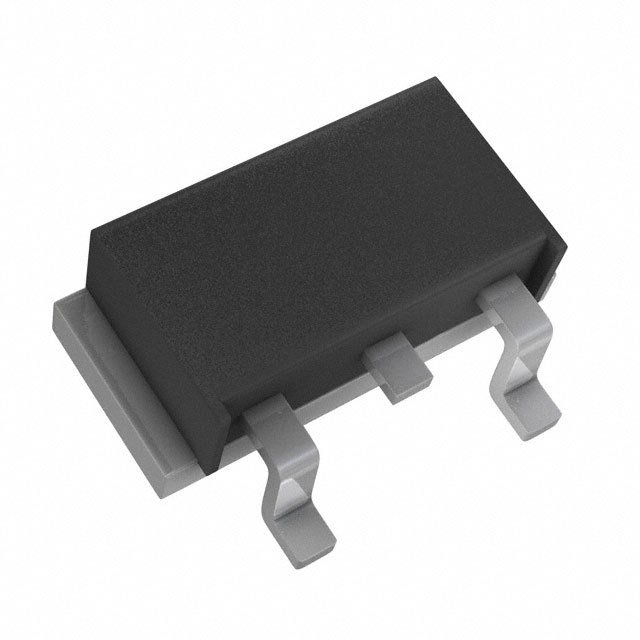

SMC Diode Solutions
Manufacturer : SMC Diode Solutions
Packaging : Bulk
Series : -
Part Status : Active
Diode Configuration : 1 Pair Common Cathode
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 150V
Current - Average Rectified (Io) (per Diode) : 40A
Voltage - Forward (Vf) (Max) @ If : 1.14V @ 40A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 1.5mA @ 150V
Operating Temperature - Junction : -55°C ~ 175°C
Mounting Type : Surface Mount
Package / Case : PRM2-SL
Supplier Device Package : PRM2-SL
0
95 in stock

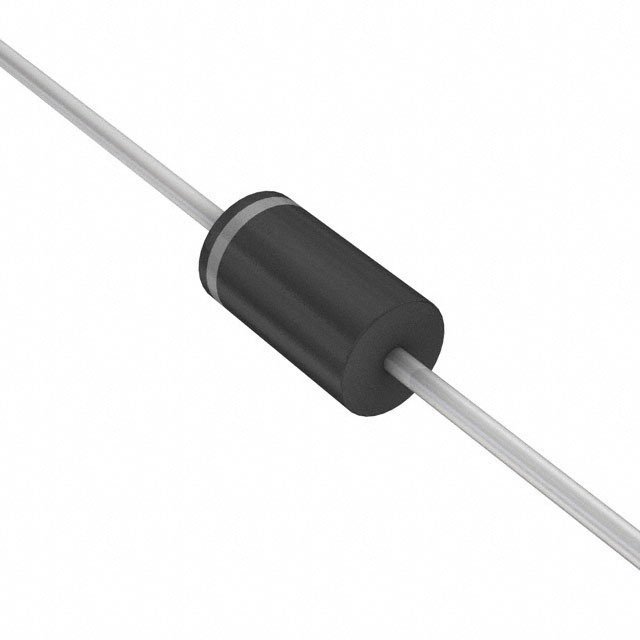

SMC Diode Solutions
Manufacturer : SMC Diode Solutions
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 45V
Current - Average Rectified (Io) : 9A
Voltage - Forward (Vf) (Max) @ If : 570mV @ 45V
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 1.75mA @ 45V
Capacitance @ Vr, F : 900pF @ 5V, 1MHz
Mounting Type : Through Hole
Package / Case : DO-201AD, Axial
Supplier Device Package : DO-201AD
Operating Temperature - Junction : -55°C ~ 150°C
0
4767 in stock
SMC Diode Solutions
Manufacturer : SMC Diode Solutions
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 15V
Current - Average Rectified (Io) : 9A
Voltage - Forward (Vf) (Max) @ If : 340mV @ 9A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : -
Capacitance @ Vr, F : 1300pF @ 5V, 1MHz
Mounting Type : Through Hole
Package / Case : DO-201AD, Axial
Supplier Device Package : DO-201AD
Operating Temperature - Junction : -55°C ~ 125°C
0
2427 in stock
