SMC Diode Solutions
- Sangdest Microelectronic (Nanjing) Co., Ltd (SMC) was founded in 1997. SMC's products (formerly sold under the Sensitron Semiconductor brand name) are sold for a variety of applications in the commercial market including LCD displays, telecom equipment, power supplies, industrial, and aircraft industries which have demanding reliability and quality requirements.
SMC manufactures and designs their own products which are widely accepted in both domestic and international markets. SMC follows rigorous qualification standards from large aerospace, communication, and consumer electronics suppliers that are known world-wide for both their superior products and within the industry for their exceptionally demanding supplier qualification teams. SMC is ISO9001, ISO14001 and TS16949 qualified.
SMC's staff is dedicated to consistently meeting our customer's high expectations by delivering quality products with on-time delivery. Please challenge our team to meet your unique requirements.
Part Number
Manufacturer
Description
Unit Price
In Stock

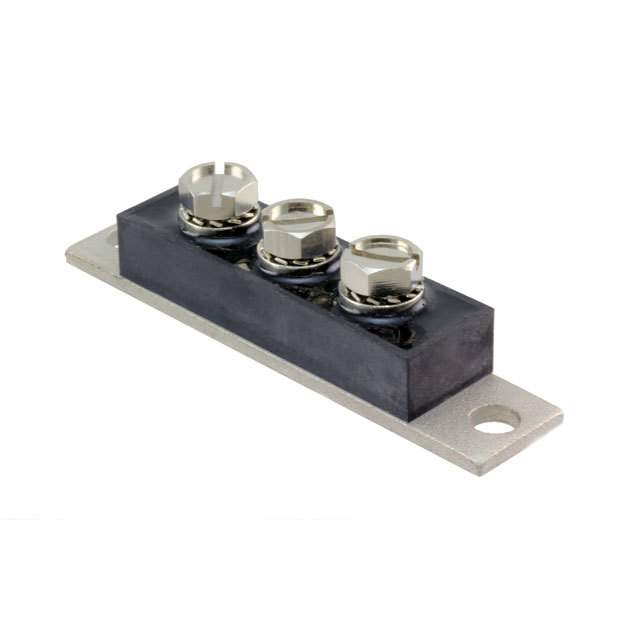

SMC Diode Solutions
Manufacturer : SMC Diode Solutions
Packaging : Bulk
Series : -
Part Status : Active
Diode Configuration : 1 Pair Series Connection
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 150V
Current - Average Rectified (Io) (per Diode) : -
Voltage - Forward (Vf) (Max) @ If : 1.03V @ 200A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 6mA @ 150V
Operating Temperature - Junction : -55°C ~ 150°C
Mounting Type : Chassis Mount
Package / Case : PRM4
Supplier Device Package : PRM4 (Isolated)
0
18 in stock
SMC Diode Solutions
Manufacturer : SMC Diode Solutions
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 5.0SMCJ
Part Status : Active
Type : Zener
Unidirectional Channels : 1
Bidirectional Channels : -
Voltage - Reverse Standoff (Typ) : 12V
Voltage - Breakdown (Min) : 13.3V
Voltage - Clamping (Max) @ Ipp : 19.9V
Current - Peak Pulse (10/1000µs) : 252A
Power - Peak Pulse : 5000W (5kW)
Power Line Protection : No
Applications : General Purpose
Capacitance @ Frequency : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : DO-214AB, SMC
Supplier Device Package : SMC (DO-214AB)
0
2990 in stock
SMC Diode Solutions
Manufacturer : SMC Diode Solutions
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 5.0SMCJ
Part Status : Active
Type : Zener
Unidirectional Channels : -
Bidirectional Channels : 1
Voltage - Reverse Standoff (Typ) : 12V
Voltage - Breakdown (Min) : 13.3V
Voltage - Clamping (Max) @ Ipp : 19.9V
Current - Peak Pulse (10/1000µs) : 252A
Power - Peak Pulse : 5000W (5kW)
Power Line Protection : No
Applications : General Purpose
Capacitance @ Frequency : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : DO-214AB, SMC
Supplier Device Package : SMC (DO-214AB)
0
2935 in stock
SMC Diode Solutions
Manufacturer : SMC Diode Solutions
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 5.0SMCJ
Part Status : Active
Type : Zener
Unidirectional Channels : 1
Bidirectional Channels : -
Voltage - Reverse Standoff (Typ) : 13V
Voltage - Breakdown (Min) : 14.4V
Voltage - Clamping (Max) @ Ipp : 21.5V
Current - Peak Pulse (10/1000µs) : 233A
Power - Peak Pulse : 5000W (5kW)
Power Line Protection : No
Applications : General Purpose
Capacitance @ Frequency : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : DO-214AB, SMC
Supplier Device Package : SMC (DO-214AB)
0
2914 in stock
SMC Diode Solutions
Manufacturer : SMC Diode Solutions
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 5.0SMCJ
Part Status : Active
Type : Zener
Unidirectional Channels : -
Bidirectional Channels : 1
Voltage - Reverse Standoff (Typ) : 13V
Voltage - Breakdown (Min) : 14.4V
Voltage - Clamping (Max) @ Ipp : 21.5V
Current - Peak Pulse (10/1000µs) : 233A
Power - Peak Pulse : 5000W (5kW)
Power Line Protection : No
Applications : General Purpose
Capacitance @ Frequency : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : DO-214AB, SMC
Supplier Device Package : SMC (DO-214AB)
0
2738 in stock
SMC Diode Solutions
Manufacturer : SMC Diode Solutions
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 5.0SMCJ
Part Status : Active
Type : Zener
Unidirectional Channels : -
Bidirectional Channels : 1
Voltage - Reverse Standoff (Typ) : 16V
Voltage - Breakdown (Min) : 17.8V
Voltage - Clamping (Max) @ Ipp : 26V
Current - Peak Pulse (10/1000µs) : 193A
Power - Peak Pulse : 5000W (5kW)
Power Line Protection : No
Applications : General Purpose
Capacitance @ Frequency : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : DO-214AB, SMC
Supplier Device Package : SMC (DO-214AB)
0
468 in stock
SMC Diode Solutions
Manufacturer : SMC Diode Solutions
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 5.0SMCJ
Part Status : Active
Type : Zener
Unidirectional Channels : 1
Bidirectional Channels : -
Voltage - Reverse Standoff (Typ) : 24V
Voltage - Breakdown (Min) : 26.7V
Voltage - Clamping (Max) @ Ipp : 38.9V
Current - Peak Pulse (10/1000µs) : 129A
Power - Peak Pulse : 5000W (5kW)
Power Line Protection : No
Applications : General Purpose
Capacitance @ Frequency : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : DO-214AB, SMC
Supplier Device Package : SMC (DO-214AB)
0
2919 in stock
SMC Diode Solutions
Manufacturer : SMC Diode Solutions
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 5.0SMCJ
Part Status : Active
Type : Zener
Unidirectional Channels : 1
Bidirectional Channels : -
Voltage - Reverse Standoff (Typ) : 26V
Voltage - Breakdown (Min) : 28.9V
Voltage - Clamping (Max) @ Ipp : 42.1V
Current - Peak Pulse (10/1000µs) : 119A
Power - Peak Pulse : 5000W (5kW)
Power Line Protection : No
Applications : General Purpose
Capacitance @ Frequency : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : DO-214AB, SMC
Supplier Device Package : SMC (DO-214AB)
0
2524 in stock
SMC Diode Solutions
Manufacturer : SMC Diode Solutions
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 5.0SMCJ
Part Status : Active
Type : Zener
Unidirectional Channels : -
Bidirectional Channels : 1
Voltage - Reverse Standoff (Typ) : 26V
Voltage - Breakdown (Min) : 28.9V
Voltage - Clamping (Max) @ Ipp : 42.1V
Current - Peak Pulse (10/1000µs) : 119A
Power - Peak Pulse : 5000W (5kW)
Power Line Protection : No
Applications : General Purpose
Capacitance @ Frequency : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : DO-214AB, SMC
Supplier Device Package : SMC (DO-214AB)
0
2980 in stock
SMC Diode Solutions
Manufacturer : SMC Diode Solutions
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 5.0SMCJ
Part Status : Active
Type : Zener
Unidirectional Channels : 1
Bidirectional Channels : -
Voltage - Reverse Standoff (Typ) : 30V
Voltage - Breakdown (Min) : 33.3V
Voltage - Clamping (Max) @ Ipp : 48.4V
Current - Peak Pulse (10/1000µs) : 103A
Power - Peak Pulse : 5000W (5kW)
Power Line Protection : No
Applications : General Purpose
Capacitance @ Frequency : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : DO-214AB, SMC
Supplier Device Package : SMC (DO-214AB)
0
2970 in stock
SMC Diode Solutions
Manufacturer : SMC Diode Solutions
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 5.0SMCJ
Part Status : Active
Type : Zener
Unidirectional Channels : -
Bidirectional Channels : 1
Voltage - Reverse Standoff (Typ) : 45V
Voltage - Breakdown (Min) : 50V
Voltage - Clamping (Max) @ Ipp : 72.7V
Current - Peak Pulse (10/1000µs) : 68.8A
Power - Peak Pulse : 5000W (5kW)
Power Line Protection : No
Applications : General Purpose
Capacitance @ Frequency : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : DO-214AB, SMC
Supplier Device Package : SMC (DO-214AB)
0
2629 in stock

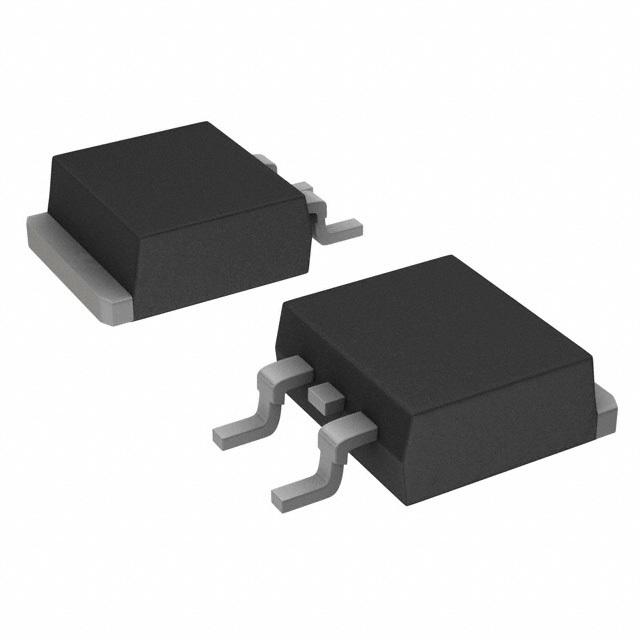

SMC Diode Solutions
Manufacturer : SMC Diode Solutions
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 100V
Current - Average Rectified (Io) : -
Voltage - Forward (Vf) (Max) @ If : 770mV @ 5A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 1mA @ 100V
Capacitance @ Vr, F : 250pF @ 5V, 1MHz
Mounting Type : Surface Mount
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package : DPAK
Operating Temperature - Junction : -55°C ~ 150°C
0
8612 in stock
