SMC Diode Solutions

- Sangdest Microelectronic (Nanjing) Co., Ltd (SMC) was founded in 1997. SMC's products (formerly sold under the Sensitron Semiconductor brand name) are sold for a variety of applications in the commercial market including LCD displays, telecom equipment, power supplies, industrial, and aircraft industries which have demanding reliability and quality requirements.

SMC manufactures and designs their own products which are widely accepted in both domestic and international markets. SMC follows rigorous qualification standards from large aerospace, communication, and consumer electronics suppliers that are known world-wide for both their superior products and within the industry for their exceptionally demanding supplier qualification teams. SMC is ISO9001, ISO14001 and TS16949 qualified.

SMC's staff is dedicated to consistently meeting our customer's high expectations by delivering quality products with on-time delivery. Please challenge our team to meet your unique requirements.

Part Number
Manufacturer
Description
Unit Price
In Stock

BAT54ATR BAT54ATR

SMC Diode Solutions
Manufacturer : SMC Diode Solutions
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Configuration : 1 Pair Common Anode
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 30V
Current - Average Rectified (Io) (per Diode) : -
Voltage - Forward (Vf) (Max) @ If : 900mV @ 100mA
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : 5ns
Current - Reverse Leakage @ Vr : 1µA @ 30V
Operating Temperature - Junction : 150°C (Max)
Mounting Type : Surface Mount
Package / Case : TO-236-3, SC-59, SOT-23-3
Supplier Device Package : SOT-23
0
2590 in stock

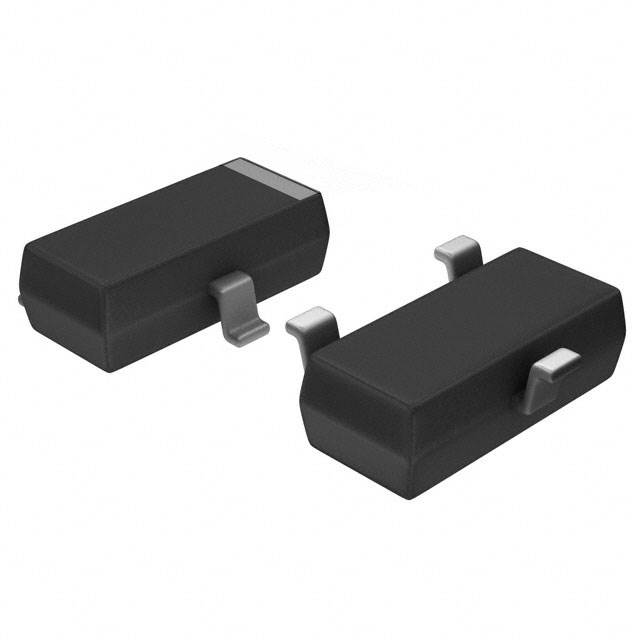

BAT54CTR BAT54CTR

SMC Diode Solutions
Manufacturer : SMC Diode Solutions
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Configuration : 1 Pair Common Cathode
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 30V
Current - Average Rectified (Io) (per Diode) : -
Voltage - Forward (Vf) (Max) @ If : 900mV @ 100mA
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : 5ns
Current - Reverse Leakage @ Vr : 1µA @ 30V
Operating Temperature - Junction : 150°C (Max)
Mounting Type : Surface Mount
Package / Case : TO-236-3, SC-59, SOT-23-3
Supplier Device Package : SOT-23
0
3739 in stock

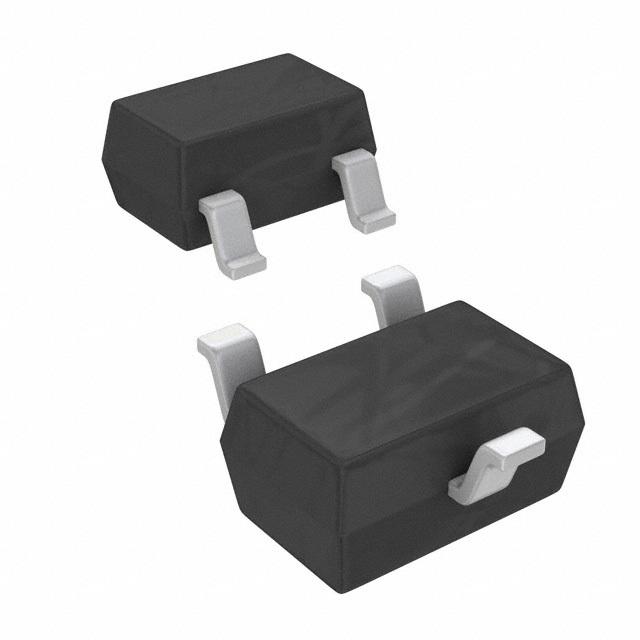

BAT54SWTR BAT54SWTR

SMC Diode Solutions
Manufacturer : SMC Diode Solutions
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Configuration : 1 Pair Series Connection
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 30V
Current - Average Rectified (Io) (per Diode) : 100mA
Voltage - Forward (Vf) (Max) @ If : 1V @ 100mA
Speed : Small Signal =

-


2µA @ 30V


-55°C ~ 125°C


Surface Mount


SC-70, SOT-323


SOT-323
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 2µA @ 30V
Operating Temperature - Junction : -55°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : SC-70, SOT-323
Supplier Device Package : SOT-323
0
2420 in stock

BAT54TR BAT54TR

SMC Diode Solutions
Manufacturer : SMC Diode Solutions
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 30V
Current - Average Rectified (Io) : -
Voltage - Forward (Vf) (Max) @ If : 900mV @ 100mA
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : 5ns
Current - Reverse Leakage @ Vr : 1µA @ 30V
Capacitance @ Vr, F : 10pF @ 5V, 1MHz
Mounting Type : Surface Mount
Package / Case : TO-236-3, SC-59, SOT-23-3
Supplier Device Package : SOT-23
Operating Temperature - Junction : 150°C (Max)
0
959 in stock

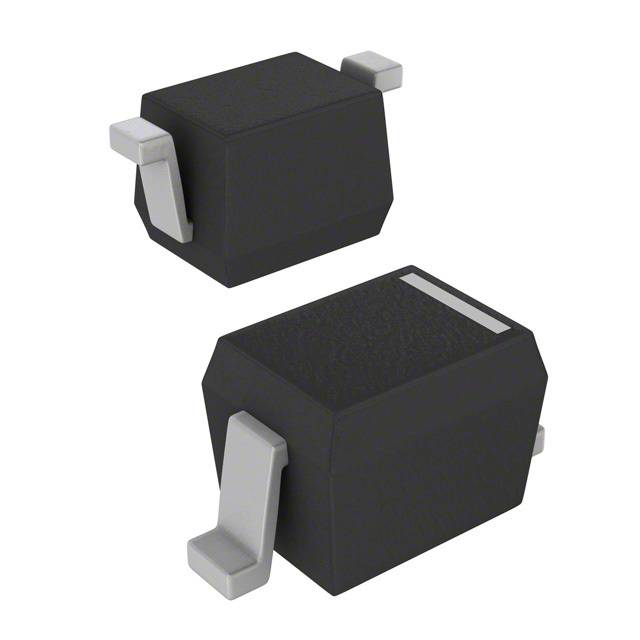

BAV19WSTR BAV19WSTR

SMC Diode Solutions
Manufacturer : SMC Diode Solutions
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 100V
Current - Average Rectified (Io) : 200mA
Voltage - Forward (Vf) (Max) @ If : 1V @ 100mA
Speed : Small Signal =

50ns


100nA @ 100V


5pF @ 0V, 1MHz


Surface Mount


SC-76, SOD-323


SOD-323


-65°C ~ 150°C
Reverse Recovery Time (trr) : 50ns
Current - Reverse Leakage @ Vr : 100nA @ 100V
Capacitance @ Vr, F : 5pF @ 0V, 1MHz
Mounting Type : Surface Mount
Package / Case : SC-76, SOD-323
Supplier Device Package : SOD-323
Operating Temperature - Junction : -65°C ~ 150°C
0
10064 in stock

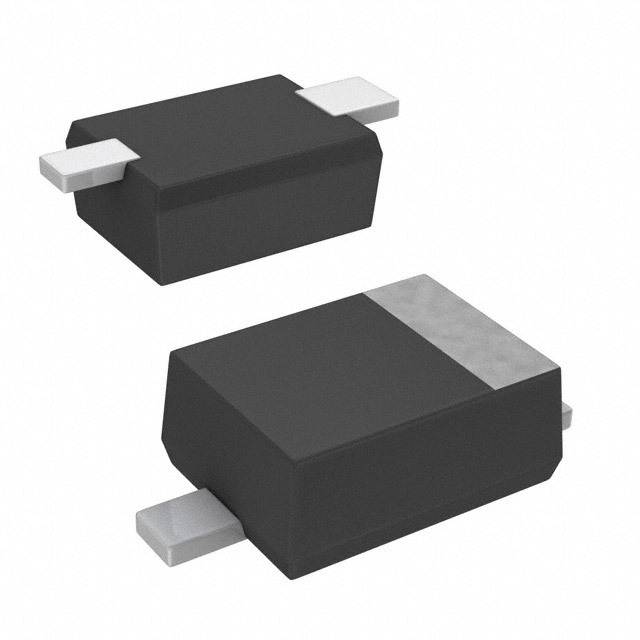

BAV21WSTR BAV21WSTR

SMC Diode Solutions
Manufacturer : SMC Diode Solutions
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 200V
Current - Average Rectified (Io) : 200mA
Voltage - Forward (Vf) (Max) @ If : 1V @ 100mA
Speed : Small Signal =

50ns


100nA @ 100V


5pF @ 0V, 1MHz


Surface Mount


SC-90, SOD-323F


SOD-323


-65°C ~ 150°C
Reverse Recovery Time (trr) : 50ns
Current - Reverse Leakage @ Vr : 100nA @ 100V
Capacitance @ Vr, F : 5pF @ 0V, 1MHz
Mounting Type : Surface Mount
Package / Case : SC-90, SOD-323F
Supplier Device Package : SOD-323
Operating Temperature - Junction : -65°C ~ 150°C
0
205710 in stock

BAV70TR BAV70TR

SMC Diode Solutions
Manufacturer : SMC Diode Solutions
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Configuration : 1 Pair Common Cathode
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 75V
Current - Average Rectified (Io) (per Diode) : 150mA
Voltage - Forward (Vf) (Max) @ If : 1V @ 50mA
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : 6ns
Current - Reverse Leakage @ Vr : 2.5µA @ 75V
Operating Temperature - Junction : -65°C ~ 150°C
Mounting Type : Surface Mount
Package / Case : TO-236-3, SC-59, SOT-23-3
Supplier Device Package : SOT-23
0
1873 in stock

BAV99TR BAV99TR

SMC Diode Solutions
Manufacturer : SMC Diode Solutions
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Configuration : 1 Pair Series Connection
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 75V
Current - Average Rectified (Io) (per Diode) : 150mA
Voltage - Forward (Vf) (Max) @ If : 1V @ 50mA
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : 6ns
Current - Reverse Leakage @ Vr : 2.5µA @ 75V
Operating Temperature - Junction : -65°C ~ 150°C
Mounting Type : Surface Mount
Package / Case : TO-236-3, SC-59, SOT-23-3
Supplier Device Package : SOT-23
0
391 in stock

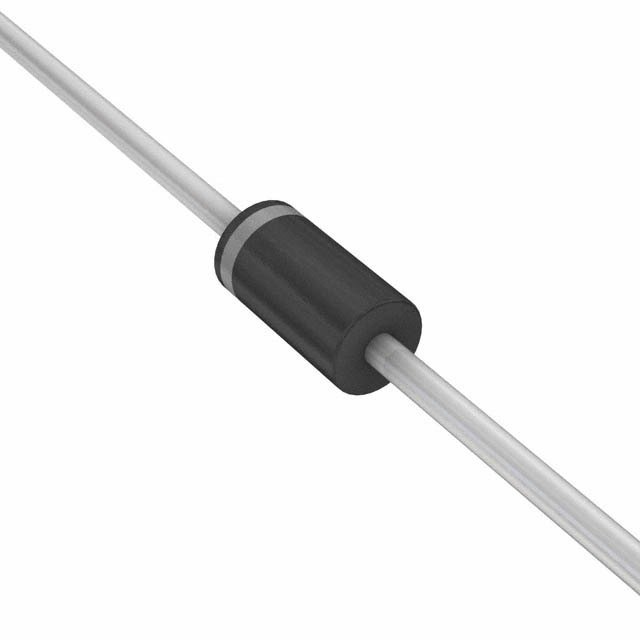

BY133TA BY133TA

SMC Diode Solutions
Manufacturer : SMC Diode Solutions
Packaging : Cut Tape (CT)
Series : -
Part Status : Active
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 1300V
Current - Average Rectified (Io) : 1A
Voltage - Forward (Vf) (Max) @ If : 1V @ 1A
Speed : Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 5µA @ 1300V
Capacitance @ Vr, F : 15pF @ 4V, 1MHz
Mounting Type : Through Hole
Package / Case : DO-204AL, DO-41, Axial
Supplier Device Package : DO-41
Operating Temperature - Junction : -65°C ~ 125°C
0
14995 in stock

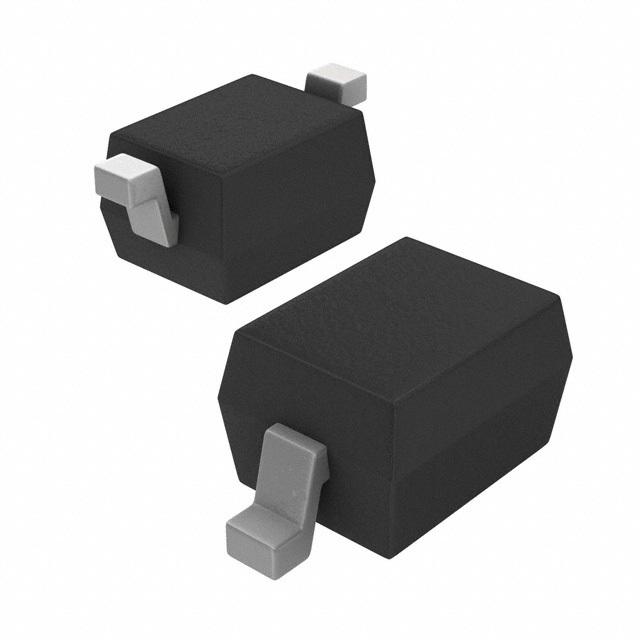

CMDSH-3TR CMDSH-3TR

SMC Diode Solutions
Manufacturer : SMC Diode Solutions
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 30V
Current - Average Rectified (Io) : 100mA
Voltage - Forward (Vf) (Max) @ If : 800mV @ 100mA
Speed : Small Signal =

-


10µA @ 25V


7pF @ 10V, 1MHz


Surface Mount


SC-76, SOD-323


SOD-323


-65°C ~ 150°C
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 10µA @ 25V
Capacitance @ Vr, F : 7pF @ 10V, 1MHz
Mounting Type : Surface Mount
Package / Case : SC-76, SOD-323
Supplier Device Package : SOD-323
Operating Temperature - Junction : -65°C ~ 150°C
0
26832 in stock

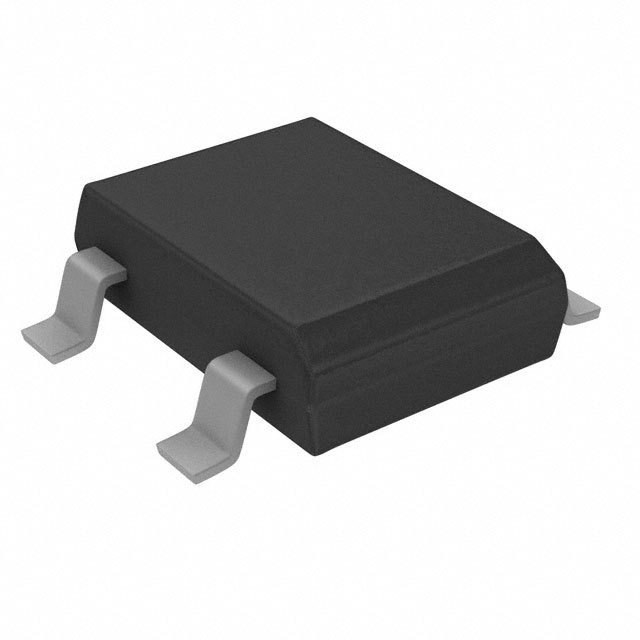

DB105STR DB105STR

SMC Diode Solutions
Manufacturer : SMC Diode Solutions
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Single Phase
Technology : Standard
Voltage - Peak Reverse (Max) : 600V
Current - Average Rectified (Io) : 1A
Voltage - Forward (Vf) (Max) @ If : 1.1V @ 1A
Current - Reverse Leakage @ Vr : 5µA @ 600V
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 4-SMD, Gull Wing
Supplier Device Package : DB-S
0
4803 in stock

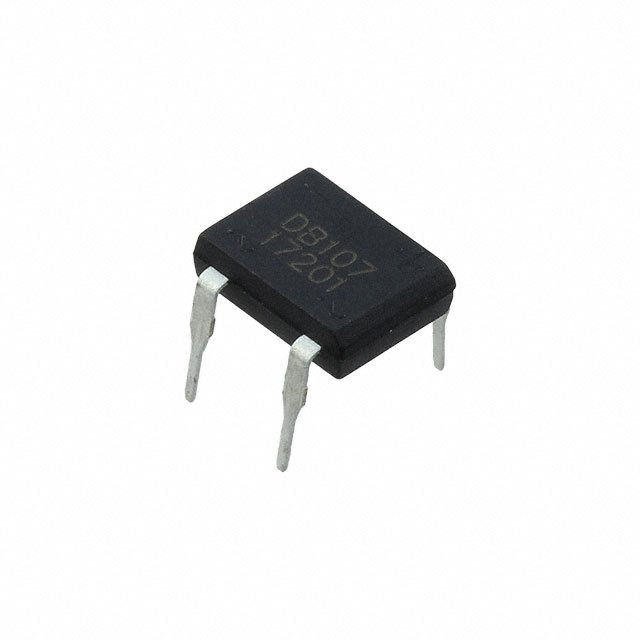

DB105TB DB105TB

SMC Diode Solutions
Manufacturer : SMC Diode Solutions
Packaging : Tube
Series : -
Part Status : Active
Diode Type : Single Phase
Technology : Standard
Voltage - Peak Reverse (Max) : 600V
Current - Average Rectified (Io) : 1A
Voltage - Forward (Vf) (Max) @ If : 1.1V @ 1A
Current - Reverse Leakage @ Vr : 5µA @ 600V
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : 4-EDIP (0.321", 8.15mm)
Supplier Device Package : DB-M
0
6473 in stock
