Rubycon
- Tracing its roots back to 1952, Rubycon is one of the original pioneers in the aluminum capacitor market. With monthly production of up to 1 billion capacitors from over 8,000 product items, Rubycon ranks as one of the largest suppliers of miniature electrolytic capacitors. Large-scale production, vertical integration, and quality resulting from innovative technology are synonymous with the name Rubycon.
Rubycon is the North America subsidiary of Rubycon based in Gurnee, IL. Rubycon offers sales and engineering support including an independent rep network of over 100 agents throughout the region to support your needs.
Rubycon: Quality / Reliability / Innovation
Part Number
Manufacturer
Description
Unit Price
In Stock
Rubycon
Manufacturer : Rubycon
Packaging : Bulk
Series : BXW
Part Status : Active
Capacitance : 47µF
Tolerance : ±20%
Voltage - Rated : 450V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 10000 Hrs @ 105°C
Operating Temperature : -40°C ~ 105°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 460mA @ 120Hz
Ripple Current @ High Frequency : 1.15A @ 100kHz
Impedance : -
Lead Spacing : 0.295" (7.50mm)
Size / Dimension : 0.709" Dia (18.00mm)
Height - Seated (Max) : 0.866" (22.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
0
4772 in stock
Rubycon
Manufacturer : Rubycon
Packaging : Bulk
Series : BXW
Part Status : Active
Capacitance : 68µF
Tolerance : ±20%
Voltage - Rated : 450V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 10000 Hrs @ 105°C
Operating Temperature : -40°C ~ 105°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 610mA @ 120Hz
Ripple Current @ High Frequency : 1.525A @ 100kHz
Impedance : -
Lead Spacing : 0.295" (7.50mm)
Size / Dimension : 0.709" Dia (18.00mm)
Height - Seated (Max) : 1.063" (27.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
0
3529 in stock
Rubycon
Manufacturer : Rubycon
Packaging : Bulk
Series : HVC
Part Status : Active
Capacitance : 500µF
Tolerance : ±10%
Voltage Rating - AC : -
Voltage Rating - DC : 450V
Dielectric Material : Polypropylene (PP)
ESR (Equivalent Series Resistance) : -
Operating Temperature : -40°C ~ 105°C
Mounting Type : Chassis Mount
Package / Case : Rectangular Box
Size / Dimension : 9.331" L x 1.969" W (237.00mm x 50.00mm)
Height - Seated (Max) : 2.835" (72.00mm)
Termination : Quick Connect, Disconnect
Lead Spacing : 0.827" (21.00mm)
Applications : General Purpose
Ratings : -
Features : Low ESL
0
1 in stock

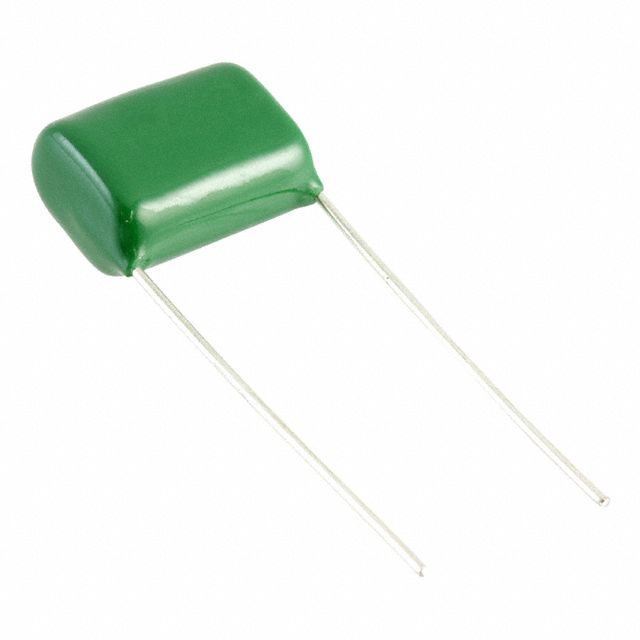

Rubycon
Manufacturer : Rubycon
Packaging : Bulk
Series : MPK
Part Status : Active
Capacitance : 1µF
Tolerance : ±5%
Voltage Rating - AC : -
Voltage Rating - DC : 450V
Dielectric Material : Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance) : -
Operating Temperature : -40°C ~ 105°C
Mounting Type : Through Hole
Package / Case : Radial
Size / Dimension : 0.709" L x 0.374" W (18.00mm x 9.50mm)
Height - Seated (Max) : 0.551" (14.00mm)
Termination : PC Pins
Lead Spacing : 0.591" (15.00mm)
Applications : Power Factor Correction (PFC)
Ratings : -
Features : -
0
1033 in stock

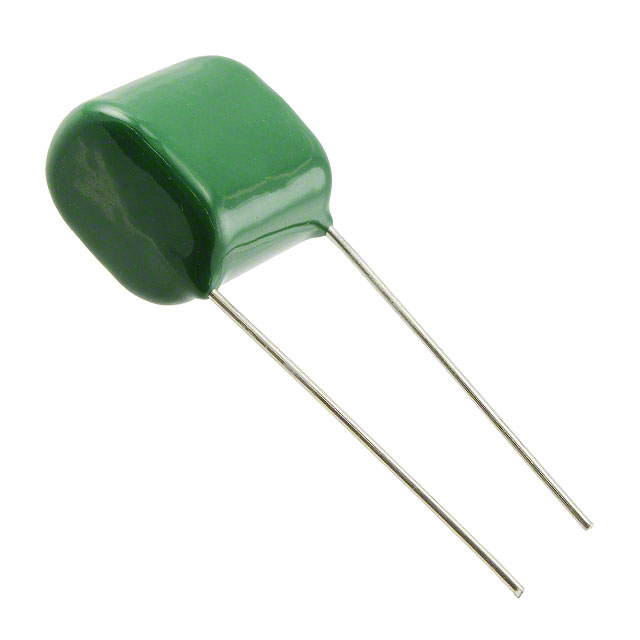

Rubycon
Manufacturer : Rubycon
Packaging : Bulk
Series : MPK
Part Status : Active
Capacitance : 2.2µF
Tolerance : ±5%
Voltage Rating - AC : -
Voltage Rating - DC : 450V
Dielectric Material : Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance) : -
Operating Temperature : -40°C ~ 105°C
Mounting Type : Through Hole
Package / Case : Radial
Size / Dimension : 0.709" L x 0.531" W (18.00mm x 13.50mm)
Height - Seated (Max) : 0.748" (19.00mm)
Termination : PC Pins
Lead Spacing : 0.591" (15.00mm)
Applications : Power Factor Correction (PFC)
Ratings : -
Features : -
0
2862 in stock

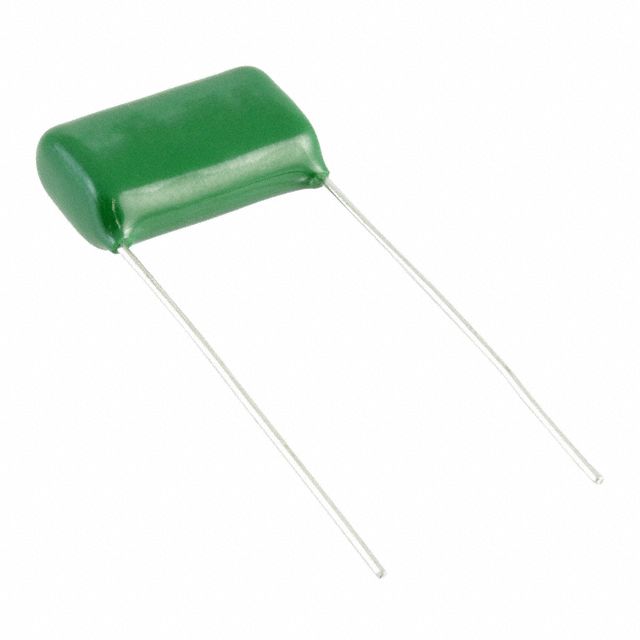

Rubycon
Manufacturer : Rubycon
Packaging : Bulk
Series : MPK
Part Status : Active
Capacitance : 0.47µF
Tolerance : ±5%
Voltage Rating - AC : -
Voltage Rating - DC : 450V
Dielectric Material : Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance) : -
Operating Temperature : -40°C ~ 105°C
Mounting Type : Through Hole
Package / Case : Radial
Size / Dimension : 0.709" L x 0.256" W (18.00mm x 6.50mm)
Height - Seated (Max) : 0.433" (11.00mm)
Termination : PC Pins
Lead Spacing : 0.591" (15.00mm)
Applications : Power Factor Correction (PFC)
Ratings : -
Features : -
0
2528 in stock
Rubycon
Manufacturer : Rubycon
Packaging : Bulk
Series : MXH
Part Status : Active
Capacitance : 470µF
Tolerance : ±20%
Voltage - Rated : 450V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -25°C ~ 105°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 2.05A @ 120Hz
Ripple Current @ High Frequency : 2.87A @ 10kHz
Impedance : -
Lead Spacing : 0.394" (10.00mm)
Size / Dimension : 1.181" Dia (30.00mm)
Height - Seated (Max) : 1.850" (47.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can - Snap-In
0
923 in stock
Rubycon
Manufacturer : Rubycon
Packaging : Tray
Series : MXK
Part Status : Active
Capacitance : 220µF
Tolerance : ±20%
Voltage - Rated : 450V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 3000 Hrs @ 105°C
Operating Temperature : -25°C ~ 105°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 1.34A @ 120Hz
Ripple Current @ High Frequency : 1.876A @ 10kHz
Impedance : -
Lead Spacing : 0.394" (10.00mm)
Size / Dimension : 0.984" Dia (25.00mm)
Height - Seated (Max) : 1.260" (32.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can - Snap-In
0
3241 in stock
Rubycon
Manufacturer : Rubycon
Packaging : Tray
Series : MXK
Part Status : Active
Capacitance : 390µF
Tolerance : ±20%
Voltage - Rated : 450V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 3000 Hrs @ 105°C
Operating Temperature : -25°C ~ 105°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 2.04A @ 120Hz
Ripple Current @ High Frequency : 2.856A @ 10kHz
Impedance : -
Lead Spacing : 0.394" (10.00mm)
Size / Dimension : 0.984" Dia (25.00mm)
Height - Seated (Max) : 2.047" (52.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can - Snap-In
0
394 in stock
Rubycon
Manufacturer : Rubycon
Packaging : Tray
Series : MXK
Part Status : Active
Capacitance : 470µF
Tolerance : ±20%
Voltage - Rated : 450V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 3000 Hrs @ 105°C
Operating Temperature : -25°C ~ 105°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 2.02A @ 120Hz
Ripple Current @ High Frequency : 2.828A @ 10kHz
Impedance : -
Lead Spacing : 0.394" (10.00mm)
Size / Dimension : 1.181" Dia (30.00mm)
Height - Seated (Max) : 1.654" (42.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can - Snap-In
0
800 in stock
Rubycon
Manufacturer : Rubycon
Packaging : Bulk
Series : VXH
Part Status : Active
Capacitance : 180µF
Tolerance : ±20%
Voltage - Rated : 450V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 5000 Hrs @ 105°C
Operating Temperature : -25°C ~ 105°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 1.19A @ 120Hz
Ripple Current @ High Frequency : 1.666A @ 10kHz
Impedance : -
Lead Spacing : 0.394" (10.00mm)
Size / Dimension : 0.984" Dia (25.00mm)
Height - Seated (Max) : 1.260" (32.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can - Snap-In
0
300 in stock
Rubycon
Manufacturer : Rubycon
Packaging : Bulk
Series : VXH
Part Status : Active
Capacitance : 220µF
Tolerance : ±20%
Voltage - Rated : 450V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 5000 Hrs @ 105°C
Operating Temperature : -25°C ~ 105°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 1.37A @ 120Hz
Ripple Current @ High Frequency : 1.918A @ 10kHz
Impedance : -
Lead Spacing : 0.394" (10.00mm)
Size / Dimension : 0.984" Dia (25.00mm)
Height - Seated (Max) : 1.457" (37.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can - Snap-In
0
1511 in stock
