Rubycon
- Tracing its roots back to 1952, Rubycon is one of the original pioneers in the aluminum capacitor market. With monthly production of up to 1 billion capacitors from over 8,000 product items, Rubycon ranks as one of the largest suppliers of miniature electrolytic capacitors. Large-scale production, vertical integration, and quality resulting from innovative technology are synonymous with the name Rubycon.
Rubycon is the North America subsidiary of Rubycon based in Gurnee, IL. Rubycon offers sales and engineering support including an independent rep network of over 100 agents throughout the region to support your needs.
Rubycon: Quality / Reliability / Innovation
Part Number
Manufacturer
Description
Unit Price
In Stock
Rubycon
Manufacturer : Rubycon
Packaging : Bulk
Series : AX
Part Status : Active
Capacitance : 6.8µF
Tolerance : ±20%
Voltage - Rated : 400V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -40°C ~ 105°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : -
Impedance : -
Lead Spacing : 0.138" (3.50mm)
Size / Dimension : 0.315" Dia (8.00mm)
Height - Seated (Max) : 0.484" (12.30mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
0
175475 in stock
Rubycon
Manufacturer : Rubycon
Packaging : Bulk
Series : BXW
Part Status : Active
Capacitance : 68µF
Tolerance : ±20%
Voltage - Rated : 400V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 12000 Hrs @ 105°C
Operating Temperature : -40°C ~ 105°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 570mA @ 120Hz
Ripple Current @ High Frequency : 1.425A @ 100kHz
Impedance : -
Lead Spacing : 0.295" (7.50mm)
Size / Dimension : 0.630" Dia (16.00mm)
Height - Seated (Max) : 1.063" (27.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
0
3097 in stock
Rubycon
Manufacturer : Rubycon
Packaging : Bulk
Series : LLE
Part Status : Active
Capacitance : 2.2µF
Tolerance : ±20%
Voltage - Rated : 400V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 12000 Hrs @ 105°C
Operating Temperature : -40°C ~ 105°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 36mA @ 120Hz
Ripple Current @ High Frequency : -
Impedance : -
Lead Spacing : 0.138" (3.50mm)
Size / Dimension : 0.315" Dia (8.00mm)
Height - Seated (Max) : 0.433" (11.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
0
157742 in stock
Rubycon
Manufacturer : Rubycon
Packaging : Bulk
Series : LLE
Part Status : Active
Capacitance : 3.3µF
Tolerance : ±20%
Voltage - Rated : 400V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 15000 Hrs @ 105°C
Operating Temperature : -40°C ~ 105°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : -
Impedance : -
Lead Spacing : 0.138" (3.50mm)
Size / Dimension : 0.315" Dia (8.00mm)
Height - Seated (Max) : 0.512" (13.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
0
94733 in stock
Rubycon
Manufacturer : Rubycon
Packaging : Bulk
Series : LLE
Part Status : Active
Capacitance : 4.7µF
Tolerance : ±20%
Voltage - Rated : 400V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 15000 Hrs @ 105°C
Operating Temperature : -40°C ~ 105°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 61mA @ 120Hz
Ripple Current @ High Frequency : 122mA @ 100kHz
Impedance : -
Lead Spacing : 0.197" (5.00mm)
Size / Dimension : 0.394" Dia (10.00mm)
Height - Seated (Max) : 0.571" (14.50mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
0
20708 in stock

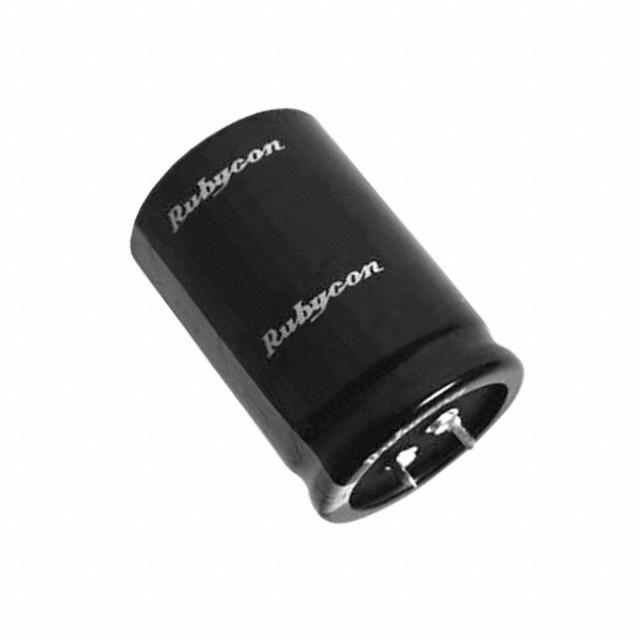

Rubycon
Manufacturer : Rubycon
Packaging : Tray
Series : MXK
Part Status : Active
Capacitance : 390µF
Tolerance : ±20%
Voltage - Rated : 400V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 3000 Hrs @ 105°C
Operating Temperature : -25°C ~ 105°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 1.97A @ 120Hz
Ripple Current @ High Frequency : 2.758A @ 10kHz
Impedance : -
Lead Spacing : 0.394" (10.00mm)
Size / Dimension : 0.866" Dia (22.00mm)
Height - Seated (Max) : 2.047" (52.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can - Snap-In
0
118 in stock
Rubycon
Manufacturer : Rubycon
Packaging : Bulk
Series : PX
Part Status : Active
Capacitance : 4.7µF
Tolerance : ±20%
Voltage - Rated : 400V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 1000 Hrs @ 105°C
Operating Temperature : -40°C ~ 105°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : -
Impedance : -
Lead Spacing : 0.138" (3.50mm)
Size / Dimension : 0.315" Dia (8.00mm)
Height - Seated (Max) : 0.532" (13.50mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
0
81412 in stock
Rubycon
Manufacturer : Rubycon
Packaging : Bulk
Series : BXC
Part Status : Active
Capacitance : 10µF
Tolerance : ±20%
Voltage - Rated : 450V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 10000 Hrs @ 105°C
Operating Temperature : -25°C ~ 105°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 99mA @ 120Hz
Ripple Current @ High Frequency : 330mA @ 100kHz
Impedance : -
Lead Spacing : 0.197" (5.00mm)
Size / Dimension : 0.394" Dia (10.00mm)
Height - Seated (Max) : 0.866" (22.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
0
47850 in stock

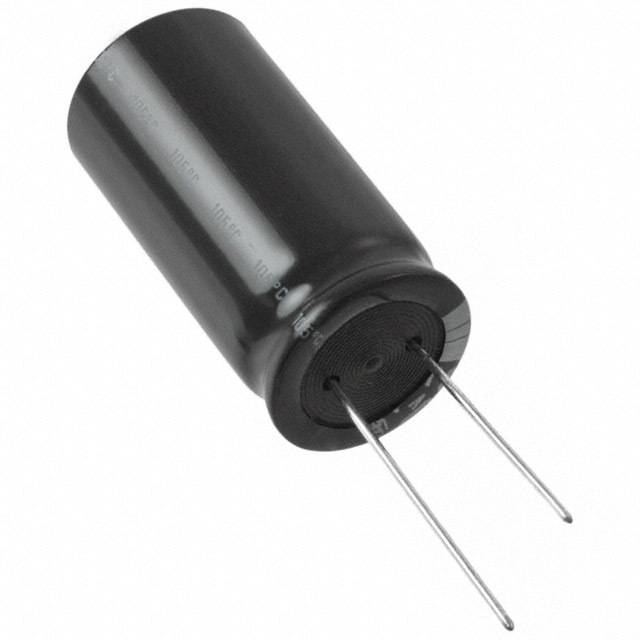

Rubycon
Manufacturer : Rubycon
Packaging : Bulk
Series : BXW
Part Status : Active
Capacitance : 100µF
Tolerance : ±20%
Voltage - Rated : 450V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 10000 Hrs @ 105°C
Operating Temperature : -40°C ~ 105°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 750mA @ 120Hz
Ripple Current @ High Frequency : 1.688A @ 100kHz
Impedance : -
Lead Spacing : 0.295" (7.50mm)
Size / Dimension : 0.709" Dia (18.00mm)
Height - Seated (Max) : 1.260" (32.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
0
14788 in stock
Rubycon
Manufacturer : Rubycon
Packaging : Bulk
Series : BXW
Part Status : Active
Capacitance : 150µF
Tolerance : ±20%
Voltage - Rated : 450V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 10000 Hrs @ 105°C
Operating Temperature : -40°C ~ 105°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 1A @ 120Hz
Ripple Current @ High Frequency : 2.25A @ 100kHz
Impedance : -
Lead Spacing : 0.295" (7.50mm)
Size / Dimension : 0.709" Dia (18.00mm)
Height - Seated (Max) : 1.850" (47.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
0
1010 in stock
Rubycon
Manufacturer : Rubycon
Packaging : Bulk
Series : BXW
Part Status : Active
Capacitance : 180µF
Tolerance : ±20%
Voltage - Rated : 450V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 10000 Hrs @ 105°C
Operating Temperature : -40°C ~ 105°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 1.1A @ 120Hz
Ripple Current @ High Frequency : 2.475A @ 100kHz
Impedance : -
Lead Spacing : 0.295" (7.50mm)
Size / Dimension : 0.709" Dia (18.00mm)
Height - Seated (Max) : 2.047" (52.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
0
1205 in stock
Rubycon
Manufacturer : Rubycon
Packaging : Bulk
Series : BXW
Part Status : Active
Capacitance : 47µF
Tolerance : ±20%
Voltage - Rated : 450V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 10000 Hrs @ 105°C
Operating Temperature : -40°C ~ 105°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 480mA @ 120Hz
Ripple Current @ High Frequency : 1.2A @ 100kHz
Impedance : -
Lead Spacing : 0.197" (5.00mm)
Size / Dimension : 0.492" Dia (12.50mm)
Height - Seated (Max) : 1.457" (37.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
0
5711 in stock
