Rubycon
- Tracing its roots back to 1952, Rubycon is one of the original pioneers in the aluminum capacitor market. With monthly production of up to 1 billion capacitors from over 8,000 product items, Rubycon ranks as one of the largest suppliers of miniature electrolytic capacitors. Large-scale production, vertical integration, and quality resulting from innovative technology are synonymous with the name Rubycon.
Rubycon is the North America subsidiary of Rubycon based in Gurnee, IL. Rubycon offers sales and engineering support including an independent rep network of over 100 agents throughout the region to support your needs.
Rubycon: Quality / Reliability / Innovation
Part Number
Manufacturer
Description
Unit Price
In Stock

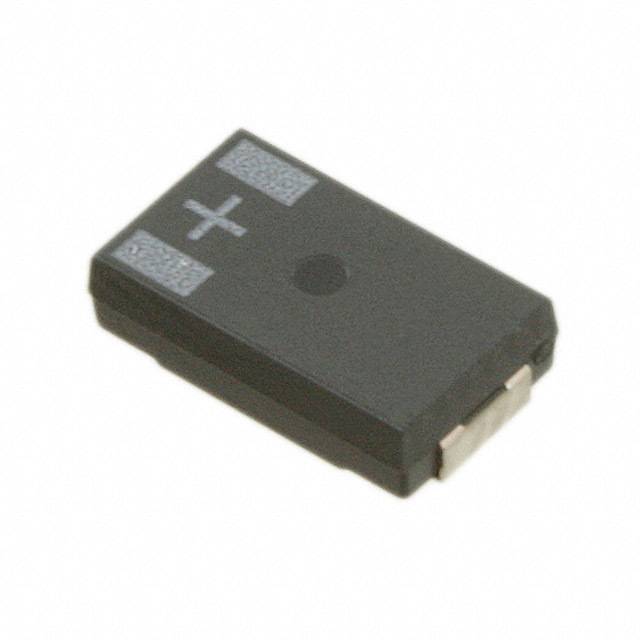

Rubycon
Manufacturer : Rubycon
Packaging : Tape & Reel (TR)
Series : PC-CON, SXB
Part Status : Obsolete
Type : Polymer
Capacitance : 68µF
Tolerance : ±20%
Voltage - Rated : 4V
ESR (Equivalent Series Resistance) : 13 mOhm
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 3A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Max) : 0.075" (1.90mm)
Surface Mount Land Size : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Mounting Type : Surface Mount
Package / Case : 2917 (7343 Metric)
0
100 in stock
Rubycon
Manufacturer : Rubycon
Packaging : Tape & Reel (TR)
Series : PC-CON, SXE
Part Status : Obsolete
Type : Polymer
Capacitance : 100µF
Tolerance : ±20%
Voltage - Rated : 4V
ESR (Equivalent Series Resistance) : 9 mOhm
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 3A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Max) : 0.075" (1.90mm)
Surface Mount Land Size : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Mounting Type : Surface Mount
Package / Case : 2917 (7343 Metric)
0
100 in stock
Rubycon
Manufacturer : Rubycon
Packaging : Tape & Reel (TR)
Series : PC-CON, SXE
Part Status : Obsolete
Type : Polymer
Capacitance : 120µF
Tolerance : ±20%
Voltage - Rated : 4V
ESR (Equivalent Series Resistance) : 9 mOhm
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 3A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Max) : 0.075" (1.90mm)
Surface Mount Land Size : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Mounting Type : Surface Mount
Package / Case : 2917 (7343 Metric)
0
100 in stock
Rubycon
Manufacturer : Rubycon
Packaging : Tape & Reel (TR)
Series : PC-CON, SXE
Part Status : Obsolete
Type : Polymer
Capacitance : 150µF
Tolerance : ±20%
Voltage - Rated : 4V
ESR (Equivalent Series Resistance) : 9 mOhm
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 3A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Max) : 0.075" (1.90mm)
Surface Mount Land Size : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Mounting Type : Surface Mount
Package / Case : 2917 (7343 Metric)
0
100 in stock
Rubycon
Manufacturer : Rubycon
Packaging : Tape & Reel (TR)
Series : PC-CON, SXE
Part Status : Obsolete
Type : Polymer
Capacitance : 68µF
Tolerance : ±20%
Voltage - Rated : 4V
ESR (Equivalent Series Resistance) : 9 mOhm
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 3A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Max) : 0.075" (1.90mm)
Surface Mount Land Size : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Mounting Type : Surface Mount
Package / Case : 2917 (7343 Metric)
0
100 in stock

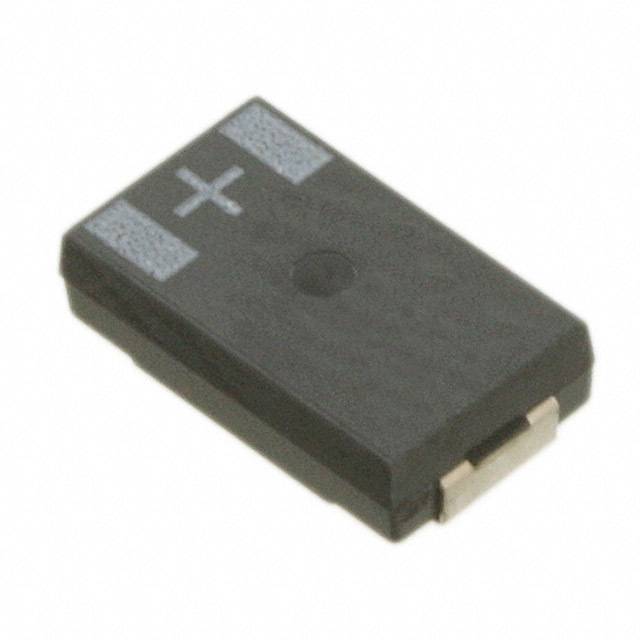

Rubycon
Manufacturer : Rubycon
Packaging : Tape & Reel (TR)
Series : PC-CON, SXE
Part Status : Obsolete
Type : Polymer
Capacitance : 82µF
Tolerance : ±20%
Voltage - Rated : 4V
ESR (Equivalent Series Resistance) : 9 mOhm
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 3A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Max) : 0.075" (1.90mm)
Surface Mount Land Size : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Mounting Type : Surface Mount
Package / Case : 2917 (7343 Metric)
0
100 in stock

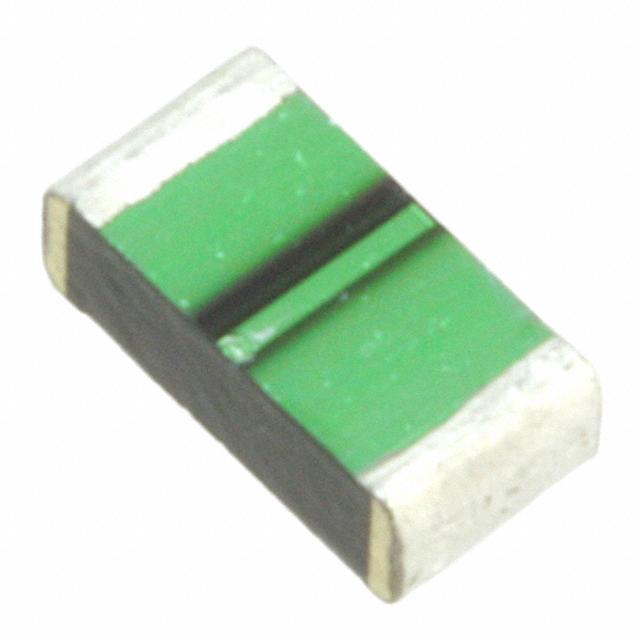

Rubycon
Manufacturer : Rubycon
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PMLCAP®, MU
Part Status : Active
Capacitance : 0.1µF
Tolerance : ±20%
Voltage Rating - AC : -
Voltage Rating - DC : 50V
Dielectric Material : Acrylic, Metallized
ESR (Equivalent Series Resistance) : -
Operating Temperature : -55°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 1206 (3216 Metric)
Size / Dimension : 0.126" L x 0.063" W (3.20mm x 1.60mm)
Height - Seated (Max) : 0.047" (1.20mm)
Termination : Solder Pads
Lead Spacing : -
Applications : DC Link, DC Filtering
Ratings : -
Features : -
0
82 in stock

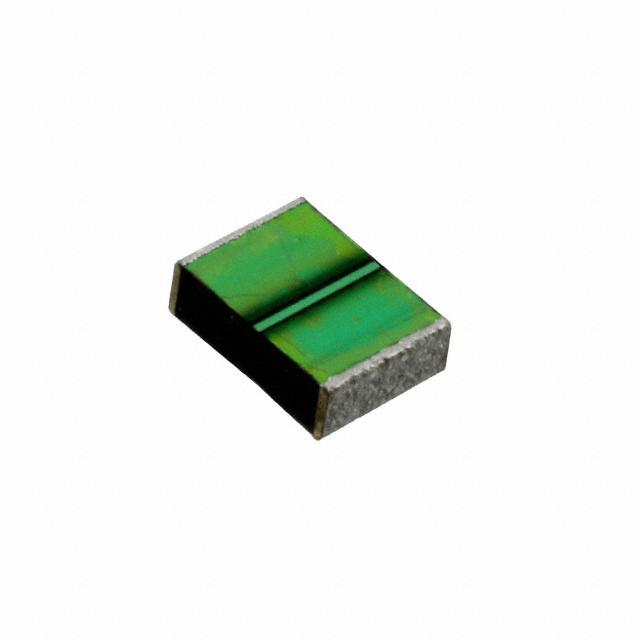

Rubycon
Manufacturer : Rubycon
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PMLCAP®, MU
Part Status : Active
Capacitance : 1µF
Tolerance : ±20%
Voltage Rating - AC : -
Voltage Rating - DC : 50V
Dielectric Material : Acrylic, Metallized
ESR (Equivalent Series Resistance) : -
Operating Temperature : -55°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric)
Size / Dimension : 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max) : 0.063" (1.60mm)
Termination : Solder Pads
Lead Spacing : -
Applications : DC Link, DC Filtering
Ratings : -
Features : -
0
35 in stock
Rubycon
Manufacturer : Rubycon
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PMLCAP®, MU
Part Status : Active
Capacitance : 1.5µF
Tolerance : ±20%
Voltage Rating - AC : -
Voltage Rating - DC : 50V
Dielectric Material : Acrylic, Metallized
ESR (Equivalent Series Resistance) : -
Operating Temperature : -55°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric)
Size / Dimension : 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max) : 0.079" (2.00mm)
Termination : Solder Pads
Lead Spacing : -
Applications : DC Link, DC Filtering
Ratings : -
Features : -
0
1 in stock
Rubycon
Manufacturer : Rubycon
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PMLCAP®, MU
Part Status : Active
Capacitance : 0.22µF
Tolerance : ±20%
Voltage Rating - AC : -
Voltage Rating - DC : 50V
Dielectric Material : Acrylic, Metallized
ESR (Equivalent Series Resistance) : -
Operating Temperature : -55°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 1206 (3216 Metric)
Size / Dimension : 0.126" L x 0.063" W (3.20mm x 1.60mm)
Height - Seated (Max) : 0.047" (1.20mm)
Termination : Solder Pads
Lead Spacing : -
Applications : DC Link, DC Filtering
Ratings : -
Features : -
0
100 in stock
Rubycon
Manufacturer : Rubycon
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PMLCAP®, MU
Part Status : Active
Capacitance : 2.2µF
Tolerance : ±20%
Voltage Rating - AC : -
Voltage Rating - DC : 50V
Dielectric Material : Acrylic, Metallized
ESR (Equivalent Series Resistance) : -
Operating Temperature : -55°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric)
Size / Dimension : 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max) : 0.110" (2.80mm)
Termination : Solder Pads
Lead Spacing : -
Applications : DC Link, DC Filtering
Ratings : -
Features : -
0
92 in stock

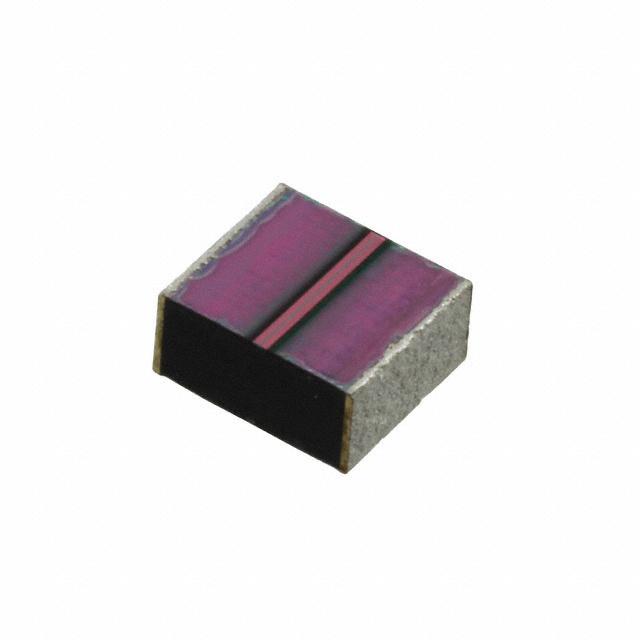

Rubycon
Manufacturer : Rubycon
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PMLCAP®, MU
Part Status : Active
Capacitance : 3.3µF
Tolerance : ±20%
Voltage Rating - AC : -
Voltage Rating - DC : 50V
Dielectric Material : Acrylic, Metallized
ESR (Equivalent Series Resistance) : -
Operating Temperature : -55°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 2220 (5750 Metric)
Size / Dimension : 0.224" L x 0.197" W (5.70mm x 5.00mm)
Height - Seated (Max) : 0.079" (2.00mm)
Termination : Solder Pads
Lead Spacing : -
Applications : DC Link, DC Filtering
Ratings : -
Features : -
0
1 in stock
