- Pulse Electronics is the electronic components partner that helps customers build the next great product by providing the needed technical solutions. Pulse has a long operating history of innovation in magnetics, antennas and connectors, as well as the ability to ramp quickly into high-quality, high-volume production. The Company serves the wireless and wireline communications, power management, military/aerospace and automotive industries. Previously, the holding and operating companies were known as Technitrol, Inc. and Pulse Engineering, respectively. Pulse is a participating member of IEEE, ATIS, ETSI, HDMI, the DSL Forum, CommNexus, and MoCA.
Part Number
Manufacturer
Description
Unit Price
In Stock
Pulse Electronics Corporation
Manufacturer : PulseLarsen Antennas
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Frequency Group : Wide Band
Frequency (Center/Band) : 859MHz, 1.8GHz, 1.9GHz, 2.05GHz
Frequency Range : 824MHz ~ 894MHz, 1.71GHz ~ 2.17GHz
Antenna Type : Chip
Number of Bands : 4
VSWR : -
Return Loss : -4.7dB, -3.5dB, -5.9dB, -3.3dB
Gain : 0.4dBi, 2.3dBi, 2.5dBi, 2.2dBi
Power - Max : -
Features : -
Termination : Solder
Ingress Protection : -
Mounting Type : Surface Mount
Height (Max) : 0.157" (4.00mm)
Applications : GSM, PCS, WCDMA
0
852 in stock
Pulse Electronics Corporation
Manufacturer : PulseLarsen Antennas
Series : -
Part Status : Active
Type : Antenna
Frequency : -
For Use With/Related Products : W3073
Supplied Contents : Board(s)
0
4 in stock
Pulse Electronics Corporation
Manufacturer : PulseLarsen Antennas
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Frequency Group : UHF (2 GHz ~ 3 GHz), SHF (f > 4 GHz)
Frequency (Center/Band) : 2.4GHz, 5GHz
Frequency Range : 2.4GHz ~ 2.484GHz, 4.95GHz ~ 5.85GHz
Antenna Type : Chip
Number of Bands : 2
VSWR : -
Return Loss : -10dB, -6dB
Gain : 1.7dBi, 4.3dBi
Power - Max : -
Features : -
Termination : Solder
Ingress Protection : -
Mounting Type : Surface Mount
Height (Max) : 0.043" (1.10mm)
Applications : WLAN, Zigbee™
0
884 in stock
Pulse Electronics Corporation
Manufacturer : PulseLarsen Antennas
Packaging : Cut Tape (CT)
Alternate Packaging
Series : The Blue Dot
Part Status : Active
Frequency Group : UHF (2 GHz ~ 3 GHz)
Frequency (Center/Band) : 2.4GHz
Frequency Range : 2.4GHz ~ 2.483GHz
Antenna Type : Chip
Number of Bands : 1
VSWR : 3
Return Loss : -
Gain : 0.8dBi
Power - Max : -
Features : -
Termination : Solder
Ingress Protection : -
Mounting Type : Surface Mount
Height (Max) : 0.022" (0.55mm)
Applications : Bluetooth, Wi-Fi
0
5833 in stock
Pulse Electronics Corporation
Manufacturer : PulseLarsen Antennas
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Frequency Group : Wide Band
Frequency (Center/Band) : 1.575GHz, 1.602GHz, 2.4GHz, 5.4GHz
Frequency Range : 1.575GHz ~ 1.61GHz, 2.4GHz ~ 2.49GHz, 4.9GHz ~ 5.85GHz
Antenna Type : Chip
Number of Bands : 3
VSWR : 1.2
Return Loss : -
Gain : 2.5dBi
Power - Max : -
Features : -
Termination : Solder
Ingress Protection : -
Mounting Type : Surface Mount
Height (Max) : 0.059" (1.50mm)
Applications : GLONASS, GPS
0
2179 in stock
Pulse Electronics Corporation
Manufacturer : PulseLarsen Antennas
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Frequency Group : UHF (2 GHz ~ 3 GHz)
Frequency (Center/Band) : 2.4GHz
Frequency Range : 2.4GHz ~ 2.483GHz
Antenna Type : Helical
Number of Bands : 1
VSWR : -
Return Loss : -8dB
Gain : 1.5dBi
Power - Max : -
Features : -
Termination : Solder
Ingress Protection : -
Mounting Type : Surface Mount
Height (Max) : 0.217" (5.50mm)
Applications : -
0
3777 in stock
Pulse Electronics Corporation
Manufacturer : PulseLarsen Antennas
Series : -
Part Status : Active
Type : Antenna
Frequency : 902MHz ~ 928MHz
For Use With/Related Products : W3108
Supplied Contents : Board(s)
0
10 in stock
Pulse Electronics Corporation
Manufacturer : PulseLarsen Antennas
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Frequency Group : UHF (1 GHz ~ 2 GHz)
Frequency (Center/Band) : 1.575GHz
Frequency Range : 1.565GHz ~ 1.585GHz
Antenna Type : Helical
Number of Bands : 1
VSWR : -
Return Loss : -16dB
Gain : 1.3dBi
Power - Max : -
Features : -
Termination : Solder
Ingress Protection : -
Mounting Type : Surface Mount
Height (Max) : 0.217" (5.50mm)
Applications : GPS
0
1957 in stock
Pulse Electronics Corporation
Manufacturer : PulseLarsen Antennas
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Frequency Group : UHF (300 MHz ~ 1 GHz)
Frequency (Center/Band) : 900MHz
Frequency Range : 902MHz ~ 928MHz
Antenna Type : Helical
Number of Bands : 1
VSWR : -
Return Loss : -10dB
Gain : 0.9dBi
Power - Max : -
Features : -
Termination : Solder
Ingress Protection : -
Mounting Type : Surface Mount
Height (Max) : 0.315" (8.00mm)
Applications : -
0
2442 in stock
Pulse Electronics Corporation
Manufacturer : PulseLarsen Antennas
Series : -
Part Status : Active
Type : Antenna
Frequency : 902MHz ~ 928MHz
For Use With/Related Products : W3112A
Supplied Contents : Board(s)
0
2 in stock
Pulse Electronics Corporation
Manufacturer : PulseLarsen Antennas
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Frequency Group : UHF (300 MHz ~ 1 GHz)
Frequency (Center/Band) : 900MHz
Frequency Range : 902MHz ~ 928MHz
Antenna Type : Helical
Number of Bands : 1
VSWR : -
Return Loss : -10dB
Gain : 0.8dBi
Power - Max : -
Features : -
Termination : Solder
Ingress Protection : -
Mounting Type : Surface Mount
Height (Max) : 0.098" (2.50mm)
Applications : -
0
5131 in stock

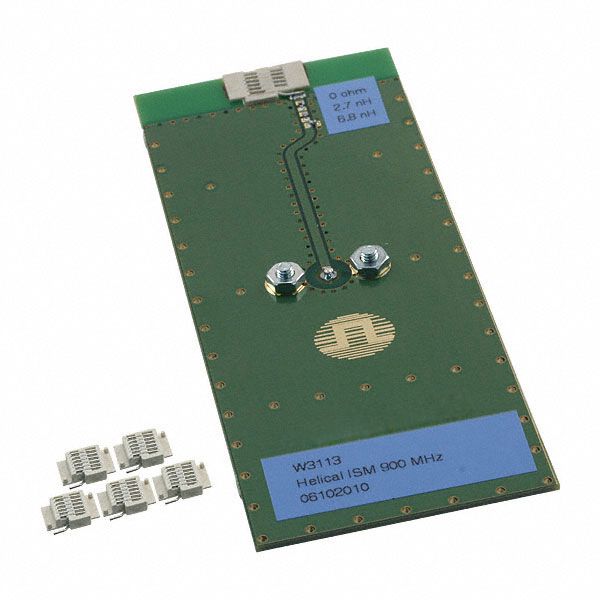

Pulse Electronics Corporation
Manufacturer : PulseLarsen Antennas
Series : -
Part Status : Active
Type : Antenna
Frequency : 902MHz ~ 928MHz
For Use With/Related Products : W3113
Supplied Contents : Board(s)
0
5 in stock
