Pulse Electronics Corporation
- Pulse Electronics is the electronic components partner that helps customers build the next great product by providing the needed technical solutions. Pulse has a long operating history of innovation in magnetics, antennas and connectors, as well as the ability to ramp quickly into high-quality, high-volume production. The Company serves the wireless and wireline communications, power management, military/aerospace and automotive industries. Previously, the holding and operating companies were known as Technitrol, Inc. and Pulse Engineering, respectively. Pulse is a participating member of IEEE, ATIS, ETSI, HDMI, the DSL Forum, CommNexus, and MoCA.
Part Number
Manufacturer
Description
Unit Price
In Stock

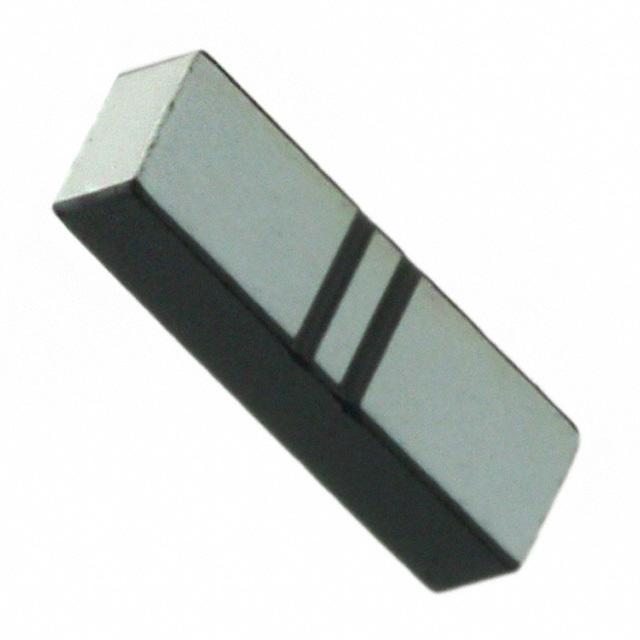

Pulse Electronics Corporation
Manufacturer : PulseLarsen Antennas
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Frequency Group : UHF (300 MHz ~ 1 GHz)
Frequency (Center/Band) : 868MHz
Frequency Range : 844MHz ~ 904MHz
Antenna Type : Chip
Number of Bands : 1
VSWR : -
Return Loss : -15dB
Gain : -2.2dBi
Power - Max : -
Features : -
Termination : Solder
Ingress Protection : -
Mounting Type : Surface Mount
Height (Max) : 0.157" (4.00mm)
Applications : -
0
5224 in stock

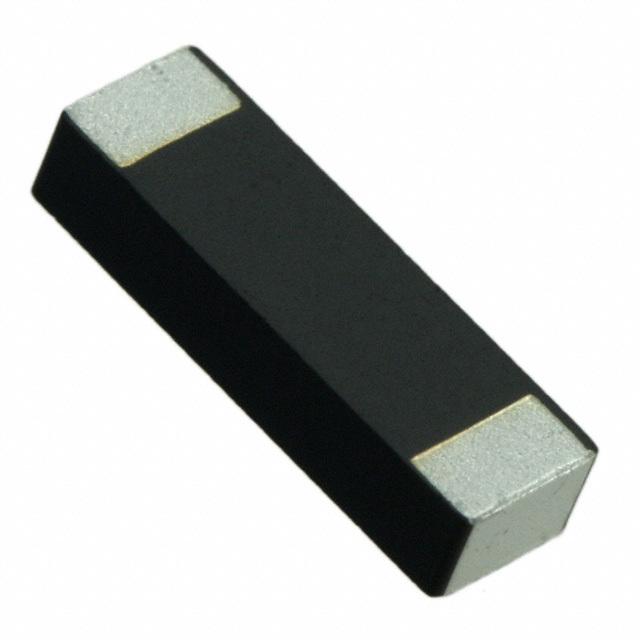

Pulse Electronics Corporation
Manufacturer : PulseLarsen Antennas
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Frequency Group : UHF (1 GHz ~ 2 GHz)
Frequency (Center/Band) : 1.9GHz
Frequency Range : 1.88GHz ~ 1.93GHz
Antenna Type : Chip
Number of Bands : 1
VSWR : -
Return Loss : -12dB
Gain : 2.5dBi
Power - Max : -
Features : -
Termination : Solder
Ingress Protection : -
Mounting Type : Surface Mount
Height (Max) : 0.079" (2.00mm)
Applications : -
0
625 in stock

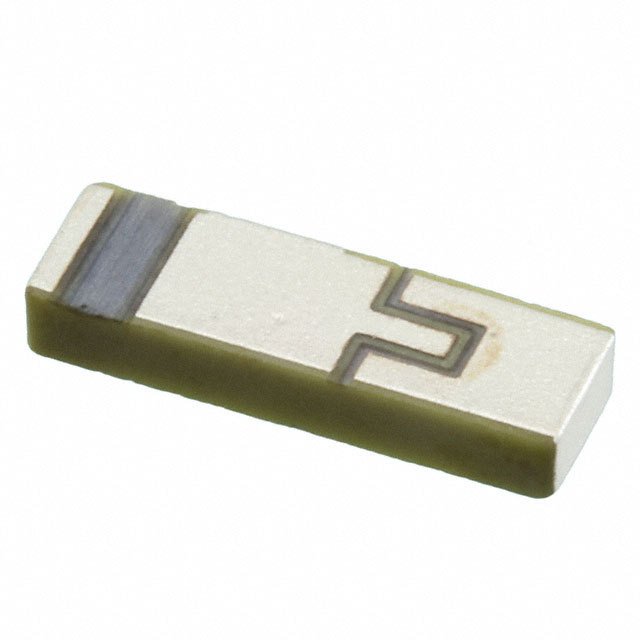

Pulse Electronics Corporation
Manufacturer : PulseLarsen Antennas
Packaging : Tape & Reel (TR)
Series : -
Part Status : Active
Frequency Group : UHF (300 MHz ~ 1 GHz)
Frequency (Center/Band) : 719MHz
Frequency Range : 716MHz ~ 722MHz
Antenna Type : Chip
Number of Bands : 1
VSWR : -
Return Loss : -8dB
Gain : 2dBi
Power - Max : -
Features : -
Termination : Solder
Ingress Protection : -
Mounting Type : Surface Mount
Height (Max) : 0.157" (4.00mm)
Applications : -
0
100 in stock

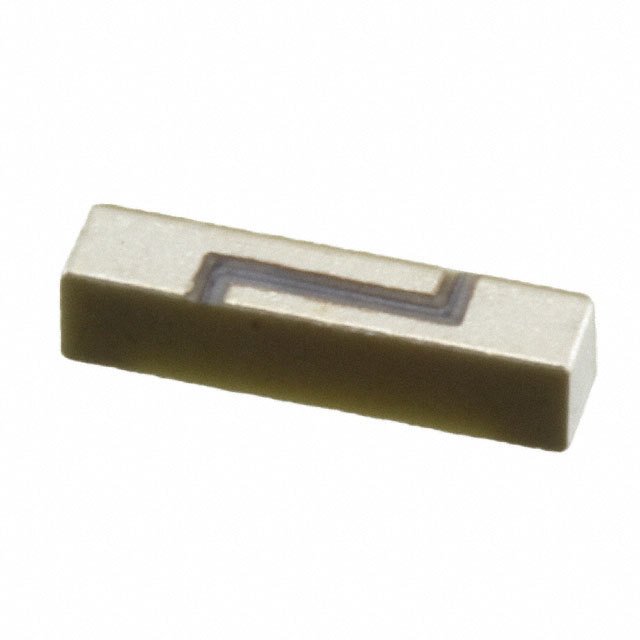

Pulse Electronics Corporation
Manufacturer : PulseLarsen Antennas
Packaging : Tape & Reel (TR)
Series : -
Part Status : Active
Frequency Group : UHF (1 GHz ~ 2 GHz)
Frequency (Center/Band) : 1.8GHz
Frequency Range : 1.805GHz ~ 1.88GHz
Antenna Type : Chip
Number of Bands : 1
VSWR : -
Return Loss : -9dB
Gain : 2.5dBi
Power - Max : -
Features : -
Termination : Solder
Ingress Protection : -
Mounting Type : Surface Mount
Height (Max) : 0.079" (2.00mm)
Applications : -
0
100 in stock
Pulse Electronics Corporation
Manufacturer : PulseLarsen Antennas
Packaging : Tape & Reel (TR)
Series : -
Part Status : Active
Frequency Group : UHF (1 GHz ~ 2 GHz)
Frequency (Center/Band) : 2GHz
Frequency Range : 1.93GHz ~ 1.99GHz
Antenna Type : Chip
Number of Bands : 1
VSWR : -
Return Loss : -10dB
Gain : 2dBi
Power - Max : -
Features : -
Termination : Solder
Ingress Protection : -
Mounting Type : Surface Mount
Height (Max) : 0.079" (2.00mm)
Applications : -
0
100 in stock
Pulse Electronics Corporation
Manufacturer : PulseLarsen Antennas
Packaging : Tape & Reel (TR)
Series : -
Part Status : Active
Frequency Group : UHF (2 GHz ~ 3 GHz)
Frequency (Center/Band) : 2.1GHz
Frequency Range : 2.11GHz ~ 2.17GHz
Antenna Type : Chip
Number of Bands : 1
VSWR : -
Return Loss : -10dB
Gain : 2dBi
Power - Max : -
Features : -
Termination : Solder
Ingress Protection : -
Mounting Type : Surface Mount
Height (Max) : 0.079" (2.00mm)
Applications : -
0
100 in stock
Pulse Electronics Corporation
Manufacturer : PulseLarsen Antennas
Packaging : Tape & Reel (TR)
Series : -
Part Status : Active
Frequency Group : UHF (300 MHz ~ 1 GHz)
Frequency (Center/Band) : 881MHz
Frequency Range : 869MHz ~ 894MHz
Antenna Type : Chip
Number of Bands : 1
VSWR : -
Return Loss : -5.5dB
Gain : 2.3dBi
Power - Max : -
Features : -
Termination : Solder
Ingress Protection : -
Mounting Type : Surface Mount
Height (Max) : 0.157" (4.00mm)
Applications : -
0
100 in stock
Pulse Electronics Corporation
Manufacturer : PulseLarsen Antennas
Packaging : Tape & Reel (TR)
Series : -
Part Status : Active
Frequency Group : UHF (300 MHz ~ 1 GHz)
Frequency (Center/Band) : 900MHz
Frequency Range : 925MHz ~ 960MHz
Antenna Type : Chip
Number of Bands : 1
VSWR : -
Return Loss : -5dB
Gain : 2dBi
Power - Max : -
Features : -
Termination : Solder
Ingress Protection : -
Mounting Type : Surface Mount
Height (Max) : 0.157" (4.00mm)
Applications : GSM
0
100 in stock
Pulse Electronics Corporation
Manufacturer : PulseLarsen Antennas
Packaging : Tape & Reel (TR)
Series : -
Part Status : Active
Frequency Group : UHF (1 GHz ~ 2 GHz), UHF (2 GHz ~ 3 GHz)
Frequency (Center/Band) : 2.1GHz
Frequency Range : 1.92GHz ~ 2.17GHz
Antenna Type : Chip
Number of Bands : 1
VSWR : -
Return Loss : -10dB
Gain : 2.3dBi
Power - Max : -
Features : -
Termination : Solder
Ingress Protection : -
Mounting Type : Surface Mount
Height (Max) : 0.079" (2.00mm)
Applications : WCDMA
0
100 in stock
Pulse Electronics Corporation
Manufacturer : PulseLarsen Antennas
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Frequency Group : UHF (1 GHz ~ 2 GHz), UHF (2 GHz ~ 3 GHz)
Frequency (Center/Band) : 1.575GHz, 2.4GHz
Frequency Range : 1.575GHz, 2.4GHz ~ 2.5GHz
Antenna Type : Chip
Number of Bands : 2
VSWR : -
Return Loss : -20dB
Gain : -
Power - Max : -
Features : -
Termination : Solder
Ingress Protection : -
Mounting Type : Surface Mount
Height (Max) : 0.059" (1.50mm)
Applications : Bluetooth, GPS, WLAN
0
451 in stock
Pulse Electronics Corporation
Manufacturer : PulseLarsen Antennas
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Frequency Group : UHF (1 GHz ~ 2 GHz)
Frequency (Center/Band) : 1.575GHz
Frequency Range : 1.565GHz ~ 1.585GHz
Antenna Type : Chip
Number of Bands : 1
VSWR : -
Return Loss : -10dB
Gain : 2.5dBi
Power - Max : -
Features : -
Termination : Solder
Ingress Protection : -
Mounting Type : Surface Mount
Height (Max) : 0.063" (1.60mm)
Applications : GPS
0
4202 in stock
Pulse Electronics Corporation
Manufacturer : PulseLarsen Antennas
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Frequency Group : UHF (300 MHz ~ 1 GHz), UHF (1 GHz ~ 2 GHz)
Frequency (Center/Band) : 900MHz, 1.8GHz
Frequency Range : 880MHz ~ 960MHz, 1.71GHz ~ 1.88GHz
Antenna Type : Chip
Number of Bands : 2
VSWR : -
Return Loss : -3.8dB, -4dB
Gain : 1.5dBi, 1dBi
Power - Max : -
Features : -
Termination : Solder
Ingress Protection : -
Mounting Type : Surface Mount
Height (Max) : 0.079" (2.00mm)
Applications : GSM
0
4652 in stock
