Welcome to Eruic

NMB Technologies Corp.

- NMB Technologies Corp. headquartered in Novi, Michigan, NMB Technologies Corporation was founded in September 1968 as the sales and marketing arm for its parent company, Minebea Co., Ltd.

From the beginning, NMB has believed in creating strong partnerships with our customers. This commitment to our customers is demonstrated by making available local application engineers, knowledgeable direct sales, and partnering with world class distributors and local representatives who know our products and its quality inside out.

As part of the Minebea Group of Companies, NMB Technologies Corporation places a global manufacturing powerhouse in the hands of our customers. With R & D and manufacturing facilities located in Thailand, Cambodia, China, Singapore, Japan, Europe and North America, and over 60,000 people employed world wide, the NMB/Minebea Group of Companies remains a world leader in the design and manufacturing of electro-mechanical components.

At NMB, our commitment to our customers compels us to protect the supply chain, drive cost efficiency, and hold quality to the highest standard. Quality in our people, quality in our services, and quality in our products continues to be our primary component.

Part Number
Manufacturer
Description
Unit Price
In Stock

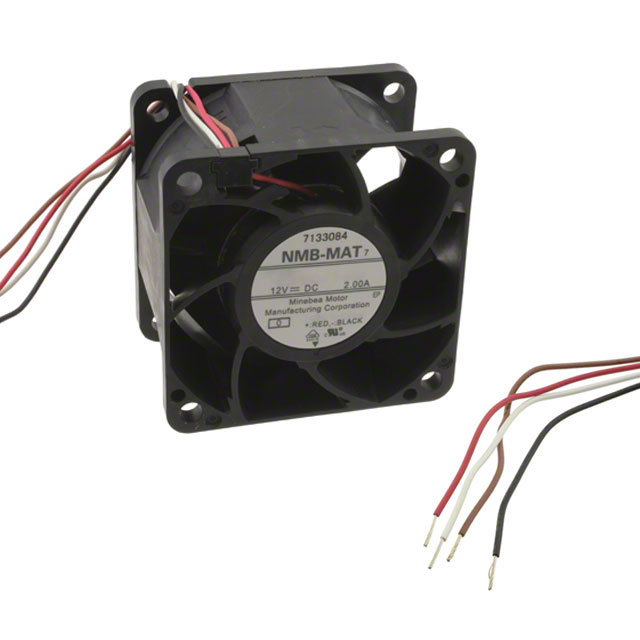

06038DA-12S-EU-D0 06038DA-12S-EU-D0

NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 06038DA
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 60mm L x 60mm H
Width : 38.00mm
Air Flow : 66.4 CFM (1.86m鲁/min)
Static Pressure : 3.713 in H2O (925.0 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : PWM Control, Speed Sensor (Tach)
Noise : 63.5 dB(A)
Power (Watts) : 19.80W
RPM : 17000 RPM
Termination : 4 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : UR, VDE
Weight : 0.271 lb (122.92g)
0
536 in stock

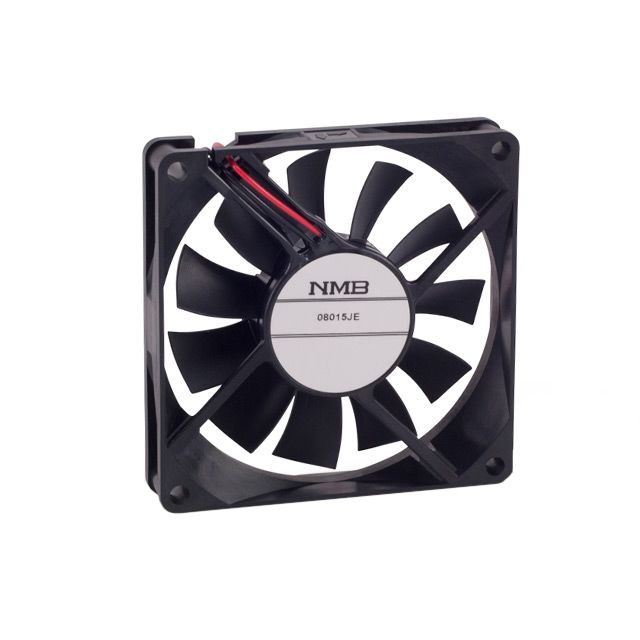

08015JE-12M-BA-F0 08015JE-12M-BA-F0

NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 08015JE
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 80mm L x 80mm H
Width : 15.00mm
Air Flow : 22.2 CFM (0.622m鲁/min)
Static Pressure : 0.100 in H2O (24.9 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Auto Restart
Noise : 32.0 dB
Power (Watts) : 1.20W
RPM : 2800 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -40 ~ 104°F (-40 ~ 40°C)
Approvals : -
Weight : -
0
79 in stock

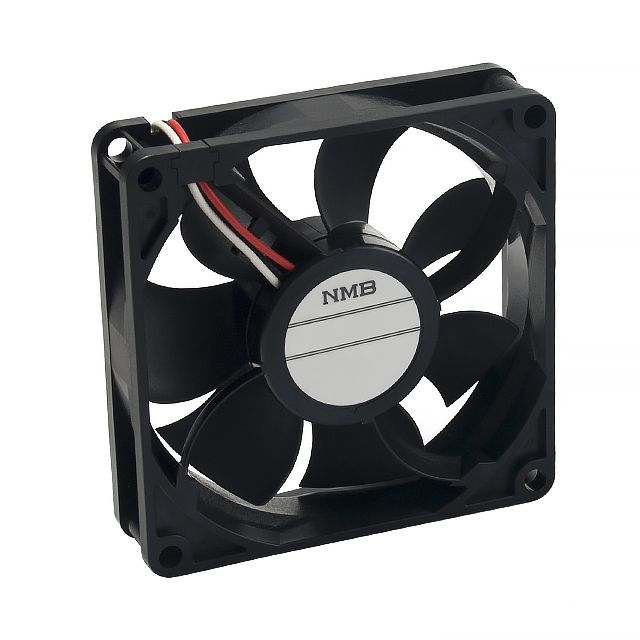

08020SA-12J-AT-00 08020SA-12J-AT-00

NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 08020SA
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 80mm L x 80mm H
Width : 20.00mm
Air Flow : 27.5 CFM (0.770m鲁/min)
Static Pressure : 0.110 in H2O (27.4 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Speed Sensor (Tach)
Noise : 27.0 dB
Power (Watts) : 600mW
RPM : 2600 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : -
Weight : 0.176 lb (79.83g)
0
266 in stock

08020SA-12M-AL-00 08020SA-12M-AL-00

NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 08020SA
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 80mm L x 80mm H
Width : 20.00mm
Air Flow : 40.0 CFM (1.12m鲁/min)
Static Pressure : 0.210 in H2O (52.3 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Locked Rotor Sensor
Noise : 37.5 dB
Power (Watts) : 1.56W
RPM : 3700 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : -
Weight : 0.176 lb (79.83g)
0
716 in stock

08025SA-24N-ET-00 08025SA-24N-ET-00

NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 08025SA
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 80mm L x 80mm H
Width : 25.00mm
Air Flow : 41.3 CFM (1.16m鲁/min)
Static Pressure : 0.150 in H2O (37.4 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Speed Sensor (Tach)
Noise : 30.0 dB(A)
Power (Watts) : 1.92W
RPM : 3100 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CSA, UL, VDE
Weight : 0.176 lb (79.83g)
0
409 in stock

08025SS-12N-AT-D0 08025SS-12N-AT-D0

NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 08025SS
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 80mm L x 80mm H
Width : 25.00mm
Air Flow : 41.3 CFM (1.16m鲁/min)
Static Pressure : 0.150 in H2O (37.5 Pa)
Bearing Type : Sleeve
Fan Type : Tubeaxial
Features : Auto Restart
Noise : 30.0 dB
Power (Watts) : 1.92W
RPM : 3100 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 140°F (-10 ~ 60°C)
Approvals : -
Weight : -
0
128 in stock

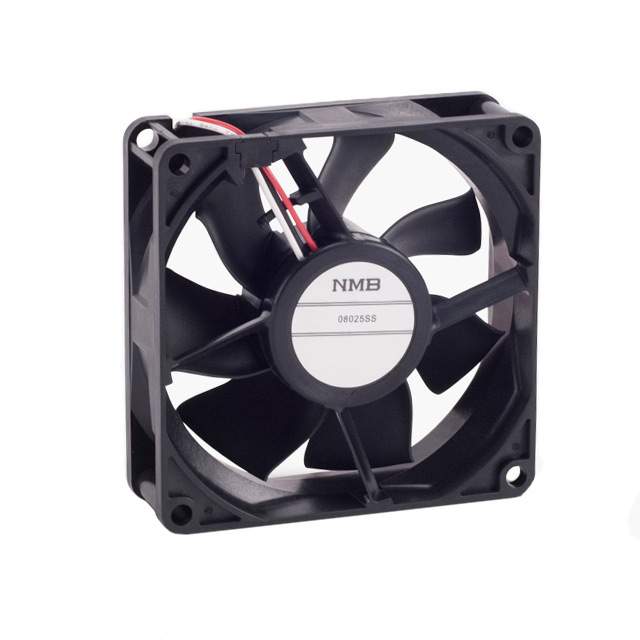

08025SS-24Q-AT-D0 08025SS-24Q-AT-D0

NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 08025SS
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 80mm L x 80mm H
Width : 25.00mm
Air Flow : 54.7 CFM (1.53m鲁/min)
Static Pressure : 0.270 in H2O (68.0 Pa)
Bearing Type : Sleeve
Fan Type : Tubeaxial
Features : Auto Restart
Noise : 39.5 dB
Power (Watts) : 5.04W
RPM : 4100 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 140°F (-10 ~ 60°C)
Approvals : -
Weight : -
0
93 in stock

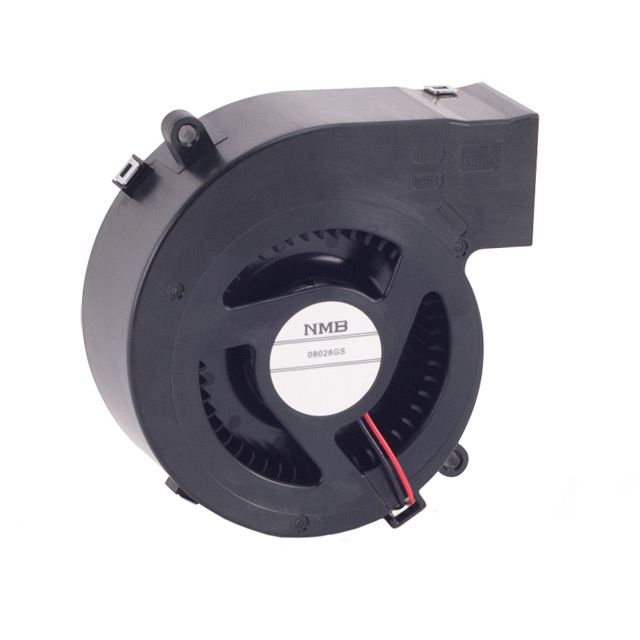

08028GS-12N-AA-00 08028GS-12N-AA-00

NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 08028GS
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Rectangular/Rounded - 78.9mm L x 79.7mm H
Width : 28.00mm
Air Flow : 17.0 CFM (0.476m鲁/min)
Static Pressure : 1.075 in H2O (267.8 Pa)
Bearing Type : Sleeve
Fan Type : Blower
Features : Auto Restart
Noise : 40.0 dB
Power (Watts) : 4.32W
RPM : 3650 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 140°F (-10 ~ 60°C)
Approvals : -
Weight : -
0
77 in stock

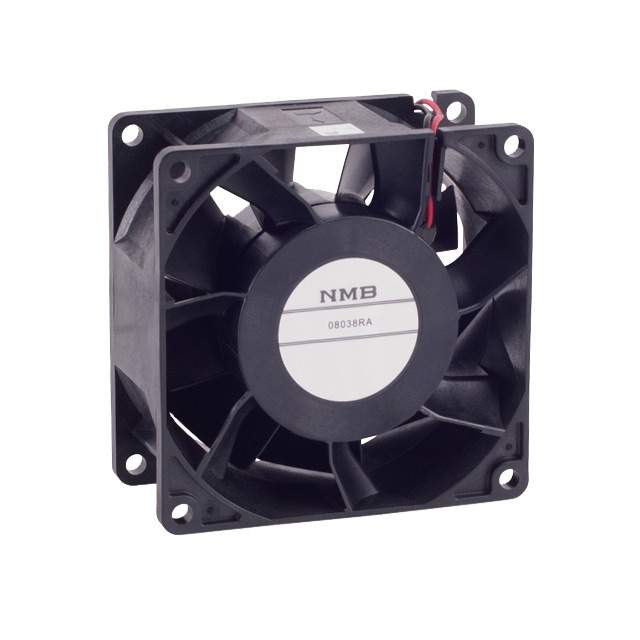

08038RA-24Q-GA-00 08038RA-24Q-GA-00

NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 08038RA
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 80mm L x 80mm H
Width : 38.00mm
Air Flow : 91.8 CFM (2.57m鲁/min)
Static Pressure : 1.040 in H2O (258.0 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Auto Restart
Noise : 56.0 dB
Power (Watts) : 14.40W
RPM : 6500 RPM
Termination : 2 Wire Leads
Ingress Protection : IP69K - Dust Tight, High Temp Water Jets, Waterproof
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : -
Weight : -
0
49 in stock

08PM-K049BSTDCN 08PM-K049BSTDCN

NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 08PM
Part Status : Active
Type : Hybrid
Coil Type : Bipolar
Voltage - Rated : 24VDC
Current Rating : 500mA
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : -
Torque - Holding (oz-in / mNm) : 2.83 / 20
Size / Dimension : Square - 0.787" x 0.787" (20.00mm x 20.00mm)
NEMA Frame Size : 8
Diameter - Shaft : 0.157" (4.00mm)
Length - Shaft and Bearing : 0.394" (10.00mm)
Mounting Hole Spacing : 0.630" (16.00mm)
Termination Style : Wire Leads with Connector
Operating Temperature : -
Coil Resistance : 8 Ohms
Features : Flatted Shaft
0
100 in stock

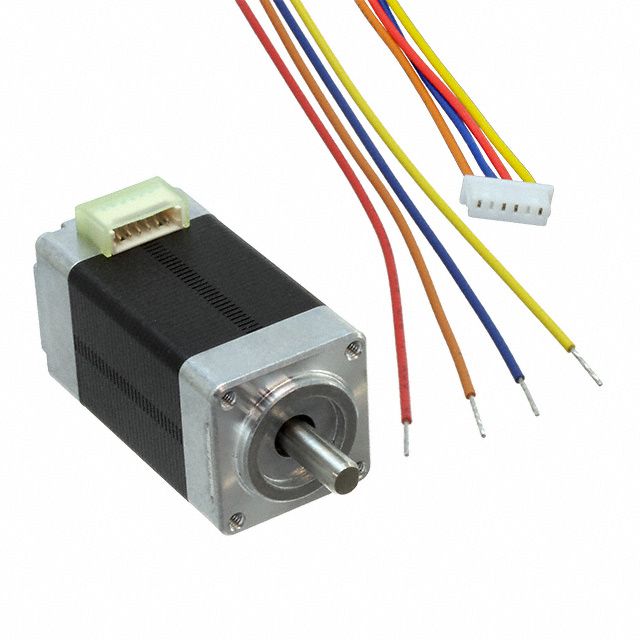

08PM-K139BSTDCN 08PM-K139BSTDCN

NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 08PM
Part Status : Active
Type : Hybrid
Coil Type : Bipolar
Voltage - Rated : 24VDC
Current Rating : 600mA
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : -
Torque - Holding (oz-in / mNm) : 5.1 / 36
Size / Dimension : Square - 0.787" x 0.787" (20.00mm x 20.00mm)
NEMA Frame Size : 8
Diameter - Shaft : 0.157" (4.00mm)
Length - Shaft and Bearing : 0.394" (10.00mm)
Mounting Hole Spacing : 0.630" (16.00mm)
Termination Style : Wire Leads with Connector
Operating Temperature : -
Coil Resistance : 6.5 Ohms
Features : Flatted Shaft
0
100 in stock

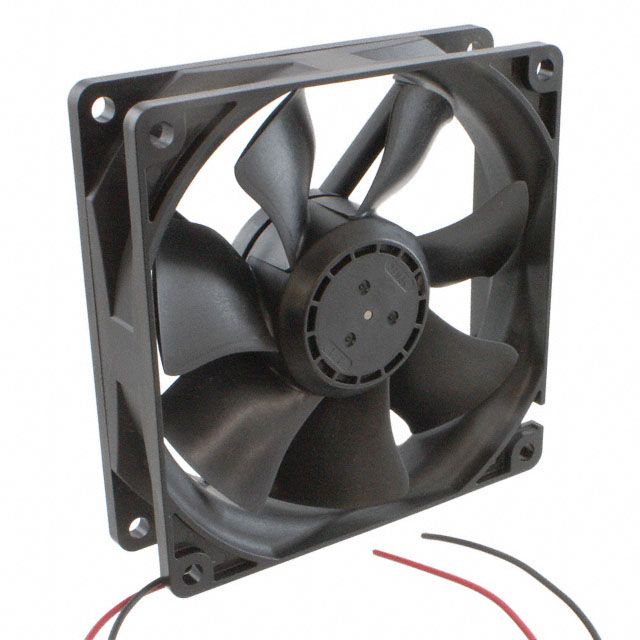

09225SA-12L-EA-00 09225SA-12L-EA-00

NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 09225SA
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 92mm L x 92mm H
Width : 25.00mm
Air Flow : 41.3 CFM (1.16m鲁/min)
Static Pressure : 0.120 in H2O (29.9 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 28.0 dB
Power (Watts) : 1.20W
RPM : 2400 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, UR, VDE
Weight : 0.209 lb (94.8g)
0
380 in stock
