NMB Technologies Corp.

- NMB Technologies Corp. headquartered in Novi, Michigan, NMB Technologies Corporation was founded in September 1968 as the sales and marketing arm for its parent company, Minebea Co., Ltd.

From the beginning, NMB has believed in creating strong partnerships with our customers. This commitment to our customers is demonstrated by making available local application engineers, knowledgeable direct sales, and partnering with world class distributors and local representatives who know our products and its quality inside out.

As part of the Minebea Group of Companies, NMB Technologies Corporation places a global manufacturing powerhouse in the hands of our customers. With R & D and manufacturing facilities located in Thailand, Cambodia, China, Singapore, Japan, Europe and North America, and over 60,000 people employed world wide, the NMB/Minebea Group of Companies remains a world leader in the design and manufacturing of electro-mechanical components.

At NMB, our commitment to our customers compels us to protect the supply chain, drive cost efficiency, and hold quality to the highest standard. Quality in our people, quality in our services, and quality in our products continues to be our primary component.


Part Number

Manufacturer

Description

Unit Price

In Stock

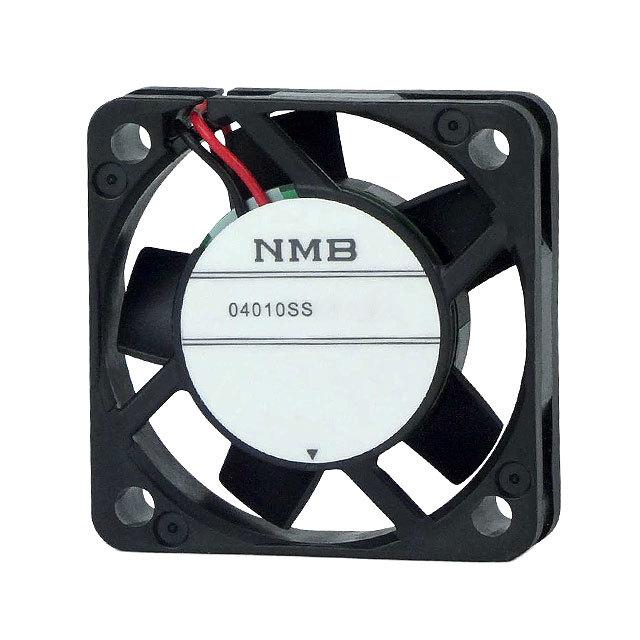

04010SS-24N-AT-00

NMB Technologies Corp.

Manufacturer : NMB Technologies Corporation
Series : 04010SS
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 40mm L x 40mm H
Width : 10.00mm
Air Flow : 6.7 CFM (0.188m鲁/min)
Static Pressure : 0.190 in H2O (47.3 Pa)
Bearing Type : Sleeve
Fan Type : Tubeaxial
Features : Speed Sensor (Tach)
Noise : 29.0 dB
Power (Watts) : 1.10W
RPM : 7500 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : -
Weight : 0.035 lb (15.88g)

434 in stock

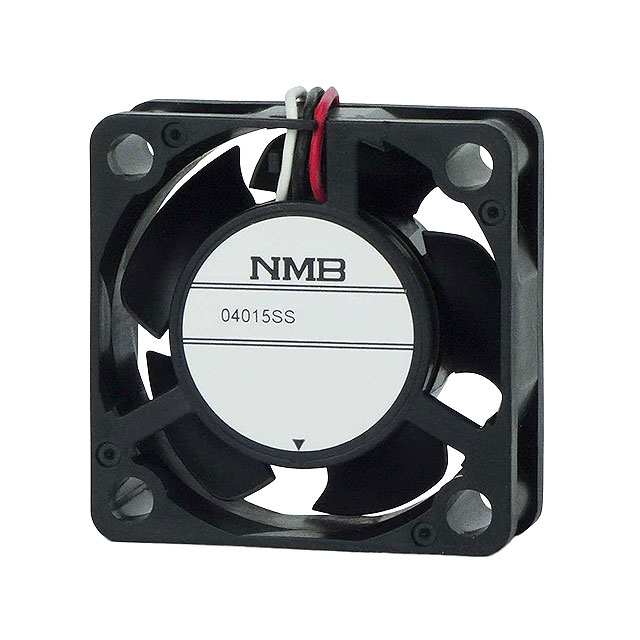

04015SS-12N-AT-00

NMB Technologies Corp.

Manufacturer : NMB Technologies Corporation
Series : 04015SS
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 40mm L x 40mm H
Width : 15.00mm
Air Flow : 7.4 CFM (0.207m鲁/min)
Static Pressure : 0.270 in H2O (67.2 Pa)
Bearing Type : Sleeve
Fan Type : Tubeaxial
Features : Speed Sensor (Tach)
Noise : 32.0 dB
Power (Watts) : 720mW
RPM : 8300 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 140°F (-10 ~ 60°C)
Approvals : -
Weight : 0.051 lb (23.13g)

1457 in stock

04015SS-24N-AT-00

NMB Technologies Corp.

Manufacturer : NMB Technologies Corporation
Series : 04015SS
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 40mm L x 40mm H
Width : 15.00mm
Air Flow : 7.4 CFM (0.207m鲁/min)
Static Pressure : 0.270 in H2O (67.2 Pa)
Bearing Type : Sleeve
Fan Type : Tubeaxial
Features : Speed Sensor (Tach)
Noise : 32.0 dB
Power (Watts) : 1.20W
RPM : 8300 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 140°F (-10 ~ 60°C)
Approvals : -
Weight : 0.051 lb (23.13g)

758 in stock

04020VA-12Q-CA-00

NMB Technologies Corp.

Manufacturer : NMB Technologies Corporation
Series : 04020VA
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 40mm L x 40mm H
Width : 20.00mm
Air Flow : 12.4 CFM (0.347m鲁/min)
Static Pressure : 0.570 in H2O (142.0 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 42.0 dB
Power (Watts) : 1.56W
RPM : 11000 RPM
Termination : 2 Wire Leads
Ingress Protection : IP69K - Dust Tight, High Temp Water Jets, Waterproof
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : -
Weight : 0.088 lb (39.92g)

629 in stock

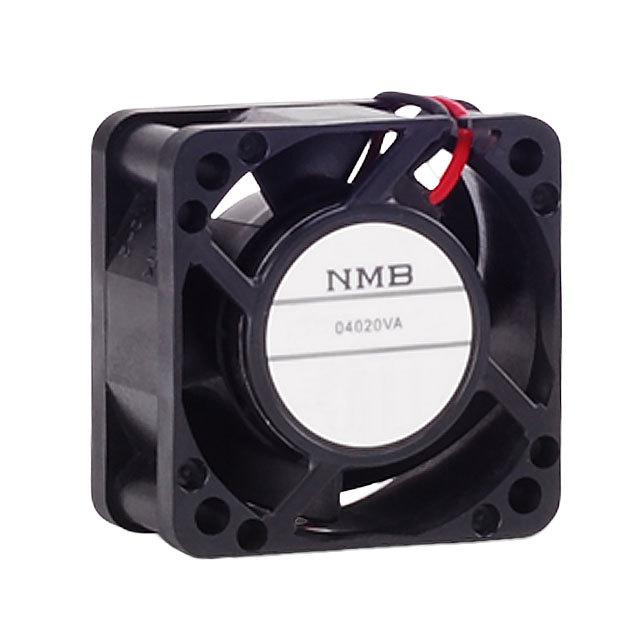

04020VA-24Q-CA-00

NMB Technologies Corp.

Manufacturer : NMB Technologies Corporation
Series : 04020VA
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 40mm L x 40mm H
Width : 20.00mm
Air Flow : 12.4 CFM (0.347m鲁/min)
Static Pressure : 0.570 in H2O (142.0 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 42.0 dB
Power (Watts) : 2.16W
RPM : 11000 RPM
Termination : 2 Wire Leads
Ingress Protection : IP69K - Dust Tight, High Temp Water Jets, Waterproof
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : -
Weight : 0.088 lb (39.92g)

358 in stock

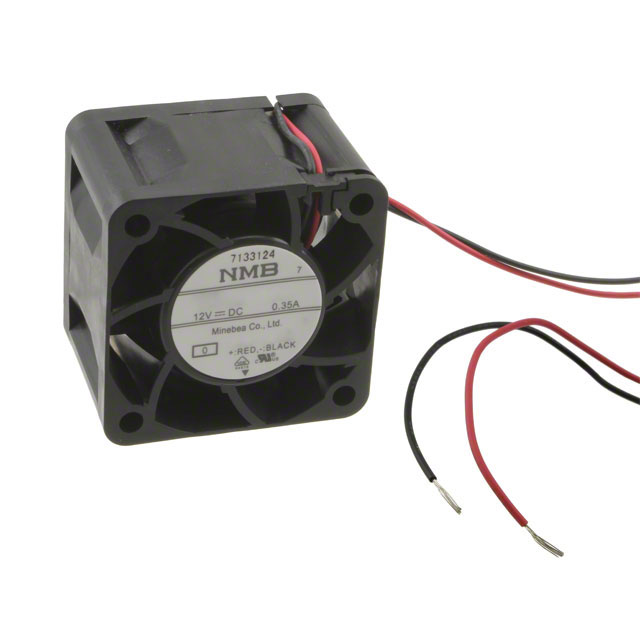

04028DA-12Q-AA-F0

NMB Technologies Corp.

Manufacturer : NMB Technologies Corporation
Series : 04028DA
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 40mm L x 40mm H
Width : 28.00mm
Air Flow : 16.6 CFM (0.465m鲁/min)
Static Pressure : 1.370 in H2O (341.2 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 49.5 dB
Power (Watts) : 3.48W
RPM : 15000 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : -
Weight : 0.117 lb (53.07g)

714 in stock

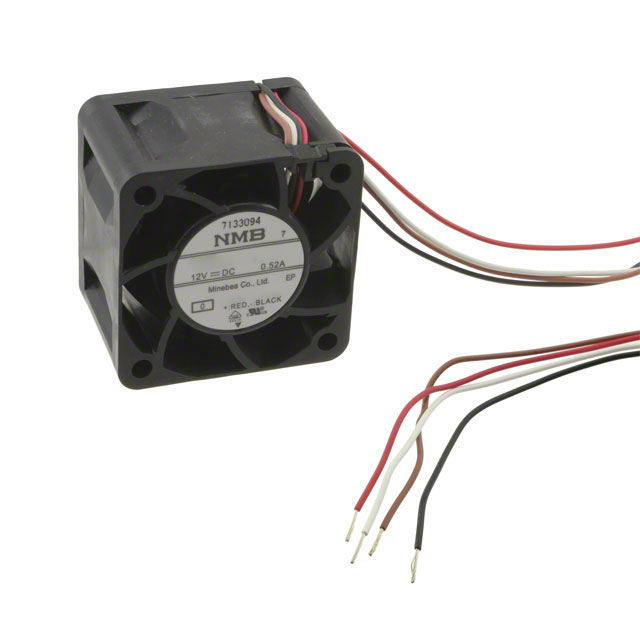

04028DA-12R-AU-F0

NMB Technologies Corp.

Manufacturer : NMB Technologies Corporation
Series : 04028DA
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 40mm L x 40mm H
Width : 28.00mm
Air Flow : 20.1 CFM (0.563m鲁/min)
Static Pressure : 1.930 in H2O (480.8 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : PWM Control, Speed Sensor (Tach)
Noise : 54.5 dB
Power (Watts) : 5.16W
RPM : 18000 RPM
Termination : 4 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : -
Weight : 0.117 lb (53.07g)

200 in stock

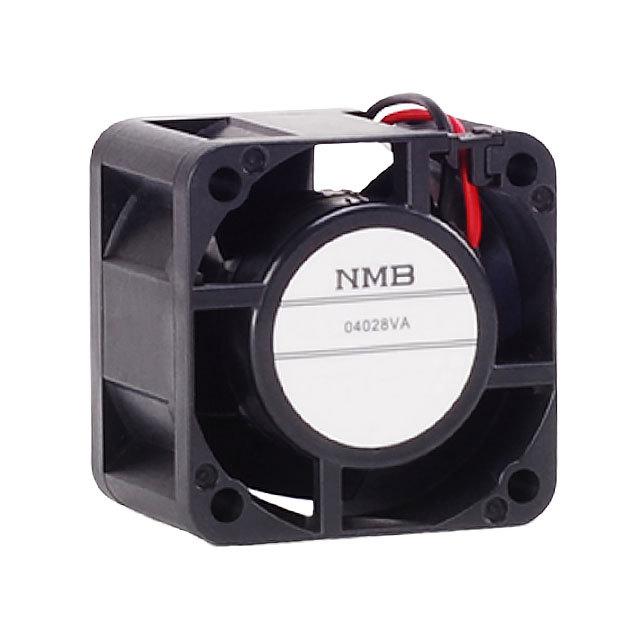

04028VA-24N-CA-00

NMB Technologies Corp.

Manufacturer : NMB Technologies Corporation
Series : 04028VA
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 40mm L x 40mm H
Width : 28.10mm
Air Flow : 14.5 CFM (0.406m鲁/min)
Static Pressure : 0.840 in H2O (209.2 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 44.5 dB
Power (Watts) : 2.40W
RPM : 13000 RPM
Termination : 2 Wire Leads
Ingress Protection : IP69K - Dust Tight, High Temp Water Jets, Waterproof
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : -
Weight : 0.121 lb (54.88g)

785 in stock

05015SS-12R-WT-00

NMB Technologies Corp.

Manufacturer : NMB Technologies Corporation
Series : 05015SS
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 50mm L x 50mm H
Width : 15.35mm
Air Flow : 14.8 CFM (0.414m鲁/min)
Static Pressure : 0.200 in H2O (49.8 Pa)
Bearing Type : Sleeve
Fan Type : Tubeaxial
Features : Speed Sensor (Tach)
Noise : 35.5 dB
Power (Watts) : 1.68W
RPM : 6550 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : -
Weight : 0.055 lb (24.95g)

255 in stock

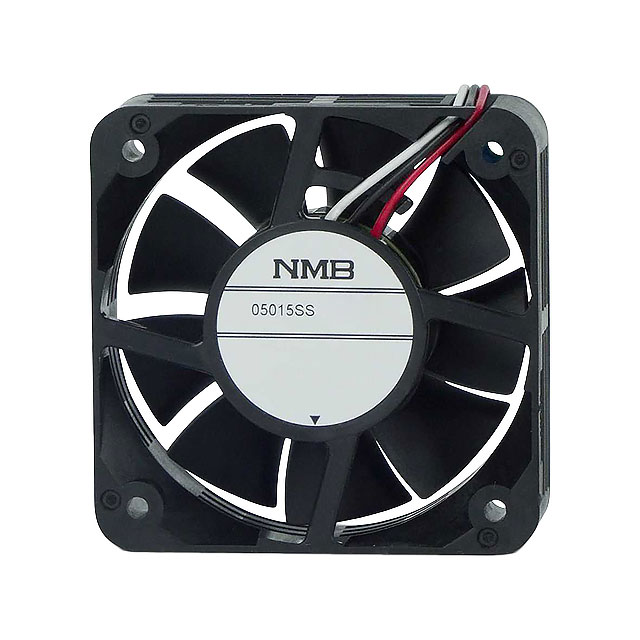

05015SS-24R-WT-00

NMB Technologies Corp.

Manufacturer : NMB Technologies Corporation
Series : 05015SS
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 50mm L x 50mm H
Width : 15.35mm
Air Flow : 14.8 CFM (0.414m鲁/min)
Static Pressure : 0.200 in H2O (49.8 Pa)
Bearing Type : Sleeve
Fan Type : Tubeaxial
Features : Speed Sensor (Tach)
Noise : 35.5 dB
Power (Watts) : 2.16W
RPM : 6550 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : -
Weight : 0.055 lb (24.95g)

31 in stock

06015KA-12L-AL-00

NMB Technologies Corp.

Manufacturer : NMB Technologies Corporation
Series : 06015KA
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 60mm L x 60mm H
Width : 15.00mm
Air Flow : 14.1 CFM (0.395m鲁/min)
Static Pressure : 0.125 in H2O (31.1 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Locked Rotor Sensor
Noise : 28.0 dB
Power (Watts) : 1.08W
RPM : 3600 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 140°F (-10 ~ 60°C)
Approvals : -
Weight : 0.099 lb (44.91g)

115 in stock

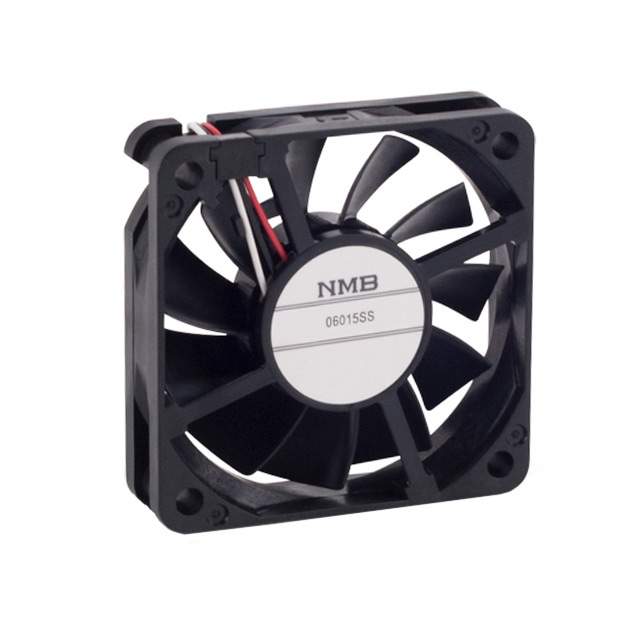

06015SS-12N-AT-00

NMB Technologies Corp.

Manufacturer : NMB Technologies Corporation
Series : 06015SS
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 60mm L x 60mm H
Width : 15.00mm
Air Flow : 22.6 CFM (0.633m鲁/min)
Static Pressure : 0.160 in H2O (39.8 Pa)
Bearing Type : Sleeve
Fan Type : Tubeaxial
Features : Auto Restart
Noise : 34.0 dB
Power (Watts) : 2.04W
RPM : 4200 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : -
Weight : -

87 in stock
