NMB Technologies Corp.
- NMB Technologies Corp. headquartered in Novi, Michigan, NMB Technologies Corporation was founded in September 1968 as the sales and marketing arm for its parent company, Minebea Co., Ltd.
From the beginning, NMB has believed in creating strong partnerships with our customers. This commitment to our customers is demonstrated by making available local application engineers, knowledgeable direct sales, and partnering with world class distributors and local representatives who know our products and its quality inside out.
As part of the Minebea Group of Companies, NMB Technologies Corporation places a global manufacturing powerhouse in the hands of our customers. With R & D and manufacturing facilities located in Thailand, Cambodia, China, Singapore, Japan, Europe and North America, and over 60,000 people employed world wide, the NMB/Minebea Group of Companies remains a world leader in the design and manufacturing of electro-mechanical components.
At NMB, our commitment to our customers compels us to protect the supply chain, drive cost efficiency, and hold quality to the highest standard. Quality in our people, quality in our services, and quality in our products continues to be our primary component.
Part Number
Manufacturer
Description
Unit Price
In Stock

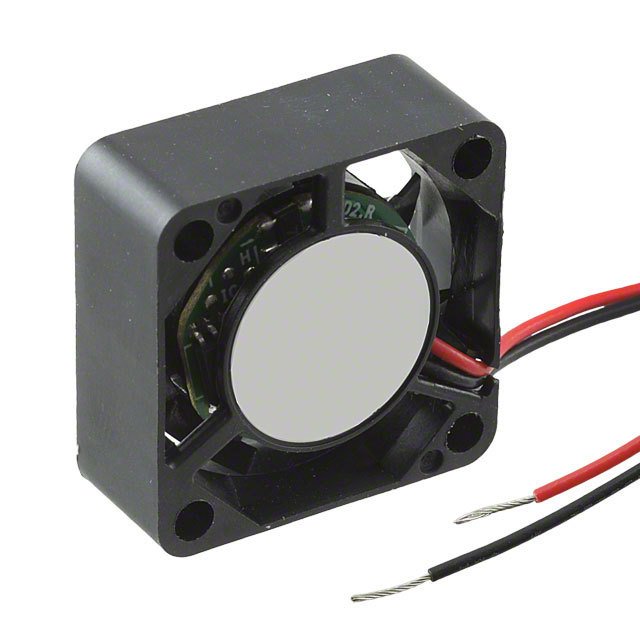

NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 1004KL
Part Status : Active
Voltage - Rated : 5VDC
Size / Dimension : Square - 25mm L x 25mm H
Width : 10.00mm
Air Flow : 2.0 CFM (0.056m鲁/min)
Static Pressure : 0.203 in H2O (50.6 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 25.0 dB
Power (Watts) : 625mW
RPM : 11000 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 140°F (-10 ~ 60°C)
Approvals : CE, CSA, UL, VDE
Weight : 0.017 lb (7.71g)
0
1559 in stock
NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 1004KL
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 25mm L x 25mm H
Width : 10.00mm
Air Flow : 1.2 CFM (0.034m鲁/min)
Static Pressure : 0.078 in H2O (19.4 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 20.0 dB
Power (Watts) : 425mW
RPM : 7000 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 140°F (-10 ~ 60°C)
Approvals : CE, CSA, UL, VDE
Weight : 0.017 lb (7.71g)
0
36 in stock
NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 1004KL
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 25mm L x 25mm H
Width : 10.00mm
Air Flow : 1.6 CFM (0.045m鲁/min)
Static Pressure : 0.127 in H2O (31.6 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 22.0 dB
Power (Watts) : 540mW
RPM : 9000 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 140°F (-10 ~ 60°C)
Approvals : CE, CSA, UL, VDE
Weight : 0.017 lb (7.71g)
0
560 in stock
NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 1004KL
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 25mm L x 25mm H
Width : 10.00mm
Air Flow : 2.0 CFM (0.056m鲁/min)
Static Pressure : 0.203 in H2O (50.6 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 25.0 dB
Power (Watts) : 720mW
RPM : 11000 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 140°F (-10 ~ 60°C)
Approvals : CE, CSA, UL, VDE
Weight : 0.017 lb (7.71g)
0
1106 in stock

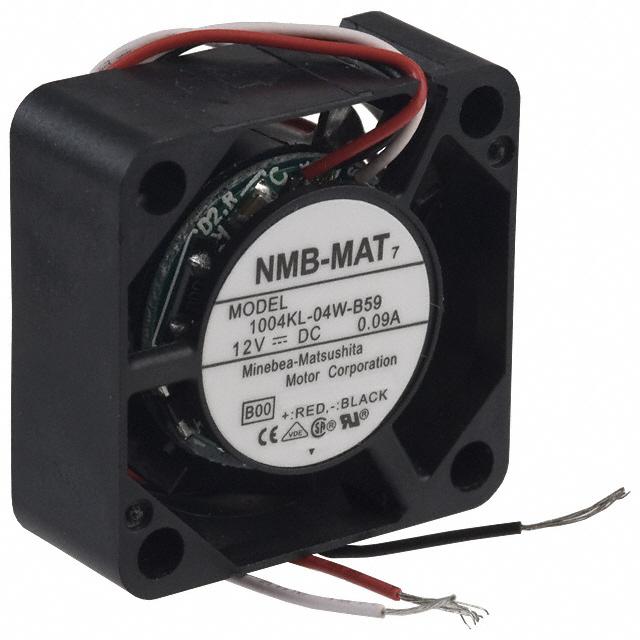

NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 1004KL
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 25mm L x 25mm H
Width : 10.00mm
Air Flow : 2.0 CFM (0.056m鲁/min)
Static Pressure : 0.203 in H2O (50.6 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Locked Rotor Sensor
Noise : 25.0 dB
Power (Watts) : 720mW
RPM : 11000 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 140°F (-10 ~ 60°C)
Approvals : CE, CSA, UL, VDE
Weight : 0.017 lb (7.71g)
0
641 in stock
NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 10PM
Part Status : Active
Type : Hybrid
Coil Type : Bipolar
Voltage - Rated : 24VDC
Current Rating : 210mA
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : -
Torque - Holding (oz-in / mNm) : 6.94 / 49
Size / Dimension : Square - 0.984" x 0.984" (25.00mm x 25.00mm)
NEMA Frame Size : 10
Diameter - Shaft : 0.197" (5.00mm)
Length - Shaft and Bearing : 0.394" (10.00mm)
Mounting Hole Spacing : 0.787" (20.00mm)
Termination Style : Connector
Operating Temperature : -
Coil Resistance : 47 Ohms
Features : Round Shaft
0
100 in stock
NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 10PM
Part Status : Active
Type : Hybrid
Coil Type : Bipolar
Voltage - Rated : 24VDC
Current Rating : 700mA
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : -
Torque - Holding (oz-in / mNm) : 4.67 / 33
Size / Dimension : Square - 0.984" x 0.984" (25.00mm x 25.00mm)
NEMA Frame Size : 10
Diameter - Shaft : 0.197" (5.00mm)
Length - Shaft and Bearing : 0.394" (10.00mm)
Mounting Hole Spacing : 0.787" (20.00mm)
Termination Style : Connector
Operating Temperature : -
Coil Resistance : 3.8 Ohms
Features : Round Shaft
0
100 in stock
NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 10PM
Part Status : Active
Type : Hybrid
Coil Type : Bipolar
Voltage - Rated : 24VDC
Current Rating : 630mA
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : -
Torque - Holding (oz-in / mNm) : 8.78 / 62
Size / Dimension : Square - 0.984" x 0.984" (25.00mm x 25.00mm)
NEMA Frame Size : 10
Diameter - Shaft : 0.197" (5.00mm)
Length - Shaft and Bearing : 0.394" (10.00mm)
Mounting Hole Spacing : 0.787" (20.00mm)
Termination Style : Connector
Operating Temperature : -
Coil Resistance : 5.8 Ohms
Features : Round Shaft
0
100 in stock

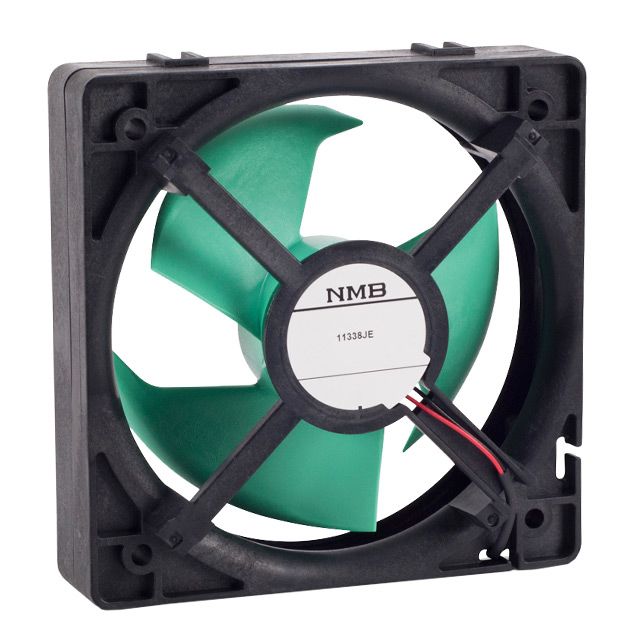

NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 11338JE
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 113mm L x 113mm H
Width : 36.00mm
Air Flow : 52.5 CFM (1.47m鲁/min)
Static Pressure : 0.150 in H2O (37.4 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Auto Restart
Noise : 32.5 dB
Power (Watts) : 1.56W
RPM : 2900 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -40 ~ 104°F (-40 ~ 40°C)
Approvals : -
Weight : -
0
71 in stock
NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 11925SA
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 119mm L x 119mm H
Width : 25.00mm
Air Flow : 91.0 CFM (2.55m鲁/min)
Static Pressure : 0.190 in H2O (47.3 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Locked Rotor Sensor
Noise : 37.0 dB
Power (Watts) : 2.88W
RPM : 2500 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : -
Weight : 0.309 lb (140.16g)
0
95 in stock

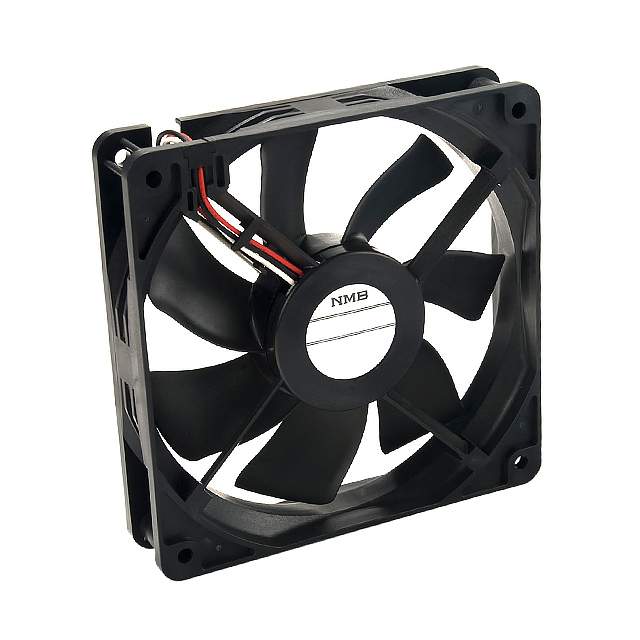

NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 11925SA
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 119mm L x 119mm H
Width : 25.00mm
Air Flow : 113.1 CFM (3.17m鲁/min)
Static Pressure : 0.290 in H2O (72.2 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Locked Rotor Sensor
Noise : 44.0 dB
Power (Watts) : 4.80W
RPM : 3100 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : -
Weight : 0.309 lb (140.16g)
0
635 in stock

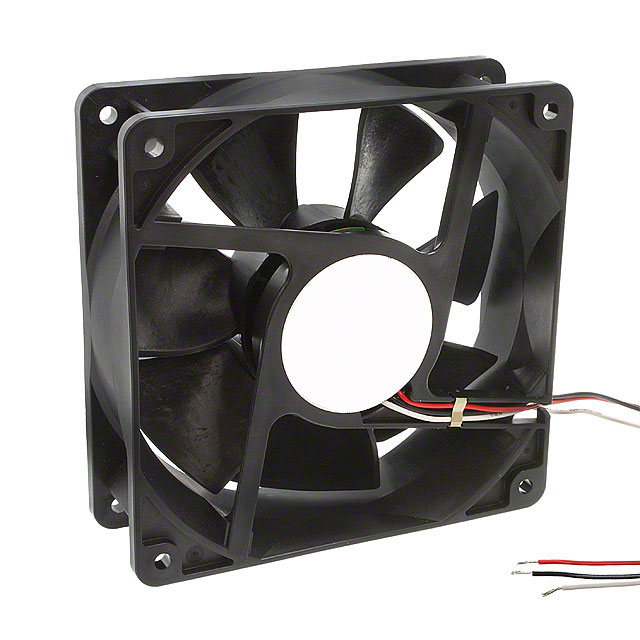

NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 11938KA
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 119mm L x 119mm H
Width : 38.40mm
Air Flow : 129.9 CFM (3.64m鲁/min)
Static Pressure : 0.440 in H2O (109.6 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Locked Rotor Sensor
Noise : 50.0 dB
Power (Watts) : 12.00W
RPM : 3600 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 104°F (-10 ~ 40°C)
Approvals : CE, CSA, UL, VDE
Weight : 0.573 lb (259.91g)
0
336 in stock
