Welcome to Eruic

NMB Technologies Corp.

- NMB Technologies Corp. headquartered in Novi, Michigan, NMB Technologies Corporation was founded in September 1968 as the sales and marketing arm for its parent company, Minebea Co., Ltd.

From the beginning, NMB has believed in creating strong partnerships with our customers. This commitment to our customers is demonstrated by making available local application engineers, knowledgeable direct sales, and partnering with world class distributors and local representatives who know our products and its quality inside out.

As part of the Minebea Group of Companies, NMB Technologies Corporation places a global manufacturing powerhouse in the hands of our customers. With R & D and manufacturing facilities located in Thailand, Cambodia, China, Singapore, Japan, Europe and North America, and over 60,000 people employed world wide, the NMB/Minebea Group of Companies remains a world leader in the design and manufacturing of electro-mechanical components.

At NMB, our commitment to our customers compels us to protect the supply chain, drive cost efficiency, and hold quality to the highest standard. Quality in our people, quality in our services, and quality in our products continues to be our primary component.

Part Number
Manufacturer
Description
Unit Price
In Stock

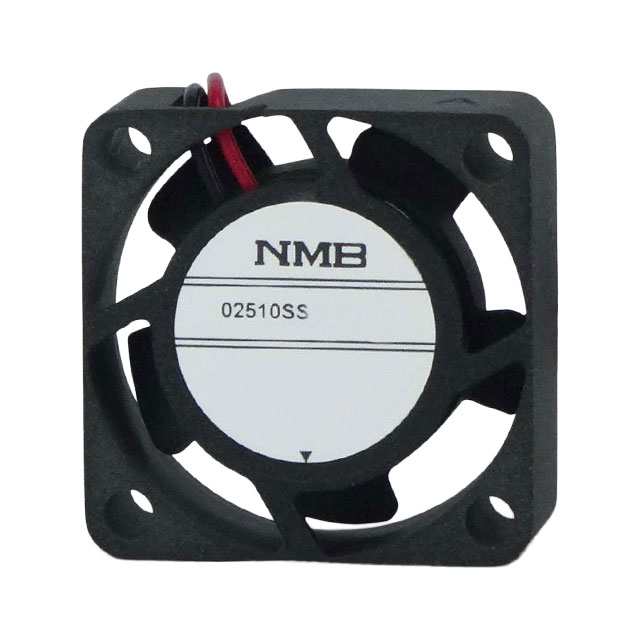

02510SS-05P-AT-00 02510SS-05P-AT-00

NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 02510SS
Part Status : Active
Voltage - Rated : 5VDC
Size / Dimension : Square - 25mm L x 25mm H
Width : 10.00mm
Air Flow : 2.6 CFM (0.073m鲁/min)
Static Pressure : 0.270 in H2O (67.2 Pa)
Bearing Type : Sleeve
Fan Type : Tubeaxial
Features : Speed Sensor (Tach)
Noise : 28.5 dB
Power (Watts) : 900mW
RPM : 13000 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : -
Weight : 0.018 lb (8.16g)
0
340 in stock

02510SS-12P-AT-00 02510SS-12P-AT-00

NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 02510SS
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 25mm L x 25mm H
Width : 10.00mm
Air Flow : 2.6 CFM (0.073m鲁/min)
Static Pressure : 0.270 in H2O (67.2 Pa)
Bearing Type : Sleeve
Fan Type : Tubeaxial
Features : Speed Sensor (Tach)
Noise : 28.5 dB
Power (Watts) : 840mW
RPM : 13000 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : -
Weight : 0.018 lb (8.16g)
0
838 in stock

03010SS-05N-AT-00 03010SS-05N-AT-00

NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 03010SS
Part Status : Active
Voltage - Rated : 5VDC
Size / Dimension : Square - 30mm L x 30mm H
Width : 10.00mm
Air Flow : 4.2 CFM (0.118m鲁/min)
Static Pressure : 0.240 in H2O (59.8 Pa)
Bearing Type : Sleeve
Fan Type : Tubeaxial
Features : Speed Sensor (Tach)
Noise : 28.0 dB
Power (Watts) : 1.05W
RPM : 10500 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : -
Weight : 0.019 lb (8.62g)
0
331 in stock

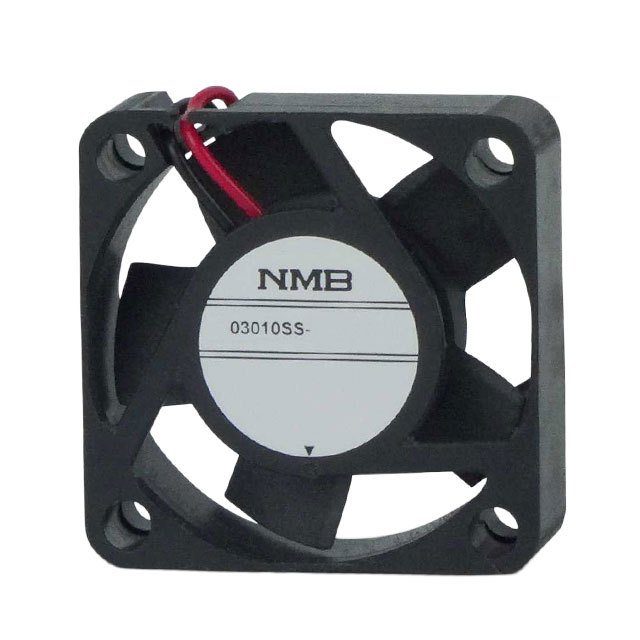

03010SS-12N-AT-00 03010SS-12N-AT-00

NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 03010SS
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 30mm L x 30mm H
Width : 10.00mm
Air Flow : 4.2 CFM (0.118m鲁/min)
Static Pressure : 0.240 in H2O (59.8 Pa)
Bearing Type : Sleeve
Fan Type : Tubeaxial
Features : Speed Sensor (Tach)
Noise : 28.0 dB
Power (Watts) : 960mW
RPM : 10500 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : -
Weight : 0.019 lb (8.62g)
0
263 in stock

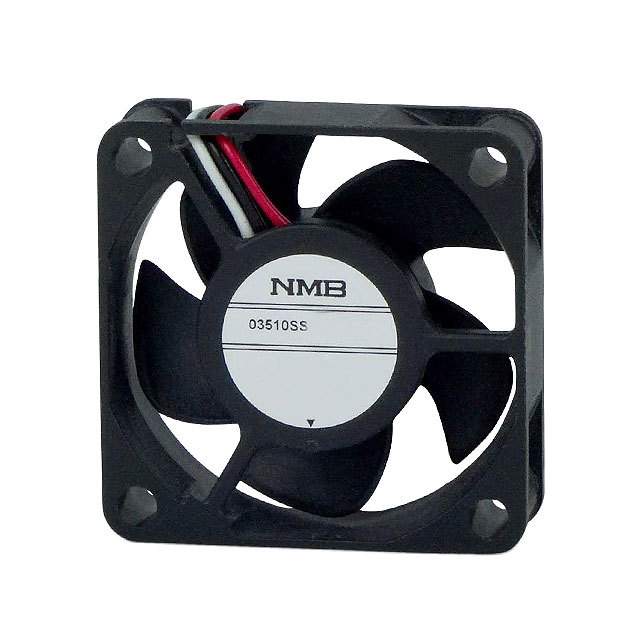

03510SS-05N-AT-00 03510SS-05N-AT-00

NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 03510SS
Part Status : Active
Voltage - Rated : 5VDC
Size / Dimension : Square - 35mm L x 35mm H
Width : 10.00mm
Air Flow : 5.6 CFM (0.157m鲁/min)
Static Pressure : 0.230 in H2O (57.3 Pa)
Bearing Type : Sleeve
Fan Type : Tubeaxial
Features : Speed Sensor (Tach)
Noise : 27.0 dB
Power (Watts) : 1.00W
RPM : 10000 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : -
Weight : 0.023 lb (10.43g)
0
391 in stock

03510SS-12N-AT-00 03510SS-12N-AT-00

NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 03510SS
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 35mm L x 35mm H
Width : 10.00mm
Air Flow : 5.6 CFM (0.157m鲁/min)
Static Pressure : 0.230 in H2O (57.3 Pa)
Bearing Type : Sleeve
Fan Type : Tubeaxial
Features : Speed Sensor (Tach)
Noise : 27.0 dB
Power (Watts) : 840mW
RPM : 10000 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : -
Weight : 0.023 lb (10.43g)
0
445 in stock

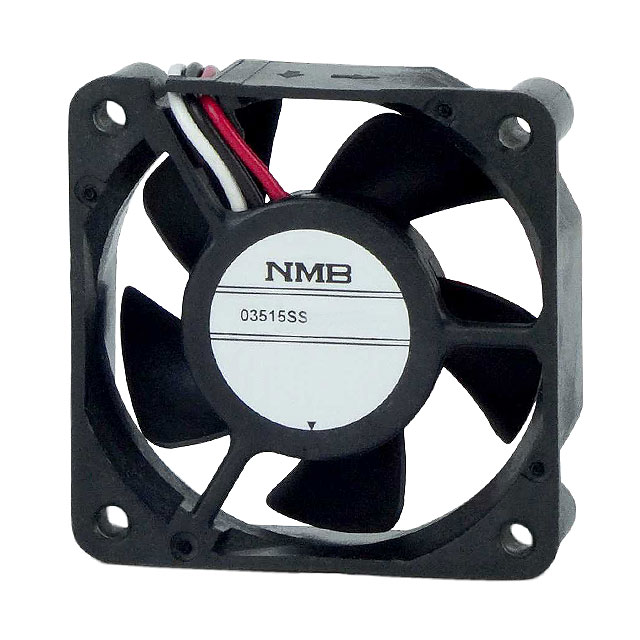

03515SS-05N-AT-00 03515SS-05N-AT-00

NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 03515SS
Part Status : Active
Voltage - Rated : 5VDC
Size / Dimension : Square - 35mm L x 35mm H
Width : 15.00mm
Air Flow : 5.6 CFM (0.157m鲁/min)
Static Pressure : 0.140 in H2O (34.9 Pa)
Bearing Type : Sleeve
Fan Type : Tubeaxial
Features : Speed Sensor (Tach)
Noise : 24.0 dB
Power (Watts) : 900mW
RPM : 8000 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : -
Weight : 0.028 lb (12.7g)
0
517 in stock

03515SS-12N-AT-00 03515SS-12N-AT-00

NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 03515SS
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 35mm L x 35mm H
Width : 15.00mm
Air Flow : 5.6 CFM (0.157m鲁/min)
Static Pressure : 0.140 in H2O (34.9 Pa)
Bearing Type : Sleeve
Fan Type : Tubeaxial
Features : Speed Sensor (Tach)
Noise : 24.0 dB
Power (Watts) : 840mW
RPM : 8000 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : -
Weight : 0.028 lb (12.7g)
0
152 in stock

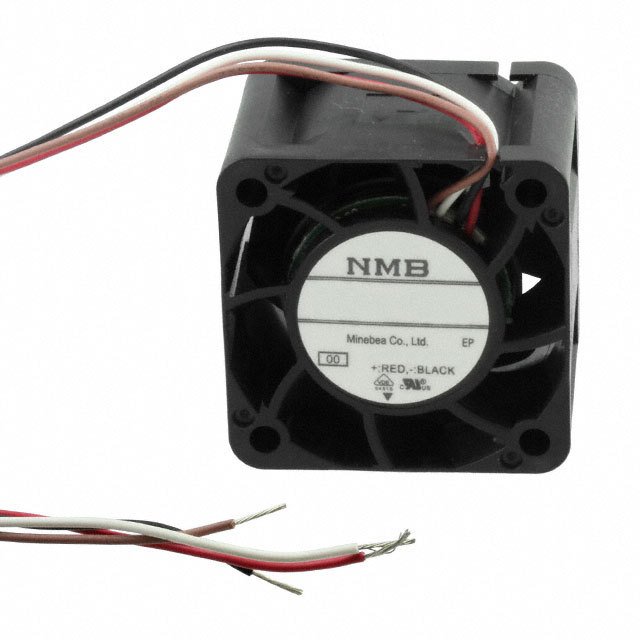

03828DA-12Q-AU-00 03828DA-12Q-AU-00

NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 03828DA
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 38mm L x 38mm H
Width : 28.00mm
Air Flow : 19.4 CFM (0.543m鲁/min)
Static Pressure : 2.160 in H2O (540.0 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Auto Restart, PWM Control, Speed Sensor (Tach)
Noise : 55.0 dB
Power (Watts) : 5.90W
RPM : 20000 RPM
Termination : 4 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : cUL, UL, VDE
Weight : 0.104 lb (47.17g)
0
108 in stock

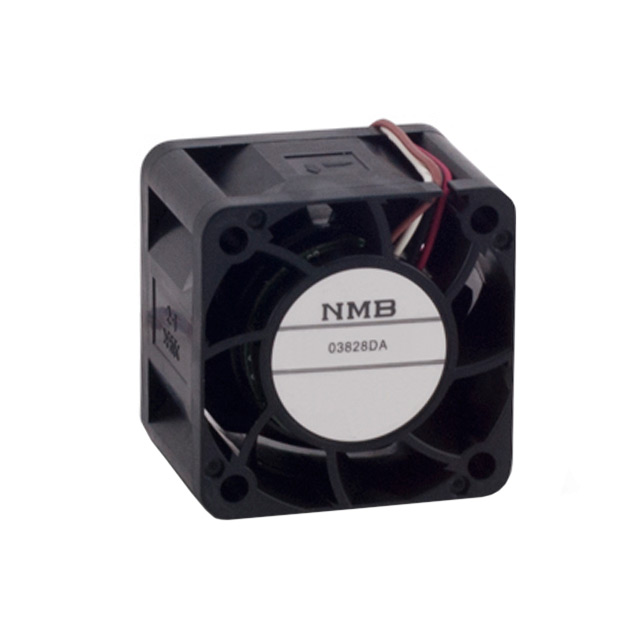

03828DA-12R-AU-00 03828DA-12R-AU-00

NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 03828DA
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 38mm L x 38mm H
Width : 28.00mm
Air Flow : 21.5 CFM (0.602m鲁/min)
Static Pressure : 2.610 in H2O (650.1 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Auto Restart, PWM Control, Speed Sensor (Tach)
Noise : 58.0 dB
Power (Watts) : 7.56W
RPM : 22000 RPM
Termination : 4 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : -
Weight : -
0
189 in stock

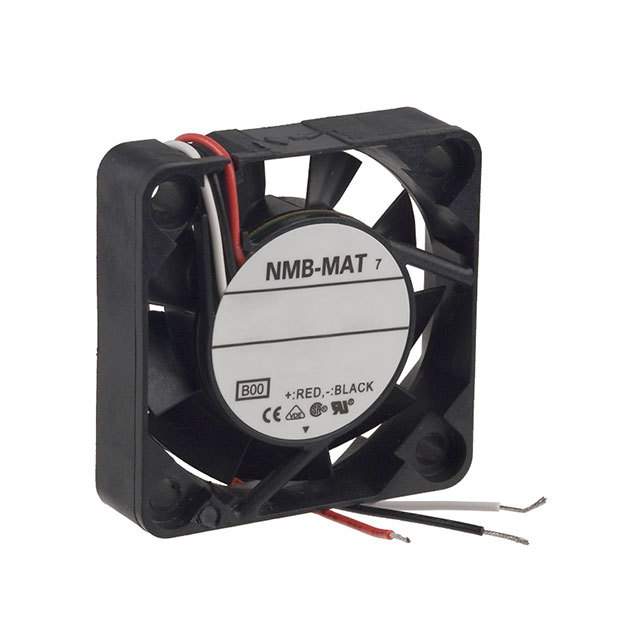

04010KA-05M-AT-00 04010KA-05M-AT-00

NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 04010KA
Part Status : Active
Voltage - Rated : 5VDC
Size / Dimension : Square - 40mm L x 40mm H
Width : 10.00mm
Air Flow : 5.3 CFM (0.148m鲁/min)
Static Pressure : 0.136 in H2O (33.9 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Speed Sensor (Tach)
Noise : 25.0 dB
Power (Watts) : 600mW
RPM : 5500 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : -
Weight : 0.033 lb (14.97g)
0
218 in stock

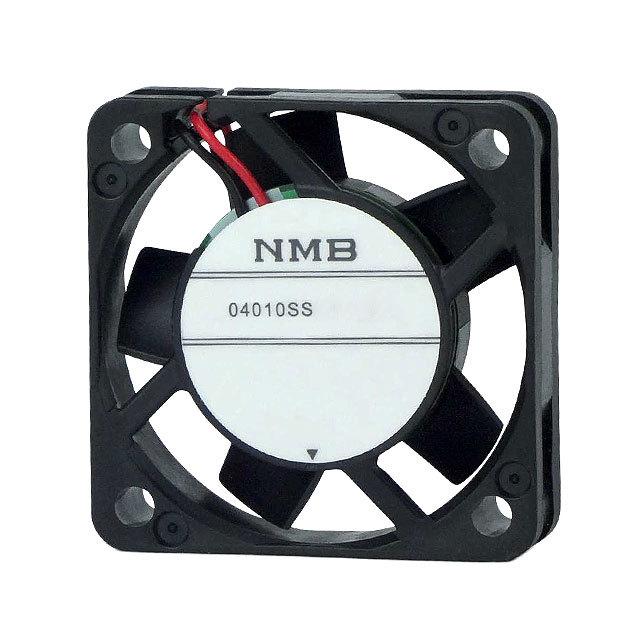

04010SS-12N-AT-00 04010SS-12N-AT-00

NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 04010SS
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 40mm L x 40mm H
Width : 10.00mm
Air Flow : 6.7 CFM (0.188m鲁/min)
Static Pressure : 0.190 in H2O (47.3 Pa)
Bearing Type : Sleeve
Fan Type : Tubeaxial
Features : Speed Sensor (Tach)
Noise : 29.0 dB
Power (Watts) : 700mW
RPM : 7500 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : -
Weight : 0.035 lb (15.88g)
0
430 in stock
