- Mill-Max Mfg. Corp., located at 190 Pine Hollow Road, Oyster Bay, NY 11771, is a vertically integrated engineering and manufacturing company capable of producing over 100 million interconnect components a week, making us the largest manufacturer of precision machined interconnect components in North America.
Established in 1971 by Roger Bahnik, Chairman and CEO, Mill-Max has a tradition of exercising total control from raw materials to finished product. Our 150,000 square foot plant houses all facilities including: engineering, tooling, primary and secondary machining, stamping, gold and tin plating, injection molding, automatic assembly operations and strict process control, monitored by our experienced Quality Control Inspectors.
Part Number
Manufacturer
Description
Unit Price
In Stock
Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 338
Part Status : Active
Tail Type : No Tail
Termination : Solder
Length - Overall : 0.170" (4.32mm)
Accepts Pin Diameter : 0.020" ~ 0.032" (0.51mm ~ 0.81mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.047" (1.19mm)
Mounting Hole Diameter : 0.057" (1.45mm)
Flange Diameter : 0.072" (1.83mm)
Tail Diameter : -
Socket Depth : 0.147" (3.73mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)
0
41488 in stock

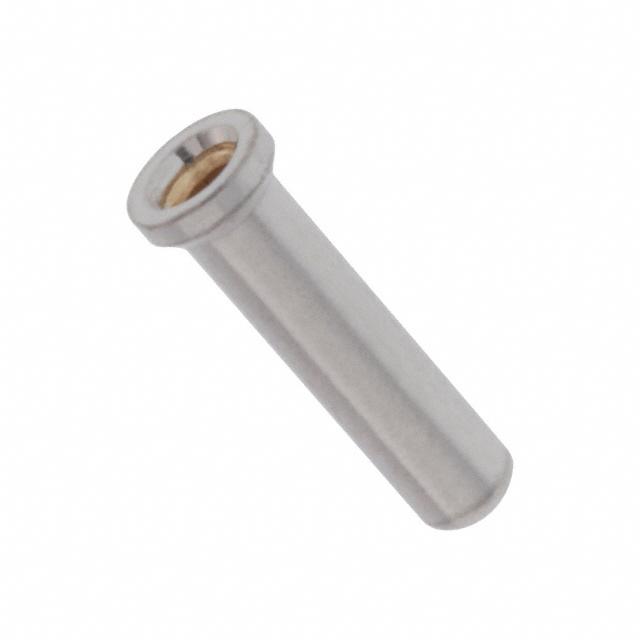

Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 0338
Part Status : Active
Tail Type : No Tail
Termination : Solder
Length - Overall : 0.170" (4.32mm)
Accepts Pin Diameter : 0.020" ~ 0.032" (0.51mm ~ 0.81mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.047" (1.19mm)
Mounting Hole Diameter : 0.057" (1.45mm)
Flange Diameter : 0.072" (1.83mm)
Tail Diameter : -
Socket Depth : 0.147" (3.73mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)
0
900 in stock

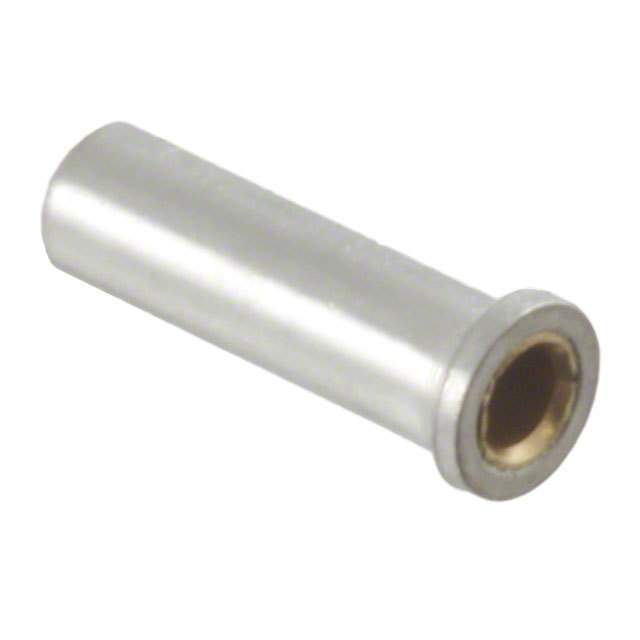

Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 0339
Part Status : Active
Tail Type : No Tail
Termination : Solder
Length - Overall : 0.190" (4.83mm)
Accepts Pin Diameter : 0.020" ~ 0.032" (0.51mm ~ 0.81mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.057" (1.45mm)
Mounting Hole Diameter : 0.047" (1.19mm)
Flange Diameter : 0.068" (1.73mm)
Tail Diameter : -
Socket Depth : 0.167" (4.24mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)
0
1048 in stock
Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 0339
Part Status : Active
Tail Type : No Tail
Termination : Solder
Length - Overall : 0.190" (4.83mm)
Accepts Pin Diameter : 0.020" ~ 0.032" (0.51mm ~ 0.81mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.047" (1.19mm)
Mounting Hole Diameter : 0.057" (1.45mm)
Flange Diameter : 0.068" (1.73mm)
Tail Diameter : -
Socket Depth : 0.167" (4.24mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)
0
8911 in stock

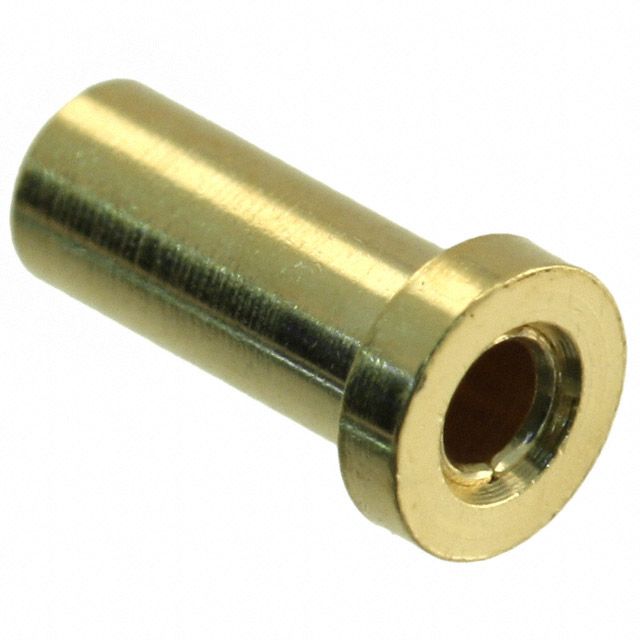

Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 340
Part Status : Active
Tail Type : No Tail
Termination : Solder
Length - Overall : 0.240" (6.10mm)
Accepts Pin Diameter : 0.032" ~ 0.046" (0.81mm ~ 1.17mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.064" (1.63mm)
Mounting Hole Diameter : 0.087" (2.21mm)
Flange Diameter : 0.120" (3.05mm)
Tail Diameter : -
Socket Depth : 0.200" (5.08mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)
0
997 in stock
Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 341
Part Status : Active
Tail Type : No Tail
Termination : Solder
Length - Overall : 0.200" (5.08mm)
Accepts Pin Diameter : 0.015" ~ 0.025" (0.38mm ~ 0.64mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.043" (1.09mm)
Mounting Hole Diameter : 0.073" (1.85mm)
Flange Diameter : 0.093" (2.36mm)
Tail Diameter : -
Socket Depth : 0.200" (5.08mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)
0
4285 in stock

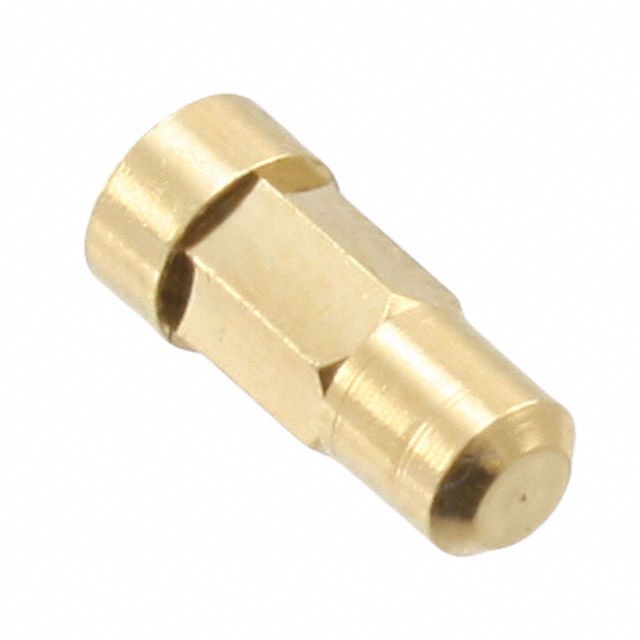

Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 342
Part Status : Active
Tail Type : No Tail
Termination : Press-Fit, Hex
Length - Overall : 0.240" (6.10mm)
Accepts Pin Diameter : 0.059" ~ 0.063" (1.50mm ~ 1.60mm)
Accepts Square Pin Size : -
Pin Hole Diameter : -
Mounting Hole Diameter : 0.090" (2.29mm)
Flange Diameter : 0.106" (2.69mm)
Tail Diameter : -
Socket Depth : 0.210" (5.33mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)
0
1843 in stock

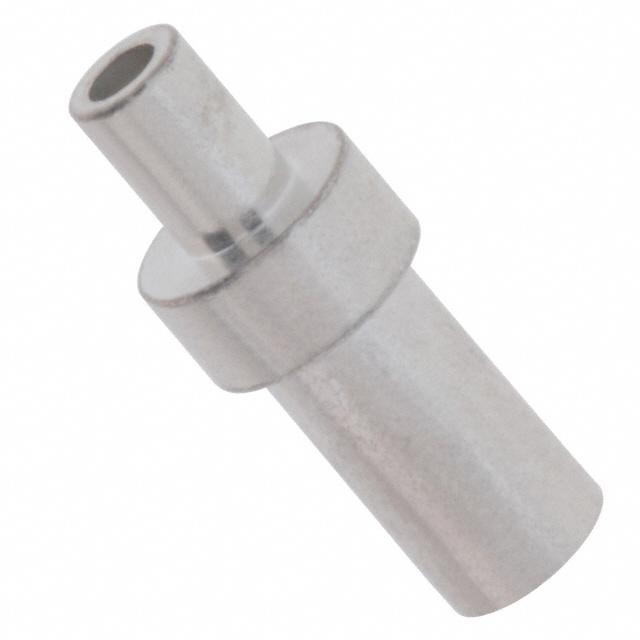

Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 344
Part Status : Active
Tail Type : No Tail
Termination : Swage
Length - Overall : 0.324" (8.23mm)
Accepts Pin Diameter : 0.032" ~ 0.046" (0.81mm ~ 1.17mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.064" (1.63mm)
Mounting Hole Diameter : 0.067" (1.70mm)
Flange Diameter : 0.125" (3.18mm)
Tail Diameter : -
Socket Depth : 0.200" (5.08mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)
0
6449 in stock
Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 344
Part Status : Active
Tail Type : No Tail
Termination : Swage
Length - Overall : 0.324" (8.23mm)
Accepts Pin Diameter : 0.032" ~ 0.046" (0.81mm ~ 1.17mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.064" (1.63mm)
Mounting Hole Diameter : 0.067" (1.70mm)
Flange Diameter : 0.125" (3.18mm)
Tail Diameter : -
Socket Depth : 0.200" (5.08mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)
0
19664 in stock

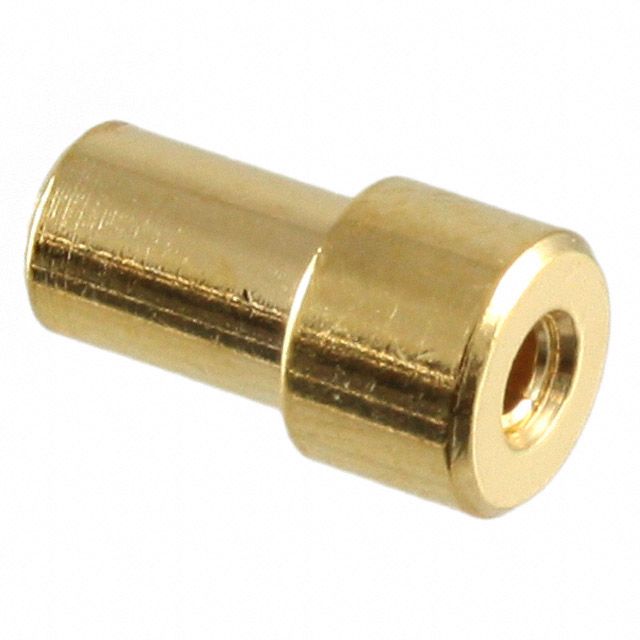

Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 347
Part Status : Active
Tail Type : No Tail
Termination : Solder
Length - Overall : 0.288" (7.32mm)
Accepts Pin Diameter : 0.032" ~ 0.046" (0.81mm ~ 1.17mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.064" (1.63mm)
Mounting Hole Diameter : 0.120" (3.05mm)
Flange Diameter : 0.157" (3.99mm)
Tail Diameter : -
Socket Depth : 0.250" (6.35mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)
0
3386 in stock

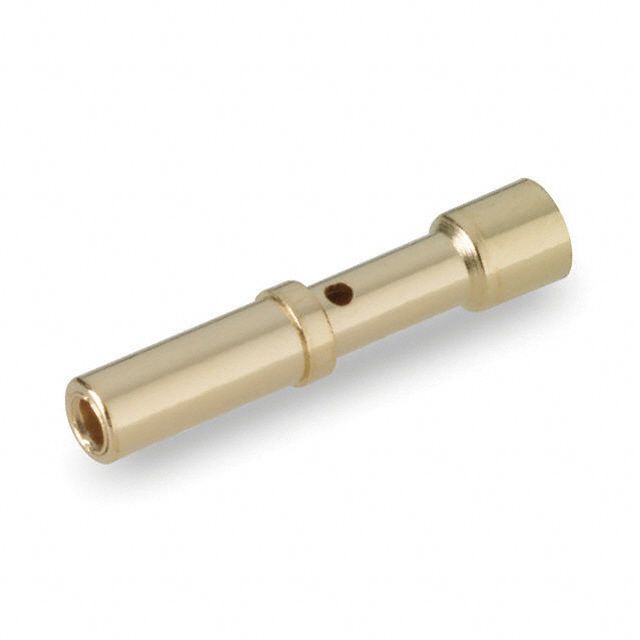

Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 348
Part Status : Active
Tail Type : Crimp
Termination : Solder
Length - Overall : 0.530" (13.46mm)
Accepts Pin Diameter : 0.032" ~ 0.046" (0.81mm ~ 1.17mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.064" (1.63mm)
Mounting Hole Diameter : -
Flange Diameter : 0.122" (3.10mm)
Tail Diameter : -
Socket Depth : 0.200" (5.08mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)
0
4667 in stock

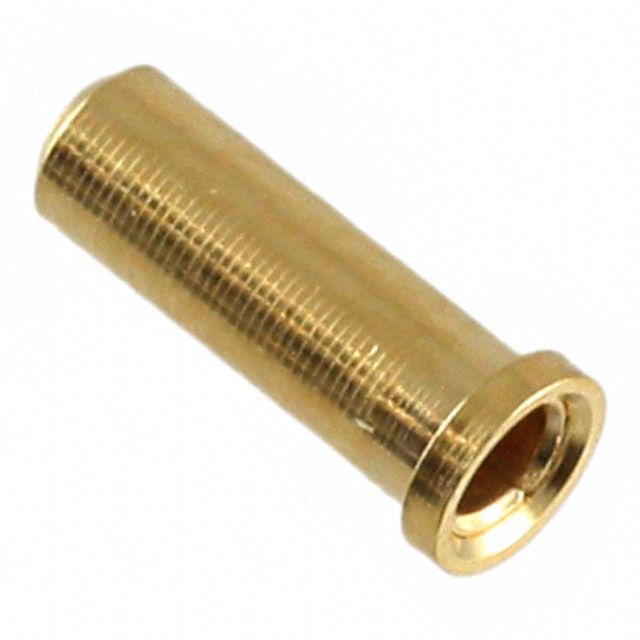

Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 351
Part Status : Active
Tail Type : No Tail
Termination : Solder
Length - Overall : 0.226" (5.74mm)
Accepts Pin Diameter : 0.032" ~ 0.046" (0.81mm ~ 1.17mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.064" (1.63mm)
Mounting Hole Diameter : 0.075" (1.91mm)
Flange Diameter : 0.091" (2.31mm)
Tail Diameter : -
Socket Depth : 0.200" (5.08mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)
0
17660 in stock
