Mill-Max Mfg. Corp.

- Mill-Max Mfg. Corp., located at 190 Pine Hollow Road, Oyster Bay, NY 11771, is a vertically integrated engineering and manufacturing company capable of producing over 100 million interconnect components a week, making us the largest manufacturer of precision machined interconnect components in North America.

Established in 1971 by Roger Bahnik, Chairman and CEO, Mill-Max has a tradition of exercising total control from raw materials to finished product. Our 150,000 square foot plant houses all facilities including: engineering, tooling, primary and secondary machining, stamping, gold and tin plating, injection molding, automatic assembly operations and strict process control, monitored by our experienced Quality Control Inspectors.

Part Number
Manufacturer
Description
Unit Price
In Stock
Picture of 0362-0-15-15-23-27-10-0

0362-0-15-15-23-27-10-0 0362-0-15-15-23-27-10-0

Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 362
Part Status : Active
Tail Type : No Tail
Termination : Solder
Length - Overall : 0.293" (7.44mm)
Accepts Pin Diameter : 0.045" ~ 0.065" (1.14mm ~ 1.65mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.088" (2.24mm)
Mounting Hole Diameter : 0.102" (2.59mm)
Flange Diameter : 0.115" (2.92mm)
Tail Diameter : -
Socket Depth : 0.293" (7.44mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)
0
1610 in stock

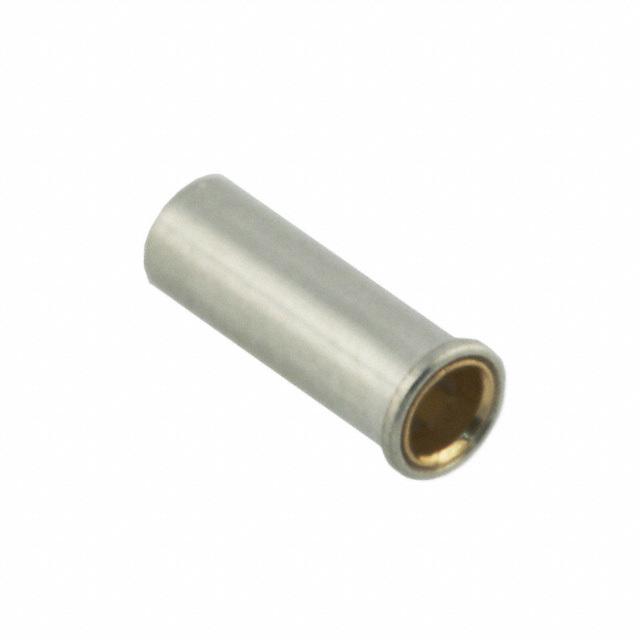

Picture of 0362-0-15-80-23-27-10-0

0362-0-15-80-23-27-10-0 0362-0-15-80-23-27-10-0

Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 362
Part Status : Active
Tail Type : No Tail
Termination : Solder
Length - Overall : 0.293" (7.44mm)
Accepts Pin Diameter : 0.045" ~ 0.065" (1.14mm ~ 1.65mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.088" (2.24mm)
Mounting Hole Diameter : 0.102" (2.59mm)
Flange Diameter : 0.115" (2.92mm)
Tail Diameter : -
Socket Depth : 0.293" (7.44mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)
0
3948 in stock

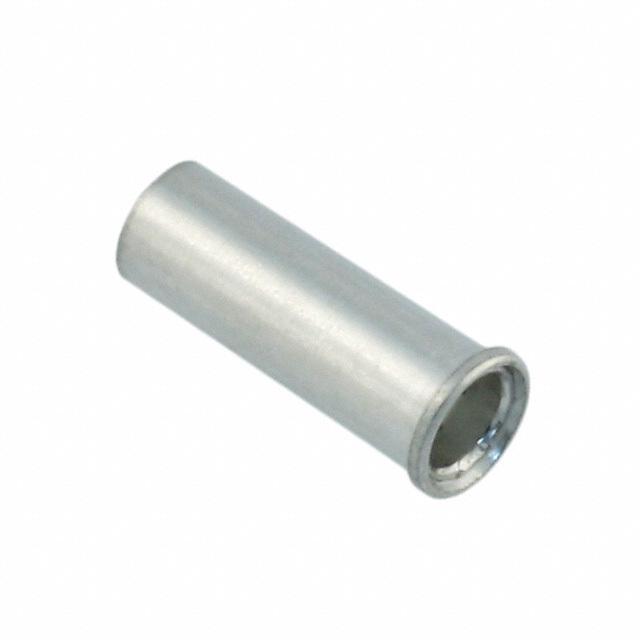

Picture of 0362-0-15-80-23-80-10-0

0362-0-15-80-23-80-10-0 0362-0-15-80-23-80-10-0

Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 362
Part Status : Active
Tail Type : No Tail
Termination : Solder
Length - Overall : 0.293" (7.44mm)
Accepts Pin Diameter : 0.045" ~ 0.065" (1.14mm ~ 1.65mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.088" (2.24mm)
Mounting Hole Diameter : 0.102" (2.59mm)
Flange Diameter : 0.115" (2.92mm)
Tail Diameter : -
Socket Depth : 0.293" (7.44mm)
Contact Material : Beryllium Copper
Contact Finish : Tin
Contact Finish Thickness : 200.0µin (5.08µm)
0
100 in stock

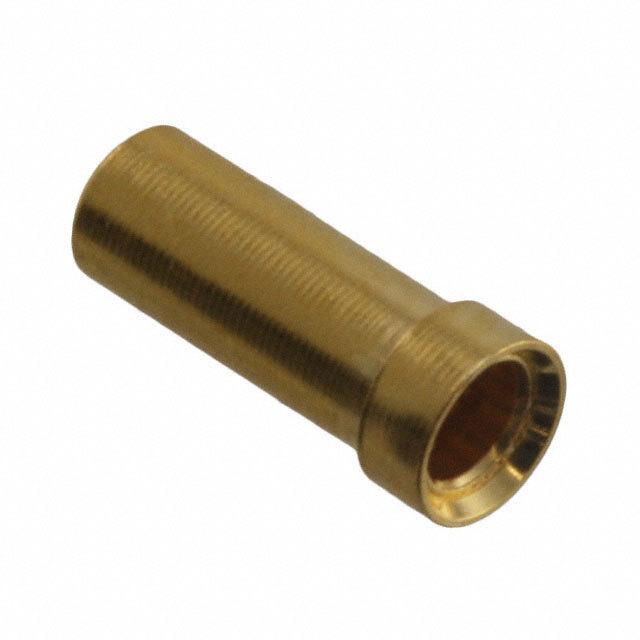

Picture of 0363-0-15-15-23-27-10-0

0363-0-15-15-23-27-10-0 0363-0-15-15-23-27-10-0

Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 363
Part Status : Active
Tail Type : No Tail
Termination : Solder
Length - Overall : 0.290" (7.37mm)
Accepts Pin Diameter : 0.045" ~ 0.065" (1.14mm ~ 1.65mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.088" (2.24mm)
Mounting Hole Diameter : 0.102" (2.59mm)
Flange Diameter : 0.118" (3.00mm)
Tail Diameter : -
Socket Depth : 0.255" (6.48mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)
0
3884 in stock

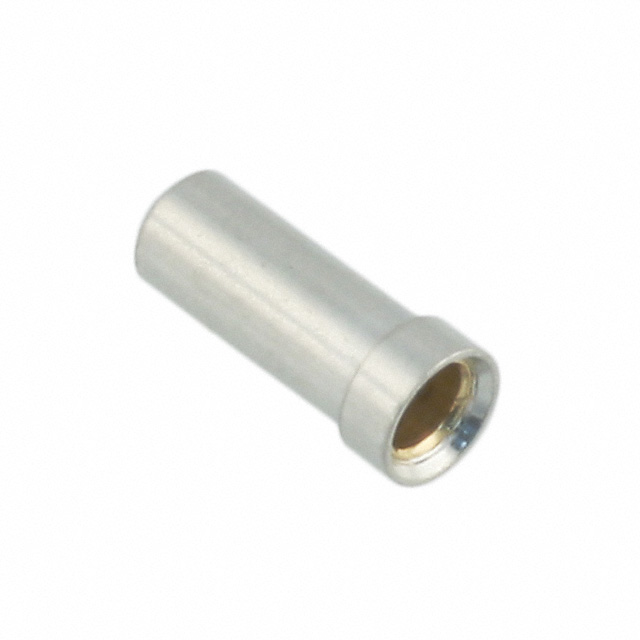

Picture of 0363-0-15-80-23-27-10-0

0363-0-15-80-23-27-10-0 0363-0-15-80-23-27-10-0

Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 363
Part Status : Active
Tail Type : No Tail
Termination : Solder
Length - Overall : 0.290" (7.37mm)
Accepts Pin Diameter : 0.045" ~ 0.065" (1.14mm ~ 1.65mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.088" (2.24mm)
Mounting Hole Diameter : 0.102" (2.59mm)
Flange Diameter : 0.118" (3.00mm)
Tail Diameter : -
Socket Depth : 0.255" (6.48mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)
0
7484 in stock

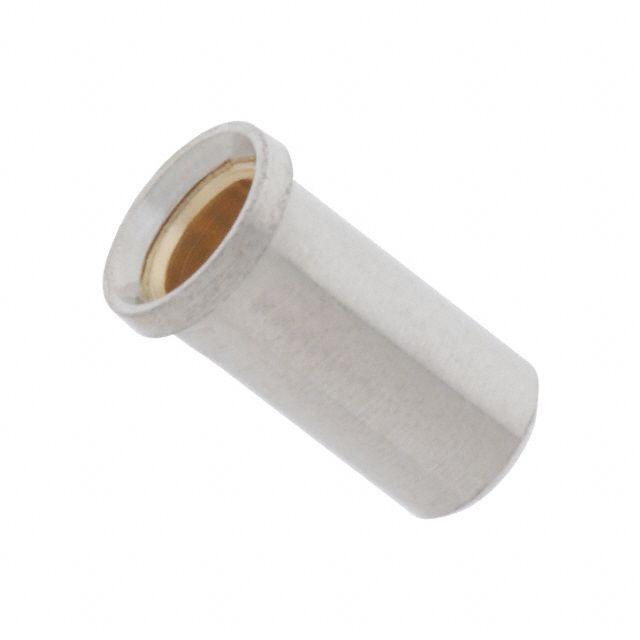

Picture of 0364-0-15-01-13-27-10-0

0364-0-15-01-13-27-10-0 0364-0-15-01-13-27-10-0

Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 364
Part Status : Active
Tail Type : No Tail
Termination : Solder
Length - Overall : 0.213" (5.41mm)
Accepts Pin Diameter : 0.048" ~ 0.064" (1.22mm ~ 1.63mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.088" (2.24mm)
Mounting Hole Diameter : 0.100" (2.54mm)
Flange Diameter : 0.120" (3.05mm)
Tail Diameter : -
Socket Depth : 0.180" (4.57mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)
0
35145 in stock
Picture of 0364-0-15-15-13-27-10-0

0364-0-15-15-13-27-10-0 0364-0-15-15-13-27-10-0

Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 364
Part Status : Active
Tail Type : No Tail
Termination : Solder
Length - Overall : 0.213" (5.41mm)
Accepts Pin Diameter : 0.048" ~ 0.064" (1.22mm ~ 1.63mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.088" (2.24mm)
Mounting Hole Diameter : 0.100" (2.54mm)
Flange Diameter : 0.120" (3.05mm)
Tail Diameter : -
Socket Depth : 0.180" (4.57mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)
0
53714 in stock

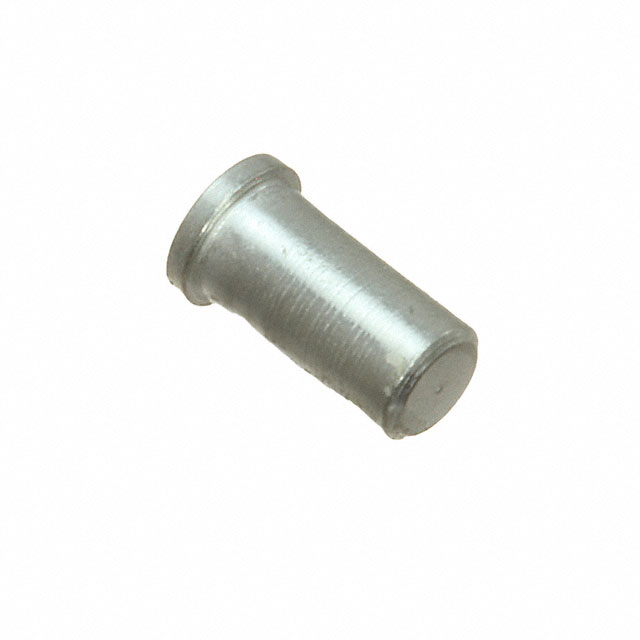

Picture of 0364-0-15-80-13-80-10-0

0364-0-15-80-13-80-10-0 0364-0-15-80-13-80-10-0

Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 0364
Part Status : Active
Tail Type : No Tail
Termination : Solder
Length - Overall : 0.213" (5.41mm)
Accepts Pin Diameter : 0.048" ~ 0.064" (1.22mm ~ 1.63mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.088" (2.24mm)
Mounting Hole Diameter : 0.100" (2.54mm)
Flange Diameter : 0.120" (3.05mm)
Tail Diameter : -
Socket Depth : 0.180" (4.57mm)
Contact Material : Beryllium Copper
Contact Finish : Tin
Contact Finish Thickness : 200.0µin (5.08µm)
0
1000 in stock

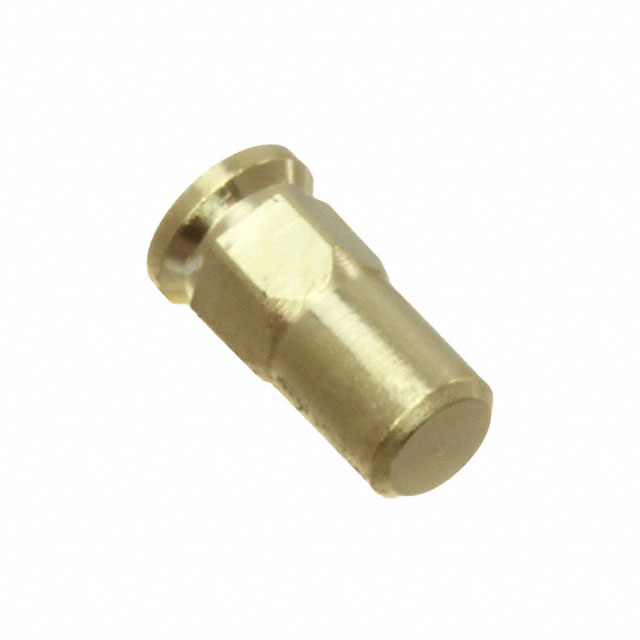

Picture of 0365-0-15-15-23-27-10-0

0365-0-15-15-23-27-10-0 0365-0-15-15-23-27-10-0

Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 365
Part Status : Active
Tail Type : No Tail
Termination : Press-Fit, Hex
Length - Overall : 0.223" (5.66mm)
Accepts Pin Diameter : 0.045" ~ 0.065" (1.14mm ~ 1.65mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.088" (2.24mm)
Mounting Hole Diameter : 0.105" (2.67mm)
Flange Diameter : 0.120" (3.05mm)
Tail Diameter : -
Socket Depth : 0.190" (4.83mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)
0
1000 in stock

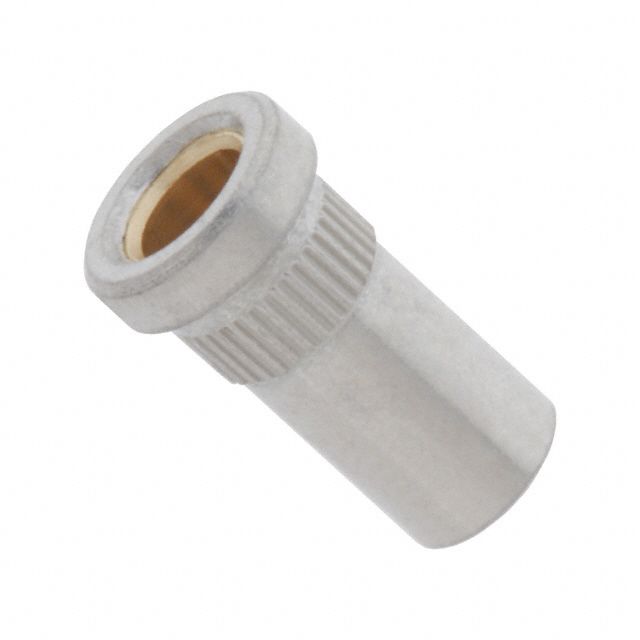

Picture of 0366-0-15-01-13-27-10-0

0366-0-15-01-13-27-10-0 0366-0-15-01-13-27-10-0

Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 366
Part Status : Active
Tail Type : No Tail
Termination : Press-Fit
Length - Overall : 0.250" (6.35mm)
Accepts Pin Diameter : 0.048" ~ 0.064" (1.22mm ~ 1.63mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.088" (2.24mm)
Mounting Hole Diameter : 0.109" (2.77mm)
Flange Diameter : 0.137" (3.48mm)
Tail Diameter : -
Socket Depth : 0.250" (6.35mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)
0
4866 in stock
Picture of 0366-0-15-15-13-27-10-0

0366-0-15-15-13-27-10-0 0366-0-15-15-13-27-10-0

Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 366
Part Status : Active
Tail Type : No Tail
Termination : Press-Fit
Length - Overall : 0.250" (6.35mm)
Accepts Pin Diameter : 0.048" ~ 0.064" (1.22mm ~ 1.63mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.088" (2.24mm)
Mounting Hole Diameter : 0.109" (2.77mm)
Flange Diameter : 0.137" (3.48mm)
Tail Diameter : -
Socket Depth : 0.250" (6.35mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)
0
10037 in stock
Picture of 0366-0-15-21-13-35-10-0

0366-0-15-21-13-35-10-0 0366-0-15-21-13-35-10-0

Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : -
Series : *
Part Status : Active
Tail Type : -
Termination : -
Length - Overall : -
Accepts Pin Diameter : -
Accepts Square Pin Size : -
Pin Hole Diameter : -
Mounting Hole Diameter : -
Flange Diameter : -
Tail Diameter : -
Socket Depth : -
Contact Material : -
Contact Finish : -
Contact Finish Thickness : -
0
1500 in stock
